CN210511850U - Energy-saving windshield

Info

Publication number: CN210511850U
Application number: CN201921596154.6U
Authority: CN
Inventors: 江又强
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-09-24
Filing date: 2019-09-24
Publication date: 2020-05-12
Anticipated expiration: 2029-09-24

Abstract

The utility model discloses an energy-conserving windshield, the rain cover comprises a cover body, the cover body is equipped with last wind-proof circle, wind-proof circle down respectively, on prevent wind the circle and prevent wind down and be connected with the wind-proof board between the circle, prevent wind inboard wall round and evenly be equipped with the support, be equipped with the rectangular channel in the support, the weight of the pot body and food and support laminating contain around the bottom of a boiler. In order to prevent the wind shield from clinging to the pot bottom and ensure that each bracket is inclined inwards at 45 degrees, a certain gap is reserved between each bracket and the pot bottom, and the residual flame can conveniently pass through. The bottom of a boiler can be pressed close to the flame of burning like this, and can not receive the influence that has wind around through the setting of preventing wind the board, is favorable to the abundant emission that burns and reduces carbon monoxide, just the utility model discloses do benefit to the heat radiation principle and play and gather fire and energy-conserving effect to design simple structure, the cost of manufacture is low, is suitable for the pan and the cooking utensils of any shape.

Description

Energy-saving windshield

Technical Field

The utility model belongs to the technical field of the accessory of stove, concretely relates to energy-conserving windshield.

Background

At present, when household gas cookers and briquette cookers cook food, the flame of the household gas cookers and the briquette cookers is easy to weaken the combustion degree of fire at the periphery of a pot bottom, particularly, when the surrounding environment is windy, flames are blown to the side of the pot bottom, so that the loss of combustion value is caused, and the traditional cookers are not suitable for cookers in various shapes, have poor windproof effect, do not gather fire, greatly increase the use amount of gas, cannot achieve the energy-saving effect, cannot enable natural gas to be fully combusted, and increase the emission pollution of carbon monoxide.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing an energy-conserving windshield to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an energy-conserving windshield, includes the cover body, the cover body is equipped with last wind-proof circle, down wind-proof circle respectively, go up wind-proof circle and be connected with the wind-proof board down between the wind-proof circle, wind-proof board inner wall round evenly is equipped with the support, be equipped with the rectangular channel in the support.

Preferably, the bracket inclines downwards 45 degrees from the inner end of the upper windproof ring to the top end of the inner side of the rectangular groove.

Preferably, the bracket and the rectangular groove are integrated and are both in an inward inclined convex shape.

Preferably, the upper wind-proof ring is connected with the lower wind-proof ring into a whole through the wind-proof plate.

The utility model discloses a technological effect and advantage: when the energy-saving wind shield is used, the shield body is circular, and the outer diameter of the upper wind shield ring is slightly larger than the combustion generation area of the lower wind shield ring. The last wind ring of preventing through the cover body is equipped with the wind-proof board with a week down between the wind ring, support and the rectangular channel that are equipped with on the wind-proof board, and the one end of support and rectangular channel with last wind ring, the other end with prevent wind the circle down and be connected, just, the both sides end connection of every support is on preventing wind the board. When the pot body is placed on the energy-saving windproof cover, the pot body is pressed on the bracket, and the weight of the pot body and food is attached to the bracket and covers the periphery of the pot bottom. In order to prevent the wind shield from clinging to the pot bottom and ensure that each bracket is inclined inwards at 45 degrees, a certain gap is reserved between each bracket and the pot bottom, and the residual flame can conveniently pass through. The bottom of a boiler can be pressed close to the flame of burning like this, and can not receive the influence that has wind around through the setting of preventing wind the board, is favorable to the abundant emission that burns and reduces carbon monoxide, just the utility model discloses do benefit to the heat radiation principle and play and gather fire and energy-conserving effect to design simple structure, the cost of manufacture is low, is suitable for the pan and the cooking utensils of any shape.

Drawings

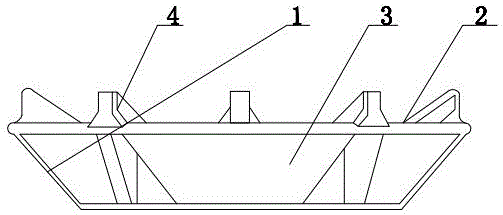

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of a side view mechanism of the present invention;

fig. 3 is a schematic view of the top view structure of the present invention.

In the figure: 1. a cover body; 2. an upper windproof ring; 3. a windbreak panel; 4. a support; 5. a rectangular groove; 6. and a lower windproof ring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides an energy-conserving windshield, includes the cover body 1, the cover body 1 is equipped with wind-proof circle 2 respectively, wind-proof circle 6 down, go up wind-proof circle 2 and wind-proof circle 6 down between be connected with wind-

proof board

3, 3 inner wall rounds of wind-proof board evenly are equipped with support 4, be equipped with rectangular channel 5 in the support 4.

Specifically, support 4 from last windproof ring 2 inner downward sloping 45 degrees to 5 inboard tops of rectangular channel, be convenient for pan bottom and support 4's abundant contact.

Specifically, the support 4 and the rectangular groove 5 are integrated and are both in an inward inclined convex shape, so that the full heating of the cooker is facilitated.

Specifically, go up windproof ring 2 and wind ring 6 and link as an organic whole down through preventing wind board 3, do benefit to the emission that fully burns reduction carbon monoxide.

When the energy-saving windproof cooker is used, the cooker body is placed on the energy-saving windproof cover and pressed on the bracket 4, and the weight of the cooker body and food is attached to the bracket 4 and covers the periphery of the cooker bottom. In order to prevent the wind shield from clinging to the pot bottom and ensure that each bracket 4 is inwards inclined at 45 degrees, a certain gap is reserved between each bracket 4 and the pot bottom, so that the residual flame can conveniently pass through. The bottom of a boiler can be pressed close to the flame of burning like this, and can not receive the influence that has wind around through the setting of preventing wind board 3, is favorable to the abundant emission that burns and reduces carbon monoxide, just the utility model discloses do benefit to the heat radiation principle and play and gather fire and energy-conserving effect to design simple structure, the cost of manufacture is low, is suitable for the pan and the cooking utensils of any shape.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. The utility model provides an energy-conserving windshield, includes the cover body (1), its characterized in that: the wind-proof shield is characterized in that the shield body (1) is provided with an upper wind-proof ring (2) and a lower wind-proof ring (6) respectively, a wind-proof plate (3) is connected between the upper wind-proof ring (2) and the lower wind-proof ring (6), a support (4) is uniformly arranged on the inner wall of the wind-proof plate (3) in a circle, and a rectangular groove (5) is arranged in the support (4).

2. An energy efficient windshield according to claim 1 wherein: the support (4) inclines downwards 45 degrees from the inner end of the upper windproof ring (2) to the top end of the inner side of the rectangular groove (5).

3. An energy efficient windshield according to claim 1 wherein: the support (4) and the rectangular groove (5) are integrated and are both designed to be in an inward inclined convex shape.

4. An energy efficient windshield according to claim 1 wherein: the upper windproof ring (2) is connected with the lower windproof ring (6) into a whole through the windproof plate (3).
