Abstract
The utility model discloses a tower cable support for remote transmission of electricity convenient to change support, the on-line screen storage device comprises a base, the middle part welding of base has the bracing piece, and the front side integration of bracing piece is provided with the connecting rod, the outside installation of connecting rod is fixed with spacing frame, one side integration that spacing frame was kept away from to first spring is provided with the connecting block, the other end outside of stopper closely laminates there is the bearing piece, the outside of second spring is provided with the baffle, the rear side integration of bracing piece is provided with the transversal dead lever of personally submitting "E" font structure of rear end, the middle part through connection of limiting plate has the second to adjust the pole, and the outside of one side that the limiting plate was kept away from to the second regulation pole closely laminates there is. This tower cable support for remote transmission of electricity convenient to change support, the convenience is changed and is overhauld the support, can guarantee the stability of single strand cable, avoids the strong wind weather cable to rock and causes danger to can effectively fix.
Description
Technical Field
The utility model relates to a remote transmission of electricity technical field specifically is a tower cable support for remote transmission of electricity convenient to change support.
Background
In the current society with high-speed development of economic technology, long-distance power transmission becomes an important operation part in the field of electric power, generally, a power tower is needed for long-distance power transmission, a cable support is needed for ensuring the stability of a plurality of cables, and the cable supports of the power tower for long-distance power transmission in the market are various but have some defects;
the power tower cable support for remote transmission of electricity that uses at present, inconvenient change and maintenance to the support, easy and simple to handle, the stability of inconvenient assurance single strand cable, the windy weather cable rocks easily and causes danger, consequently, we provide a power tower cable support for remote transmission of electricity convenient to change the support to in solving the problem that proposes in the aforesaid.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a remote transmission of electricity tower cable support convenient to change support to current remote transmission of electricity tower cable support that proposes in solving above-mentioned background art is inconvenient changes and overhauls the support, and is easy and simple to handle, the stability of inconvenient assurance single strand cable, and windy weather cable rocks the problem that causes danger easily.
In order to achieve the above object, the utility model provides a following technical scheme: a tower cable support for remote power transmission convenient for support replacement comprises a base, wherein a support rod is welded in the middle of the base, a connecting rod is integrally arranged at the front side of the support rod, a limiting frame is fixedly installed on the outer side of the connecting rod, a first spring is welded on the inner side of the limiting frame, a connecting block is integrally arranged on one side, away from the limiting frame, of the first spring, one end of a limiting block is arranged on the inner side of the connecting block, a bearing block is tightly attached to the outer side of the other end of the limiting block, a second spring is fixed inside the bearing block, a cable fixing ring is arranged on the inner side of the bearing block, a baffle is arranged on the outer side of the second spring, a first adjusting rod is welded at the front end of the baffle, a fixing rod with a rear cross section in an E-shaped structure is integrally arranged on the rear side of the support rod, and a limiting plate is installed on the outer side of the rear part of the fixing rod, a second adjusting rod penetrates through the middle of the limiting plate, and a positioning plate is tightly attached to the outer part of one side, away from the limiting plate, of the second adjusting rod.
Preferably, the first springs are symmetrically distributed about a vertical central axis and a horizontal central axis of the limiting frame respectively, and the limiting frame is symmetrically distributed about the vertical central axis of the supporting rod.
Preferably, the limiting block and the bearing block are connected in a clamping groove connection mode, and the longitudinal section of the limiting block is of a T-shaped structure.
Preferably, the front side of the first adjusting rod protrudes out of the front side of the bearing block, the first adjusting rod and the baffle form a sliding structure on the bearing block, and the baffle is connected with the connecting block in a clamping groove connecting mode.
Preferably, the inner side of the positioning plate is of an elastic structure, the positioning plate is symmetrically distributed about a horizontal central axis of the fixing block, and the longitudinal sections of the positioning plate and the fixing block are both of a concave-convex structure.
Preferably, the locating plate forms a sliding structure on the limiting plate, the limiting plate is connected with the second adjusting rod in a threaded connection mode, and the second adjusting rod forms a rotating structure on the locating plate.
Compared with the prior art, the beneficial effects of the utility model are that: the tower cable support for long-distance power transmission, which is convenient for replacing the support, is convenient for replacing and overhauling the support, is simple and convenient to operate, can ensure the stability of a single-strand cable, avoids the danger caused by the shaking of the cable in windy weather, and can be effectively fixed;
1. the limiting block fixed on the lower side of the connecting block slides on the bearing block, and the elastic structure of the bearing block fixed on the lower side of the baffle can enable the baffle to automatically rise and be connected with the clamping groove of the connecting block, so that the support is convenient to replace and overhaul, the operation is simple and convenient, and the safety of the support can be ensured;
2. the cable fixing device is provided with the limiting frame, the first springs and the cable fixing ring, and the first springs symmetrically distributed about a horizontal central axis and a vertical central axis of the limiting frame are used for fixing the cable, so that the stability of a single-strand cable can be ensured, and the danger caused by shaking of the cable in windy weather can be avoided;
3. the cable fixing device is provided with a limiting plate, a second adjusting rod and a positioning plate, wherein the second adjusting rod is connected with the limiting plate in a threaded mode through rotation on the limiting plate, the second adjusting rod rotates on the positioning plate and pushes the positioning plate to slide on the limiting plate, and the positioning plate slides towards the direction of the fixing block to fix a cable and can be effectively fixed.
Drawings

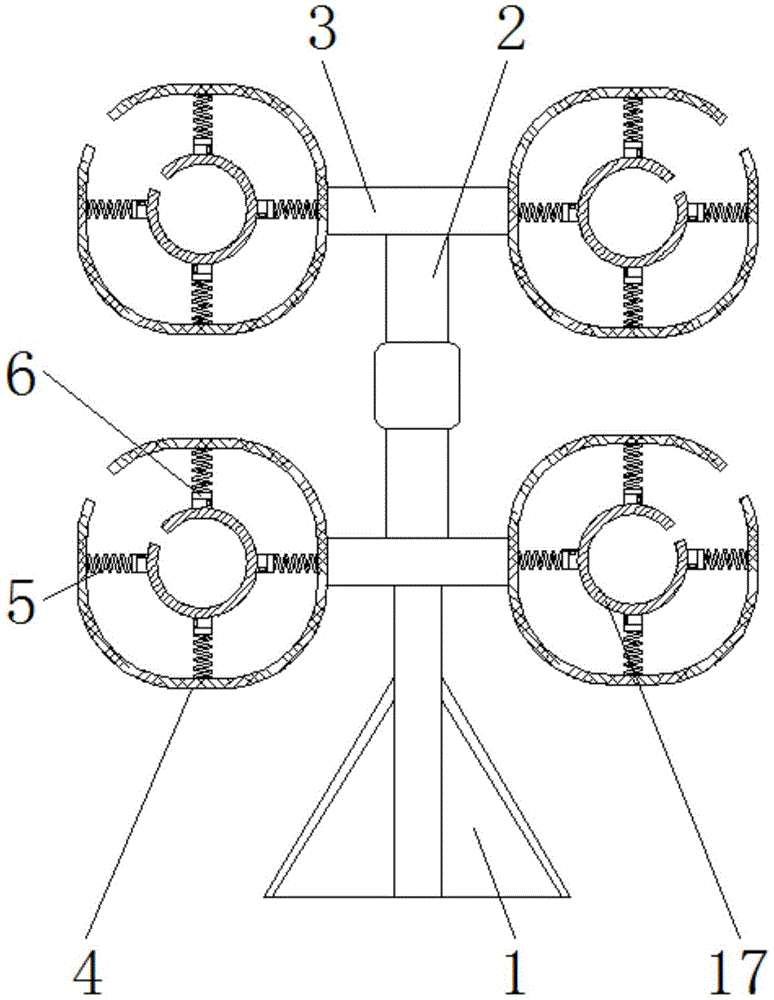

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic view of the connection structure of the limiting block and the receiving block of the present invention;
FIG. 3 is a schematic view of the connecting side view section structure of the baffle and the connecting block of the present invention;
fig. 4 is a schematic top view of the cross-sectional structure of the present invention;
fig. 5 is the utility model discloses the second is adjusted pole and is looked section structure schematic diagram just with limiting plate connection.
In the figure: 1. a base; 2. a support bar; 3. a connecting rod; 4. a limiting frame; 5. a first spring; 6. connecting blocks; 7. a limiting block; 8. a bearing block; 9. a second spring; 10. a baffle plate; 11. a first adjusting lever; 12. fixing the rod; 13. a limiting plate; 14. a second adjusting lever; 15. positioning a plate; 16. a fixed block; 17. the cable retainer plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a tower cable support for long-distance power transmission convenient for replacing a support comprises a base 1, a support rod 2, a connecting rod 3, a limiting frame 4, a first spring 5, a connecting block 6, a limiting block 7, a bearing block 8, a second spring 9, a baffle 10, a first adjusting rod 11, a fixing rod 12, a limiting plate 13, a second adjusting rod 14, a positioning plate 15, a fixing block 16 and a cable fixing ring 17, wherein the support rod 2 is welded in the middle of the base 1, the connecting rod 3 is integrally arranged on the front side of the support rod 2, the limiting frame 4 is fixedly arranged on the outer side of the connecting rod 3, the first spring 5 is welded on the inner side of the limiting frame 4, the connecting block 6 is integrally arranged on one side of the first spring 5 away from the limiting frame 4, one end of the limiting block 7 is arranged on the inner side of the connecting block 6, the bearing block 8 is tightly attached to the outer side of the other end of the limiting, and the inboard of the bearing block 8 is installed with cable retainer plate 17, the outside of second spring 9 is provided with baffle 10, and the welding of the front end of baffle 10 has first regulation pole 11, the rear side integration of bracing piece 2 is provided with the transversal dead lever 12 that personally submits "E" font structure in rear end, and the rear side middle part of dead lever 12 is fixed with fixed block 16, and the limiting plate 13 is installed to the rear outside of dead lever 12, the middle part through connection of limiting plate 13 has second regulation pole 14, and the outside of one side that limiting plate 13 was kept away from to second regulation pole 14 closely laminates locating plate 15.
As shown in fig. 1, the first springs 5 are symmetrically distributed about a vertical central axis and a horizontal central axis of the limiting frame 4, and the limiting frame 4 is symmetrically distributed about a vertical central axis of the support rod 2, so that a cable can be effectively fixed and can be prevented from shaking, as shown in fig. 2, the limiting block 7 is connected with the receiving block 8 in a clamping groove connection mode, and the longitudinal section of the limiting block 7 is of a 'T' -shaped structure, so that the cable is convenient to disassemble and assemble, and the operation is simple and convenient, as shown in fig. 3, the front side of the first adjusting rod 11 is arranged to protrude out of the front side of the receiving block 8, the first adjusting rod 11 and the baffle 10 both form a sliding structure on the receiving block 8, and the baffle 10 is connected with the connecting block 6 in a clamping;
the inboard of locating plate 15 is elastic structure as in fig. 5, and locating plate 15 is about the horizontal axis symmetric distribution of fixed block 16, and the longitudinal section of locating plate 15 and fixed block 16 all is concave-convex structure, effectively fixes stranded cable, locating plate 15 constitutes sliding structure on limiting plate 13 as in fig. 5, and limiting plate 13 and second regulation pole 14 adopt threaded connection's mode to be connected, and second regulation pole 14 constitutes revolution mechanic on locating plate 15, conveniently adjust the elasticity, make things convenient for the dismouting.
The working principle is as follows: when the tower cable support convenient for replacing the support for long-distance power transmission is used, as shown in the attached drawings 1, 2 and 3, firstly, the first adjusting rod 11 is pulled downwards, the baffle 10 installed on the rear side of the first adjusting rod 11 is separated from being connected with the clamping groove of the connecting block 6, the limiting block 7 fixed on the lower side of the connecting block 6 slides on the bearing block 8, the first adjusting rod 11 is loosened, the baffle 10 can automatically ascend through the elastic structure of the bearing block 8 fixed on the lower side of the baffle 10 and is connected with the clamping groove of the connecting block 6, the limiting block 7 and the connecting block 6 are limited, and the first spring 5 welded on the outer side of the limiting frame 4 can avoid driving other cables to shake when a single cable shakes;
as shown in fig. 4 and 5, the cable is placed in the limiting frame 4 and the cable fixing ring 17, the cable fixing ring 17 with an elastic structure can effectively fix and support the cable, as shown in fig. 5, the cable passes through the positioning plate 15 and the fixing block 16, the second adjusting rod 14 in threaded connection with the positioning plate 13 is rotated on the limiting plate 13, the second adjusting rod 14 rotates on the positioning plate 15 and pushes the positioning plate 15 to slide on the limiting plate 13, the positioning plate 15 slides towards the fixing block 16 to fix the cable, the positioning plate 15 with an elastic structure can avoid damage to the cable, so as to complete a series of operations of the tower cable bracket for remote power transmission, which is convenient for replacing the bracket, and the content not described in detail in the description belongs to the prior art known by those skilled in the art.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides a tower cable support for remote transmission of electricity convenient to change support, includes base (1), its characterized in that: the middle part welding of base (1) has bracing piece (2), and the front side integration of bracing piece (2) is provided with connecting rod (3), the outside installation of connecting rod (3) is fixed with spacing frame (4), and the inboard welding of spacing frame (4) has first spring (5), one side integration that spacing frame (4) were kept away from in first spring (5) is provided with connecting block (6), and the inboard one end of installing stopper (7) of connecting block (6), the other end outside of stopper (7) closely laminates and has bearing block (8), and the inside of bearing block (8) is fixed with second spring (9) to the cable retainer plate (17) is installed to the inboard of bearing block (8), the outside of second spring (9) is provided with baffle (10), and the front end welding of baffle (10) has first regulation pole (11), the rear side integration of bracing piece (2) is provided with the transversal dead lever that personally submits "E" font structure in rear end (12) And the middle part of the rear side of the fixed rod (12) is fixed with a fixed block (16), a limiting plate (13) is installed outside the rear side of the fixed rod (12), the middle part of the limiting plate (13) is connected with a second adjusting rod (14) in a penetrating way, and the outside of one side of the limiting plate (13) away from the second adjusting rod (14) is tightly attached with a positioning plate (15).
2. A tower cable support for long distance transmission to facilitate replacement of the support according to claim 1, wherein: the first springs (5) are symmetrically distributed about a vertical central axis and a horizontal central axis of the limiting frame (4) respectively, and the limiting frame (4) is symmetrically distributed about the vertical central axis of the supporting rod (2).
3. A tower cable support for long distance transmission to facilitate replacement of the support according to claim 1, wherein: the limiting block (7) and the bearing block (8) are connected in a clamping groove connection mode, and the longitudinal section of the limiting block (7) is of a T-shaped structure.
4. A tower cable support for long distance transmission to facilitate replacement of the support according to claim 1, wherein: the front side of the first adjusting rod (11) is protruded out of the front side of the bearing block (8), the first adjusting rod (11) and the baffle (10) form a sliding structure on the bearing block (8), and the baffle (10) is connected with the connecting block (6) in a clamping groove connecting mode.
5. A tower cable support for long distance transmission to facilitate replacement of the support according to claim 1, wherein: the inner side of the positioning plate (15) is of an elastic structure, the positioning plate (15) is symmetrically distributed about a horizontal central axis of the fixing block (16), and the longitudinal sections of the positioning plate (15) and the fixing block (16) are both of a concave-convex structure.
6. A tower cable support for long distance transmission to facilitate replacement of the support according to claim 1, wherein: the positioning plate (15) forms a sliding structure on the limiting plate (13), the limiting plate (13) is connected with the second adjusting rod (14) in a threaded connection mode, and the second adjusting rod (14) forms a rotating structure on the positioning plate (15).
