CN210178512U

CN210178512U - Vehicle-mounted wind power generation device

Info

Publication number: CN210178512U
Application number: CN201921284963.3U
Authority: CN
Inventors: Weikang Qiao; 乔伟康; Hongzhong Hui; 惠鸿忠; Lian Chen; 陈莲; Chunying Gao; 高春英; Zhonglai Tian; 田忠来; Tao Song; 宋涛
Original assignee: Liaocheng University
Current assignee: Liaocheng University
Priority date: 2019-08-09
Filing date: 2019-08-09
Publication date: 2020-03-24
Anticipated expiration: 2029-08-09

Abstract

The utility model discloses an on-vehicle wind power generation set, expand the module including lifting module and fan. The lifting module comprises an upper end plate, a first connecting frame rod, a second connecting frame rod, a bottom push rod motor, a lower end plate and a bottom crank. The fan unfolding module comprises a generator base, a vertical shaft generator, an upper crank, a connecting rod, a sliding block, a central plate, an upper push rod motor and a fixed block. The utility model discloses simple to operate can all use in driving, the parking process, can fold up simultaneously, and occupation space is little.

Description

Vehicle-mounted wind power generation device

Technical Field

The utility model belongs to the power generation facility field, concretely relates to on-vehicle wind power generation set.

Background

In rural life, agricultural vehicles are indispensable transport means for farmers. Along with the higher and higher requirements of farmers on the quality of life, the farmers have greater and greater requirements on the indoor electricity consumption of agricultural vehicles, such as illumination electricity consumption, fan electricity consumption and the like. The importance of vehicle-mounted wind power generation devices is increasing. At present, the vehicle-mounted wind power generation device has the problems of low power generation efficiency, large occupied space when not used and the like. At present, a horizontal shaft wind driven generator is mostly adopted by a vehicle-mounted wind power generation device, and wind needs to be aligned during use, so that the defect of complex structure exists. Meanwhile, the generating efficiency of the horizontal axis wind driven generator can be guaranteed only in the driving process, and the wind driven generator can consume the kinetic energy of a vehicle in the using process, so that the oil consumption of the vehicle is increased.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is: overcome prior art's not enough, provide an on-vehicle wind power generation set, the utility model discloses simple to operate can all use driving, parking in-process, can fold up simultaneously, and occupation space is little.

The utility model provides a technical scheme that the problem that its exists adopted is:

a vehicle-mounted wind power generation device comprises a lifting module and a fan unfolding module.

The lifting module comprises an upper end plate, a first connecting frame rod, a second connecting frame rod, a bottom push rod motor, a lower end plate and a bottom crank. The bottom plate is characterized in that a lower end supporting rod is downwards arranged at the front end of the bottom surface of the upper end plate, a bottom crank is connected between the tail end of the lower end supporting rod and the lower end plate, the upper end of the bottom crank is rotatably connected with the lower end supporting rod, the lower end of the bottom crank is rotatably connected with the lower end plate, a first connecting rod and a second connecting rod are connected between the rear end of the upper end plate and the rear end of the lower end plate, the first connecting rod and the second connecting rod are arranged in parallel, the top end of the first connecting rod and the top end of the second connecting rod are respectively rotatably connected with the upper end plate, the bottom end of the first connecting rod and the bottom end of the second connecting rod are respectively rotatably connected with the lower end plate, a front end telescopic rod of a bottom push rod motor is fixedly connected with the lower end supporting rod, and a rotating.

The fan unfolding module comprises a generator base, a vertical shaft generator, an upper crank, a connecting rod, a sliding block, a central plate, an upper push rod motor and a fixed block. The fixed block pass through connecting rod and the upper end plate fixed connection of lower extreme, the fixed block rear end face backward be equipped with the slide bar that the level was arranged, slide bar and upper portion push rod motor fixed connection, upper portion push rod motor drive end be equipped with flexible pipe, flexible pipe box locate on the slide bar, slider and flexible pipe front end fixed connection, the slider slide and set up on the slide bar, the fixed block front end be equipped with well core plate, upper portion crank rotate with well core plate terminal surface through pivot III and be connected, upper portion crank on be equipped with the generator base, vertical axis generator be fixed in on the generator base, connecting rod one end rotate with the slider terminal surface through pivot II and be connected, the connecting rod other end rotate with upper portion crank through pivot I and be connected.

Preferably, 1-3 upper cranks are uniformly distributed on the central plate.

Preferably, the lower end plate is provided with a plurality of fixing holes.

Preferably, the upper end plate is provided with a motor supporting plate, and the upper end surface of the motor supporting plate is fixedly connected with the upper push rod motor.

Preferably, the connecting rod is fixedly connected with the front end of the upper end face of the upper end plate.

Compared with the prior art, the utility model discloses beneficial effect who has:

(1) the utility model discloses use link mechanism as elevating system to and adopt umbelliform structrual installation aerogenerator, realized the collapsible of whole device, when having solved current on-vehicle wind power generation set and not using, occupied space big problem.

(2) The utility model discloses use vertical axis aerogenerator, need not to the wind, simplified the structure of device, also can use when the parking simultaneously.

(3) The utility model discloses a three vertical axis aerogenerator each other becomes 120 degrees distributions on the circumference, has improved the wind energy utilization ratio to being on a parallel with a certain vertical axis aerogenerator pivot direction incoming wind.

Drawings

The present invention will be further explained with reference to the drawings and examples.

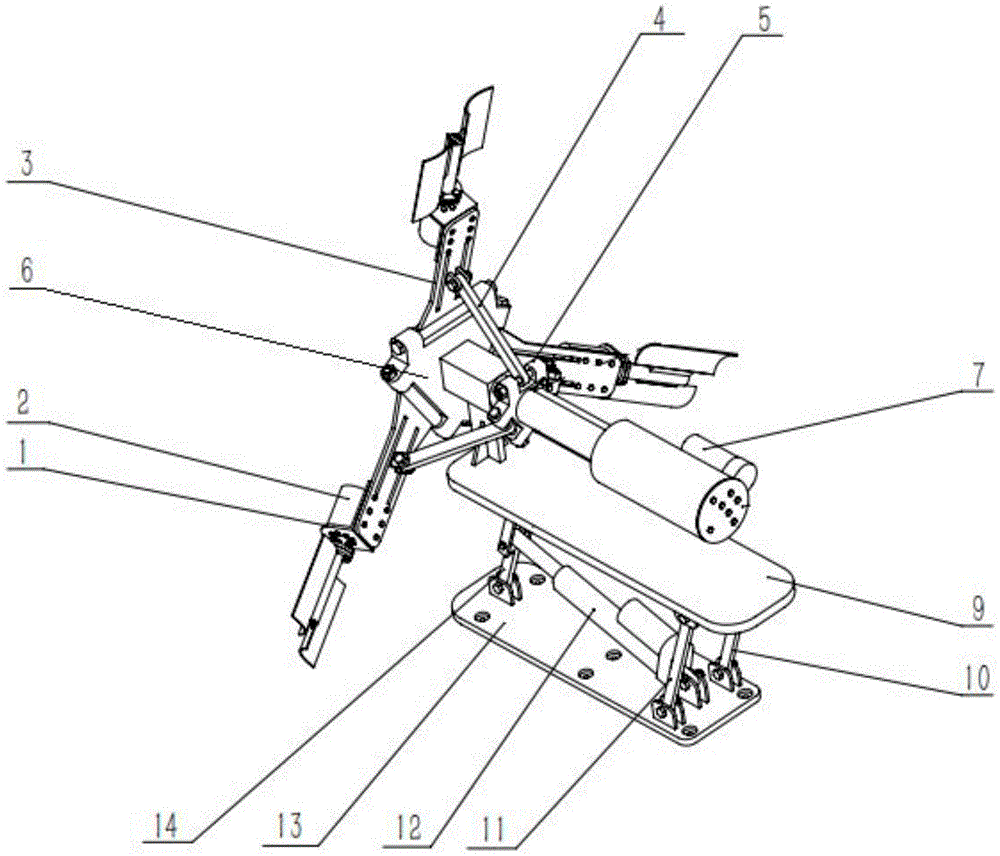

FIG. 1 is a schematic view of a vehicular wind power generation device of the present invention,

figure 2 is a middle sectional view of the utility model,

figure 3 is a cross-sectional view of the plane a-a of the present invention,

fig. 4 is a folding schematic view of the vertical axis wind turbine of the present invention.

In the figure, 1-a generator base, 2-a vertical shaft generator, 3-an upper crank, 3 a-a supporting plate, 3 b-a rotating shaft I, 4-connecting rods, 5-sliding blocks, 5 a-a rotating shaft II, 6-a central plate, 6 a-a rotating shaft III, 7-an upper push rod motor, 7 a-a telescopic pipe, 8-a fixed block, 8 a-connecting rods, 8 b-sliding rods, 9-an upper end plate, 9 a-a lower end supporting rod, 9 b-a motor towing rod, 10-a second connecting rod, 11-a first connecting rod, 12-a bottom push rod motor, 12 a-telescopic rods, 12 b-rotating rods, 13-a lower end plate, 13 a-fixed holes and 14-a bottom crank.

Detailed Description

The attached drawings are the best embodiments of the vehicle-mounted wind power generation device, and the invention is further described in detail with reference to the attached drawings.

As shown in fig. 1, 2 and 3, a vehicle-mounted wind power generation device includes a lifting module and a fan deployment module.

The lifting module comprises an upper end plate 9, a first connecting rod 10, a second connecting rod 11, a bottom push rod motor 12, a lower end plate 13 and a bottom crank 14. The front end of the bottom surface of the upper end plate 9 is downwards provided with a lower end supporting rod 9a, a bottom crank 14 is connected between the tail end of the lower end supporting rod 9a and the lower end plate 13, the upper end of the bottom crank 14 is rotatably connected with the lower end supporting rod 9a, and the lower end of the bottom crank 14 is rotatably connected with the lower end plate 13. A first side link 10 and a second side link 11 are connected between the rear end of the upper end plate 9 and the rear end of the lower end plate 13, and the first side link 10 and the second side link 11 are arranged in parallel. The top ends of the first side link 10 and the second side link 11 are respectively rotatably connected with the upper end plate 9, and the bottom ends of the first side link 10 and the second side link 11 are respectively rotatably connected with the lower end plate 13. The front end telescopic rod 12a of the bottom push rod motor 12 is fixedly connected with the lower end supporting rod 9a, the rear end of the bottom push rod motor 12 is provided with a rotating rod 12b, the rotating rod 12b is rotatably connected with the lower end plate 13, and the rotating part of the rotating rod 12b, which is rotatably connected with the lower end plate 13, is positioned between the bottom end of the first side link 10 and the second side link 11.

The lower end plate 13 is provided with a plurality of fixing holes 13 a. The fixing block 13a is a through hole or a threaded hole, and the bolt fixes the lower end plate 13 on the agricultural vehicle through the fixing block 13 a.

The fan unfolding module comprises a generator base 1, a vertical shaft generator 2, an upper crank 3, a connecting rod 4, a sliding block 5, a central plate 6, an upper push rod motor 7 and a fixed block 8. The fixed block 8 is fixedly connected with the upper end plate 9 through a connecting rod 8a at the lower end, and the connecting rod 8a is fixedly connected with the front end of the upper end face of the upper end plate 9. The rear end face of the fixed block 8 is backwards provided with a sliding rod 8b which is horizontally arranged, and the sliding rod 8b is fixedly connected with the upper push rod motor 7. The drive end of the upper push rod motor 7 is provided with a telescopic pipe 7a, and the telescopic pipe 7a is sleeved on a slide rod 8 b. The slide block 5 is fixedly connected with the front end of the extension tube 7a, and the slide block 5 is arranged on the slide rod 8b in a sliding manner. The front end of the fixed block 8 is provided with a central plate 6, and the upper crank 3 is rotationally connected with the end face of the central plate 6 through a rotating shaft III 6 a. Well 6 on the equipartition have 1 ~ 3

upper portion cranks

3, 6 terminal surface equipartitions of center plate have three upper portion cranks 3 in this embodiment, three upper portion cranks 3 each other become 120 distributions. The upper crank 3 is provided with a generator base 1, and the vertical axis generator 2 is fixed on the generator base 1. When the upper crank 3 is unfolded and is in a vertical state, the vertical axis generator 2 is positioned on the front end surface of the upper crank 3, and the back end surface of the upper crank 3 is provided with a supporting plate 3 a. One end of the connecting rod 4 is rotatably connected with the end face of the sliding block 5 through a rotating shaft II 5a, and the other end of the connecting rod 4 is rotatably connected with the supporting plate 3a on the upper crank 3 through a rotating shaft I3 b. Each upper crank 3 is associated with a connecting rod 4, said connecting rod 4 being rotatably connected to a slider 5.

The upper end plate 9 is provided with a motor supporting plate 9b, and the upper end surface of the motor supporting plate 9b is fixedly connected with the upper push rod motor 7.

Fig. 4 is a schematic view of the device in a folded state, and the motion process when the device is unfolded in this embodiment is that the bottom push rod motor 12 extends to push the bottom crank 14 to rotate, and the upper end plate 9 moves along with the rotation, so as to realize the lifting of the fan unfolding module. After the upper end plate 9 reaches a predetermined position, which is the position of the upper end plate 9 when the device normally works, the upper push rod motor 7 extends, the slide block 5 moves along with the extension of the upper push rod motor, and the upper crank 3 rotates due to the movement of the slide block 5, so that the upper crank is unfolded, and the vertical axis generator 2 is in a vertical state.

The utility model discloses vertical axis generator 2, upper portion push rod motor 7, bottom push rod motor 12 all adopt prior art, and upper portion push rod motor 7, bottom push rod motor 12 can adopt electric telescopic handle.

The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the above embodiments, and various changes can be made without departing from the gist of the present invention within the knowledge of those skilled in the art.

Claims

1. A vehicle-mounted wind power generation device is characterized in that:

comprises a lifting module and a fan unfolding module,

the lifting module comprises an upper end plate (9), a first connecting rod (10), a second connecting rod (11), a bottom push rod motor (12), a lower end plate (13) and a bottom crank (14), wherein a lower end support rod (9a) is downwards arranged at the front end of the bottom surface of the upper end plate (9), the bottom crank (14) is connected between the tail end of the lower end support rod (9a) and the lower end plate (13), the upper end of the bottom crank (14) is rotatably connected with the lower end support rod (9a), the lower end of the bottom crank (14) is rotatably connected with the lower end plate (13), the first connecting rod (10) and the second connecting rod (11) are connected between the rear end of the upper end plate (9) and the rear end of the lower end plate (13), the first connecting rod (10) and the second connecting rod (11) are arranged in parallel, and the top ends of the first connecting rod (10) and the second connecting rod (11) are respectively rotatably connected with the upper end plate (9), the bottom ends of the first side link (10) and the second side link (11) are respectively rotatably connected with the lower end plate (13), a front end telescopic rod (12a) of the bottom push rod motor (12) is fixedly connected with a lower end support rod (9a), the rear end of the bottom push rod motor (12) is provided with a rotating rod (12b), the rotating rod (12b) is rotatably connected with the lower end plate (13),

the fan unfolding module comprises a generator base (1), a vertical axis generator (2), an upper crank (3), a connecting rod (4), a sliding block (5), a central plate (6), an upper push rod motor (7) and a fixed block (8), wherein the fixed block (8) is fixedly connected with an upper end plate (9) through a connecting rod (8a) at the lower end, a horizontally arranged sliding rod (8b) is arranged backwards on the rear end surface of the fixed block (8), the sliding rod (8b) is fixedly connected with the upper push rod motor (7), a telescopic pipe (7a) is arranged at the driving end of the upper push rod motor (7), the telescopic pipe (7a) is sleeved on the sliding rod (8b), the sliding block (5) is fixedly connected with the front end of the telescopic pipe (7a), the sliding block (5) is arranged on the sliding rod (8b) in a sliding manner, the central plate (6) is arranged at the front end of the fixed, upper portion crank (3) rotate with well core plate (6) terminal surface through pivot III (6a) and be connected, upper portion crank (3) on be equipped with generator base (1), vertical axis generator (2) be fixed in on generator base (1), connecting rod (4) one end rotate with slider (5) terminal surface through pivot II (5a) and be connected, connecting rod (4) other end rotate with upper portion crank (3) through pivot I (3b) and be connected.

2. The vehicular wind power generation device according to claim 1, characterized in that:

and 1-3 upper cranks (3) are uniformly distributed on the central plate (6).

3. The vehicular wind power generation device according to claim 1, characterized in that:

the lower end plate (13) is provided with a plurality of fixing holes (13 a).

4. The vehicular wind power generation device according to claim 1, characterized in that:

the upper end plate (9) is provided with a motor supporting plate (9b), and the upper end face of the motor supporting plate (9b) is fixedly connected with an upper push rod motor (7).

5. The vehicular wind power generation device according to claim 1, characterized in that:

the connecting rod (8a) is fixedly connected with the front end of the upper end face of the upper end plate (9).
