CN210054432U

CN210054432U - Flour mixer

Info

Publication number: CN210054432U
Application number: CN201920544754.1U
Authority: CN
Inventors: 潘友志
Original assignee: Lujiang Zhiqin Noodle Co Ltd
Current assignee: Lujiang Zhiqin Noodle Co Ltd
Priority date: 2019-04-20
Filing date: 2019-04-20
Publication date: 2020-02-14
Anticipated expiration: 2029-04-20

Abstract

The utility model relates to a flour mixer, which comprises a bracket, a mixing tank fixed above the bracket, a mixing shaft extending into the mixing tank, a mixing component arranged on the mixing shaft, a cleaning component used for cleaning the inner wall of the mixing tank, and a motor driving the mixing shaft to rotate, wherein a fixed plate is fixed above the mixing tank, the motor is fixed on the fixed plate, the output shaft of the motor and the upper end fixed cleaning component of the mixing shaft comprise a sleeve fixedly sleeved on the mixing shaft and a support rod fixed on the side wall of the sleeve, the stirring shaft is rotatably connected with the support rod, a sleeve fixed below the fixed plate and rotatably connected with the stirring shaft, a first gear fixedly sleeved on the sleeve, a second gear fixedly sleeved on the shaft and meshed with the first gear, a connecting block fixed at the lower end of the shaft, and a scraper arranged on the connecting block, wherein the number of teeth of the second gear is less than that of the first gear and is not a divisor of the number of teeth of the first gear. The utility model discloses have the effect that reduces the flour adhesion and adhere at the agitator inner wall, the clearance of being convenient for.

Description

Flour mixer

Technical Field

The utility model belongs to the technical field of the technique of mixer and specifically relates to a flour mixer is related to.

Background

The fine dried noodles are dry noodles with a certain length which are processed by adding salt, alkali, water and the like into wheat flour, and are one of main wheaten foods which are popular among people because of good taste, convenient eating, low price and easy storage. The mechanization degree of the production of the fine dried noodles is improved day by day, the traditional manual dough kneading can not meet the requirements of people, the flour and the water are required to be stirred into a flocculent dough before the noodles are made, then the subsequent production process is carried out, and the stirring of the flour and the water into the flocculent dough is generally completed in a flour mixer.

Chinese patent with publication No. CN203841011U discloses a flour mixer, which comprises a bracket, a mixing tank, a mixing shaft, a mixing gear, a motor gear and a motor, wherein the top of the mixing tank is open, the bottom of the mixing tank is provided with a discharge hole, the mixing gear is sleeved on the mixing shaft, the motor gear is sleeved on a motor shaft of the motor, and the motor rotates to drive the mixing shaft to rotate; the water inlet has been seted up to the one end of (mixing) shaft, and the guiding gutter has been seted up to stirring vane upper surface, and the delivery port has been seted up to the guiding gutter relative position department of (mixing) shaft and stirring vane. The flour mixer can automatically add water, and mix fully and uniformly.

The above prior art solutions have the following drawbacks: the flour and the water form a flocculent dough blank in the stirring process, and the flocculent dough blank is easy to adhere to the inner wall of the stirring barrel and is inconvenient to clean. If the flour stirring is finished, the flour blank adhered to the inner wall of the stirring barrel is not cleaned in time, and the flour blank is easy to solidify on the inner wall of the stirring barrel, so that the cleaning is difficult. The clearance is not thorough, can make when stirring next time, and the flour piece that solidifies drops to the agitator in, the doping has the cubic in the dough base, influences the taste of noodless preparation.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a flour mixer has the effect that reduces the flour adhesion and at the agitator inner wall, is convenient for clear up the agitator inner wall.

The above technical purpose of the present invention can be achieved by the following technical solutions: a flour mixer comprises a support, a mixing tank fixed above the support, a mixing shaft extending into the mixing tank, a mixing assembly arranged on the mixing shaft, a cleaning assembly used for cleaning the inner wall of the mixing tank, and a motor driving the mixing shaft to rotate, wherein a fixed plate is fixed above the mixing tank, the motor is fixed on the fixed plate, and an output shaft of the motor is fixed with the upper end of the mixing shaft; the clearance subassembly is established including fixed cover at the epaxial sleeve of stirring, is fixed branch on the sleeve lateral wall, rotates the pivot of being connected, fixes in the fixed plate below and with the (mixing) shaft rotate the sleeve pipe of being connected, fixed cover establish at the sheathed tube first gear, fixed cover in the pivot and with first gear engagement's second gear, fix the connecting block at the pivot lower extreme, set up the scraper blade on the connecting block, the number of teeth of second gear is less than the number of teeth of first gear and not the divisor of the number of teeth of first gear.

Through adopting above-mentioned technical scheme, starter motor, motor drive (mixing) shaft rotate, and the (mixing) shaft drives the sleeve and rotates, and the sleeve drives second gear along first gear circumferential direction, and pivot drive connecting block drives the scraper blade and rotates. The scraper blade can not be attached to the inner wall of the stirring barrel all the time along with the rotation of the stirring shaft due to the rotation of the rotating shaft driven by the second gear, so that the stirring process cannot generate large resistance. In addition, the number of teeth of the second gear is smaller than that of the first gear and is not a divisor of the number of teeth of the first gear, the second gear rotates for a circle, the scraper blade can scrape the flour on the inner walls of the mixing tanks at different positions, and the flour is prevented from being solidified on the inner walls of the mixing tanks. In the stirring process, the flour can be stirred by the connecting blocks, so that the stirring effect of the flour is improved.

The utility model discloses further set up to: the connecting block is kept away from the one end of pivot seted up with scraper blade joint complex U type groove, the scraper blade with U type groove passes through the bolt fastening, the bolt passes the lateral wall in U type groove with the one end threaded connection of scraper blade has the nut.

Through adopting above-mentioned technical scheme, the connecting block passes through bolted connection with the scraper blade, and connected mode is firm, and the scraper blade wearing and tearing back can be changed alone. In addition, the scraper blade can be dismantled alone and wash, is favorable to wasing the cleaner of scraper blade.

The utility model discloses further set up to: the stirring assembly comprises a stirring rod fixed on the side wall of the stirring shaft and a stirring blade connected to the stirring rod, and the stirring rod is obliquely fixed on the side wall of the stirring shaft.

Through adopting above-mentioned technical scheme, motor drive (mixing) shaft rotates, and the (mixing) shaft drives puddler and stirring vane and rotates together to stir the flour in the agitator. The puddler slope sets up, resistance when can reducing stirring leaf and flour contact, and the length of use of extension stirring leaf is long.

The utility model discloses further set up to: the stirring device is characterized in that a fixing rod is fixed on the stirring blade, one end of the fixing rod, which is far away from the stirring blade, and one end of the stirring rod, which is far away from the stirring shaft, are provided with external threads, the fixing rod is connected with the stirring rod through a threaded sleeve, and an internal thread matched with the external threads in threaded manner is arranged in the threaded sleeve.

Through adopting above-mentioned technical scheme, the stirring leaf belongs to the easy loss article, and the stirring leaf passes through swivel nut releasable connection with the puddler, and after the stirring leaf wearing and tearing, only need change the stirring leaf can, reduce cost of maintenance. After the stirring is finished, dough blanks can be adhered to the stirring blades, and the stirring blades are detached, so that the stirring blades can be cleaned cleanly.

The utility model discloses further set up to: arc-shaped plates are fixed on two sides of the stirring blade.

Through adopting above-mentioned technical scheme, at the fixed arc in stirring leaf both sides, can increase the area of contact of stirring leaf and flour, promote stirring effect.

The utility model discloses further set up to: both sides of the fixed plate are hinged with barrel covers, and handles convenient to open the barrel covers are fixed on the barrel covers.

Through adopting above-mentioned technical scheme, the initial stirring in-process of flour, outside the agitator overflows from the agitator top easily, the one hand leads to the fact the waste, and on the other hand influences the production environment, sets up the bung and can avoid flour to overflow from the agitator top.

The utility model discloses further set up to: the discharging port is formed in the side wall of the stirring barrel, the discharging pipe is connected to the discharging port, and the discharging pipe is close to one end of the discharging port and is connected with a discharging drawing plate in a sliding mode.

Through adopting above-mentioned technical scheme, after flour and water stirred into the flocculent dough base, the board was taken out in the ejection of compact that upwards slides, and the dough base is followed the discharge gate and is followed the discharging pipe blanking.

The utility model discloses further set up to: the upper end lateral wall of agitator is connected with the inlet tube, the inlet tube with the agitator intercommunication.

Through adopting above-mentioned technical scheme, connect the inlet tube and conveniently add water in to the agitator.

To sum up, the utility model discloses a beneficial technological effect does:

1. a scraper is arranged in the stirring barrel, so that flour attached to the inner wall of the stirring barrel can be cleaned while stirring;

2. the scraper plate and the connecting block are detachably connected, so that the scraper plate is convenient to detach for cleaning on one hand, and the scraper plate is convenient to replace independently on the other hand, and the cost is reduced;

3. stirring leaf and puddler releasable connection both conveniently pull down the stirring leaf and wash, conveniently change the stirring leaf again.

Drawings

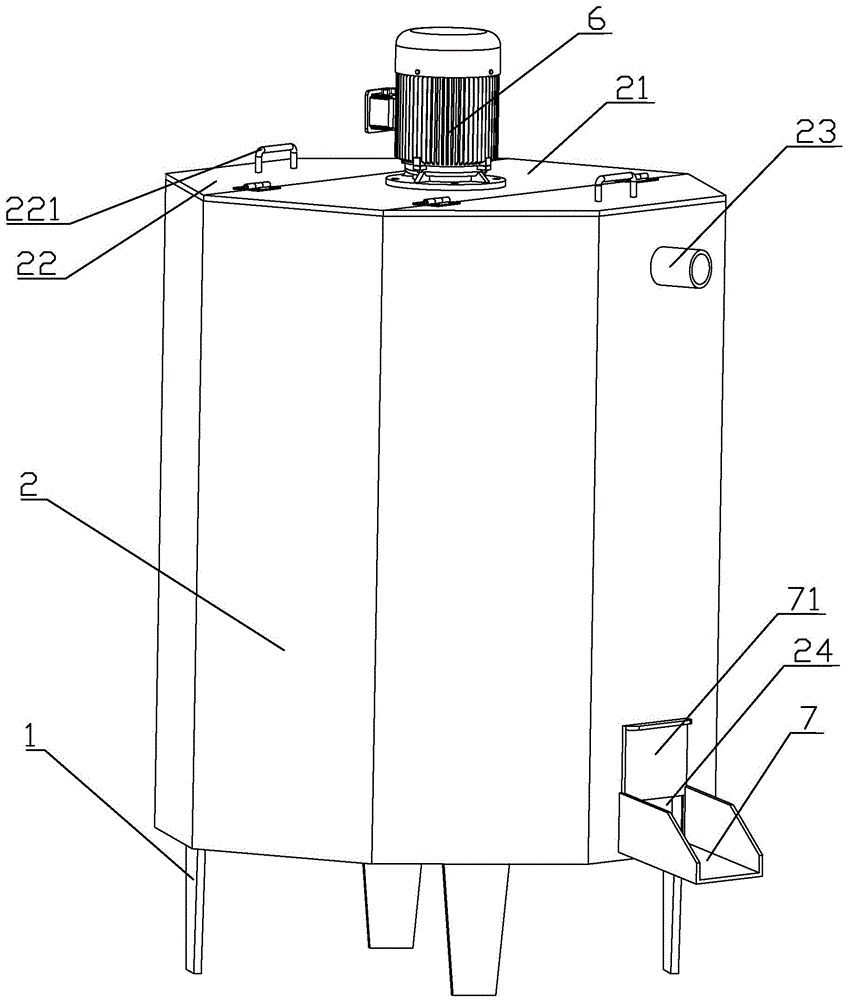

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a schematic structural diagram of the utility model after the stirring barrel is hidden.

Reference numerals: 1. a support; 2. a stirring barrel; 21. a fixing plate; 22. a barrel cover; 221. a handle; 23. a water inlet pipe; 24. a discharge port; 3. a stirring shaft; 4. a stirring assembly; 41. a stirring rod; 42. stirring blades; 421. an arc-shaped plate; 43. fixing the rod; 44. a threaded sleeve; 5. cleaning the assembly; 51. a sleeve; 52. a strut; 53. a rotating shaft; 54. a sleeve; 55. a first gear; 56. a second gear; 57. connecting blocks; 571. a U-shaped groove; 572. a bolt; 573. a nut; 58. a squeegee; 6. a motor; 7. a discharge pipe; 71. and (5) discharging and drawing the plate.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

Referring to fig. 1-2, for the utility model discloses a flour mixer, including support 1, fix agitator 2 above support 1, stretch in agitator 2 (mixing) shaft 3, (mixing) assembly 4 of setting on (mixing) shaft 3, be used for clearing up 2 inner walls of agitator's clearance subassembly 5, drive (mixing) shaft 3 pivoted motor 6.

As shown in fig. 1-2, the stirring barrel 2 is octagonal prism-shaped, the inside of the stirring barrel is hollow cylinder-shaped, a fixing plate 21 is fixed in the middle of the upper end of the stirring barrel 2, the motor 6 is fixed on the fixing plate 21, and the output shaft of the motor 6 passes through the fixing plate 21 and is fixed with the upper end of the stirring shaft 3. Fixed plate 21 both sides articulate respectively has bung 22, is fixed with the handle 221 that is convenient for open bung 22 on the bung 22, and the initial stirring in-process of flour, outside the agitator 2 was escaped from agitator 2 top easily to the flour dust, causes the waste on the one hand, and on the other hand influences the production environment, sets up bung 22 and can avoid flour to escape from agitator 2 top. The lateral wall of the upper end of the stirring barrel 2 is communicated with a water inlet pipe 23, the water inlet pipe 23 is vertical to the lateral wall of the stirring barrel 2, and the water inlet pipe 23 is connected to facilitate water adding into the stirring barrel 2.

As shown in fig. 2, the stirring assembly 4 includes three stirring rods 41 and three stirring blades 42, the three stirring rods 41 are uniformly arranged in the circumferential direction of the stirring shaft 3, and the three stirring rods 41 are respectively fixed on the side wall of the stirring shaft 3. The arc 421 is fixed on both sides of the stirring blade 42, and the arc 421 can increase the contact area between the stirring blade 42 and the flour, so as to improve the stirring effect. A fixing rod 43 is fixed on the stirring blade 42, external threads are arranged at one end, far away from the stirring blade 42, of the fixing rod 43 and one end, far away from the stirring shaft 3, of the stirring rod 41, the stirring rod 41 is in threaded connection with the fixing rod 43, and internal threads matched with the external threads are arranged in the threaded sleeve 44. Stirring leaf 42 belongs to the easy-to-wear article, and stirring leaf 42 passes through swivel nut 44 releasable connection with puddler 41, and the stirring leaf 42 wearing and tearing back only need change stirring leaf 42 can, reduce cost of maintenance. After the stirring is finished, dough blanks can adhere to the stirring blades 42, and the stirring blades 42 are detached, so that the stirring blades 42 can be cleaned conveniently.

As shown in fig. 2, the cleaning assembly 5 includes a sleeve 51, a support rod 52, a rotating shaft 53, a sleeve 54, a first gear 55, a second gear 56, a connecting block 57, and a scraper 58, the sleeve 51 is fixedly sleeved on the stirring shaft 3, the support rod 52 is fixed on a side wall of the sleeve 51, the rotating shaft 53 is perpendicular to the support rod 52, and the rotating shaft 53 penetrates through the support rod 52 and is rotatably connected with the support rod 52. The upper end of the sleeve 54 is fixed on the bottom surface of the fixing plate 21, the stirring shaft 3 rotates circumferentially relative to the sleeve 54, the first gear 55 is fixedly sleeved on the sleeve 54, the second gear 56 is fixedly sleeved on the upper end of the rotating shaft 53, the second gear 56 is meshed with the first gear 55, the number of teeth of the second gear 56 is smaller than the number of teeth of the first gear 55 and is not a divisor of the number of teeth of the first gear 55, the connecting block 57 is fixed on the side wall of the lower end of the rotating shaft 53, one end of the connecting block 57, which is far away from the rotating shaft 53, is provided with a U-shaped groove 571 in clamping fit with the scraper 58, the scraper 58 is fixed with the U-shaped groove 571 through a bolt 572, the bolt 572 penetrates through the. Connecting block 57 is connected with scraper 58 through bolt 572, and the connected mode is firm, and scraper 58 can change scraper 58 alone after wearing and tearing, reduce cost. In addition, during the stirring process, dough blanks can be adhered to the scraper 58, and the scraper 58 can be detached separately for cleaning, so that the scraper 58 can be cleaned more cleanly.

As shown in fig. 1, discharge gate 24 has been seted up on the lateral wall of agitator 2, discharge gate 24 and the inside intercommunication of agitator 2, and discharge gate 24 department is connected with discharging pipe 7, and discharging pipe 7 slope sets up, and discharging pipe 7 is high-end fixed with the lateral wall of agitator 2, and discharging pipe 7's high-end sliding connection has the ejection of compact to take out board 71. After the flour and the water are stirred into flocculent dough blanks, the discharging drawing plate 71 slides upwards, and the dough blanks are discharged along the discharging pipe 7 from the discharging port 24.

The implementation principle of the embodiment is as follows: the cover 22 is opened, flour and other materials required for making noodles are added into the stirring barrel 2, and water is added into the stirring barrel 2 through the water inlet pipe 23. Starting the motor 6, driving the stirring shaft 3 to rotate by the motor 6, driving the stirring rod 41 and the stirring blade 42 to rotate by the stirring shaft 3, stirring flour, and stirring the flour into a flocculent dough. In the stirring process, the stirring shaft 3 drives the sleeve 51 to rotate, the sleeve 51 drives the second gear 56 to rotate along the circumferential direction of the first gear 55, and the rotating shaft 53 drives the connecting block 57 to drive the scraper 58 to rotate. The rotation of the scraper 58 can be caused by the rotation of the rotating shaft 53 driven by the second gear 56 in the process that the scraper 58 rotates along with the stirring shaft 3, and the scraper 58 can not be always attached to the inner wall of the stirring barrel 2, so that the stirring process can not generate large resistance. In addition because of the number of teeth of second gear 56 is less than the number of teeth of first gear 55 and not the submultiple of the number of teeth of first gear 55, second gear 56 rotates the round, and scraper blade 58 can scrape the flour of 2 inner walls of agitator in different positions, avoids flour to solidify on 2 inner walls of agitator. In the stirring process, connecting block 57 can also stir flour, and then improve the stirring effect of flour.

The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. The utility model provides a flour mixer, includes support (1), fixes agitator (2) in support (1) top, stretches (mixing) shaft (3) in agitator (2), sets up stirring subassembly (4) on (mixing) shaft (3), be used for clearing up clearance subassembly (5) of agitator (2) inner wall, drive (mixing) shaft (3) pivoted motor (6), agitator (2) top is fixed with fixed plate (21), motor (6) are fixed on fixed plate (21), the output shaft of motor (6) with the upper end of (mixing) shaft (3) is fixed, its characterized in that: clearance subassembly (5) including fixed cover establish sleeve (51) on (mixing) shaft (3), fix branch (52) on sleeve (51) lateral wall, rotate pivot (53) of being connected with branch (52), fix in fixed plate (21) below and with (mixing) shaft (3) rotation sleeve pipe (54) of being connected, fixed cover establish first gear (55) on sleeve pipe (54), fixed cover establish on pivot (53) and with second gear (56) of first gear (55) meshing, fix connecting block (57) at pivot (53) lower extreme, set scraper blade (58) on connecting block (57), the number of teeth of second gear (56) is less than the number of teeth of first gear (55) and not the divisor of first gear (55) number of teeth.

2. The flour mixer of claim 1, wherein: one end, far away from the rotating shaft (53), of the connecting block (57) is provided with a U-shaped groove (571) matched with the scraper (58) in a clamping mode, the scraper (58) and the U-shaped groove (571) are fixed through a bolt (572), and the bolt (572) penetrates through the side wall of the U-shaped groove (571) and is in threaded connection with one end of the scraper (58) to form a nut (573).

3. The flour mixer of claim 1, wherein: the stirring assembly (4) comprises a stirring rod (41) fixed on the side wall of the stirring shaft (3) and a stirring blade (42) connected to the stirring rod (41), wherein the stirring rod (41) is obliquely fixed on the side wall of the stirring shaft (3).

4. A flour mixer according to claim 3, wherein: the stirring device is characterized in that a fixing rod (43) is fixed on the stirring blade (42), one end of the fixing rod (43) far away from the stirring blade (42) and one end of the stirring rod (41) far away from the stirring shaft (3) are both provided with external threads, the fixing rod (43) is connected with the stirring rod (41) through a threaded sleeve (44), and internal threads matched with the external threads are arranged in the threaded sleeve (44).

5. A flour mixer according to claim 3, wherein: arc-shaped plates (421) are fixed on both sides of the stirring blade (42).

6. The flour mixer of claim 1, wherein: both sides of the fixing plate (21) are hinged with a barrel cover (22), and a handle (221) convenient for opening the barrel cover (22) is fixed on the barrel cover (22).

7. The flour mixer of claim 1, wherein: discharge gate (24) have been seted up on the lateral wall of agitator (2), discharge gate (24) department is connected with discharging pipe (7), discharging pipe (7) are close to the one end sliding connection of discharge gate (24) has the ejection of compact to take out board (71).

8. The flour mixer of claim 1, wherein: be connected with inlet tube (23) on the upper end lateral wall of agitator (2), inlet tube (23) with agitator (2) intercommunication.
