novel crawler belt conveying device comprises a driving device, a driving shaft, a driven shaft and a conveying belt, wherein the left side of the driving device is connected with the end of the driving shaft through a connecting shaft, the driving shaft is provided with a driving wheel, the left side surface and the right side surface of the conveying belt are both provided with supporting frames, the ends of the two supporting frames are both fixedly provided with bearings, the other end side surfaces of the two supporting frames are both fixedly provided with adjusting supports, adjusting bearings are fixedly arranged in the middle of the adjusting supports, the adjusting supports are connected with the adjusting bearings through bolts and are provided with adjusting rods, the two ends of the driven shaft are respectively arranged on the two adjusting bearings, and the driven shaft is provided with a driven wheel.

Description

novel crawler belt conveying device

Technical Field

The utility model relates to an environmental protection sludge treatment technical field especially relates to kinds of novel track conveyor.

Background

Along with the great construction of sewage treatment plants in China, the continuous improvement and improvement of sewage treatment technology, the treatment of sludge becomes an important link which must be considered preferentially in the design and operation of sewage plants, and sludge dewatering equipment is widely applied to industries such as municipal domestic sewage, river water, industrial sewage and the like by .

During sludge treatment, a metal mesh belt is usually adopted in the belt dryer to lay sludge, metal chain wheels are arranged at two sides of a mesh belt shaft, and the metal chain wheels are connected with a chain to drive the mesh belt. The form has the defects of self weight, poor flatness of a conveying surface, high noise and the like.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, the utility model provides an novel track conveying devices, which overcomes the defects of the prior art, improves the strength of the conveying belt, ensures the best planeness, high wear resistance and low friction coefficient through the precise forming process, and has the characteristics of low friction coefficient, good self-lubricating property, corrosion resistance, easy replacement and the like.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes:

novel crawler belt conveying device comprises a driving device, a driving shaft, a driven shaft and a conveying belt, wherein the left side of the driving device is connected with the end of a connecting shaft, the other end of the connecting shaft is fixedly connected with the end of the driving shaft, the driving shaft is equidistantly and fixedly provided with a driving wheel, the conveying belt is movably connected onto the tooth surface of the driving wheel, the left side surface and the right side surface of the conveying belt are respectively provided with a support frame, the ends of the two support frames, which are close to the driving shaft, are respectively and fixedly provided with a bearing, the two ends of the connecting shaft are respectively arranged on the bearings and are movably connected with the bearings, the other end side surfaces of the two support frames are respectively and fixedly provided with an adjusting support, the middle of the adjusting support is fixedly provided with an adjusting bearing, an adjusting rod is connected between the adjusting support and the adjusting bearing through bolts, the two ends.

Preferably, the sliding rail support is uniformly and vertically fixedly installed between the two supporting frames, a plurality of sliding rails are uniformly and vertically fixedly installed in the middle of the sliding rail support at equal intervals, and the sliding rails are located on the lower surface of the upper portion of the conveying belt.

Preferably, two riding wheel shafts are vertically and fixedly installed between the two supporting frames, a plurality of riding wheels are sleeved on the outer surfaces of the riding wheel shafts, the riding wheels are movably connected with the riding wheel shafts, the riding wheels are located on the upper surface of the lower portion of the conveying belt, and riding wheel limiting blocks are fixedly installed at two ends of each riding wheel shaft.

Preferably, the idler is a plastic loop wheel.

Preferably, the driving wheel and the driven wheel are both plastic mesh belt sprockets.

Preferably, the conveying belt is a plastic flat mesh belt, and is assembled and connected by full-length pin rods in an interlocking mode in an assembling mode through pin shafts.

The utility model provides an novel track conveyor, have following beneficial effects, drive shaft and the drive epaxial drive wheel of drive through drive arrangement and do the gyration, thereby drive the track and do directional motion, and transmission mode adopts multiunit plastics guipure sprocket transmission, make the sprocket hang on the plastics plain net area of conveyer belt, thereby make the conveyer belt be difficult for the perk, walk to one side, make mud pass through the conveyer belt again and carry the steady mud of sending to another end from end, mud drops in appointed collection device at last, and because the thick thing of plastics plain net area can withstand cutting, collision, and resistant oil, water-fast, thereby more succinct convenience when using and changing the guipure, and drive wheel, follow driving wheel and riding wheel all adopt plastics material to make, have the friction coefficient low, good from the wettability, characteristics such as corrosion-resistant and easy change.

Drawings

In order to more clearly illustrate the present invention or the technical solutions in the prior art, the drawings used in the description of the prior art will be briefly described below.

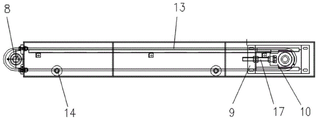

Fig. 1 is a schematic structural view of a top view of the present invention;

FIG. 2 is a schematic structural view of a rear view of the present invention;

the reference numbers in the figures illustrate:

1. a drive device; 2. a drive shaft; 3. a driven shaft; 4. a conveyor belt; 5. a connecting shaft; 6. a drive wheel; 7. a support frame; 8. a bearing; 9. adjusting the bracket; 10. adjusting the bearing; 11. a driven wheel; 12. a slide rail bracket; 13. a slide rail; 14. a riding wheel shaft; 15. a riding wheel; 16. a riding wheel limiting block; 17. an adjusting rod.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention clearer, the drawings in the embodiments of the present invention will be combined below to clearly and completely describe the technical solutions of the present invention.

As shown in fig. 1-2, novel track conveying devices comprise a driving device 1, a driving shaft 2, a driven shaft 3 and a conveying belt 4, wherein the left side of the driving device 1 is movably connected with a end of a connecting shaft 5, the other end of the connecting shaft 5 is fixedly connected with a end of the driving shaft 2, driving wheels 6 are uniformly and fixedly installed on the outer surface of the driving shaft 2 at equal intervals, the conveying belt 4 is movably connected to the driving wheels 6, supporting frames 7 are arranged on the left side and the right side of the conveying belt 4, bearings 8 are fixedly connected to ends of the two supporting frames 7 close to the driving shaft 2, two ends of the connecting shaft 5 are respectively installed on the bearings 8 and movably connected with the bearings 8, adjusting supports 9 are fixedly installed on the other side surfaces of ends of the two supporting frames 7, adjusting bearings 10 are fixedly installed in the middle of the adjusting supports 9, adjusting rods 17 are connected between the adjusting supports 9 and the adjusting bearings 10 through bolts, two ends of the driven shaft 3 are respectively installed on the two adjusting bearings 10 and movably connected with the adjusting bearings 10.

The conveying belt conveyor is characterized in that a sliding rail support 12 is uniformly and vertically fixedly installed between the two supporting frames 7, a plurality of sliding rails 13 are uniformly and vertically fixedly installed in the middle of the sliding rail support 12 at equal intervals, and the sliding rails 13 are located on the lower surface of the upper conveying belt 4. The upper part of the conveying belt 4 is supported by the sliding rails 13, and the sliding rails 13 are made of plastic wear-resistant strips, so that the wear resistance of the sliding rails 13 is improved, and the service life of the conveying belt 4 is prolonged.

Two supporting roller shafts 14 are vertically and fixedly installed between the two supporting frames 7, a plurality of supporting rollers 15 are installed on the supporting roller shafts 14, the supporting rollers 15 are movably connected with the supporting roller shafts 14, the supporting rollers 15 are located on the upper surface of the lower portion of the conveying belt 4, and supporting roller limiting blocks 16 are fixedly installed at two ends of each supporting roller shaft 14. The riding wheel 15 is a plastic loop wheel. The lower part of the conveying belt 4 is supported by the riding wheel 15, so that the driven wheel 11 and the conveying belt 4 are prevented from slipping and falling off; and the riding wheel 15 is limited by arranging a riding wheel limiting block 16 so as to prevent the riding wheel from moving.

The driving wheel 6 and the driven wheel 11 are plastic mesh belt chain wheels. The conveying belt 4 is a plastic flat mesh belt, and is assembled and connected by full-length pin rods in an interlocking mode in a mutual staggering mode through pin shafts. Thereby improving the strength of the conveyor belt 4 and having the advantages of light weight and low noise compared with a steel mesh belt. And the optimal planeness, high wear resistance and low friction coefficient can be ensured through a precise forming process, so that the composite material has the characteristics of long service life, convenience in maintenance, firmness, wear resistance and corrosion resistance. And the driving wheel 6 and the driven wheel 11 are plastic mesh belt chain wheels, so that the plastic mesh belt chain wheels have the characteristics of low friction coefficient, good self-lubricating property, corrosion resistance and easiness in replacement.

The working process is as follows:

through drive arrangement 1 as complete equipment power supply, rotate through connecting axle 5 drive shaft 2 and drive wheel 6, and conveyer belt 4 is the flat check guipure of plastics, and drive wheel 6 is the plastics guipure sprocket, thereby hang on the flat check net of plastics of conveyer belt 4 area through the sprocket of drive wheel 6, do directional rotation with drive conveyer belt 4, thereby make mud pass through conveyer belt 4 and carry the steady follow end of mud and send to end in addition, drop in appointed collection device at last.

The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims

The novel crawler belt conveying device comprises a driving device (1), a driving shaft (2), a driven shaft (3) and a conveying belt (4), and is characterized in that the left side of the driving device (1) is connected with a end of a connecting shaft (5), another end of the connecting shaft (5) is fixedly connected with a end of the driving shaft (2), driving wheels (6) are uniformly and fixedly installed at equal intervals on the driving shaft (2), the conveying belt (4) is movably connected onto tooth surfaces of the driving wheels (6), supporting frames (7) are arranged on the left side and the right side of the conveying belt (4), bearings (8) are fixedly installed at ends of the two supporting frames (7) close to the driving shaft (2), two ends of the connecting shaft (5) are respectively installed on the bearings (8) and are movably connected with the bearings (8), adjusting supports (9) are fixedly installed at the other end side surfaces of the two supporting frames (7), adjusting bearings (10) are fixedly installed in the middle of the adjusting supports (9), adjusting rods (17) are connected between the adjusting supports (9) and the adjusting bearings (10) are respectively installed on the two ends of the driven shaft (3), and the adjusting bearings (11) are fixedly connected with the driven wheels (11).
2. novel crawler belt conveying device according to claim 1, wherein a slide rail bracket (12) is vertically and uniformly fixed between the two supporting frames (7), a plurality of slide rails (13) are vertically and uniformly fixed in the middle of the slide rail bracket (12) at equal intervals, and the slide rails (13) are positioned on the lower surface of the upper part of the conveying belt (4).
3. The novel crawler belt conveying device according to claim 1, wherein two idler shafts (14) are vertically and fixedly installed between the two support frames (7), a plurality of idler wheels (15) are sleeved on the outer surfaces of the idler shafts (14), the idler wheels (15) and the idler shafts (14) are movably connected, the idler wheels (15) are located on the upper surface of the lower portion of the conveying belt (4), and idler limiting blocks (16) are fixedly installed at both ends of the idler shafts (14).
4. novel crawler belt conveying device according to claim 3, wherein the riding wheels (15) are plastic loop wheels.
5. novel track transmission device according to claim 1, wherein the driving wheel (6) and the driven wheel (11) are plastic mesh belt sprockets.
6. kinds of novel track conveying device as claimed in claim 1, wherein the conveying belt (4) is a plastic flat mesh belt, and is assembled and connected by pin shafts by full length pin rods which are mutually staggered in an interlocking manner.
