Abstract
The utility model discloses a membrane rewinding machine comprising a workbench, a winding disc, an unwinding disc, a motor, two pressing discs and a wind arranging device. The workbench is provided with a horizontal table. The winding disc and the unwinding disc are axially connected to the horizontal table, the center of the winding disc is provided with a winding ring, and the center of the unwinding disc is provided with an unwinding ring. The motor drives the winding disc. The pressing discs are correspondingly arranged above the winding disc and the unwinding disc. The wind arranging device is located on one side of the winding disc and extends above the winding disc. According to the membrane rewinding machine, the pipe core of membrane coil to be rewound penetrates and sleeves the unwinding ring of the unwinding disc, the membrane coil is pressed tightly by operating the pressing disc above the unwinding disc; a winding core pipe penetrates, sleeves and is fixed to the winding ring of the winding disc, the winding core pipe is pressed tightly by operating the pressing disc above the winding disc, one end of the membrane is drew and wrapped on the winding ring of the winding disc, the motor drives the winding disc to rotate so as to rewind the membrane, and the wind arranging device extends above the blank-receipt membrane coil to arrange the membrane.
Description
Technical field
The utility model relates to and rewinds device, is specifically related to a kind of film band film rewinder, for the arrangement of rewinding of the film bands such as polyester film, methylamine film.
Background technology
The coating materials such as polyester film, methylamine film are wound on wind-up roll when point being cut to film band, but it is neat that the coiling in cutting process is difficult to reel conventionally, is unfavorable for packing and the transportation of film band, therefore, after coiled strip, all need again and rewind arrangement being divided into, making film tape wrapping neat.
For example, notification number is that the Chinese utility model patent of CN201626719U discloses a kind of Grey-cloth rewinding machine, comprise unwinding rack, let off roll, fabric guide roll, driving motor, driving band and control bucket, described unwinding rack is " T " font structure, described let off roll has several, several let off roll are divided into two groups, two groups of let off roll are symmetrical set in unwinding rack bottom and unreel district, described fabric guide roll also has several, several fabric guide rolls are also divided into two groups, two groups of fabric guide rolls are symmetrical set in the right and left of unwinding rack top cross beam, in two groups of fabric guide rolls, having a fabric guide roll is active fabric guide roll, all the other each fabric guide rolls are driven fabric guide roll, initiatively between fabric guide roll and driven fabric guide roll, by driving band, be connected, and initiatively fabric guide roll is connected with driving motor, the described bucket of controlling also has two, control bucket (6) for two and be symmetrical set the below, two ends in unwinding rack top cross beam.
Notification number is that the Chinese utility model patent of CN203079369U discloses a kind of ribbon wrap-up, comprises bench board, also comprises the some ribbon track adjusting wheels that are coupling in bench top; Winding bar, is inserted on bench board rotationally, and this winding bar top is braided strap winding portion; Driver train, for driving rotation and the lifting of winding bar; Length measuring instrument, for measuring and show the length of the ribbon of having reeled in braided strap winding portion.In this utility model, first one end of ribbon is fixed on winding bar through after ribbon track adjusting wheel, then by driver train, drive winding bar to rotate, then with have gentle hands, holding and on ribbon, be positioned at the part outside ribbon track adjusting wheel, and slightly cry and apply pulling force, along with the rotation of winding bar, make ribbon around winding bar, be coiled into rapidly plate-like rapidly.
There is mechanism's complexity or receive the bad shortcoming of whole effect in traditional rolling-up mechanism.
Utility model content
The utility model provides a kind of film band film rewinder, and film band is rewinded to arrangement, and apparatus structure is simple, rewind arrange efficiency high.
A kind of film band film rewinder, comprises bench board, and described bench board, with level table, also comprises:
The closed reel being coupling on level table, the center of this closed reel is with rolling ring;
The dish that unreels being coupling on level table, this unreels Pan center with unreeling ring;
Drive the motor of closed reel;
Correspondence is arranged on two platens that unreel dish top and closed reel top;
Be positioned at closed reel one side and extend to the rolling collating unit of closed reel top.
The tube core of the film roll coil of strip of arrangement to be rewinded wear be fixed on unreel dish to unreel ring upper, the platen that operation unreels dish top compresses the film roll coil of strip, makes the film roll coil of strip and unreel between dish, not produce relative motion; Rolling tube core wears on the rolling ring that is fixed on closed reel, and the platen of operation closed reel top compresses rolling tube core, makes not produce between rolling tube core and closed reel relative motion; One end of film band is stretched around the home on rolling tube core, and motor drives closed reel to rotate, and falls film rolling belt, and rolling collating unit extends to the neat film band in top of the rewinding film roll coil of strip.
As preferably, described rolling collating unit comprises:
With the fixing fixed link of bench board;
Wear the adapter plate being arranged on fixed link, this adapter plate extends to the top of closed reel;
Be fixed on the leveling briquetting of adapter plate bottom surface.
In wrapup procedure, leveling briquetting contacts with the end face of the film roll coil of strip all the time, the neat film roll coil of strip, in order further to make the film roll coil of strip that the utility model can rolling different-thickness, further preferably, described rolling collating unit also comprises the spring being set on fixed link, this spring upper end butt adapter plate, lower end butt bench board.
The buffer action of spring can regulate the height of leveling briquetting, to adapt to the film roll coil of strip of different-thickness.
As preferably, described closed reel is coupling by imput shaft and level table; Described imput shaft upper end penetrates rolling ring and fixes with rolling ring; The lower end of described imput shaft is run through level table and is formed the first extension, and this first extension is connected with the output shaft of motor by pulley mechanism.
Imput shaft is connected with the output shaft of motor by pulley mechanism, is convenient to adjust the speed of rolling.
Further preferably, described in, unreeling dish is coupling by driven shaft and level table; The upper end of described driven shaft penetrate unreel ring and with unreel ring fix; The lower end of described driven shaft is run through level table and is formed the second extension, this second extension connecting brake.
Electric motor starting closed reel, starts rewinding of film band, and when rolling finishes soon, disable motor, carries out the rolling of afterbody film band by effect of inertia, and startup drg after rolling completes, stops unreeling dish, and automatic winding is anti-roll.
For convenience of the installation of platen, as preferably, be also provided with respectively and imput shaft and coaxial two the platen installation shaft that are connected of driven shaft, a described platen of each platen installation shaft correspondence installation.
A platen installation shaft is coaxially connected with imput shaft, and a platen is installed in this platen installation shaft; Another root platen installation shaft is coaxially connected with driven shaft, in this platen installation shaft, another platen is installed.
Further preferably, described platen installation shaft is screw rod, between platen and platen installation shaft, is threaded.The fixing like this different-thickness film roll coil of strip is more convenient.
In order to strengthen the degree of tension of film band when the initial rolling, make film band on closed reel, be wound around closelyr, as preferably, on described level table, be also provided with at least one guiding roller between closed reel and anti-reel.Further preferably, described guiding roller is fixed on the edge of level table, and away from closed reel and unreel dish, film band is connected with closed reel after walking around this guiding roller again.
For convenience of the start and stop of motor, on described bench board, be also provided with an electrical power control cabinet, this electrical power control cabinet is connected with motor by electric wire.
The utlity model has following beneficial effect:
There is mechanism's complexity or receive the bad shortcoming of whole effect in traditional rolling-up mechanism.In the utility model, the tube core of the film roll coil of strip of arrangement to be rewinded wear be fixed on unreel dish to unreel ring upper, the platen that operation unreels dish top compresses the film roll coil of strip, makes the film roll coil of strip and unreel between dish, not produce relative motion; Rolling tube core wears on the rolling ring that is fixed on closed reel, and the platen of operation closed reel top compresses rolling tube core, makes not produce between rolling tube core and closed reel relative motion; One end of film band is stretched around the home on rolling tube core, and motor drives closed reel to rotate, and falls film rolling belt, and rolling collating unit extends to the neat film band in top of the rewinding film roll coil of strip.Film rewinder is simple in structure, rewinds good finishing effect.
Accompanying drawing explanation

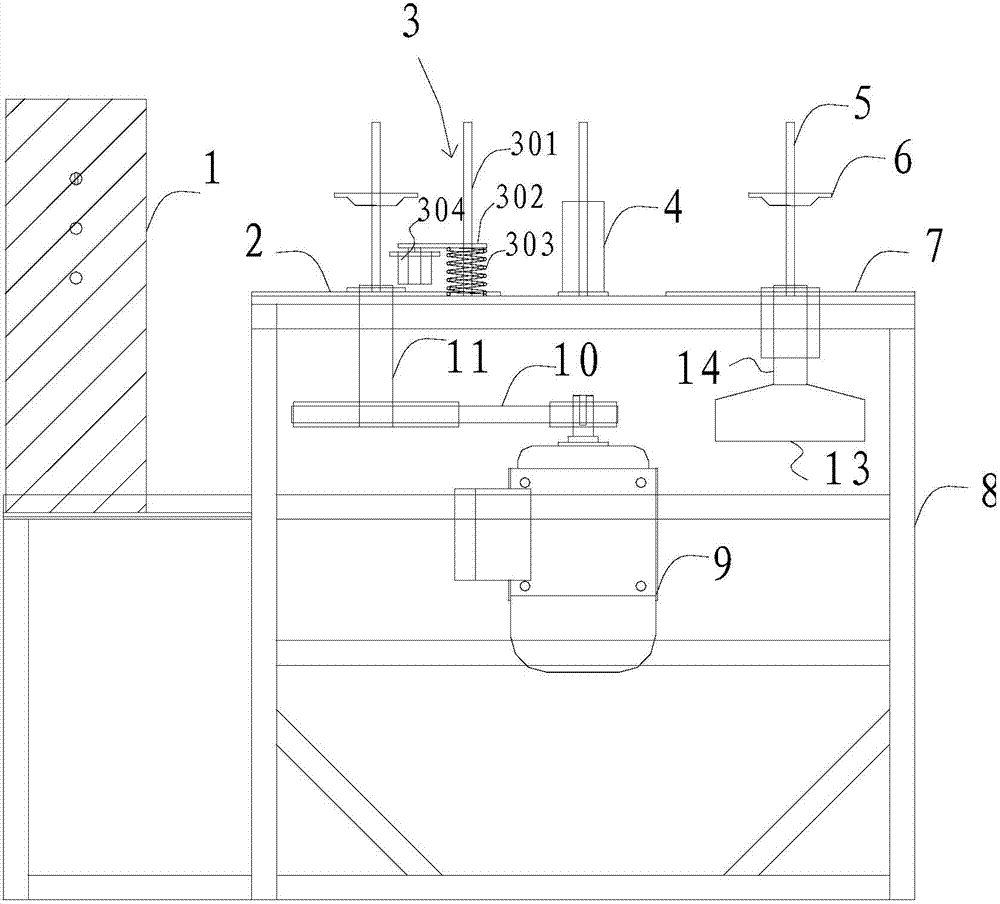

Fig. 1 is structural representation of the present utility model.
Fig. 2 is the birds-eye view shown in Fig. 1.
Shown in figure, Reference numeral is as follows:
1-electrical power control cabinet 2-closed reel 3-rolling collating unit
4-guiding roller 5-platen installation shaft 6-platen
7-unreels dish 8-bench board 9-motor
10-pulley mechanism 11-imput shaft 12-film band
13-drg 14-driven shaft 301-fixed link
302-adapter plate 303-spring 304-flattens briquetting
The specific embodiment
As depicted in figs. 1 and 2, a kind of film band film rewinder, comprise bench board 8, this bench board 8 comprises frame and is fixed on the level table of frame top, closed reel 2, unreel dish 7 and rolling collating unit 3 is arranged on level table top, motor 9 is arranged on level table below, and electrical power control cabinet 1 is arranged on bench board 8 one sides, and electrical power control cabinet 1 is connected with motor 9 by electric wire.
Closed reel 2 is circular discs, and center is with a rolling ring protruding upward, and this rolling ring is for the fixing tube core of film rolling belt; Imput shaft 11 runs through level table and is coupling with level table, the upper end of imput shaft 11 penetrates in rolling ring and fixes with rolling ring, the fixed form at this place can adopt snap fit, surface in imput shaft arranges projection, the inside face of rolling ring arranges respective slot, and projection and groove fit prevent that imput shaft and rolling ring from relatively rotating; The below that imput shaft 11 lower ends extend to level table forms the first extension, and this first extension connects the output shaft of motor 9 by pulley mechanism 10.
The top of driven shaft 14 and imput shaft 11 is each coaxially fixes a platen installation shaft 5, platen installation shaft 5 is screw rod, in each platen installation shaft 5, fix a platen 6, between platen 6 and platen installation shaft 5 for being threaded, the size of this platen is advisable to be a bit larger tham rolling ring and to unreel ring, can not disturb like this rolling collating unit 3 of closed reel top.
A rolling collating unit 3 is installed on closed reel 2 limits, this rolling collating unit 3 comprises fixed link 301, adapter plate 302, spring 303 and leveling briquetting 304, fixed link 301 is fixed on the level table near closed reel 2 places, fixed link 301 upper sleeve through one springs 303, the lower end of spring 303 and level table butt, on fixed link 301 and be positioned at spring 303 tops and wear again an adapter plate 302, the top of spring 303 and adapter plate 302 bottom surface butts, another end of adapter plate 302 extends to the top of closed reel 2, in the bottom surface of adapter plate 302, fix a leveling briquetting 304, leveling briquetting 304 is positioned at the top of closed reel 2.
On level table, also fix a guiding roller 4, this guiding roller 4 is at closed reel 2 and unreel between dish 7 and away from unreeling dish and closed reel, film band 12 is connected with rolling ring after walking around this guiding roller 4, rewinds.
Mode of operation of the present utility model is as follows:
The tube core of the film roll coil of strip of arrangement to be rewinded wear be fixed on unreel dish 7 to unreel ring upper, the platen that operation unreels dish 7 tops compresses the film roll coil of strip, makes the film roll coil of strip and unreel between dish, not produce relative motion; Rolling tube core wears on the rolling ring that is fixed on closed reel 2, and the platen of operation closed reel top compresses rolling tube core, makes not produce between rolling tube core and closed reel relative motion; One end of film band 12 is stretched and walked around after guiding roller 4 around the home on the rolling ring of closed reel 2, and motor 9 drives closed reel 2 to rotate, and falls film rolling belt, and rolling collating unit 3 extends to the neat film band in top of the rewinding film roll coil of strip.
When rolling finishes soon, disable motor 9, carries out the rolling of afterbody film band by effect of inertia, and startup drg 13 after rolling completes stops unreeling dish 7.
The foregoing is only better implementation example of the present utility model, be not limited to the utility model, all within the utility model spirit and principle, any modification of doing, be equal to replacement, improvement etc., within all should being included in protection domain of the present utility model.
Claims (8)
1. a film band film rewinder, comprises bench board, and described bench board with level table, is characterized in that, also comprises:
The closed reel being coupling on level table, the center of this closed reel is with rolling ring;
The dish that unreels being coupling on level table, this unreels Pan center with unreeling ring;
Drive the motor of closed reel;
Correspondence is arranged on two platens that unreel dish top and closed reel top;
Be positioned at closed reel one side and extend to the rolling collating unit of closed reel top.
2. film band film rewinder according to claim 1, is characterized in that, described rolling collating unit comprises:
With the fixing fixed link of bench board;
Wear the adapter plate being arranged on fixed link, this adapter plate extends to the top of closed reel;
Be fixed on the leveling briquetting of adapter plate bottom surface.
3. film band film rewinder according to claim 2, is characterized in that, described rolling collating unit also comprises the spring being set on fixed link, this spring upper end butt adapter plate, lower end butt bench board.
4. film band film rewinder according to claim 1, is characterized in that, described closed reel is coupling by imput shaft and level table; Described imput shaft upper end penetrates rolling ring and fixes with rolling ring; The lower end of described imput shaft is run through level table and is formed the first extension, and this first extension is connected with the output shaft of motor by pulley mechanism.
5. film band film rewinder according to claim 4, is characterized in that, described in unreel dish and be coupling by driven shaft and level table; The upper end of described driven shaft penetrate unreel ring and with unreel ring fix; The lower end of described driven shaft is run through level table and is formed the second extension, this second extension connecting brake.
6. film band film rewinder according to claim 5, is characterized in that, is also provided with respectively and imput shaft and coaxial two the platen installation shaft that are connected of driven shaft, and each platen installation shaft is corresponding installs a described platen.
7. film band film rewinder according to claim 6, is characterized in that, described platen installation shaft is screw rod, between platen and platen installation shaft, is threaded.
8. film band film rewinder according to claim 1, is characterized in that, is also provided with at least one guiding roller between closed reel and anti-reel on described level table.
