Abstract

The utility model discloses a water tank of an air energy water heater. The water tank comprises a tank body and an inner container, wherein a partition plate is arranged between the tank body and the inner container, and reflecting layers coat the two sides of the partition plate respectively. A vacuum layer is arranged between the partition plate and the inner container, and a heat preservation layer is arranged between the partition plate and the tank body. A water inlet and a water outlet are formed in the inner container, a D-shaped coil pipe is arranged on the inner container, and the water inlet and the water outlet are respectively provided with a filter screen and a temperature sensor. The partition plate is arranged between the inner container and the tank body, the vacuum layer is arranged between the partition plate and the inner container, the heat preservation layer is arranged between the partition plate and the tank body, the two layers are used for heat preservation and thermal insulation, and the heat preservation effect is enhanced. The D-shaped coil pipe is arranged on the inner container and used in cooperation with the temperature sensor of the water inlet and the temperature sensor of the water outlet, and water inside the water tank can be heated through the coil pipe when the temperature of the water is low.

Description

A kind of air-source water heater water tank
Technical field
The utility model relates to water tank, is specifically related to the air-source water heater water tank.
Background technology
The operation principle of air-source water heater is absorbed airborne energy, is transformed into heat, transfers in the water of water tank the inside, and water is heated; Simultaneously losing the air venting of amount of heat in outdoor environment.Existing air-source water heater divides single flow and circulating, circulating because needs arrange secondary water tank, and water temperature is unstable, causes its range of application less.The water tank heat preserving ability of existing single flow air-source water heater a little less than, and to water quality require highly, can not purify hot water.
In order to solve above-mentioned deficiency of the prior art, the utility model proposes a kind of new solution.
The utility model content
The purpose of this utility model is to provide a kind of high insulating effect, the water-heater water tank that can be purified hot water.
For reaching above-mentioned purpose, the technical scheme that the utility model adopts is: a kind of air-source water heater water tank is provided, comprises casing and inner bag, between described casing and inner bag, be provided with dividing plate, the dividing plate both sides scribble reflecting layer; Be vacuum between dividing plate and inner bag, between dividing plate and casing, be provided with heat-insulation layer; Described inner bag is provided with water inlet, delivery port and D shape coil pipe, and water inlet and delivery port are provided with filter screen and temperature sensor.
Further, insulation layer thickness is 40mm ~ 50mm.
Further, inner bag is provided with magnet.
Further, heat-insulation layer is the polyurethane foamed thermal-insulating layer.
In sum, the utlity model has following advantage: 1, between inner bag and casing, be provided with dividing plate, be vacuum layer between dividing plate and inner bag, and be heat-insulation layer between casing, Double layer thermal insulation, strengthened heat insulation effect; 2, inner bag is provided with D shape coil pipe, with the temperature sensor of water inlet and delivery port, coordinates, and uses the water heating of coil pipe to water tank inside when temperature is low; 3, water inlet and water outlet are provided with filter screen, and the water quality of water tank is guaranteed.
The accompanying drawing explanation

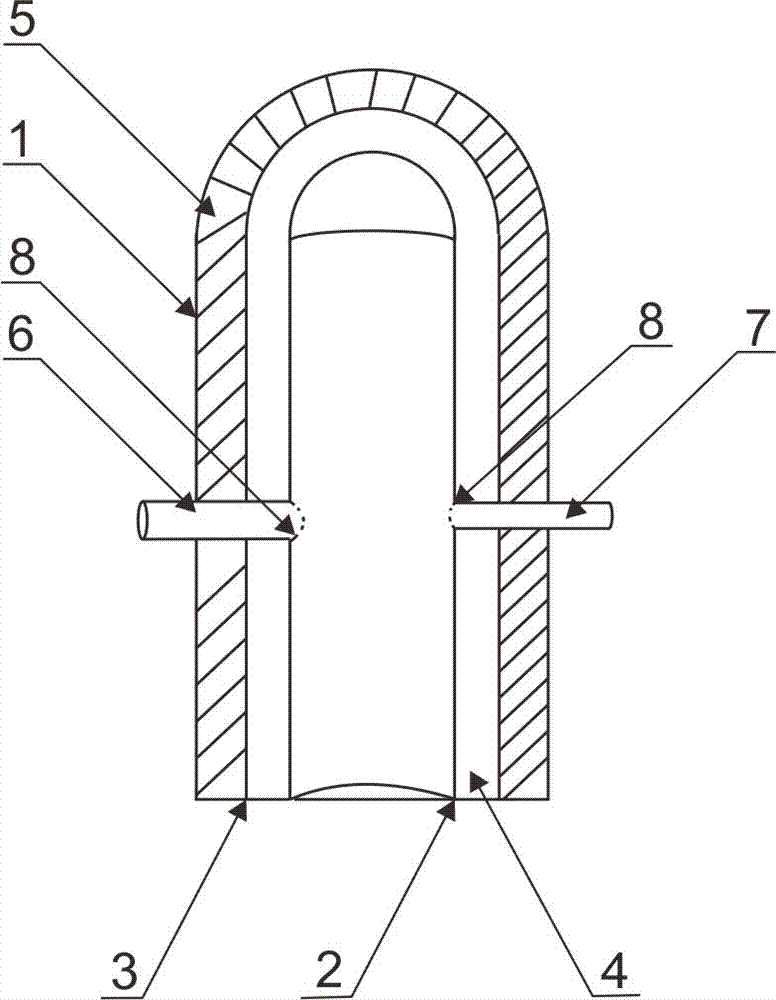

Fig. 1 is profile of the present utility model.
Wherein, 1, casing; 2, inner bag; 3, dividing plate; 4, vacuum layer; 5, heat-insulation layer; 6, water inlet; 7, delivery port; 8, filter screen.
The specific embodiment
Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in detail.
As shown in Figure 1, the utility model provides a kind of air-source water heater water tank, comprises casing 1 and inner bag 2, between casing 1 and inner bag 2, is provided with dividing plate 3, and dividing plate 3 both sides scribble reflecting layer, and the loss of energy can, by reflect heat, have been reduced in reflecting layer.Be vacuum layer 4 between dividing plate 3 and inner bag 2, between dividing plate 3 and casing 1, be provided with heat-insulation layer 5.Inner bag 2 is provided with water inlet 6, delivery port 7 and D shape coil pipe, and D shape coil pipe is arranged on the bottom of inner bag 2; Water inlet 6 is provided with filter screen 8 and temperature sensor with delivery port 7; Temperature sensor is arranged on water inlet 6 and water inlet 7, and the hot water of flowing through is carried out to monitoring temperature.
After opening air-source water heater, hot water, from water inlet 6 enters casing 1, must filter through filter screen 8, makes impurity can not enter casing 1, guarantees the clean of casing 1.Temperature sensor is monitored water inlet water temperature and output water temperature.The bottom of inner bag 2 is provided with D shape coil pipe, when the water temperature monitored, hangs down and makes, and can switch on power, and the water in casing 1 is heated.Water in casing 1 is under vacuum layer 4 and heat-insulation layer 5 heat insulation, and temperature is difficult for reducing, and has guaranteed the operating efficiency of water heater.
Further, heat-insulation layer 5 thickness are 40mm ~ 50mm, and comparing traditional insulation layer thickness increases, and has further reduced heat loss.
Further, inner bag 2 is provided with magnet, and magnet can be arranged on the bottom of inner bag 2, also can be arranged on the surrounding wall of inner bag 2 ferrous contaminants in adsorbed water.
Further, heat-insulation layer 5 is the polyurethane foamed thermal-insulating layer.
Although by reference to the accompanying drawings the specific embodiment of the present utility model is described in detail, should not be construed as the restriction to the protection domain of this patent.In the described scope of claims, the various modifications that those skilled in the art can make without creative work and distortion still belong to the protection domain of this patent.

Claims (4)

1. an air-source water heater water tank, comprise casing and inner bag, it is characterized in that: be provided with dividing plate between described casing and inner bag, the dividing plate both sides scribble reflecting layer; Be vacuum layer between dividing plate and inner bag, between dividing plate and casing, be provided with heat-insulation layer; Described inner bag is provided with water inlet, delivery port and D shape coil pipe, and water inlet and delivery port are provided with filter screen and temperature sensor.
2. air-source water heater water tank as claimed in claim 1, it is characterized in that: described insulation layer thickness is 40mm ~ 50mm.
3. air-source water heater water tank as claimed in claim 1, it is characterized in that: described inner bag is provided with magnet.
4. air-source water heater water tank as claimed in claim 1, it is characterized in that: described heat-insulation layer is the polyurethane foamed thermal-insulating layer.
