Abstract

本实用新型公开了一种用于辅助更换汽车零件的推车,包括底座,底座配有滚轮;底座两侧设有竖直的支架,两个支架上分别设有滑轨,两个滑轨位于两个支架之间;两个滑轨分别配有滑块,两个滑块分别固定于支撑板的两侧;两个滑块的底部分别设有千斤顶;支撑板水平设置,支撑板与底座间设有若干竖置的压缩弹簧;支撑板顶面固定有若干竖置的液压支撑杆,液压支撑杆顶部固定有U形支撑架。本实用新型提供的用于辅助更换汽车零件的推车,操作方便,省时省力,只需通过千斤顶将支撑板托起,调整到合适高度后拆下需维修的部件,再将高度下调,然后拉住拖钩,就能将维修部件拖出车底。且本实用新型结构简单,设计合理,有很好的实用性。

Figure 201320468607

The utility model discloses a cart for assisting in replacing automobile parts, including a base, the base is provided with rollers; vertical brackets are provided on both sides of the base, and slide rails are provided on the two brackets respectively, and the two slide rails are located between the two brackets; the two slide rails are provided with sliders respectively, and the two sliders are fixed on both sides of the support plate respectively; jacks are provided at the bottom of the two sliders respectively; the support plate is arranged horizontally, and a plurality of vertical compression springs are arranged between the support plate and the base; a plurality of vertical hydraulic support rods are fixed on the top surface of the support plate, and a U-shaped support frame is fixed on the top of the hydraulic support rod. The cart for assisting in replacing automobile parts provided by the utility model is easy to operate, saves time and effort, and only needs to lift the support plate by the jack, adjust it to a suitable height, remove the parts to be repaired, and then lower the height, and then pull the tow hook to drag the repair parts out from under the car. In addition, the utility model has a simple structure, a reasonable design, and good practicality.

Figure 201320468607

Description

用于辅助更换汽车零件的推车Carts for assisting in changing car parts

技术领域technical field

本实用新型涉及一种用于辅助更换汽车零件的推车。The utility model relates to a trolley for assisting in replacing auto parts.

背景技术Background technique

众所周知,汽车在长时间的运输后,其底盘上的离合器、混凝土泵车的油缸、油泵等大型部件就容易产生问题,出现运转不了的情况。在上述部件产生问题后,维修人员一般是通过辅助滑车爬到底盘下,对其进行检修。但如果问题较大时,就必须将上诉部件拆下后抬到外面进行维修。目前,汽车维修部门在维修时,维修人员需爬进汽车底部拆下所需维修部件,在拆卸该维修部件时,要求保持该维修部件保持水平,以便于快捷、方便的拆下该部件,而在拆下其中一个连接件后,所拆修的维修部件就会产生倾斜,造成拆卸不便,这就需要几个人在车底托举所维修部件,相当吃力。同时,在维修人员拆下该维修部件后,由于维修部件比较笨重,需几个人同时发力,才能搬动所需维修部件,费时费力,且在搬运过程中,容易因其中一人力量不足致使维修部件跌落,伤到搬运人员,同时,也容易造成对维修部件的二次损坏。As we all know, after the car is transported for a long time, large parts such as the clutch on the chassis, the oil cylinder of the concrete pump truck, and the oil pump are prone to problems and cannot operate. After the above-mentioned components have problems, the maintenance personnel generally climb under the chassis through the auxiliary tackle to overhaul it. However, if the problem is relatively large, the appealing parts must be removed and carried outside for maintenance. At present, when the car maintenance department is doing maintenance, the maintenance personnel need to climb into the bottom of the car to remove the required maintenance parts. After one of the connecting pieces is removed, the repaired parts will be tilted, causing inconvenience in disassembly. This requires several people to lift the repaired parts under the vehicle, which is quite laborious. At the same time, after the maintenance personnel remove the maintenance parts, since the maintenance parts are relatively heavy, several people need to exert force at the same time to move the required maintenance parts, which is time-consuming and laborious. Components fall, hurting the handling personnel, and at the same time, it is easy to cause secondary damage to the maintenance components.

实用新型内容Utility model content

本实用新型的目的在于提供一种省时省力、搬运方便的用于辅助更换汽车零件的推车。The purpose of the utility model is to provide a time-saving, labor-saving and convenient transport cart for assisting the replacement of auto parts.

为实现上述目的,本实用新型的技术方案是设计一种用于辅助更换汽车零件的推车,包括底座,底座配有滚轮;底座两侧设有竖直的支架,两个支架上分别设有滑轨,两个滑轨位于两个支架之间;两个滑轨分别配有滑块,两个滑块分别固定于支撑板的两侧;两个滑块的底部分别设有千斤顶;支撑板水平设置,支撑板与底座间设有若干竖置的压缩弹簧;支撑板顶面固定有若干竖置的液压支撑杆,液压支撑杆顶部固定有U形支撑架。In order to achieve the above purpose, the technical solution of the utility model is to design a cart for assisting in the replacement of auto parts, including a base, the base is equipped with rollers; vertical brackets are provided on both sides of the base, and the two brackets are respectively equipped with Slide rails, the two slide rails are located between the two brackets; the two slide rails are equipped with sliders, and the two sliders are respectively fixed on both sides of the support plate; the bottom of the two sliders is respectively equipped with a jack; the support plate Horizontally arranged, a number of vertical compression springs are arranged between the support plate and the base; a number of vertical hydraulic support rods are fixed on the top surface of the support plate, and a U-shaped support frame is fixed on the top of the hydraulic support rod.

优选的,所述U形支撑架包裹有橡胶垫。Preferably, the U-shaped support frame is wrapped with a rubber pad.

优选的,所述U形支撑架中部凹进的弧度与被维修部件的底部弧度一致。Preferably, the concave curvature in the middle of the U-shaped support frame is consistent with the bottom curvature of the component to be repaired.

优选的,所述底座末端设有拖钩。Preferably, a tow hook is provided at the end of the base.

本实用新型提供的用于辅助更换汽车零件的推车,操作方便,省时省力,只需通过千斤顶将支撑板托起,调整到合适高度后拆下需维修的部件,再将高度下调,然后拉住拖钩,就能将维修部件拖出车底。The cart provided by the utility model for auxiliary replacement of auto parts is easy to operate and saves time and effort. It only needs to hold up the support plate through a jack, adjust it to a suitable height, remove the parts to be repaired, and then lower the height. Pulling on the tow hook, the service part can be pulled out from under the vehicle.

本实用新型的优点和有益效果在于:提供一种省时省力、搬运方便的用于辅助更换汽车零件的推车。且本实用新型结构简单,设计合理,有很好的实用性。The utility model has the advantages and beneficial effects of providing a time-saving, labor-saving, and convenient transport cart for assisting the replacement of auto parts. Moreover, the utility model has the advantages of simple structure, reasonable design and good practicability.

附图说明Description of drawings

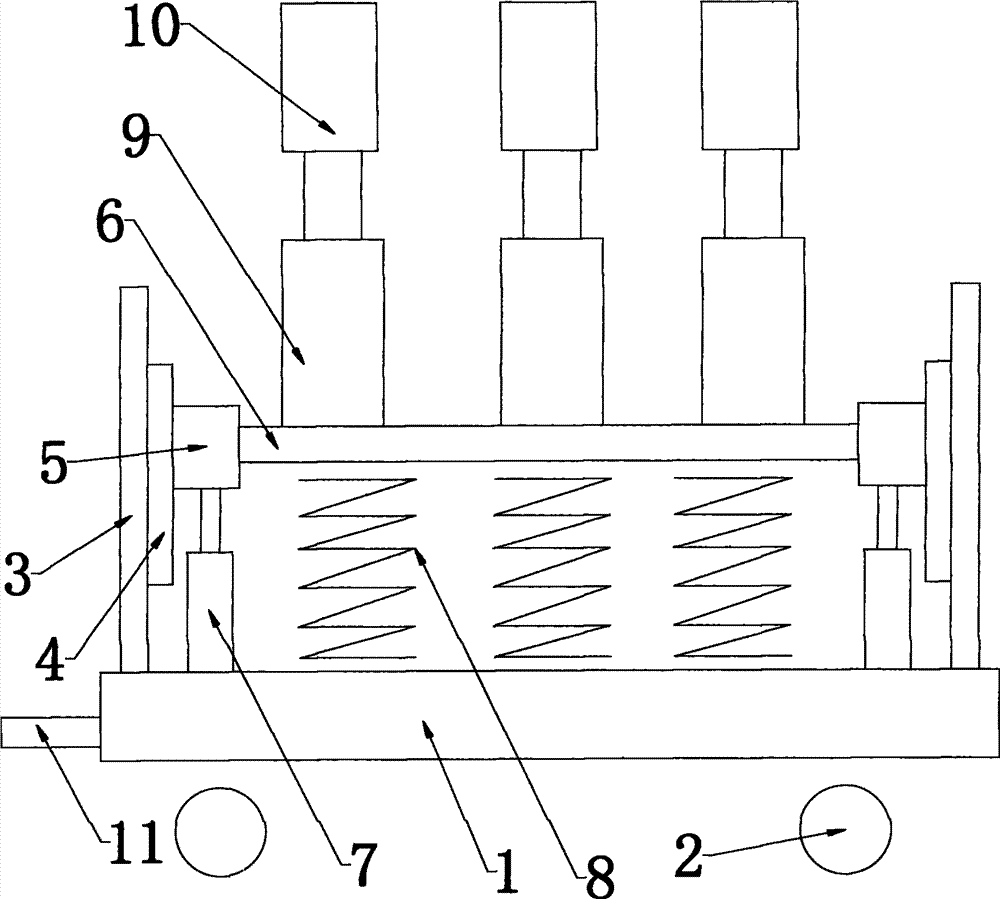

图1是本实用新型的示意图。Fig. 1 is the schematic diagram of the utility model.

具体实施方式Detailed ways

下面结合附图和实施例,对本实用新型的具体实施方式作进一步描述。以下实施例仅用于更加清楚地说明本实用新型的技术方案,而不能以此来限制本实用新型的保护范围。Below in conjunction with accompanying drawing and embodiment, the specific embodiment of the utility model is further described. The following examples are only used to illustrate the technical solution of the utility model more clearly, but not to limit the protection scope of the utility model.

本实用新型具体实施的技术方案是:The technical scheme of the concrete implementation of the utility model is:

一种用于辅助更换汽车零件的推车,包括底座1,底座1配有滚轮2;底座1两侧设有竖直的支架3,两个支架3上分别设有滑轨4,两个滑轨4位于两个支架3之间;两个滑轨4分别配有滑块5,两个滑块5分别固定于支撑板6的两侧;两个滑块5的底部分别设有千斤顶7;支撑板6水平设置,支撑板6与底座1间设有若干竖置的压缩弹簧8;支撑板6顶面固定有若干竖置的液压支撑杆9,液压支撑杆9顶部固定有U形支撑架10。所述U形支撑架10包裹有橡胶垫,所述U形支撑架10中部凹进的弧度与被维修部件的底部弧度一致。所述底座1末端设有拖钩11。A cart for assisting the replacement of auto parts, comprising a base 1 equipped with rollers 2; vertical supports 3 are provided on both sides of the base 1, and slide rails 4 are respectively provided on the two supports 3, and two slide rails The rail 4 is located between the two brackets 3; the two slide rails 4 are respectively equipped with sliders 5, and the two sliders 5 are respectively fixed on both sides of the support plate 6; the bottoms of the two sliders 5 are respectively provided with jacks 7; The support plate 6 is arranged horizontally, and several vertical compression springs 8 are arranged between the support plate 6 and the base 1; several vertical hydraulic support rods 9 are fixed on the top surface of the support plate 6, and a U-shaped support frame is fixed on the top of the hydraulic support rod 9 10. The U-shaped support frame 10 is wrapped with a rubber pad, and the concave curvature of the middle part of the U-shaped support frame 10 is consistent with the bottom curvature of the repaired part. A tow hook 11 is provided at the end of the base 1 .

以上所述仅是本实用新型的优选实施方式,应当指出,对于本技术领域的普通技术人员来说,在不脱离本实用新型技术原理的前提下,还可以做出若干改进和润饰,这些改进和润饰也应视为本实用新型的保护范围。The above is only the preferred embodiment of the utility model, and it should be pointed out that for those of ordinary skill in the art, without departing from the technical principle of the utility model, some improvements and modifications can also be made. And retouching should also be regarded as the protection scope of the present utility model.

Claims (4)

1. the go-cart for the auxiliary replacement automotive parts, is characterized in that, comprise base, base is furnished with roller; The base both sides are provided with vertical support, on two supports, are respectively equipped with slide rail, and two slide rails are between two supports; Two slide rails are furnished with respectively slide block, and two slide blocks are individually fixed in the both sides of stay bearing plate; The bottom of two slide blocks is respectively equipped with jack; Stay bearing plate is horizontally disposed with, and is provided with some perpendicular Compress Springs of putting between stay bearing plate and base; Support plate top surface is fixed with some perpendicular hydraulic supporting struts of putting, and hydraulic pressure support masthead section is fixed with the U-shaped bracing frame.
2. the go-cart for the auxiliary replacement automotive parts according to claim 1, is characterized in that, described U-shaped bracing frame is enclosed with rubber pad.
3. the go-cart for the auxiliary replacement automotive parts according to claim 1, is characterized in that, radian recessed in the middle part of described U-shaped bracing frame is consistent with the bottom radian by Awaiting Parts.
4. the go-cart for the auxiliary replacement automotive parts according to claim 1, is characterized in that, described base end is provided with towing hook.
