The utility model discloses a haulage equipment for super-huge goods, a serial communication port, include the haulage equipment and bear the equipment, the haulage equipment is used for pulling and bears the equipment removal, the haulage equipment sets up the front end at bearing the equipment, it is used for bearing fixed goods to bear the equipment. The utility model discloses a bear the weight of the super-huge goods of stable centre gripping different length around the anchor clamps equipment, slide from top to bottom in the stand module down through last movable mould piece, transport the super-huge goods of co-altitude not, through stand module direct connection single gooseneck device down, transport the super-huge goods that weight is lighter, adopt hydraulic pressure again to hang the lift goods or make up the lift goods with oblique lift cylinder, make the super-huge goods change with the high emergence on road surface, the rethread tractor transports, thereby make the super-huge goods can be very smooth through complicated highway section, not only save the transportation resource but also reduced the cost of transportation, the transportation cycle has also been shortened simultaneously, the transport efficiency is improved.
Description
Technical Field
The utility model belongs to the technical field of the transportation of super-huge goods, concretely relates to transportation equipment for super-huge goods.
Background
The oversize goods have long length and high height, and the weight can reach hundreds of tons, so that the goods are difficult to be effectively transported on daily transportation roads.
The existing transportation tool needs to put goods on a large truck or a tractor for hauling, the height between the large truck or the tractor and the goods is higher, the transportation efficiency is influenced, for example, normal transportation cannot be carried out on a height-limited road section, and only other roads can be selected for transportation, so that the transportation period is prolonged, and the transportation cost is influenced; in addition, large trucks or tractors do not have practicability, and different large trucks or tractors must be selected for transportation due to different lengths of goods, so that transportation resources are wasted, transportation cost is increased, and the goods are not paid back; when complex road sections, such as curve sections with small radius, slope sections and the like, are encountered, road facilities must be modified, and the modification of the road involves many problems; this results in the problems of long transportation period and high transportation cost, and such transportation mode is not suitable for the requirement of the development of the modernized large industry. For this reason, a new transportation apparatus is required to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a transportation equipment for oversize goods to the transportation mode who proposes current oversize goods among the solution above-mentioned background art, the condition such as transportation cycle length, cost of transportation height, transportation wasting of resources.
In order to achieve the above object, the utility model provides a following technical scheme: the transportation equipment for the oversize cargos is characterized by comprising traction equipment and bearing equipment, wherein the traction equipment is used for drawing the bearing equipment to move, the traction equipment is arranged at the front end of the bearing equipment, and the bearing equipment is used for fixedly bearing the cargos.
Further, bear the weight of equipment including bearing the weight of anchor clamps equipment, bear the weight of anchor clamps equipment including the preceding bearing platform module that is used for fixed goods front end for the back bearing platform module of fixed goods rear end or be used for the hydraulic base I of fixed goods lower extreme, preceding bearing platform module sets up with the cooperation of back bearing platform module or hydraulic base I, preceding bearing platform module is used for drawing back bearing platform module or hydraulic base I and removes.
Furthermore, preceding load-bearing platform module and back load-bearing platform module symmetry set up, preceding load-bearing platform module and the back load-bearing platform module that the symmetry set up including be used for the top to lift the oblique lift cylinder of goods for the stand module of fixed goods and be used for controlling the hydraulic base II that removes and go up and down.
Furthermore, preceding load-bearing platform module passes through the gooseneck device and is connected with traction equipment, the gooseneck device is including combination gooseneck device or single gooseneck device, combination gooseneck device and II fixed connection of hydraulic base, single gooseneck device is direct and stand module fixed connection for hydraulic base II of load-bearing platform module before the control goes up and down to replace.
Further, the stand module includes slip module and lower stand module, it slides from top to bottom in the stand module through the lift cylinder to go up the slip module, the lift cylinder is used for cooperating the lift cylinder jacking of lifting to one side, realizes that different goods travel under different road conditions.
Furthermore, the upper end of one side of the upper sliding module is provided with an early warning intelligent sensing device for sensing the lifting of the goods height control upper sliding module and an upper locking device for fixing the upper end of the goods, the other side of the upper sliding module is fixedly provided with an operation lifting platform for operating the upper locking device, the middle lower end of the operation lifting platform is fixedly provided with a climbing ladder for climbing, and the operation lifting platform and the upper sliding module slide up and down in the lower stand column module together through a lifting oil cylinder.
Furthermore, the lower end of the lower upright post module is provided with a fixed connecting seat for stabilizing the lower upright post module and a lower locking device for fixing the lower end of the goods, a safety supporting and protecting device for supporting the goods is arranged below the lower locking device, and the safety supporting and protecting device is used for being matched with the upper locking device and the lower locking device to fix the goods.
Further, hydraulic base II hangs including the platform that is used for fixed oblique lift cylinder and the hydraulic pressure that is used for controlling to remove and go up and down, hydraulic pressure hangs and sets up in the platform below for control goods rises to a take the altitude, falls to and is close to the road surface or be minimum clearance with the road surface.
Furthermore, hydraulic base I is the same with II structures of hydraulic base, hydraulic base I's platform is used for fixed goods to replace the back bearing platform module.
Furthermore, the traction equipment comprises a tractor, the tractor is fixedly matched and connected with the combined gooseneck device or the single gooseneck device, and the tractor connected in a matched mode pulls the bearing equipment to move through the combined gooseneck device or the single gooseneck device.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model adopts the bearing clamp device to stably clamp the oversize goods with different lengths from front to back, and the combined gooseneck device is connected with the tractor for transportation, thereby not only saving transportation resources, but also reducing transportation cost and improving transportation efficiency;
2. the utility model transports the oversize goods with different heights by the up-sliding module sliding up and down in the lower upright post module, thereby not only saving the transportation resources, but also reducing the transportation cost;
3. the utility model transports the goods with lighter weight by directly connecting the lower upright post module with the single gooseneck device, thereby not only reducing the production cost, but also reducing the transportation risk;
4. the utility model discloses a hydraulic pressure hangs the lift goods or makes the lift goods with oblique lift cylinder combination, makes the super-huge goods change with the high emergence on road surface to can pass through complicated highway section smoothly, not only reduce the cost of transportation but also shorten the transportation cycle.
Drawings

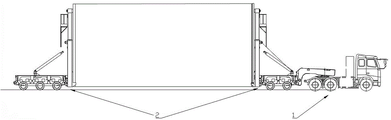

Fig. 1 is a schematic view of the overall structure of the present invention;

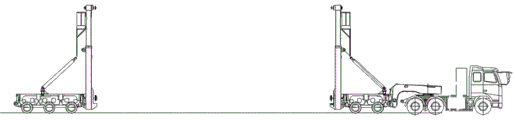

FIG. 2 is a schematic structural view of the load-bearing fixture apparatus of the present invention;
FIG. 3 is a schematic structural view of a single gooseneck device carrying clamp apparatus of the present invention;

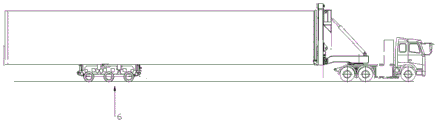

fig. 4 is a schematic view of the overall structure of the hydraulic base i of the present invention replacing the rear load-bearing platform module;
fig. 5 is a schematic front view of the column module of the present invention;
fig. 6 is a schematic view of the back of the column module of the present invention;
fig. 7 is a schematic structural view of the downward sliding of the upper sliding module of the present invention;
fig. 8 is a schematic structural view of the upper slide module of the present invention;
fig. 9 is a schematic view of the state of the present invention for transporting relatively high cargo;
fig. 10 is a schematic view of the state of transporting lower cargo according to the present invention.
In the figure: 1. a pulling device; 2. a load bearing device; 3. a load bearing fixture device; 4. a front load-bearing platform module; 5. a rear load-bearing platform module; 6. a hydraulic base I; 7. an inclined lifting oil cylinder; 8. a column module; 9. a hydraulic base II; 10. a gooseneck device; 11. combining the gooseneck devices; 12. a single gooseneck device; 13. an upper slide module; 14. a lower column module; 15. lifting the oil cylinder; 16. an early warning intelligent sensing device; 17. an upper locking device; 18. operating the lifting platform; 19. climbing a ladder; 20. fixing the connecting seat; 21. a lower locking device; 22. a safety guard device; 23. a platform; 24. hydraulic suspension; 25. a tractor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings, and it is to be understood that the described embodiments are only some embodiments, but not all embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 10, the present invention provides a technical solution: the utility model provides a transportation equipment for super-huge goods, includes that pulling equipment 1 and bearing device 2, pulling equipment 1 is used for pulling bearing device 2 and removes, and pulling equipment 1 sets up the front end at bearing device 2, and bearing device 2 is used for the fixed goods that bear.
In order to fix the goods, furthermore, bear equipment 2 including bearing fixture device 3, bear fixture device 3 including the preceding load-bearing platform module 4 that is used for fixed goods front end, a hydraulic base I6 for fixing the back load-bearing platform module 5 of goods rear end or being used for the fixed goods lower extreme, preceding load-bearing platform module 4 sets up with the cooperation of back load-bearing platform module 5 or hydraulic base I6, preceding load-bearing platform module 4 is used for pulling back load-bearing platform module 5 or hydraulic base I6 and removes.
In order to facilitate the installation of the bearing platform module, further, the front bearing platform module 4 and the rear bearing platform module 5 are symmetrically arranged, and the symmetrically arranged front bearing platform module 4 and the rear bearing platform module 5 comprise an inclined lifting oil cylinder 7 for jacking and lifting goods, a stand column module 8 for fixing the goods, and a hydraulic base II 9 for controlling the movement and the lifting.
In order to facilitate the installation of the gooseneck device 10, further, the front bearing platform module 5 is connected with the traction equipment 1 through the gooseneck device 10, the gooseneck device 10 comprises a combined gooseneck device 11 or a single gooseneck device 12, the combined gooseneck device 11 is fixedly connected with the hydraulic base II 9, and the single gooseneck device 12 is directly fixedly connected with the upright post module 8 and used for controlling the lifting to replace the hydraulic base II 9 of the front bearing platform module 4.
In order to facilitate the installation of the upright post module 8, further, the upright post module 8 comprises an upper sliding module 13 and a lower upright post module 14, the upper sliding module 13 slides up and down in the lower upright post module 14 through a lifting oil cylinder 15, and the lifting oil cylinder 15 is used for being matched with the inclined lifting oil cylinder 7 to lift, so that different goods can run under different road conditions.
In order to facilitate the installation of the upper sliding module 13, further, an early warning intelligent sensing device 16 for sensing the height of the goods and controlling the lifting of the upper sliding module 13 and an upper locking device 17 for fixing the upper end of the goods are arranged at the upper end of one side of the upper sliding module 13, an operation lifting platform 18 for operating the upper locking device 17 is fixedly arranged at the other side of the upper sliding module 13, a climbing ladder 19 for climbing is fixedly arranged at the middle lower end of the operation lifting platform 18, and the operation lifting platform 18 and the upper sliding module 13 slide up and down in the lower stand column module 14 through a lifting oil cylinder 15.
In order to facilitate the installation of the lower column module 14, further, the lower end of the lower column module 14 is provided with a fixed connection base 20 for stabilizing the lower column module 14 and a lower locking device 21 for fixing the lower end of the cargo, a safety guard 22 for holding the cargo is arranged below the lower locking device 21, and the safety guard 22 is used for cooperating with the upper locking device 17 and the lower locking device 21 to fix the cargo.
In order to install the hydraulic base II 9 conveniently, further, the hydraulic base II 9 includes the platform 23 that is used for fixed oblique lift cylinder 7, and is used for controlling the hydraulic pressure that removes and go up and down to hang 24, and hydraulic pressure hangs 24 and sets up in platform 23 below for control goods rises to a take the altitude, falls to and is close to the road surface or be minimum clearance with the road surface.
For the convenience of installing hydraulic base I6, further, hydraulic base I6 is the same with II 9 structures of hydraulic base, and hydraulic base I9's platform 23 is used for fixed goods to replace back bearing platform module 5.
In order to install the towing installation 1, the towing installation 1 further comprises a towing vehicle 25, the towing vehicle 25 is fixedly connected with the combined gooseneck device 11 or the single gooseneck device 12 in a matching mode, and the towing vehicle 25 connected in a matching mode pulls the carrying installation 2 to move through the combined gooseneck device 11 or the single gooseneck device 12.
The utility model discloses a theory of operation: after this transportation equipment is accomplished, through preceding load-bearing platform module 4 and back load-bearing platform module 5 or the cooperation of hydraulic pressure base I6 with the stable centre gripping of goods fix, the rethread gooseneck device 10 is connected tractor 25 and is transported the goods, rethread hydraulic pressure hangs 24 or adjusts the height of goods and ground with the cooperation of oblique lift cylinder 7, makes the goods can pass through complicated highway section smoothly.
The utility model discloses divide into three kinds of transportation equipment according to the theory of operation:
(1) the front bearing platform module 4 is matched with the rear bearing platform module 5 to stably clamp and fix the goods, and the combined gooseneck device 11 is connected with the tractor 25 to transport the goods, so that the transport equipment can transport the goods with different heights, lengths and weights;
(2) the front bearing platform module 4 is matched with the rear bearing platform module 5 to stably clamp and fix the goods, and the single gooseneck device 12 is connected with the tractor 25 to transport the goods, so that the transport equipment can transport the goods with different heights, shorter lengths and lighter weight;
(3) fix the goods through preceding load-bearing platform module 4 and hydraulic base I6, connect tractor 25 through single gooseneck device 12 again and transport the goods, this haulage equipment can transport the height lower, the length is longer, the weight is lighter goods.
Example 1:
when the height of the goods is 4m, the length is 20m and the weight is 200 tons, the front bearing platform module 4 is moved to the front end of the goods with the length of 20m, the rear bearing platform module 5 is moved to the rear end of the goods with the length of 20m, then the goods are jacked to the safety supporting and protecting device 22 on the lower upright post module 14 through the inclined lifting oil cylinder 7, an operator screws the lower locking device 16 or the hydraulic locking device through a bolt column to fix the lower end of the goods, the operator enters the operation lifting platform 18 through the climbing ladder 19, the upper sliding module 13 and the operation lifting platform 18 slide in the lower upright post module 11 through the lifting oil cylinder 15, the early warning intelligent sensing device 16 senses the height of the goods to be 4m, the sliding of the upper sliding module 10 stops sliding when the top end of the goods with the height of 4m slides, the operator screws the upper locking device 12 or the hydraulic locking device through the bolt column, the upper end of the goods is fixed, the operation process is the front bearing platform module 4, the operation process of the rear bearing platform module 5 is the same as that of the front bearing platform module 4 because the rear bearing platform module 5 and the front bearing platform module 4 are symmetrically arranged, at this time, the goods are firmly and fixedly clamped by the front bearing platform module 4 and the rear bearing platform module 5, and the combined gooseneck device 11 is selected to be connected with the tractor 25 through the combined gooseneck device 11 to transport the goods, when a complex road section is met, such as a height-limited road section, the goods are lowered to the height of 5mm from the road surface through the hydraulic suspension 24, so that the goods can smoothly pass through the height-limited road section, during normal driving, the cargo is lifted to a height of 200mm from the road surface by the hydraulic suspension 24, therefore, the transportation resources are saved, the transportation cost is reduced, the transportation period is shortened, and the transportation efficiency is improved.
Example 2:
the transport equipment in this example is the same as example 1, only the height of the cargo is different, namely: when the height of the goods is 8m, the upper sliding module 13 stops sliding when sliding to the top end of the goods with the height of 8 m.
Example 3:
the transport equipment in this example is the same as example 1, only the length of the cargo is different, namely: when the length of the goods is 40m, the goods with the length of 40m is clamped between the front bearing platform module 4 and the rear bearing platform module 5.
Example 4:
when the height of the goods is 5m, the length is 30m and the weight is 100 tons, the front bearing platform module 4 is moved to the front end of the goods with the length of 30m, the rear bearing platform module 5 is moved to the rear end of the goods with the length of 30m, then the goods are jacked to the safety supporting and protecting device 22 on the lower upright post module 14 through the inclined lifting oil cylinder 7, an operator screws the lower locking device 16 or the hydraulic locking device through a bolt column to fix the lower end of the goods, the operator enters the operation lifting platform 18 through the climbing ladder 19, the upper sliding module 13 and the operation lifting platform 18 slide in the lower upright post module 11 through the lifting oil cylinder 15, the early warning intelligent sensing device 16 senses the height of the goods to be 5m, the sliding of the upper sliding module 10 stops sliding when the top end of the goods with the height of 5m slides, the operator screws the upper locking device 12 or the hydraulic locking device through the bolt column, the upper end of the goods is fixed, the operation process is the front bearing platform module 4, the rear bearing platform module 5 and the front bearing platform module 4 are symmetrically arranged, the operation process of the rear bearing platform module 5 is the same as that of the front bearing platform module 4, at the moment, the goods are firmly and fixedly clamped by the front bearing platform module 4 and the rear bearing platform module 5, a single gooseneck device 12 is selected because the goods are light and short in length, the single gooseneck device 12 is connected with a tractor 25 to transport the goods, when a complex road section is encountered, such as a height-limited road section, the goods are lowered to the height of 5mm with the road surface through the cooperation of a hydraulic suspension 24 and an inclined lifting oil cylinder 7, the goods smoothly pass through the height-limited road section, and in the normal driving process, the goods are raised to the height of 200mm with the road surface through the cooperation of the hydraulic suspension 24 and the inclined lifting oil cylinder 7, so that the production cost is reduced and the transportation resources are saved, meanwhile, the transportation period is shortened, and the transportation efficiency is improved.
Example 5:
the transport equipment in this example is the same as example 4, only the height of the cargo is different, namely: when the height of the goods is 7.5m, the upper sliding module 13 stops sliding when sliding to the top end of the goods with the height of 7.5 m.
Example 6:
when the height of the goods is 4.5m, the length is 40m, and the weight is 80 tons, the front bearing platform module 4 is moved to the front end of the goods with the length of 40m, because the length of the goods is longer, the hydraulic base I6 is selected to move to the bottom of the goods, the goods are fixed by matching the front bearing platform module 4, because the goods are lighter, the single gooseneck device 12 is selected, the single gooseneck device 12 is connected with the tractor 25 through the single gooseneck device 12 to transport the goods, when a complex road section is encountered, such as a height-limited road section, the goods are lowered to the passing height through the cooperation of the hydraulic suspension 24 and the inclined lifting oil cylinder 7, and smoothly pass through the height-limited road section, and in the normal driving process, the goods are raised to a certain height through the cooperation of the hydraulic suspension 24 and the inclined lifting oil cylinder 7, so that the production cost is reduced, the transportation resources are saved, the.
Example 7:
the transport equipment in this example is the same as example 6, only the length of the cargo is different, namely: when the length of goods is 50m, preceding bearing platform module 4 cooperates the goods that the fixed length is 50m with hydraulic base I6.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (10)
1. The transportation equipment for the oversize cargos is characterized by comprising traction equipment and bearing equipment, wherein the traction equipment is used for drawing the bearing equipment to move, the traction equipment is arranged at the front end of the bearing equipment, and the bearing equipment is used for fixedly bearing the cargos.
2. The transportation equipment for the oversized goods as claimed in claim 1, wherein the bearing equipment comprises bearing clamp equipment, the bearing clamp equipment comprises a front bearing platform module for fixing the front end of the goods, a rear bearing platform module for fixing the rear end of the goods or a hydraulic base I for fixing the lower end of the goods, the front bearing platform module is matched with the rear bearing platform module or the hydraulic base I, and the front bearing platform module is used for drawing the rear bearing platform module or the hydraulic base I to move.
3. The transportation equipment for the oversized goods as claimed in claim 2, wherein the front bearing platform module and the rear bearing platform module are symmetrically arranged, and the symmetrically arranged front bearing platform module and the rear bearing platform module comprise inclined lifting oil cylinders for jacking and lifting the goods, upright post modules for fixing the goods and hydraulic bases II for controlling movement and lifting.
4. The transportation equipment for the oversized goods as claimed in claim 2 or 3, wherein the front bearing platform module is connected with the traction equipment through a gooseneck device, the gooseneck device comprises a combined gooseneck device or a single gooseneck device, the combined gooseneck device is fixedly connected with the hydraulic base II, and the single gooseneck device is directly fixedly connected with the upright post module and is used for controlling lifting to replace the hydraulic base II of the front bearing platform module.
5. The transportation device for the oversized goods as claimed in claim 3, wherein the column module comprises an upper sliding module and a lower column module, the upper sliding module slides up and down in the lower column module through a lifting oil cylinder, and the lifting oil cylinder is used for being matched with an inclined lifting oil cylinder to lift so as to realize that different goods can run under different road conditions.
6. The transportation equipment for the oversized goods as claimed in claim 5, wherein an early warning intelligent sensing device for sensing the height of the goods and controlling the lifting of the upper sliding module and an upper locking device for fixing the upper end of the goods are arranged at the upper end of one side of the upper sliding module, an operation lifting platform for operating the upper locking device is fixedly arranged at the other side of the upper sliding module, a climbing ladder for climbing is fixedly arranged at the middle lower end of the operation lifting platform, and the operation lifting platform and the upper sliding module slide up and down in the lower stand column module through a lifting oil cylinder.
7. The transportation equipment for the oversize cargos according to claim 5 or 6, wherein the lower end of the lower upright module is provided with a fixed connecting seat for stabilizing the lower upright module and a lower locking device for fixing the lower end of the cargo, a safety supporting and protecting device for supporting the cargo is arranged below the lower locking device, and the safety supporting and protecting device is used for matching the upper locking device and the lower locking device to fix the cargo.
8. The transportation equipment for the oversized goods as claimed in claim 3, wherein the hydraulic base II comprises a platform for fixing the inclined lifting oil cylinder and a hydraulic suspension for controlling movement and lifting, and the hydraulic suspension is arranged below the platform and used for controlling the goods to be lifted to a certain height and lowered to be close to the road surface or form a small gap with the road surface.
9. The transportation equipment for the oversized goods as claimed in claim 2, wherein the hydraulic base I and the hydraulic base II are identical in structure, and the platform of the hydraulic base I is used for fixing the goods to replace a rear bearing platform module.
10. The transportation equipment for oversized goods according to claim 1, characterized in that the towing equipment comprises a towing vehicle, the towing vehicle is fixedly and cooperatively connected with the combined gooseneck device or the single gooseneck device, and the cooperatively connected towing vehicle pulls the carrying equipment to move through the combined gooseneck device or the single gooseneck device.
