一种铁水罐液压翻转装置，其钢结构底架固定在地基上；所述钢结构底架两侧对称固定有两个翻转液压缸、两个立柱及两个缓冲支座，且两个立柱的顶端均固定有旋转支座，活动支架的前横梁对称铰接在两个旋转支座上，后横梁座在两个缓冲支座上；所述两个翻转液压缸的活塞杆端对称铰接在活动支架的左右侧板上；所述活动支架的后横梁上安装有锁紧油缸和锁紧销轴。本实用新型翻转作用力均由钢结构底架承受，再通过钢结构底架整体传递至地基，因此土建基础受力均匀，造价低；特别是翻转液压缸缸体段大部分下沉于地下，使翻转活动支架的重心高度大大降低，进而也降低了工作时铁水罐的重心高度，且采用双翻转液压缸和双支撑旋转支座，使翻转稳定性大幅提高。
A hydraulic turning device for molten iron tanks, the steel structure chassis is fixed on the foundation; two turning hydraulic cylinders, two columns and two buffer supports are symmetrically fixed on both sides of the steel structure chassis, and the two columns The top ends are fixed with rotating supports, the front crossbeam of the movable support is symmetrically hinged on the two rotating supports, and the rear crossbeam is seated on the two buffer supports; the piston rod ends of the two turning hydraulic cylinders are symmetrically hinged on the movable support on the left and right side panels; the rear beam of the movable support is equipped with a locking cylinder and a locking pin. The turning force of the utility model is all borne by the steel structure chassis, and then transmitted to the foundation through the steel structure chassis as a whole, so the civil foundation is evenly stressed and the cost is low; especially, most of the turning hydraulic cylinder body section sinks underground, The height of the center of gravity of the overturning movable support is greatly reduced, thereby also reducing the height of the center of gravity of the molten iron tank during work, and the use of double overturning hydraulic cylinders and double support rotating supports greatly improves the overturning stability.
Description
Technical field
The utility model belongs to technical field of metallurgical equipment, is specifically related to a kind of hot-metal bottle hydraulic pressure turn-over device.
Background technology
The molten iron that blast furnace process is produced, general employing standard hot-metal bottle and tank car are by traction locomotive or rack winch traction, by the industrial railway line, run to hot-metal bottle tipping hoist engine position, then by the hot-metal bottle on the hoist engine upset tank car of tumbling, thereby realize molten iron ingot bar or minute tank.This production technology generally is comprised of industrial railway special line, hot-metal bottle, hot-metal ladle and carriage, traction locomotive, the hoist engine of tumbling, driving etc.Railway line take up an area more and with factory in traffic certainly will interlock, affect ground current, easy accident; And each hot-metal bottle in using must have a hot-metal ladle and carriage, the whole investment of whole production technology and maintenance cost are larger.
The utility model content
The purpose of this utility model is to provide a kind of hot-metal bottle hydraulic pressure turn-over device, it is a kind of hydraulic pressure turn-over device of the nonstandard hot-metal bottle without the railway industrial siding, saved railway line, hot-metal ladle and carriage, traction locomotive and the hoist engine etc. of tumbling, saved and invest, save to greatest extent arrangement space.The nonstandard hot-metal bottle that the utility model is particularly suitable for being complementary with pig machine is realized 105 ° of upsets, guarantees that in hot-metal bottle, molten iron injects in the pig machine swage by certain flow in the time in technological requirement, realizes the molten iron ingot bar.
Technical solution of the present utility model is: a kind of hot-metal bottle hydraulic pressure turn-over device have the steel construction underframe, and the steel construction underframe is fixed on ground; Described steel construction underframe bilateral symmetry is fixed with two upsets hydraulic cylinder, two columns and two cushioning support-saddles, and two upset hydraulic cylinders lay respectively between two columns and two cushioning support-saddles; The top of described two columns all is fixed with rotary support, and the front beam symmetry of travel(l)ing rest is hinged on two rotary supports, and the rear cross beam seat is on two cushioning support-saddles; The tailpiece of the piston rod symmetry of described two upset hydraulic cylinders is hinged on the left side plate of travel(l)ing rest; Locking cylinder and locking bearing pin are installed on the rear cross beam of described travel(l)ing rest, and the tailpiece of the piston rod of an end and the locking cylinder of locking bearing pin is hinged, and makes to lock bottom bearing pin and hot-metal bottle a locking pin-and-hole of picking up the ears on plate and be complementary.
The cylinder body epimere of described upset hydraulic cylinder is fixedly supported on the upper surface of steel construction underframe, in cylinder body, sinks under hypomere in the cavity of ground.
The hinged support of the left side plate of described upset hydraulic cylinder piston rod end and travel(l)ing rest is positioned at the left side plate middle and lower part of travel(l)ing rest and near a side of column, and after making 105 ° of travel(l)ing rest upsets, described hinged support is positioned on the line of centres of hot-metal bottle horizontal level cross central line and two rotary supports.
Described upset hydraulic cylinder is oscillating motor.
The advantage the utlity model has and effect:
1, the utility model inverting action power is born by the steel construction underframe, then is passed to ground by steel construction underframe integral body, so foundation of civil work is stressed evenly, has reduced the cost of ground; Under the hydraulic cylinder body section of particularly overturning major part, be sunken to underground, the height of C.G. of travel(l)ing rest of making to overturn reduces greatly, and then the height of C.G. of hot-metal bottle while also having reduced work, and adopt two upset hydraulic cylinders and dual-gripper rotary supports, tilt-stable significantly improved.
2, the utility model can realize that the hot-metal bottle flip angle reaches 105 °, guarantees that in tank, molten iron all flows out; Hydraulic system pressure≤25MPa; Tank body reversal rate 10-30min, tank body sinking speed 3-7min, can guarantee ingot bar, minute tank technological requirement fully.
3, the utility model can be realized in tank body upset or landing process in arbitrarily angled This vehicle stops frequently, the operation and eliminate molten iron knot lid of can skimming.
4, the utility model is simple in structure, bearing capacity is strong, easy to operate, operate steadily, reliability is high, and equipment dynamic is little, operating cost is low, it is simple and convenient to safeguard.
The accompanying drawing explanation

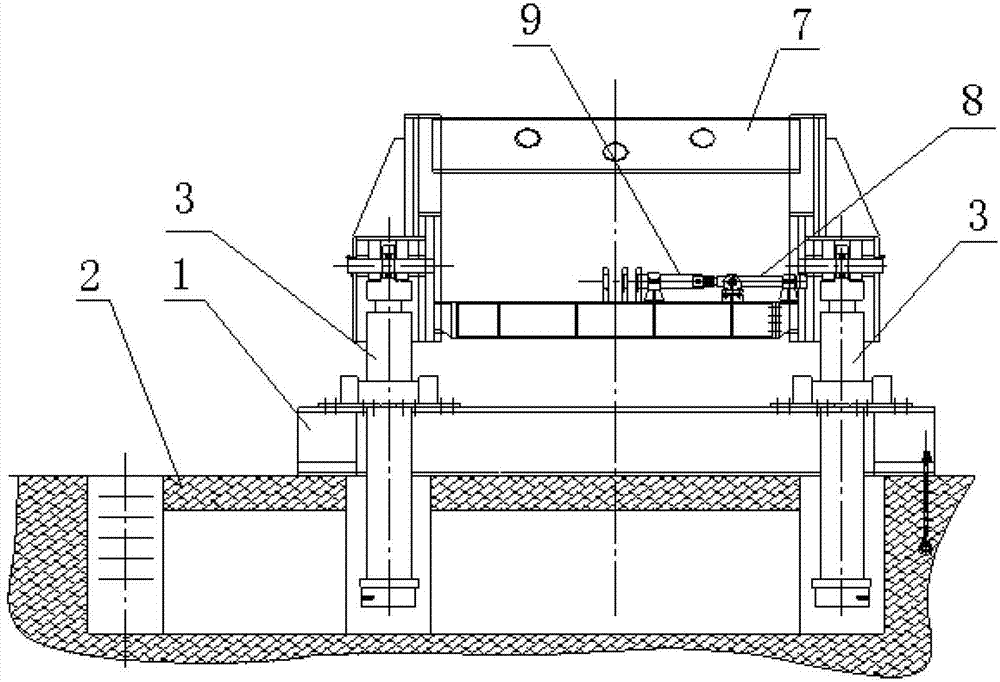

Fig. 1 is structural front view of the present utility model,
Fig. 2 is structure top view of the present utility model,
Fig. 3 is structure left view of the present utility model,
Fig. 4 is rollover states schematic diagram of the present utility model.
The specific embodiment
Below in conjunction with Fig. 1,2,3,4, a kind of embodiment of the present utility model is described.
A kind of hot-metal bottle hydraulic pressure turn-over device, have steel construction underframe 1, and steel construction underframe 1 is fixed on ground 2; Described steel construction underframe 1 bilateral symmetry is fixed with two upset hydraulic cylinders 3, two columns 4 and two cushioning support-saddles 5, and two upset hydraulic cylinders 3 lay respectively between two columns 4 and two cushioning support-saddles 5; The top of described two columns 4 all is fixed with rotary support 6, and the front beam symmetry of travel(l)ing rest 7 is hinged on two rotary supports 6, and the rear cross beam seat is on two cushioning support-saddles 5; The tailpiece of the piston rod symmetry of described two upset hydraulic cylinders 3 is hinged on the left side plate of travel(l)ing rest 7; Locking cylinder 8 and locking bearing pin 9 are installed on described travel(l)ing rest 7 rear cross beams, and an end of locking bearing pin 9 is hinged with the tailpiece of the piston rod of locking cylinder 8, and makes to lock the locking pin-and-hole 12 of bearing pin 9 and hot-metal bottle 10 bottoms one picking up the ears on plate 11 and be complementary.
The cylinder body epimere of described upset hydraulic cylinder 3 is fixedly supported on the upper surface of steel construction underframe 1, in cylinder body, sinks under hypomere in the cavity of ground 2.The hinged support of the left side plate of described upset hydraulic cylinder 3 tailpieces of the piston rod and travel(l)ing rest 7 is positioned at the left side plate middle and lower part of travel(l)ing rest 7 and near a side of column 4, and after making 105 ° of travel(l)ing rest 7 upsets, described hinged support is positioned on the line of centres of hot-metal bottle 10 horizontal level cross central lines and two rotary supports 6.Described upset hydraulic cylinder 3 is oscillating motor.
During use, by the blast furnace ironmaking workshop, be transported to the hot-metal bottle of iron foundry (shop) or steelshop, by traveling crane, be put on travel(l)ing rest 7 and all around locate, then the piston rod by HYDRAULIC CONTROL SYSTEM locking cylinder 8 stretches out, promoting locking bearing pin 9 inserts hot-metal bottle 10 bottoms one and picks up the ears in locking pin-and-hole 12 on plate 11, hot-metal bottle and travel(l)ing rest to be locked; By HYDRAULIC CONTROL SYSTEM hydraulic cylinder 3 piston rods that overturn, stretch out again, promote travel(l)ing rest 7 and slowly overturn with certain speed together with the rotary support 6 of hot-metal bottle 10 around column 4 tops, molten iron is overflowed with flow comparatively uniformly, turn to 105 ° of molten iron and be finished down.After molten iron is finished down, retract by HYDRAULIC CONTROL SYSTEM hydraulic cylinder 3 piston rods that overturn, travel(l)ing rest 7 is got back to horizontal level together with hot-metal bottle 10, the impulsive force when now reducing upset hydraulic cylinders 3 and shrink return by cushioning support-saddle 5; By the piston rod of HYDRAULIC CONTROL SYSTEM locking cylinder 8, retract, drive locking bearing pin 9 returns and make travel(l)ing rest 7 and hot-metal bottle 10 releases, traveling crane is waited for lower subjob from empty hot-metal bottle.
The utility model is by HYDRAULIC CONTROL SYSTEM hydraulic cylinder 3 and locking cylinder 8 work of overturning; realize hot-metal bottle 10 locking, tumble, return, release action; by molten iron evenly, continuously in Molten iron chute flows to the swage or little ladle of pig machine, realize the purpose of molten iron ingot bar or minute tank.Reversal rate is controlled by the hydraulic operation platform by operating personnel, and can realize in hot-metal bottle 10 upsets or landing process, in arbitrarily angled This vehicle stops frequently, and skim operation and elimination molten iron knot lid.
Above-described embodiment, be preferred embodiment of the present utility model, not is used for limiting the utility model practical range, thus all equivalent variations of being done with the described content of the utility model claim, within all should being included in the utility model claim scope.
Claims (4)
1. hot-metal bottle hydraulic pressure turn-over device, it is characterized in that: described device has steel construction underframe (1), and steel construction underframe (1) is fixed on ground (2); Described steel construction underframe (1) bilateral symmetry is fixed with two upsets hydraulic cylinder (3), two columns (4) and two cushioning support-saddles (5), and two upset hydraulic cylinders (3) lay respectively between two columns (4) and two cushioning support-saddles (5); The top of described two columns (4) all is fixed with rotary support (6), and it is upper that the front beam symmetry of travel(l)ing rest (7) is hinged on two rotary supports (6), and the rear cross beam seat is on two cushioning support-saddles (5); The tailpiece of the piston rod symmetry of described two upset hydraulic cylinders (3) is hinged on the left side plate of travel(l)ing rest (7); Locking cylinder (8) and locking bearing pin (9) are installed on the rear cross beam of described travel(l)ing rest (7), and the tailpiece of the piston rod of an end and the locking cylinder (8) of locking bearing pin (9) is hinged, and makes to lock bearing pin (9) locking pin-and-hole (12) of picking up the ears on plate (11) bottom hot-metal bottle (10) and be complementary.
2. hot-metal bottle hydraulic pressure turn-over device according to claim 1, it is characterized in that: the cylinder body epimere of described upset hydraulic cylinder (3) is fixedly supported on the upper surface of steel construction underframe (1), in cylinder body, sinks under hypomere in the cavity of ground (2).
3. hot-metal bottle hydraulic pressure turn-over device according to claim 1 and 2, it is characterized in that: the hinged support of the left side plate of described upset hydraulic cylinder (3) tailpiece of the piston rod and travel(l)ing rest (7) is positioned at the left side plate middle and lower part of travel(l)ing rest (7) and near a side of column (4), and after making 105 ° of travel(l)ing rest (7) upsets, described hinged support is positioned on the line of centres of hot-metal bottle (10) horizontal level cross central line and two rotary supports (6).
4. hot-metal bottle hydraulic pressure turn-over device according to claim 3, it is characterized in that: described upset hydraulic cylinder (3) is oscillating motor.
