CN203270856U - Building wall - Google Patents
Building wall Download PDFInfo
- Publication number
- CN203270856U CN203270856U CN201320348735.4U CN201320348735U CN203270856U CN 203270856 U CN203270856 U CN 203270856U CN 201320348735 U CN201320348735 U CN 201320348735U CN 203270856 U CN203270856 U CN 203270856U
- Authority
- CN
- China
- Prior art keywords
- wall
- reinforcement
- wall panels
- construction
- building
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
- 230000002787 reinforcement Effects 0.000 claims abstract description 24
- 239000004567 concrete Substances 0.000 claims abstract description 5
- 238000010276 construction Methods 0.000 claims description 27
- 238000009413 insulation Methods 0.000 claims description 9
- 229910000831 Steel Inorganic materials 0.000 claims description 2
- 239000010959 steel Substances 0.000 claims description 2
- 238000009434 installation Methods 0.000 abstract description 3
- 238000003908 quality control method Methods 0.000 abstract description 2
- 230000003014 reinforcing effect Effects 0.000 description 12
- 239000000463 material Substances 0.000 description 8
- 238000009435 building construction Methods 0.000 description 3
- 238000005034 decoration Methods 0.000 description 3
- 239000004568 cement Substances 0.000 description 2
- 238000010586 diagram Methods 0.000 description 2
- 230000000694 effects Effects 0.000 description 2
- 238000005516 engineering process Methods 0.000 description 2
- 230000000149 penetrating effect Effects 0.000 description 2
- 230000005855 radiation Effects 0.000 description 2
- 239000002699 waste material Substances 0.000 description 2
- 238000010923 batch production Methods 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 230000002950 deficient Effects 0.000 description 1
- 230000009970 fire resistant effect Effects 0.000 description 1
- 239000012530 fluid Substances 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 239000011150 reinforced concrete Substances 0.000 description 1
- 238000010792 warming Methods 0.000 description 1
- 238000004078 waterproofing Methods 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B30/00—Energy efficient heating, ventilation or air conditioning [HVAC]
- Y02B30/90—Passive houses; Double facade technology
Landscapes
- Finishing Walls (AREA)
Abstract
本实用新型是一种建筑墙体，它包括平行设置的内外侧墙体板（1），每一侧的墙体板（1）均由若干个墙体板单元通过侧边互相连接的方式延续而成；其中一侧的墙体板（1）的内侧固定连接有支撑块（2），支撑块（2）的另一端与另一侧墙体板（1）的内侧相接触；还包括位于内外侧墙体板（1）之间的纵向钢筋柱（3）以及钢筋（4），钢筋（4）包括水平钢筋和斜向钢筋，纵向钢筋柱（3）和斜向钢筋的上下两端均超出内外侧墙体板（1）的上下两端；在内外侧墙体板（1）之间还浇筑有混凝土。建筑墙体的墙体板、支撑块采用工厂化制造，现场安装，不仅具有安装快捷，省工省时的突出特点，而且更便于质量控制。
The utility model relates to a building wall, which includes inner and outer wall panels (1) arranged in parallel, and the wall panels (1) on each side are continued by a plurality of wall panel units connected to each other through the sides. The inner side of the wall panel (1) on one side is fixedly connected with a support block (2), and the other end of the support block (2) is in contact with the inner side of the wall panel (1) on the other side; The longitudinal reinforcement column (3) and reinforcement (4) between the inner and outer wall panels (1), the reinforcement (4) includes horizontal reinforcement and oblique reinforcement, the upper and lower ends of the longitudinal reinforcement column (3) and the oblique reinforcement are both Beyond the upper and lower ends of the inner and outer wall panels (1); concrete is poured between the inner and outer wall panels (1). The wall panels and support blocks of the building wall are manufactured in a factory and installed on site, which not only has the outstanding characteristics of quick installation, labor and time saving, but also facilitates quality control.
Description
Technical field
The utility model relates to a kind of body of wall of residential building, both can be used as inner wall, can be used as again exterior wall.
Background technology
Existing residential building body of wall adopts reinforced concrete structure more, builds up and does waterproofing work after framework, decoration of exterior wall is laid and interior decoration.Its major defect is: the first, building operations program is complicated, and the amount of labour is large, and is long in time limit, and produces a large amount of building wastes.The second, antidetonation, wind resistance, waterproof, sound insulation, radiation proof, heat insulation effect are difficult to reach perfect condition.Three, need in building operations frequently, use in enormous quantities template, cement and reinforcing bar, increased construction cost and affected construction efficiency.
The utility model content
The utility model aims to provide a kind of construction wall, and in order to overcome the defective of existing building house wall, technical problem to be solved is that house wall has better capability and performance, and construction is more convenient.
In order to solve the problems of the technologies described above, the utility model has adopted following technical scheme:
Construction wall is characterized in that: comprise the medial and lateral ash wall body plate that be arranged in parallel, the ash wall body plate of each side continues by the interconnected mode of side by several ash wall body plate unit and forms; Wherein the inboard of the ash wall body plate of a side is fixedly connected with back-up block, and the other end of back-up block contacts with the inboard of opposite side ash wall body plate; Also comprise longitudinal reinforcement post and reinforcing bar between external wall body plate, described reinforcing bar comprises horizontal reinforcement and oblique reinforcing bar, and the two ends up and down of described longitudinal reinforcement post and oblique reinforcing bar all exceed the two ends up and down of interior external wall body plate; Also built concrete between interior external wall body plate.
Each unit of described ash wall body plate comprises the sheet material of the forward and backward both sides of insulation layer and insulation layer; Raised line and the groove pegged graft mutually and coordinate with the sheet material that is useful on neighboring walls plate unit respectively in the left and right sides of described sheet material.
Inside and outside each two ash wall body plate unit form a construction cell, and each construction cell center is provided with a longitudinal reinforcement post, is provided with two oblique reinforcing bars that cross one another in each construction cell.
Good effect of the present utility model is:
The first, the ash wall body plate of construction wall of the present utility model, back-up block adopt the batch production manufacturing, and on-the-spot the installation not only has quick for installationly, and the outstanding feature of saving of work and time can realize factorial construction, does not produce building waste, and the quality control of being more convenient for.The house classification of waterproof that utilizes the utility model to build reaches the A level, and antidetonation reaches 9 grades of degree of splitting, and has waterproof, wind resistance, radiation proof, protection against the tide, sound insulation, the fire-resistant effect that obviously is better than the existing building house, longer service life.Be particularly suitable for Urban renewal, new countryside construction, the hilly ground building construction is used in rainy, high wind area, the multiple band building construction of earthquake.
The second, adopt construction wall of the present utility model, saved template, warming plate, infilled wall in construction, make body of wall and building construction integrated, further reduced construction cost and improved construction efficiency.
Three, adopt construction wall of the present utility model, due to sheet material external surface used can process smoothly, attractive in appearance, therefore saved the house decoration link, the house sense is stronger, and is more attractive in appearance, and saved a large amount of human and material resources and financial resources.
Four, compare with traditional body of wall, can save steel 40%～60%, cement consumption is decrease also.
Description of drawings

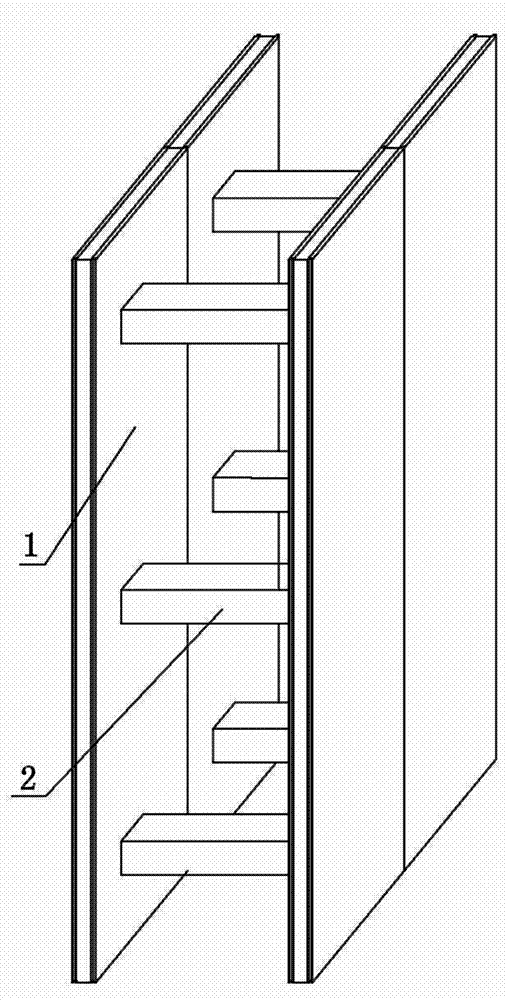

Fig. 1 is the schematic diagram that shows installation, position relationship between the utility model ash wall body plate and back-up block thereof.
Fig. 2 is the structural representation of analysing and observe form of a unit of the utility model ash wall body plate.
Fig. 3 is the internal construction schematic diagram of the utility model construction wall.
The specific embodiment
Further illustrate the utility model below in conjunction with drawings and Examples.
Construction wall of the present utility model comprises the medial and lateral ash wall body plate 1 that be arranged in parallel, and the mode that the ash wall body plate 1 of each side is pegged graft mutually by side by several ash wall body plate unit continues and forms.Wherein the inboard of the ash wall body plate 1 of a side is fixedly connected with back-up block 2, the interior side contacts of the other end of back-up block 2 and opposite side ash wall body plate 1, as shown in Figure 1.Also comprise longitudinal reinforcement post 3 and reinforcing bar 4 between external wall body plate 1, described reinforcing bar 4 comprises horizontal reinforcement and oblique reinforcing bar, the junction of longitudinal reinforcement post 3 and reinforcing bar 4 adopts the colligation mode to be connected to each other, the two ends up and down of described longitudinal reinforcement post 3 and oblique reinforcing bar all exceed the two ends up and down of interior external wall body plate 1, wherein, the downward part that exceeds is used for penetrating in concrete foundation or in the collar tie beam below body of wall, and the part that exceeds that makes progress is used for penetrating in the collar tie beam of body of wall top.Fluid concrete between interior external wall body plate 1.
As Fig. 2, each unit of described ash wall body plate 1 comprises the sheet material 1-1 of the forward and backward both sides of insulation layer 1-2 and insulation layer 1-2.The raised line 1-3 and the groove 1-4 that peg graft mutually and coordinate with the sheet material that is useful on neighboring walls plate unit respectively in the left and right sides of described sheet material 1-1.
In practice of construction operation, usually with inside and outside each two ash wall body plate unit as a construction cell, still as Fig. 1,2.In this case, each construction cell center is provided with a longitudinal reinforcement post 3, is provided with two oblique reinforcing bars that cross one another in each construction cell, as shown in Figure 3.
Claims (3)
