The utility model relates to a pair of badminton rackets with the function of picking up balls. People see that a professional badminton player smartly 'shovels' a ball by adopting a racket in the sports field, while the operation of 'shoveling' a ball is difficult for a person who just starts to study playing badminton or a non-professional person who plays badminton for simple fitness. At the present time, no convenient tool to help players pick up the balls is provided, and a player self stoops to pick up a ball or a ladder player helps to pick up the ball. Each of a pair of badminton rackets with the function of picking up the balls comprises a racket handle (1), wherein a manual knob (3) is mounted on the racket handle, two sections of hollow tubes (4) are inlaid on the outer ring of a racket head (2) connected with the racket handle, brake levers (5) are arranged in the hollow tubes, and the hollow tubes are combined at the connection part of the racket handle and the racket head. The badminton racket is applied to badminton rackets to pick up the balls.
Description
Technical field:
The utility model relates to a kind of racket with ten ball functions.Be specifically related to the device just shuttlecock picked up when a kind of people does not bend over.
Background technology:
Before more than 2,000 years, a kind of game of similar badminton is just in China, and the states such as India occur.Nowadays shuttlecock has been listed in medal sport on Barcalona 1992 Olympic Games, no matter carry out well-regulated badminton game or as general body-building, all want ground on the scene ceaselessly to carry out various telemechanicals: step moves, jumps, turns, swings the bat, except these muscle power were paid, picking up ball was also an inevitable process.We see and have been graceful ball " shovel " being risen with racket of professional badminton player on sports ground, but for the people of the people who just learns shuttlecock or amateur simple body-building, " shovel " ball is also very difficult.Also do not have at present a kind of instrument easily to help the sportsman to pick up ball, just can only bend over to have picked up ball except training mate helps to pick up ball.
Summary of the invention:
The purpose of this utility model is to provide a kind of racket with ten ball functions.
Above-mentioned purpose realizes by following technical scheme:
A kind of racket with ten ball functions, its composition comprises: racket handle, on described racket handle, hand push button is installed, the racket head outer ring that is connected with described racket handle studs with two sections hollow tubes, have brake bar in described hollow tube, described hollow tube is in described racket handle and racket head junction junction.
Described racket with ten ball functions, described hand push button are by low pressure protection switch connected electromagnetic valve, and described magnetic valve connects cylinder, and described cylinder interior has described piston rod, and described piston rod connects brake bar by spring.
The beneficial effects of the utility model:
The utility model racket handle connects racket head outer ring studs with two sections hollow tubes, by vacuum tube, ball is picked up, and can save the sportsman bends over to pick up ball in training process process, reduces athletic muscle power and pays.Extend the training time, help the sportsman to reach better training effect.
Description of drawings:

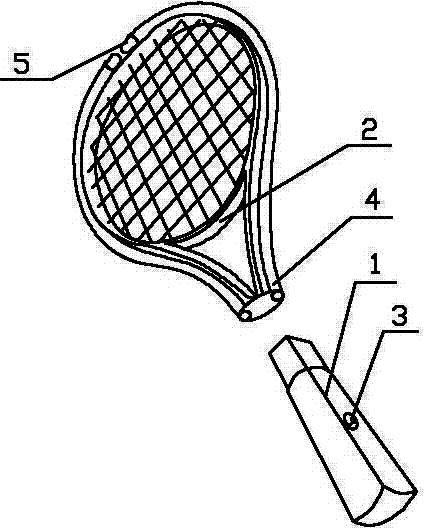

Accompanying drawing 1 is structural representation of the present utility model.
Accompanying drawing 2 is structural representations of the utility model fetcher.
The specific embodiment:
Embodiment 1:
A kind of racket with ten ball functions, its composition comprises: racket handle 1, hand push button 3 is installed on described racket handle, racket head 2 outer rings that are connected with described racket handle stud with two sections hollow tubes 4, have brake bar 5 in described hollow tube, described hollow tube is in described racket handle and racket head junction junction.
Embodiment 2:
The described racket with ten ball functions of embodiment 1; described hand push button 3 is by low pressure protection switch 6 connected electromagnetic valves 7; described magnetic valve connects cylinder 8, and described cylinder interior has described piston rod 9, and described piston rod connects brake bar 5 by spring 10.
Claims (2)
1. racket with ten ball functions, its composition comprises: racket handle, it is characterized in that: on described racket handle, hand push button is installed, the racket head outer ring that is connected with described racket handle studs with two sections hollow tubes, have brake bar in described hollow tube, described hollow tube is in described racket handle and racket head junction junction.
2. the racket with ten ball functions according to claim 1; it is characterized in that: described hand push button is by low pressure protection switch connected electromagnetic valve; described magnetic valve connects cylinder; described cylinder interior has described piston rod, and described piston rod connects brake bar by spring.
