A medium-sized pipe derusting machine comprises a walking cart and a derusting frame. The medium-sized pipe derusting machine is characterized in that the walking cart is a mining flat transport vehicle. A driving motor, two driving wheels and two driven wheels are installed on the walking cart, a pipe is placed on the walking cart, a motor positioned on the walking cart drives a rolling wheel to rotate, and accordingly the pipe is driven to rotate. Two small motors are placed on the derusting frame, and brush heads made of steel wire rope heads are installed on every motor. When the medium-sized pipe passes below the brush heads of the derusting frame, the derusting motors drive the brush heads to run at a high speed, workpieces are polished to remove rust and dirty marks, and derusting work is finished. The medium-sized pipe derusting machine has the advantages of being simple in structure, easy to manufacture, convenient to install, easy to carry and assemble, high in derusting efficiency and good in effect, conforming to pipe installing construction characteristics and meeting the pipe construction derusting requirements.
Description
Affiliated technical field:
The utility model relates to a kind of rust remover, especially a kind of medium-sized pipeline rust cleaning machine.
Background technology:
Medium-sized pipeline rust cleaning machine in coal construction, building installation engineering for the comparatively general medium-sized pipeline derusting anti-corrosive procedure that is absolutely necessary.At present, known rust remover has artificial cooperation angle grinding machine and ballasting rust remover.Rust cleaning is generally all taked manually to cooperate the angle grinding machine to eliminate rust for pipeline, lack of lubrication, often damage, the steel wire brush is that the steel wire compacting about thin iron, 0.3mm forms, and often comes off during work, is thrown to by the angle grinding machine on workmen's the body, especially operating personnel hold the angle grinding machine, careless slightly, grinding machine electric leakage in angle will cause unsafe hidden danger, and the workmen is caused occupational health harm.Adopt ballasting rust remover, the rust cleaning effect is better, but cost of equipment high, be difficult for carrying and installation.
Summary of the invention:
It is high that the purpose of this utility model provides a kind of rust cleaning efficient, and safety is without hidden danger, the medium-sized pipeline rust cleaning machine that environmental protection is good, can also reduce worker's occupational hazards.
For achieving the above object, the technical solution adopted in the utility model is:
A kind of medium-sized pipeline rust cleaning machine, comprise walking dolly and rust removal rack two parts, it is characterized in that: described walking dolly is mining flat bed transport vehicle, the above is equipped with a driving motor, two driving wheels and two driven pulleys, pipeline is placed on the walking dolly, driven by motor roller rotation on the walking dolly is rotated thereby drive pipeline.
According to described medium-sized pipeline rust cleaning machine, it is characterized in that: the pipeline that described pulling winch drives in steel wire rope pulling walking dolly and the load carries out the straight line back and forth movement.
According to described medium-sized pipeline rust cleaning machine, it is characterized in that: settle two micro-machines on the described rust removal rack, a brush of being made by steel wire rope head is installed on every motor, medium-sized pipeline to the brush of rust removal rack through out-of-date, rust cleaning driven by motor brush runs up, buffing work-piece corrosion, spot are finished rust cleaning work.
According to described medium-sized pipeline rust cleaning machine, it is characterized in that: described rust removal rack uses the 16# channel-section steel to make, the brush that uses is made as steel wire rope head, be directly installed on the 2.2kw motor, use three alternating currents, bearing lubrication is relative reliable with sealing, and except rust spot is decided to be the fixed position, all corrosions are all carried out work by rust removal rack.
The beneficial effects of the utility model are: simple in structure, make easily, and easy for installation, parts are shaped steel or the universal accessories that market is seen everywhere, and are easy to carrying, assembling, the characteristics of coincidence tube pipeline installation construction.Rust cleaning efficient is high, respond well, meets pipeline construction rust cleaning requirement; The main brush that uses is made as steel wire rope head, is driven by the 2.2kw high-speed electric expreess locomotive, and derusting grade can reach the peak demand of mechanical derusting, can satisfy the front rust cleaning requirement of pipeline japanning.Mechanical movement is reliable, guarantees construction safety.Environmental protection is good, minimizing worker occupational hazards.
Description of drawings:
Below in conjunction with drawings and Examples the utility model is further specified.

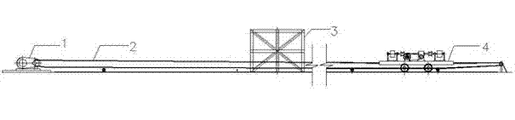

Fig. 1 is overall structure schematic diagram of the present utility model.
Fig. 2 is the rust removal rack structural representation.
Fig. 3 is the structural representation of walking dolly.
1 pulling winch, 2 haulage cables, 3 rust removal racks, 4 walking dollies, 5 rust cleaning motors, 6 are regulated screw mandrel, 7 driven pulleys, 8 driving wheels, 9 driving motors, 10 brushes among the figure
The specific embodiment:
In Fig. 1, Fig. 2, Fig. 3, a kind of medium-sized pipeline rust cleaning machine, mainly comprise walking dolly 4 and rust removal rack 3 two parts, it is characterized in that: walking dolly 4 is mining flat bed transport vehicle, the above is equipped with a driving motor 9, two driving wheels 8 and two driven pulleys 7, regulate screw mandrel 6 and regulate the gap of driven pulley 7 and driving wheel 8, in order to lay the workpiece of different size.Pipeline is placed on the walking dolly 4, and the driving motor 9 on the walking dolly 4 drives driving wheel 8 rotations, thereby drive pipeline and driven pulley 7 are rotated.The pipeline that pulling winch 1 drives in steel wire rope 2 pulling walking dollies 4 and the load carries out the straight line back and forth movement at parallel orbit.Settle two small-sized rust cleaning motors 5 on the rust removal rack 3, a brush 10 of being made by steel wire rope head is installed on every motor.When the medium-sized conduit running on the walking dolly 4 during to the brush of rust removal rack 3 10 times, rust cleaning motor 5 drives brushes 10 and runs up, and buffing work-piece corrosion, spot are finished rust cleaning work.
(1) design feature: medium-sized pipeline rust cleaning machine is simple in structure, integral body is divided into two parts: a part is walking dolly 4, pipeline is placed on the walking dolly 4, and the driving motor 9 on the walking dolly 4 drives driving wheel 8 and driven pulley 7 rotations, is rotated thereby drive pipeline; Pulling winch 1 drives walking dolly 4 and carries out the straight line back and forth movement; Two parts are rust removal racks 3, settle on the rust removal rack 3 brush 10 of being made by steel wire rope head is installed on 5, two small-sized rust cleaning motors 5 of two small-sized rust cleaning motors, when the walking dolly 4 of having placed pipeline moves to rust removal rack 3, brush 10 High Rotation Speeds, thus reach the rust cleaning effect.
(2) material characteristics: the employed material of medium-sized pipeline rust cleaning machine is common used material, and is cheap.Track is the 15kg light rail, and walking dolly 4 is mining flat bed transport vehicle, and rust removal rack 3 uses the 16# channel-section steel to make.
(3) each component function:
Pulling winch 1: the pipeline that drives in steel wire rope 2 pulling walking dollies 4 and the load comes and goes rectilinear motion.
Haulage cable 2: the pipeline that drives in walking dolly 4 and the load carries out rectilinear motion.
Rust removal rack 3: rust cleaning motor 5 and brush 10 are installed, and workpiece is finished rust cleaning work to 10 times processes of brush of rust removal rack 3.
Walking dolly 4: lay workpiece and make workpiece do round rectilinear motion at walking dolly 4.
Rust cleaning motor 5: drive brush 10 and run up buffing work-piece corrosion, spot.
Adjusting screw 6: driven pulley 7 and the gap of driving wheel 8 are changed, lay the workpiece of different size.
Driven pulley 7: with the rotation of workpiece, as workpiece support.
Driving wheel 8: workpiece support and along with the drive of driving motor 9 rotates pipeline.
Driving motor 9: by wheel is flowed to driving wheel 8 with power, rotate to drive workpiece.
Brush 10: made by steel wire rope head, High Rotation Speed under the drive of rust cleaning motor 5 is to finish the rust cleaning work to pipeline.
By foregoing description, pipeline is done reciprocating linear and is rotatablely moved under the drive of pulling winch 1 and driving motor 9, and 10 of brushes are fixed on the rust removal rack 3 does High Rotation Speed, makes pipeline without the eliminating rust of dead angle, and reaches re-set target.
Claims (2)
1. medium-sized pipeline rust cleaning machine, comprise walking dolly and rust removal rack two parts, it is characterized in that: described walking dolly is mining flat bed transport vehicle, the above is equipped with a driving motor, two driving wheels and two driven pulleys, pipeline is placed on the walking dolly, driven by motor roller rotation on the walking dolly is rotated thereby drive pipeline.
2. described medium-sized pipeline rust cleaning machine according to claim 1, it is characterized in that: settle two micro-machines on the described rust removal rack, a brush of being made by steel wire rope head is installed on every motor, medium-sized pipeline to the brush of rust removal rack through out-of-date, rust cleaning driven by motor brush runs up, buffing work-piece corrosion, spot are finished rust cleaning work.
