Abstract
The utility model discloses an automatic dust-removing device for an air-conditioning outdoor machine. The problem that the current dust-proof device for an air conditioner can only prevent dust but cannot remove the dust is solved. A dust-proof net (2) is arranged outside an air-conditioning outdoor machine shell (1); a right fixing bracket (3) is fixedly arranged on the right front side of the air-conditioning outdoor machine shell (1); a right guide rail rod (4) in the vertical direction is arranged on the right fixing bracket (3); a motor (11) is fixedly arranged on a rear fixing bracket (5); a screw rod (6) in the vertical direction is connected to an output shaft of the motor (11); a sleeve (8) is arranged at one end of an L-shaped moveable brush rod (7); a screw nut (9) is arranged at the other end of the L-shaped moveable brush rod; the sleeve (8) is moveably sleeved on the right guide rail rod (4); the screw nut (9) is screwed on the screw rod (6); and an L-shaped hair brush (10) is fixedly arranged on the inner side surface of the L-shaped moveable brush rod (7). The automatic dust-removing device is simple in manufacturing process and convenient to maintain.
Description
Technical field
The utility model relates to a kind of automatic dust removing apparatus, particularly a kind of device that the heat exchanger of air-conditioner outdoor unit is carried out automatic dedusting.
Background technology
The spacing of the heat exchanger fin of existing air-conditioner outdoor unit is narrow; the fin slit of heat exchanger is very easily crammed by dust, catkin etc.; in case in time do not clean; the blocked up meeting of heat exchanger laying dust causes dispelling the heat bad; influence air conditioner refrigerating efficient; under hot weather, can frequently cause the overheat of compressor protection and the damage compressor.At present, be the mode that adopts artificial flushing, the heat exchanger fin of air-conditioner outdoor unit is cleaned, there is the flushing difficulty, the high problem of maintenance workload Yamato worker cost.Existing utility model patent " air-conditioner outdoor unit Air Filter " (patent No. 98221749.8) and " a kind of air-conditioner outdoor unit dust guard " (patent No. 201020527805.9) are to adopt the mode that installs dust guard additional to realize dustproof, can only play dustproofly, and not have the effect of dedusting.
Summary of the invention
The utility model provides a kind of air-conditioner outdoor unit automatic dust removing apparatus, has solved existing air-conditioning dust guard, existence can only prevent dust can not dedusting problem.
The utility model is to solve above technical problem by the following technical programs:
A kind of air-conditioner outdoor unit automatic dust removing apparatus, comprise the air-conditioner outdoor unit casing, be outside equipped with Air Filter at the air-conditioner outdoor unit casing, forward right side at the air-conditioner outdoor unit casing is set with right fixed support, right fixed support is provided with the right guide rail pole of vertical direction up and down, left rear side at the air-conditioner outdoor unit casing is set with the back fixed support, fixed support is set with motor in the back, be connected with the leading screw of vertical direction up and down on the output shaft of motor, end at L shaped mobile brush holder support is provided with sleeve, the other end at L shaped mobile brush holder support is provided with screw, sleeve is actively socketed on the right guide rail pole, screw is screwed onto on the screw mandrel, is set with L shaped hairbrush at the medial surface of L shaped mobile brush holder support.But motor is the micromachine of rotating.
The utility model has adopted efficient Air Filter; effectively bulky grain dust or catkin are blocked in outside the Air Filter; the L shaped mobile brush holder support of driven by motor; through uninterrupted automatic reciprocal dedusting; can obviously slow down the dirty stifled speed of heat exchanger; significantly reduce the wash number of heat exchanger, keep the air-conditioning heat exchange property.Simultaneously, air-conditioner outdoor unit dust arrester of the present utility model has manufacturing process advantage simple, easy to maintenance.
Description of drawings

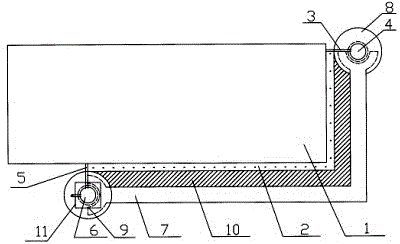

Fig. 1 is that the utility model is at the structural representation of overlooking on the direction;
Fig. 2 is the structural representation of the utility model on the apparent direction of back.
The specific embodiment
A kind of air-conditioner outdoor unit automatic dust removing apparatus, comprise air-conditioner outdoor unit casing 1, be outside equipped with Air Filter 2 at air-conditioner outdoor unit casing 1, forward right side at air-conditioner outdoor unit casing 1 is set with right fixed support 3, right fixed support 3 is provided with the right guide rail pole 4 of vertical direction up and down, left rear side at air-conditioner outdoor unit casing 1 is set with back fixed support 5, fixed support 5 is set with motor 11 in the back, be connected with the leading screw 6 of vertical direction up and down on the output shaft of motor 11, end at L shaped mobile brush holder support 7 is provided with sleeve 8, the other end at L shaped mobile brush holder support is provided with screw 9, sleeve 8 is actively socketed on the right guide rail pole 4, screw 9 is screwed onto on the screw mandrel 6, is set with L shaped hairbrush 10 at the medial surface of L shaped mobile brush holder support 7.But motor 11 is the micromachine of rotating.
When giving the energising of this automatic dust removing apparatus, motor 11 directly drives screw mandrel 6 rotations, the screw mandrel 6 of rotation drives screw 9 and moves up and down, on screw 9 annulus through hole 12 is arranged, L shaped mobile brush holder support 7 passes through hole 12, play the axial restraint effect, thereby make uniform motion up and down along with driving L shaped mobile brush holder support 7, reach the move up and down purpose of cleaning Air Filter 2 of L shaped hairbrush 10 with this.
Claims (2)
1. air-conditioner outdoor unit automatic dust removing apparatus, comprise air-conditioner outdoor unit casing (1), be outside equipped with Air Filter (2) at air-conditioner outdoor unit casing (1), it is characterized in that, forward right side at air-conditioner outdoor unit casing (1) is set with right fixed support (3), right fixed support (3) is provided with the right guide rail pole (4) of vertical direction up and down, left rear side at air-conditioner outdoor unit casing (1) is set with back fixed support (5), be set with motor (11) at back fixed support (5), be connected with the leading screw (6) of vertical direction up and down on the output shaft of motor (11), end at L shaped mobile brush holder support (7) is provided with sleeve (8), the other end at L shaped mobile brush holder support is provided with screw (9), sleeve (8) is actively socketed on the right guide rail pole (4), screw (9) is screwed onto on the screw mandrel (6), is set with L shaped hairbrush (10) at the medial surface of L shaped mobile brush holder support (7).
2. a kind of air-conditioner outdoor unit automatic dust removing apparatus according to claim 1 is characterized in that, motor (11) but be the micromachine of rotating.
