The utility model discloses a road traffic construction lamp which comprises a lamp pillar. A screw rod is fixedly arranged on the top of the lamp pillar. A fixation disc is fixedly connected to the bottom of the lamp pillar. A rotation disc is in threaded connection with the outer wall of the screw rod. Multiple LED lamps are arranged on a side wall of the rotation disc. A solar cell panel is arranged straightly above the screw rod and fixedly connected with the screw rod through a supporting rod. A storage battery and a solar energy controller are arranged in the lamp pillar. An environmental optical sensor is arranged on the outer wall of the lamp pillar. The solar cell panel, the solar controller, the storage battery, the LED lamps and the environmental optical sensor are electrically connected. The road traffic construction lamp is simple in structure and high in practicality. The rotation disc is in threaded connection with the outer wall of the screw rod. The lamp pillar is of a stretchy structure and capable of freely adjusting height. The fixation disc is arranged at the bottom of the lamp pillar and placed more stably. Meanwhile, the solar cell panel converts solar energy into electric energy and the road traffic construction lamp is friendly to environment and saving in energy.
Description
Technical field
The utility model relates to a kind of construction tool, relates in particular to a kind of road traffic construction lamp.
Background technology
Progress along with science and technology, pattern and the function of lighting apparatus are varied, the railroader is when keep in repair railway night, need be by means of the help of lighting apparatus, existing construction of railways lamp needs mains-supplied, can not effectively reach the effect of energy-conserving and environment-protective, also have existing lighting apparatus can not carry out descending operation, lay inconvenience simultaneously, brought great inconvenience for people's use.
The utility model content
At the problem that above-mentioned prior art exists, the utility model provides a kind of road traffic construction lamp.
To achieve these goals, the technical solution adopted in the utility model is: a kind of road traffic construction lamp, comprise lamppost, the top of lamppost is installed with screw rod, the bottom of lamppost is fixedly connected with fixed disk, the outer wall thread of screw rod is connected with rotating disk, the sidewall of rotating disk is provided with several LED lamps, be provided with solar panel directly over the screw rod, solar panel is fixedlyed connected with screw rod by support bar, be provided with battery and controller for solar in the lamppost, the outer wall of lamppost is provided with ambient light sensor, solar panel, controller for solar, battery, LED lamp and ambient light sensor are electrically connected.
As preferably, lamppost is telescopic structure.
Compared with prior art, advantage of the present utility model is: simple in structure, the practicality height, the outer wall thread of screw rod is connected with rotating disk, and lamppost is telescopic structure, can the regulated at will height, the bottom of lamppost is provided with fixed disk, can more stably lay, solar panel is converted to electric energy with solar energy, environmental protection and energy saving simultaneously.
Description of drawings

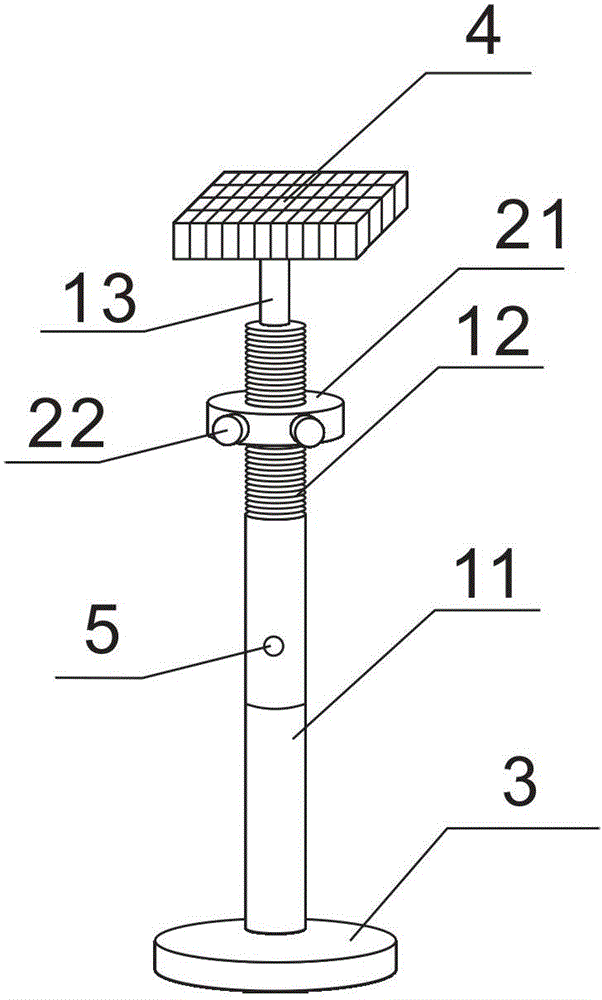

Fig. 1 is structural representation of the present utility model.
Among the figure: 11, lamppost; 12, screw rod; 13, support bar; 21, rotating disk; 22, LED lamp; 3, fixed disk; 4, solar panel; 5, ambient light sensor.
The specific embodiment
The utility model is described in further detail below in conjunction with accompanying drawing.
As a kind of embodiment of the present utility model, consult Fig. 1, the utility model comprises lamppost 11, the top of lamppost 11 is installed with screw rod 12, the bottom of lamppost 11 is fixedly connected with fixed disk 3, the outer wall thread of screw rod 12 is connected with rotating disk 21, the sidewall of rotating disk 21 is provided with several LED lamps 22, be provided with solar panel 4 directly over the screw rod 12, solar panel 4 is fixedlyed connected with screw rod 12 by support bar 13, be provided with battery and controller for solar in the lamppost 11, the outer wall of lamppost 11 is provided with ambient light sensor 5, solar panel 4, controller for solar, battery, LED lamp 22 and ambient light sensor 5 are electrically connected.Lamppost 11 is telescopic structure.
The utility model is simple in structure, the practicality height, the outer wall thread of screw rod 12 is connected with rotating disk 21, lamppost 11 is telescopic structure, can the regulated at will height, the bottom of lamppost 11 is provided with fixed disk 3, can more stably lay, simultaneously solar panel 4 is converted to electric energy, environmental protection and energy saving with solar energy.
Although be that a most practical and preferred embodiment has been described the utility model in conjunction with current taking as, but be to be understood that, the utility model is not limited to the disclosed embodiments, and is intended to contain multiple modification and equivalent arrangements included in the spirit and scope of the appended claims on the contrary.
Claims (2)
1. road traffic construction lamp, comprise lamppost, it is characterized in that: the top of described lamppost is installed with screw rod, the bottom of lamppost is fixedly connected with fixed disk, the outer wall thread of described screw rod is connected with rotating disk, the sidewall of described rotating disk is provided with several LED lamps, be provided with solar panel directly over the screw rod, described solar panel is fixedlyed connected with screw rod by support bar, be provided with battery and controller for solar in the lamppost, the outer wall of lamppost is provided with ambient light sensor, described solar panel, controller for solar, battery, LED lamp and ambient light sensor are electrically connected.
2. road traffic according to claim 1 construction lamp, it is characterized in that: described lamppost is telescopic structure.
