Abstract

本实用新型是一种鸡舍太阳能照明装置。它是在鸡舍顶部安装太阳能电池板，顺序安装有蓄电池，以及与蓄电池相连的照明灯。能通过太阳能电池板将光能转化为电能，储存在蓄电池内，在夜间为鸡舍供电，达到为鸡舍夜间照明的目的。另外，在鸡舍内顶部安装一套升降装置，将照明灯安装在升降装置上，可调节照明灯的高度达到所需光照强度。

Figure 201220214963

The utility model relates to a solar lighting device for chicken coops. It installs solar panels on the top of the chicken house, sequentially installs batteries, and lights connected to the batteries. The light energy can be converted into electrical energy through the solar panel, stored in the battery, and powered for the chicken coop at night, so as to achieve the purpose of lighting the chicken coop at night. In addition, install a lifting device on the top of the chicken house, install the lighting on the lifting device, and adjust the height of the lighting to achieve the required light intensity.

Figure 201220214963

Description

鸡舍太阳能照明装置Chicken coop solar lighting installation

技术领域 technical field

本实用新型涉及一种太阳能照明装置，尤其是针对鸡舍的太阳能照明装置。The utility model relates to a solar lighting device, in particular to a solar lighting device for chicken coops.

背景技术 Background technique

目前，养鸡场内部大都采用家庭用电进行夜间照明，这样会消耗大量的电能，尤其是当养鸡场建设在山区时，山上电力设备不健全，供电没有保障，严重影响鸡舍内部夜间的正常照明。At present, most chicken farms use household electricity for night lighting, which will consume a lot of electric energy, especially when the chicken farm is built in a mountainous area, the power equipment on the mountain is not perfect, and the power supply is not guaranteed, which seriously affects the nighttime lighting inside the chicken house. Normal lighting.

实用新型内容 Utility model content

为了克服现在的鸡舍照明的不足，本实用新型提供一种鸡舍太阳能照明装置，该鸡舍太阳能照明装置，不仅节约了电能，方便了山区山顶等电力系统不能到达的地方，又可以调节光照强度。In order to overcome the deficiency of current chicken house lighting, the utility model provides a chicken house solar lighting device. The chicken house solar lighting device not only saves electric energy, but also facilitates places where the power system cannot reach mountain tops, and can also adjust the light. strength.

本实用新型解决其技术问题所采用的技术方案是：在鸡舍顶部安装太阳能电池板，顺序安装有蓄电池，及与蓄电池相连的照明灯。能通过太阳能电池板将光能转化为电能，储存在蓄电池内，在夜间为照明灯供电，以达到照明的目的。另外，在鸡舍内顶部安装一套升降装置，将照明灯安装在升降装置上，可调节照明灯的高度达到所需光照强度。The technical solution adopted by the utility model to solve the technical problem is: a solar battery panel is installed on the top of the chicken house, a storage battery is installed in sequence, and a lighting lamp connected with the storage battery. The light energy can be converted into electrical energy through the solar panel, stored in the battery, and powered for the lighting at night to achieve the purpose of lighting. In addition, install a lifting device on the top of the chicken house, install the lighting on the lifting device, and adjust the height of the lighting to achieve the required light intensity.

本实用新型的有益效果是：通过光能转化为电能用于照明，节约电能，又可以通过The beneficial effect of the utility model is that the conversion of light energy into electric energy is used for lighting, saving electric energy, and can be

升降装置改变光照强度，使用方便，节能环保。The lifting device changes the light intensity, easy to use, energy saving and environmental protection.

附图说明 Description of drawings

下面结合附图对本实用新型作进一步说明。Below in conjunction with accompanying drawing, the utility model is further described.

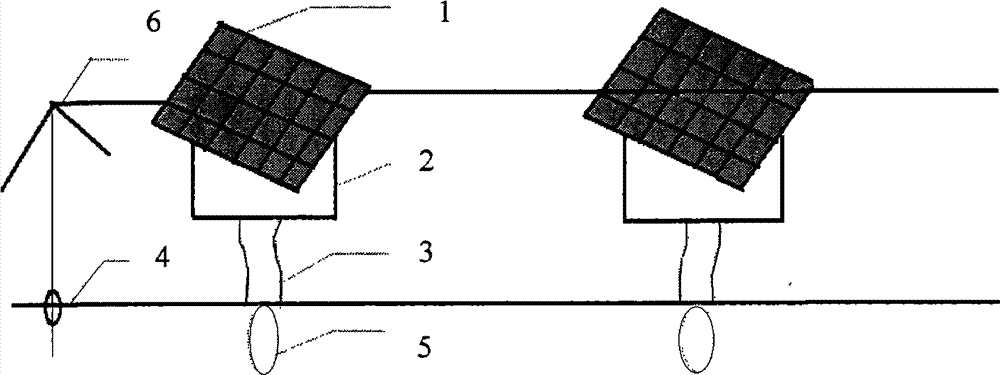

图1是本实用新型的结构示意图。Fig. 1 is a structural representation of the utility model.

图中，1.太阳能电池板，2.蓄电池，3.导线，4.升降装置，5.照明灯6.房顶。In the figure, 1. Solar panel, 2. Battery, 3. Wire, 4. Lifting device, 5. Lighting lamp 6. Roof.

具体实施方式 Detailed ways

在图中，将电池板设置在房顶上，通过线路装置将电池板连接鸡舍内部的蓄电池上，蓄电池储存的电量供升降装置下的电灯夜间照明。能使安装在房顶6上的太阳能电池板1接受光照，把光能转化为电能储存到蓄电池2中，通过导线3为照明灯5供电，以备鸡舍夜间照明使用。另外通过升降装置4可以调节灯的高度，达到所需的光照强度。In the figure, the battery board is set on the roof, and the battery board is connected to the battery inside the chicken house through the wiring device, and the electricity stored in the battery is used for night lighting of the lamp under the lifting device. The solar panel 1 installed on the roof 6 can receive light, convert the light energy into electric energy and store it in the battery 2, and supply power to the lighting lamp 5 through the wire 3, so as to prepare the chicken coop for nighttime lighting. In addition, the height of the lamp can be adjusted through the lifting device 4 to achieve the required light intensity.

Claims (3)

1. a hen house solar illumination apparatus comprises solar panel, battery, lead, crane, illuminating lamp, it is characterized in that, described hen house solar illumination apparatus is connected to form through lead by solar panel, battery, illuminating lamp; Described illuminating lamp is installed on the crane.
2. hen house solar illumination apparatus according to claim 1 is characterized in that, described solar panel and battery only supply one group of illuminating lamp to use.
3. hen house solar illumination apparatus according to claim 1 is characterized in that described crane can be regulated the height of illuminating lamp.
