一种混炼机的冷却系统，包括一个冷却水槽，所述冷却水槽设有一个原料进口端与一个原料出口端，在所述冷却水槽靠近所述原料进口端的底部设有一个循环出水口，在所述冷却水槽靠近所述原料出口端的底部还设有一个循环进水口，在所述冷却水槽的中间底部里侧还设有一个涡轮，所述涡轮与电机连接，所述电机设置在冷却水槽的中间底部外侧，冷却水槽的外部还设置有过滤器，循环水泵和散热片，所述循环进水口通过水管与过滤器的一端连接，过滤器的另一端通过水管与循环水泵的一端连接，循环水泵的另一端通过水管与所述散热片的一端连接，散热片的另一端通过水管与循环出水口连接。不仅可以将水循环重复利用，节约水资源、保护生态，还能达到良好的冷却效果，同时还能有效的解决水质钙化后产生的悬浮杂质问题，设计简单，造价低，维护方便。
A cooling system for a kneader, comprising a cooling water tank, the cooling water tank is provided with a raw material inlet end and a raw material outlet end, a circulating water outlet is provided at the bottom of the cooling water tank near the raw material inlet end, The bottom of the cooling water tank near the raw material outlet end is also provided with a circulating water inlet, and a turbine is also provided on the inner side of the middle bottom of the cooling water tank, and the turbine is connected with a motor, and the motor is arranged on the cooling water tank. On the outer side of the middle bottom, a filter, a circulating water pump and a heat sink are arranged outside the cooling water tank. The circulating water inlet is connected to one end of the filter through a water pipe, and the other end of the filter is connected to one end of the circulating water pump through a water pipe. The circulating water pump The other end of the heat sink is connected to one end of the heat sink through a water pipe, and the other end of the heat sink is connected to the circulating water outlet through a water pipe. Not only can the water cycle be reused, save water resources, protect the ecology, but also achieve a good cooling effect. At the same time, it can also effectively solve the problem of suspended impurities after water calcification. The design is simple, the cost is low, and the maintenance is convenient.
Description
技术领域 technical field
本实用新型涉及一种冷却系统，尤其是一种塑料混炼机的冷却系统。 The utility model relates to a cooling system, in particular to a cooling system of a plastic mixing machine. the
背景技术 Background technique
随着石油资源的日益紧张，变废为宝逐渐得到人们的认同，有效地节约资源的同时还可以保护环境，现有塑料混炼造粒机一般都由如下几部分构成，将塑料原料进行熔化的熔化机构、挤出抽丝机构，将抽出的热塑料丝进行冷却的冷却机构，将冷却后的塑料丝进行切丝的切料机构，以及将切好丝的粒料进行封装的封包机构等。现有的混炼造粒机中的冷却机构基本采用流水冷却槽，即通过进水口进水，出水口出水，不停地向水槽中注入冷却水，并及时排除废水，以达到将热塑料丝冷却的目的，虽然这种流水冷却方法避免了不换水冷却法中对热塑料丝冷却不良的现象，并有效防止了热塑料丝对水槽中的水热蒸发降温过程中形成的水质钙化后所产生悬浮杂质的问题，但是大量的用水不利于水资源的节约使用，而且生产成本较高，破坏生态环境，尤其不利于缺水地区推广应用。如果采用单纯的循环过滤，虽然能够很好的节约用水，但却达不到很好的冷却效果。 With the increasing shortage of petroleum resources, turning waste into treasure is gradually recognized by people. It can effectively save resources and protect the environment. The existing plastic mixing and granulating machines are generally composed of the following parts to melt plastic raw materials. The melting mechanism, the extrusion wire drawing mechanism, the cooling mechanism that cools the drawn hot plastic wire, the material cutting mechanism that cuts the cooled plastic wire, and the packaging mechanism that encapsulates the cut pellets, etc. . The cooling mechanism in the existing kneading and granulating machine basically adopts a flowing water cooling tank, that is, water is taken in through the water inlet, and water is discharged from the water outlet. The purpose of cooling, although this flowing water cooling method avoids the phenomenon of poor cooling of the thermoplastic wire in the non-changing water cooling method, and effectively prevents the thermal plastic wire from calcifying the water quality formed during the cooling process of the water heat in the tank. The problem of suspended impurities is generated, but a large amount of water is not conducive to the economical use of water resources, and the production cost is relatively high, which destroys the ecological environment, and is especially not conducive to the promotion and application of water-deficient areas. If a simple circulation filter is used, although it can save water very well, it cannot achieve a good cooling effect. the
发明内容 Contents of the invention
本实用新型所要解决的技术问题是，解决现有技术中生产成本高、破坏生态环境、不利于节水、冷却效果不佳的问题。 The technical problem to be solved by the utility model is to solve the problems in the prior art that the production cost is high, the ecological environment is damaged, it is not conducive to water saving, and the cooling effect is not good. the
为解决上述技术问题，本实用新型提供一种混炼机的冷却系统，包括一个冷却水槽，所述冷却水槽设有一个原料进口端与一个原料出口端，在所述冷却水槽靠近所述原料进口端的底部设有一个循环出水口，在所述冷却水槽靠近所述原料出口端的底部还设有一个循环进水口，在所述冷却水槽的中间底部里侧还设有一个涡轮，所述涡轮与电机连接，所述电机设置在冷却水槽的中间底部外侧，冷却水槽的外部还设置有过滤器，循环水泵和散热片，所述循环进水口通过水管与过滤器的一端连接，过滤器的另一端通过水管与循环水泵的一端连接，循环水泵的另一端通过水管与所述散热片的一端连接，散热片的另一端通过水管与循环出水口连接。 In order to solve the above technical problems, the utility model provides a cooling system of a kneader, which includes a cooling water tank, the cooling water tank is provided with a raw material inlet and a raw material outlet, and the cooling water tank is close to the raw material inlet A circulating water outlet is provided at the bottom of the cooling water tank, a circulating water inlet is provided at the bottom of the cooling water tank close to the raw material outlet end, and a turbine is also provided at the middle bottom of the cooling water tank, and the turbine and the motor The motor is set outside the middle bottom of the cooling water tank, and a filter, circulating water pump and cooling fins are also provided outside the cooling water tank. The circulating water inlet is connected to one end of the filter through a water pipe, and the other end of the filter is passed through The water pipe is connected to one end of the circulating water pump, the other end of the circulating water pump is connected to one end of the cooling fin through the water pipe, and the other end of the cooling fin is connected to the circulating water outlet through the water pipe. the
所述过滤器为过滤介质是活性炭的过滤装置，活性炭过滤装置过滤稳定，可重复使用。 The filter is a filtering device whose filter medium is activated carbon, and the activated carbon filtering device has stable filtration and can be used repeatedly. the
所述散热片采用金属材料制作，里外喷涂有防锈涂层，可起到很好的散热效果。 The heat sink is made of metal material, and the inside and outside are sprayed with an anti-rust coating, which can play a good heat dissipation effect. the
所述涡轮与电机连接处采用密封结构活动连接。 The connection between the turbine and the motor adopts a sealed structure for flexible connection. the
所述涡轮的突起结构面向冷却水槽上方，使得冷却水槽中产生水流涡旋，达到跟好的冷却效果，就像家用洗衣机底部涡轮工作原理一样。 The protruding structure of the turbine faces above the cooling water tank, so that the water flow vortex is generated in the cooling water tank to achieve a better cooling effect, just like the working principle of the turbine at the bottom of a household washing machine. the
本实用新型的积极效果在于，不仅可以将水循环重复利用，节约水资源、保护生态，还能达到良好的冷却效果，同时还能有效的解决水质钙化后产生的悬浮杂质问题，设计简单，造价低，维护方便。 The positive effect of the utility model is that not only can the water cycle be reused, save water resources, protect the ecology, but also achieve a good cooling effect, and at the same time effectively solve the problem of suspended impurities produced after water calcification, with simple design and low cost , easy maintenance. the
附图说明Description of drawings

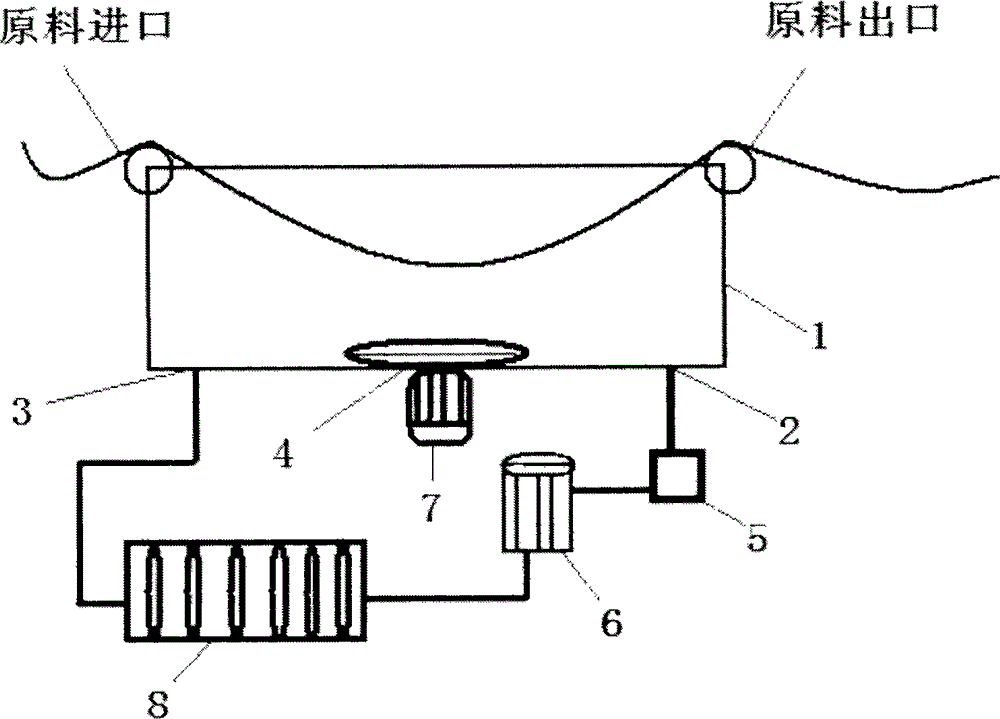

图1是本实用新型优选实施例混炼机的冷却系统的结构示意图 Fig. 1 is the structural representation of the cooling system of the mixing machine of preferred embodiment of the present utility model
图中：1.冷却水槽，2.循环进水口，3.循环出水口，4.涡轮，5.过滤器，6.循环水泵，7.电机，8.散热片。 In the figure: 1. Cooling water tank, 2. Circulating water inlet, 3. Circulating water outlet, 4. Turbine, 5. Filter, 6. Circulating water pump, 7. Motor, 8. Radiator. the
具体实施方式Detailed ways
为了更加详细地说明本实用新型的实现方式，结合附图对本实用新型进行说明，参照图1，是本实用新型优选实施例一种混炼机的冷却系统，包括一个冷却水槽1，所述冷却水槽1设有一个原料进口端与一个原料出口端，在所述冷却水槽1靠近所述原料进口端的底部设有一个循环出水口3，在所述冷却水槽1靠近所述原料出口端的底部还设有一个循环进水口2，在所述冷却水槽1的中间底部里侧还设有一个涡轮4，所述涡轮4与电机7连接，所述电机7设置在冷却水槽1的中间底部外侧，冷却水槽1的外部还设置有过滤器5，循环 水泵6和散热片8，所述循环进水口2通过水管与过滤器5的一端连接，过滤器5的另一端通过水管与循环水泵6的一端连接，循环水泵6的另一端通过水管与所述散热片8的一端连接，散热片8的另一端通过水管与循环出水口3连接。 In order to illustrate the implementation of the utility model in more detail, the utility model is described in conjunction with the accompanying drawings. With reference to FIG. Water tank 1 is provided with a raw material inlet port and a raw material outlet port, a circulating water outlet 3 is provided at the bottom of the cooling water tank 1 near the raw material inlet port, and a circulating water outlet 3 is provided at the bottom of the cooling water tank 1 near the raw material outlet port. There is a circulating water inlet 2, and a turbine 4 is also provided on the inner side of the middle bottom of the cooling water tank 1, and the turbine 4 is connected to a motor 7, and the motor 7 is arranged outside the middle bottom of the cooling water tank 1, and the cooling water tank 1 is also provided with a filter 5, a circulating water pump 6 and a cooling fin 8, the circulating water inlet 2 is connected to one end of the filter 5 through a water pipe, and the other end of the filter 5 is connected to one end of the circulating water pump 6 through a water pipe. The other end of the circulating water pump 6 is connected to one end of the cooling fin 8 through a water pipe, and the other end of the cooling fin 8 is connected to the circulating water outlet 3 through a water pipe. the
所述过滤器5为过滤介质是活性炭的过滤装置，活性炭过滤装置过滤稳定，可重复使用。 The filter 5 is a filtering device whose filter medium is activated carbon, and the activated carbon filtering device has stable filtration and can be used repeatedly. the
所述散热片8采用金属材料制作，里外喷涂有防锈涂层，可起到很好的散热效果。 The heat sink 8 is made of metal material, and the inside and outside are sprayed with an anti-rust coating, which can play a good heat dissipation effect. the
所述涡轮4与电机7连接处采用密封结构活动连接。 The joint between the turbine 4 and the motor 7 is flexibly connected with a sealed structure. the
所述涡轮4的突起结构面向冷却水槽上方，使得冷却水槽1中产生水流涡旋，达到跟好的冷却效果，就像家用洗衣机底部涡轮工作原理一样。 The protruding structure of the turbine 4 faces above the cooling water tank, so that the water flow vortex is generated in the cooling water tank 1 to achieve a better cooling effect, just like the working principle of the turbine at the bottom of a household washing machine. the
当混炼机的冷却系统工作时，循环水泵6与电机7通电工作，循环水泵6将冷却水槽1中的水从循环进水口2吸进过滤器5中过滤，除去水垢等杂质，然后再通过散热片8对水进就行散热，最后通过循环出水口3重新流进冷却水槽1；电机7通电后旋转，带动涡轮4旋转，使得冷却水槽1中的水转动，加速冷却效果。 When the cooling system of the mixing machine is working, the circulating water pump 6 and the motor 7 are energized to work, and the circulating water pump 6 sucks the water in the cooling water tank 1 from the circulating water inlet 2 into the filter 5 to filter, remove scale and other impurities, and then pass through The heat sink 8 dissipates water, and finally flows into the cooling water tank 1 through the circulating water outlet 3; the motor 7 rotates after being powered on, driving the turbine 4 to rotate, so that the water in the cooling water tank 1 rotates, and the cooling effect is accelerated. the
本实用新型的积极效果在于，不仅可以将水循环重复利用，节约水资源、保护生态，还能达到良好的冷却效果，同时还能有效的解决水质钙化后产生的悬浮杂质问题，设计简单，造价低，维护方便。 The positive effect of the utility model is that not only can the water cycle be reused, save water resources, protect the ecology, but also achieve a good cooling effect, and at the same time effectively solve the problem of suspended impurities produced after water calcification, with simple design and low cost , easy maintenance. the
以上所述的仅为本实用新型的优选实施例，所应理解的是，以上实施例的说明只是用于帮助理解本实用新型的方法及其核心思想，并不用于限定本实用新型的保护范围，凡在本实用新型的思想和原则之内所做的任何修改、等同替换等等，均应包含在本实用新型的保护范围之内。 The above are only preferred embodiments of the present utility model. It should be understood that the descriptions of the above embodiments are only used to help understand the method of the present utility model and its core idea, and are not intended to limit the protection scope of the present utility model. , Any modifications, equivalent replacements, etc. made within the ideas and principles of the present utility model shall be included in the protection scope of the present utility model. the
