The utility model discloses a metabolic cage for laying hens. The metabolic cage comprises a cage body, a cage door, a trough and a feces collecting plate, wherein a separation net which can move forward and backward is arranged in the cage body; the grid clearance of the separation net is 5.5 cm; the trough is hung outside the front side of the cage body; a nipple drinking water line is arranged at the top of the rear side of the cage body; a clapboard is arrangd at such position which is 23 cm far from the front end of the feces collecting plate and divides the feces collecting plate into two parts; and the cage door is arragened in the middle of the rear side of the cage body. According to the metabolic cage for laying hens, the movable separation net is addationally arranged in the cage body, the activity space for the laying hens is reduced, ingesting and drinking water are seperated and the depth of the trough is increased, so that the loss of the feeding stuff and the feces pollution caused by feeding stuff are reduced, the accuracy of the measuring results can be ensured and testers can operate conveniently.
Description
Technical field
The utility model relates to a kind of breeding cage, particularly a kind of layer chicken metabolic cage.
Background technology
Metabolic test is the key means of estimating feed nutritive value, obtaining the important nutrition parameters of feedstuff, and scientific research, production practices and feed formula design are all had very important directive function.Metabolic test result's accuracy has very important economy and ecological benefits to saving feed cost, raising feed nutrient availability etc.Since the chicken true metabolizable energy mensuration scheme that Sibbaid (1976) proposes, utilize and raise by force, adopt anus to sew up the full excrement method of receiving and in the mensuration of poultry metabolic energy and utilization of nutrients, play an important role.But because layer chicken still can be laid eggs in the metabolic test process, so the method that anus is sewed up not too is fit to layer chicken, often adopt the layer chicken free choice feeding, directly collect excremental mode and carry out metabolic test.Now use metabolic cage since hopper and tank in a direction, and highly too low, layer chicken drinks water while searching for food, and causes food pollution and feed a part to enter in the drinking-water, causes feed to be scattered when chicken pecks at again, causes that the feed feed intake can not accurate recording; Feed is scattered in the collection excrement dish, because activity space is bigger, during the layer chicken defecation, often ight soil is arranged on feed, pollutes ight soil, in a word, now causes the loss of feed bigger with metabolic cage, and is more serious to excremental pollution, the experimental implementation difficulty.In order to guarantee the accuracy of measurement result, to the special requirement of metabolic cage needs of layer chicken.The utility model will be searched for food and be separated with drinking water, and adopt nipple-shape drinking-water line easily, increase the hopper degree of depth, reduce the loss of feed; In the cage body, set up can be movable separation net, reduce the activity space of layer chicken, will collect the excrement dish and be divided into two parts, with the pollution of minimizing feed to ight soil; Increase the width of cage body spacer screen grid, make things convenient for ight soil to fall into collection excrement dish, guarantee the accuracy of collecting dung; Change the cage door into cage body rear side, make things convenient for experimental implementation.
The utility model content
In order to overcome the deficiency of existing metabolic cage, the utility model provides a kind of layer chicken metabolic cage by mobile separation net.
The technical scheme that its technical problem that solves the utility model adopts is: a kind of layer chicken metabolic cage, comprise cage body, cage door, hopper, collection excrement dish, and being provided with in the cage body can be to the separation net of forward and backward translation, and the grid gap of separation net is 5.5cm; The cage body hangs with hopper outside the front side; Side roof part is provided with nipple-shape drinking-water line behind the cage body; The anterior 23cm of collection excrement dish place is provided with dividing plate and will collects the excrement dish and be divided into two parts; The cage door is positioned at cage body rear side center position.
To search for food and separate with drinking water, adopt nipple-shape drinking-water line easily, increase the hopper degree of depth, reduce the loss of feed; In the cage body, set up can be movable separation net, reduce the activity space of layer chicken, will collect the excrement dish and be divided into two parts, with the pollution of minimizing feed to ight soil; Increase the width of cage body spacer screen grid, make things convenient for ight soil to fall into collection excrement dish, guarantee the accuracy of collecting dung; Change the cage door into cage body rear side, make things convenient for experimental implementation.
The beneficial effects of the utility model are that the loss of minimizing feed and feed guarantee the accuracy of measurement result to excremental pollution, are convenient to laboratory technician's operation.
Description of drawings

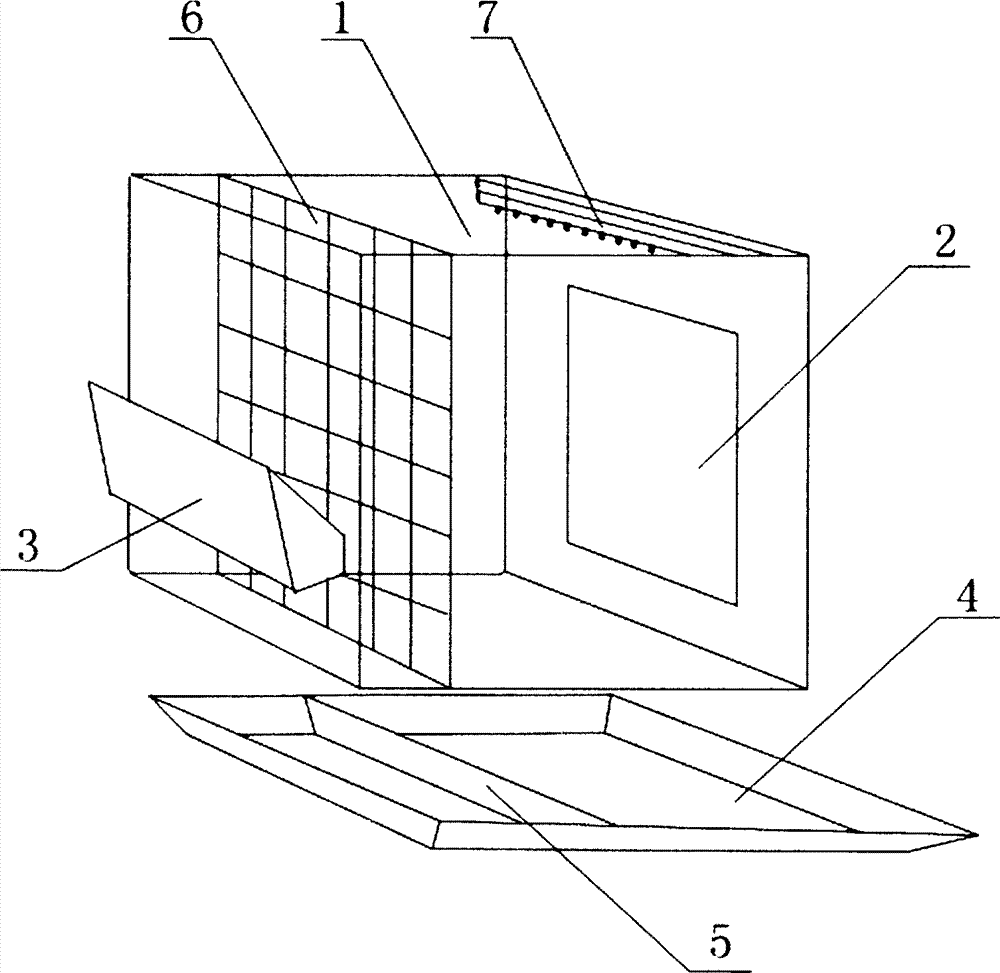

Fig. 1 is structural representation of the present utility model.
Parts and numbering among the figure:
1-cage body; 2-cage door; The 3-hopper; 4-collection excrement dish; The 5-dividing plate; The 6-separation net; 7-nipple-shape drinking-water line.
Embodiment
Below in conjunction with drawings and Examples the utility model is further specified.
As shown in Figure 1, a kind of layer chicken metabolic cage comprises cage body 1, cage door 2, hopper 3, collection excrement dish 4, and being provided with in the cage body 1 can be to the separation net 6 of forward and backward translation, and the grid gap of separation net 6 is 5.5cm; The cage body hangs with hopper 3 outside 1 front side; Cage body 1 back side roof part is provided with nipple-shape drinking-water line 7; Collection excrement dish 4 anterior 23cm places are provided with dividing plate 5 and will collect excrement dish 4 and be divided into two parts; Cage door 2 is positioned at cage body 1 rear side center position.
Layer chicken adopts stainless steel material to make with metabolic cage.
Cage body 1 is made into the cuboid that length is respectively 50cm, 37cm, 32cm, the grid gap of bottom, both sides and rear side is 2cm, top net compartment crack is 4cm, the front side mesh width is identical with the grid gap of separation net 6, be 5.5cm, it is one lined that the front side grid has at 5cm place, distance bottom, is convenient to hopper 3 and hangs.
Select the layer chicken of laying period, by cage door 2 layer chicken is put into cage body 1, layer chicken freely drinks water by nipple-shape drinking-water line 7 by hopper 3 feed of searching for food.When formal metabolic test begins, after layer chicken searches for food, the separation net 6 of cage body 1 front end setting is passed the 12cm place in the cage to be blocked, to reduce the activity space of layer chicken, by increasing the width of cage body 1 spacer screen grid, its width is 2cm, its defecation is concentrated relatively fall into collection excrement dish 4, guarantees the accuracy of collecting dung; Increase the degree of depth of hopper 3, will collect excrement dish 4 usefulness dividing plates 5 simultaneously it is divided into two parts, be scattered and waste with minimizing layer chicken feed when searching for food, and do not cause feed to the pollution of ight soil.At cage body 1 rear side cage door 2 is set, cage door 2 long for 31cm, wide be 20cm, make things convenient for experimental implementation.The utility model design is ingenious, and the feeding science is easy to operate.
By reference to the accompanying drawings embodiment of the present utility model has been carried out the description of exemplary above, obviously the utility model is not limited thereto, and the various remodeling that carry out in the utility model scope all do not exceed the protection domain of utility model.
Claims (4)
1. layer chicken metabolic cage, it is characterized in that, comprise cage body (1), cage door (2), hopper (3), collection excrement dish (4), it is characterized in that, being provided with in the described cage body (1) can be to the separation net (6) of forward and backward translation, and the grid gap of separation net (6) is 5.5cm; Described cage body (1) hangs with hopper (3) outside the front side; Described cage body (1) back side roof part is provided with nipple-shape drinking-water line (7); The anterior 23cm of described collection excrement dish (4) place is provided with dividing plate (5) and will collects excrement dish (4) and be divided into two parts; Described cage door (2) is positioned at cage body (1) rear side center position.
2. a kind of layer chicken metabolic cage according to claim 1 is characterized in that, described hopper (3) is right-angled trapezium.
3. a kind of layer chicken metabolic cage according to claim 1 is characterized in that, described collection excrement dish (4) is trapezoidal.
4. a kind of layer chicken metabolic cage according to claim 1 is characterized in that, described layer chicken adopts stainless steel material to make with metabolic cage.
