CN203150848U - Measuring tape type wire for electrical equipment - Google Patents
Measuring tape type wire for electrical equipment Download PDFInfo
- Publication number
- CN203150848U CN203150848U CN2013201169817U CN201320116981U CN203150848U CN 203150848 U CN203150848 U CN 203150848U CN 2013201169817 U CN2013201169817 U CN 2013201169817U CN 201320116981 U CN201320116981 U CN 201320116981U CN 203150848 U CN203150848 U CN 203150848U
- Authority
- CN
- China
- Prior art keywords
- volume
- line segment
- stretched
- tape type
- link
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Classifications
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01R—ELECTRICALLY-CONDUCTIVE CONNECTIONS; STRUCTURAL ASSOCIATIONS OF A PLURALITY OF MUTUALLY-INSULATED ELECTRICAL CONNECTING ELEMENTS; COUPLING DEVICES; CURRENT COLLECTORS
- H01R13/00—Details of coupling devices of the kinds covered by groups H01R12/70 or H01R24/00 - H01R33/00
- H01R13/72—Means for accommodating flexible lead within the holder
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02G—INSTALLATION OF ELECTRIC CABLES OR LINES, OR OF COMBINED OPTICAL AND ELECTRIC CABLES OR LINES
- H02G11/00—Arrangements of electric cables or lines between relatively-movable parts
- H02G11/02—Arrangements of electric cables or lines between relatively-movable parts using take-up reel or drum
Landscapes
- Storing, Repeated Paying-Out, And Re-Storing Of Elongated Articles (AREA)
- Electric Cable Installation (AREA)
Abstract
The utility model discloses a measuring tape type wire for a piece of electrical equipment. The measuring tape type wire is characterized by comprising a conductive line (1) connecting the electrical equipment; and a reeling device (2) arranged on the middle position of the conductive line and having a first reeling connection end and a second reeling connection end. The conductive line (1) comprises a first line segment (11) connecting the first reeling connection end and a second line segment (12) connecting the second reeling connection end. The two ends of the wire can be both independently reeled and unreeled in a free way. The wire can be folded and unfolded in a tidy way. Furthermore, the measuring tape type wire is convenient to carry and has a simple structure.
Description
Technical field
The utility model relates to a kind of reel tape type electric wire, relates in particular to a kind of reel tape type electric wire for electric equipment.
Technical background
Along with the progress of science and technology, each electric appliances is suitable popularizing, can have multi-section mobile phone, computer etc. as each family, and the electric wire that is connected with these electrical equipment commonly used increases gradually also.Standard configuration when for example selling mobile phone is exactly that an electricity one fills a set of headphones line, normal use aspect, function is no problem, but following scene takes place through regular meeting in us: in wrapping, fill in charger for mobile phone, data wire, earphone cord or notebook computer charger going on business before, just becoming of having arrived that the destination the takes out line that a pile is intertwined; Will give cell-phone charging, take out the line of a pile tangle up from drawer, must take quite a lot of times could be suitable these lineations.On the whole, present linear structure influences user's use impression very much.
Summary of the invention
The purpose of this utility model is exactly in order to overcome the problem that above-mentioned prior art exists, a kind of reel tape type electric wire for electric equipment to be provided.The support that the utility model possesses in conjunction with tape measure is pulled out and the function of automatic drawing back, in the centre position of all kinds of electric wires a volume has been installed and has been stretched device, and this volume is stretched device and independently freely rolled up and stretch not influencing the two that can make electric wire under the situation that circuit is communicated with.
In order to realize above-mentioned purpose of the present utility model, provide following technical scheme:
A kind of reel tape type electric wire for electric equipment comprises: the conducting wire that is used for connecting described electric equipment; The first volume that has that is installed in centre position, described conducting wire is stretched the volume that link and second volume stretch link and is stretched device; Wherein, described conducting wire has and connects the described first volume and stretch first line segment of link and be connected described second and roll up second line segment of stretching link.
Preferably, stretch link at the described first volume and stretch the connecting line that is connected with between the link be used to being communicated with described first line segment and second line segment with second volume.
Preferably, described conducting wire is flat pattern.
Preferably, described volume is stretched device and is comprised: shell; Two volumes that utilize elasticity to crispatura that are installed in the described shell are stretched mechanism; Be installed on the described shell and be used for controlling described two volumes respectively and stretch two buttons of crispaturaing that mechanism crispaturas; Wherein, described first line segment and second line segment are stretched mechanism at connected volume respectively and are rolled up and stretch.
Preferably, described two volumes are stretched mechanism and are comprised: stretch mechanism with the first volume that described first line segment is connected; Second volume that is connected with described second line segment is stretched mechanism; Wherein, the center that the described first volume is stretched mechanism has the described first volume and stretches link, stretches link by the described first volume and is connected with described first line segment; The center that described second volume is stretched mechanism has described second volume and stretches link, stretches link by described second volume and is connected with described second line segment.
Preferably, described connecting line is laid along described inner surface of outer cover.
Preferably, described two buttons of crispaturaing comprise first button and second button of crispaturaing of crispaturaing, and described first button of crispaturaing is used for the described first volume of control and stretches mechanism and crispatura; Described second button of crispaturaing is used for described second volume of control and stretches mechanism and crispatura.
Preferably, described conducting wire is data wire.
Preferably, described conducting wire is charging circuit.
Preferably, described conducting wire is the earphone circuit.
The beneficial effects of the utility model embody in the following areas:
1) the utility model all kinds of electric wires two of being used for electric equipment all can independently be carried out freely rolling up and stretched, and makes the electric wire folding and unfolding neat, is convenient for carrying;
2) the utility model by with cable holder in volume is stretched device, avoid electric wire damage, the useful life of extending wire;
3) electric wire of the present utility model is selected flat pattern for use, has further saved memory space, and instant rolled stretching, and is handsome in appearance.
Description of drawings
Fig. 1 is prior art electric wire internal structure profile;
Fig. 2 is the internal structure profile of the utility model electric wire;
Fig. 3 is the reel tape type electric wire external structure vertical view that the utility model is used for charger;

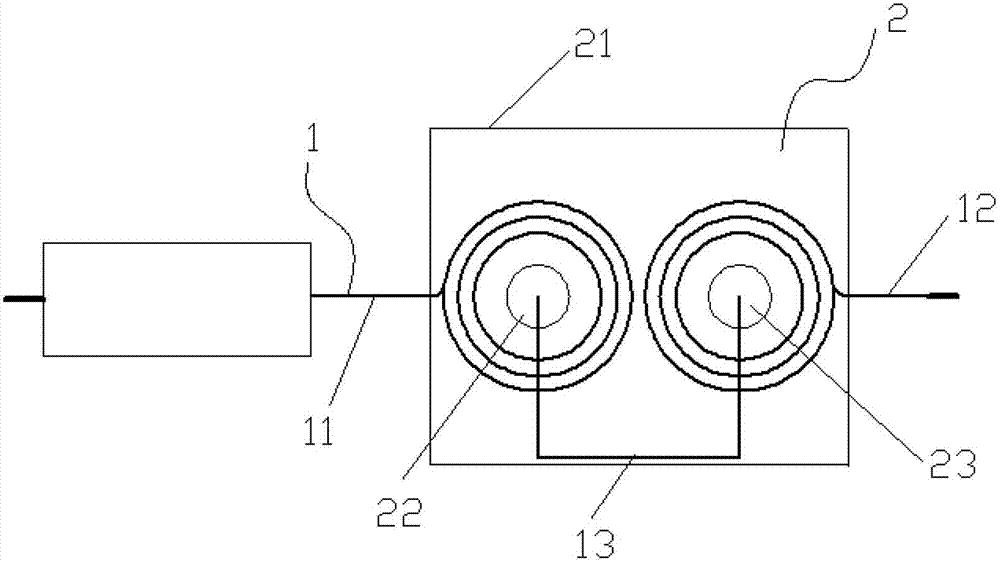

Fig. 4 is the reel tape type electric wire internal structure front view that the utility model is used for charger;
Fig. 5 is that the utility model volume is stretched device internal circuit connection layout;
Fig. 6 is that the utility model is used for the schematic diagram that reel tape type electric wire first line segment of charger stretches out;
Fig. 7 is that the utility model is used for the schematic diagram that reel tape type electric wire second line segment of charger stretches out;
Fig. 8 is that the utility model is used for the schematic diagram that the reel tape type electric wire two ends of charger all are drawn out.
Description of reference numerals: 1-conducting wire; 11-first line segment; 12-second line segment; The 13-connecting line; The 2-volume is stretched device; The 21-shell; The 22-first volume is stretched mechanism; 23-second volume is stretched mechanism; 24-first button of crispaturaing; 25-second button of crispaturaing.
Embodiment
A kind of reel tape type electric wire for electric equipment of the utility model, comprising: conducting wire and volume are stretched device, and the conducting wire is used for connecting and connecting the electric equipment that is positioned at its two ends; Volume is stretched the centre position that device is installed in described conducting wire, and the conducting wire that is used for realizing being positioned at its two ends can freely be rolled up and be stretched.
Particularly, conducting wire of the present utility model is divided into three sections: stretch first line segment that device one end is connected, stretch second line segment that the device other end is connected and the connecting line that is used for described first line segment of connection and second line segment with volume with volume.Especially, conducting wire of the present utility model is flat pattern, and it is convenient neat that the backrush of crispaturaing is stretched in the device.
Volume of the present utility model is stretched device and is comprised that two identical volumes of structure stretch mechanism, and for the first volume is stretched mechanism and second volume is stretched mechanism, the first volume stretches that mechanism is used for connecting and volume is stretched first line segment; Second volume is stretched mechanism and is used for connecting and rolling up and stretch second line segment, and during use, the user can arbitrarily pull out first line segment and or second line segment according to use habit.Wherein, the center that the first volume is stretched mechanism has the first volume and stretches link, stretches link by this first volume and is connected with first line segment; In like manner, the center that second volume is stretched mechanism has second volume and stretches link, stretches link by second volume and is connected with second line segment.
In addition, volume of the present utility model is stretched device and is comprised that also being arranged on two volumes stretches the shell of mechanism outside, be installed on the shell and be used for above-mentioned two volumes of control and stretch two buttons of crispaturaing that mechanism crispaturas respectively, the user is the time spent not, press the button of crispaturaing, device inside is stretched in the conducting wire corresponding with it backrush of being crispaturaed, and avoids various electric wires to be intertwined.Wherein, two buttons of crispaturaing comprise first button and second button of crispaturaing of crispaturaing, and first button of crispaturaing is used for the control first volume and stretches mechanism and crispatura; Second button of crispaturaing is used for control second volume and stretches mechanism and crispatura.
The utility model is applicable to any electric equipment that exists electric wire to twine problem, for example reel tape type data wire, reel tape type charger line or reel tape type earphone cord describe in detail to the utility model below in conjunction with the specific embodiment in the accompanying drawing (reel tape type charger line).
As shown in Figure 4, reel tape type charger line comprises: conducting wire 1 and volume are stretched device 2, and wherein, volume is stretched the centre position that device 2 is installed in conducting wire 1.
Concrete, the conducting wire 1 of this charger line is by connecting charging head and rolling up first line segment 11 of stretching device 2, be connected the connecting line 13 that charging terminal and volume stretch second line segment 12 of device 2 and be used for being communicated with first line segment and second line segment and form.Consider that wire line crispaturas easily and reduce to roll up the problem of stretching device volume as far as possible, the utility model uses the conducting wire (as shown in Figure 2) of flat pattern to replace conducting wire (as shown in Figure 1) circular in the prior art, the space that is conducive to when the conducting wire rolled reduces, and then reduce the overall volume of charger line, be easy to carry about with one and take in.As shown in Figure 2, conducting wire of the present utility model is to be formed by a few strand parallel arranged.
Shown in Fig. 3,4, volume is stretched device 2 and comprised: shell 21, the installation first volume that utilizes elasticity to crispatura in the enclosure stretch mechanism 22 and second volume is stretched mechanism 23; First second button 25 of crispaturaing of crispaturaing button 24 and controlling that second volume stretches that mechanism 23 crispaturas that is installed on the shell and is used for that the control first volume stretches that mechanism 22 crispaturas.Wherein, the center that the first volume is stretched mechanism 22 has the first volume and stretches link, stretches link by this first volume and first line segment 11 is connected to the first volume stretches in the mechanism 22; The center that second volume is stretched mechanism 23 has second volume and stretches link, by this second the volume stretch link with second line segment 12 be connected to second the volume stretch in the mechanism 23, first line segment and second line segment are communicated with by connecting line 13, are used for the circuit communication state between maintenance first line segment and second line segment.As shown in Figure 5, connecting line 13 is laid along shell 21 inner surfaces.
Operation principle of the present utility model is as follows: when pulling first line segment 11, the connected first volume is stretched mechanism 22 scrolling under the drive of first line segment, and first line segment is drawn out; Be installed in the springs that the first volume stretches in the mechanism 22 simultaneously and be rolled tightly, produce bounce, this bounce acts on first line segment, prepares at any time device inside is stretched in its backrush of crispaturaing; When first line segment was drawn out a segment distance, first crispatura button and the first volume stretched and had braking force between the mechanism, stops first line segment to be crispaturaed under the bounce effect; When the user does not use, press first button of crispaturaing, braking force disappears, and under the effect of bounce, first line segment first volume of crispaturaing is back stretched in the mechanism.When pulling second line segment 12, the operation principle that second volume is stretched mechanism is identical.The user can pull out first line segment and or second line segment as required.As shown in Figure 6, be the design sketch that the user pulls out first line segment; As shown in Figure 7, be the design sketch that the user pulls out second line segment; As shown in Figure 8, be the design sketch that the user pulls out first line segment and second line segment simultaneously.
Although above-mentioned the utility model is described in detail; but the utility model is not limited thereto; those skilled in the art can make amendment according to principle of the present utility model; therefore, all various modifications of carrying out according to principle of the present utility model all should be understood to fall into protection range of the present utility model.
Claims (10)
1. a reel tape type electric wire that is used for electric equipment is characterized in that, comprising:
Be used for connecting the conducting wire (1) of described electric equipment;
The first volume that has that is installed in centre position, described conducting wire is stretched the volume that link and second volume stretch link and is stretched device (2);
Wherein, described conducting wire (1) has and connects the described first volume and stretch first line segment (11) of link and be connected described second and roll up second line segment (12) of stretching link.
2. reel tape type electric wire as claimed in claim 1 is characterized in that, stretches link at the described first volume and stretches the connecting line (13) that is connected with between the link be used to being communicated with described first line segment and second line segment with second volume.
3. reel tape type electric wire as claimed in claim 2 is characterized in that, described conducting wire (1) is flat pattern.
4. reel tape type electric wire as claimed in claim 2 is characterized in that, described volume is stretched device (2) and being comprised:
Shell (21);
Two volumes that utilize elasticity to crispatura that are installed in the described shell are stretched mechanism;
Be installed on the described shell and be used for controlling described two volumes respectively and stretch two buttons of crispaturaing that mechanism crispaturas;
Wherein, described first line segment and second line segment are stretched mechanism at connected volume respectively and are rolled up and stretch.
5. reel tape type electric wire as claimed in claim 4 is characterized in that, described two volumes are stretched mechanism and comprised:
The first volume that is connected with described first line segment (11) is stretched mechanism (22);
Second volume that is connected with described second line segment (12) is stretched mechanism (23);
Wherein, the center that the described first volume is stretched mechanism (22) has the described first volume and stretches link, stretches link by the described first volume and is connected with described first line segment (11); The center that described second volume is stretched mechanism (23) has described second volume and stretches link, stretches link by described second volume and is connected with described second line segment (12).
6. reel tape type electric wire as claimed in claim 5 is characterized in that, described connecting line (13) is laid along described shell (21) inner surface.
7. reel tape type electric wire as claimed in claim 6, it is characterized in that, described two buttons of crispaturaing comprise first button (24) and second button (25) of crispaturaing of crispaturaing, and described first button (24) of crispaturaing is used for the described first volume of control and stretches mechanism (22) and crispatura; Described second button (25) of crispaturaing is used for described second volume of control and stretches mechanism (23) and crispatura.
8. reel tape type electric wire as claimed in claim 1 is characterized in that, described conducting wire is data wire.
9. reel tape type electric wire as claimed in claim 1 is characterized in that, described conducting wire is charging circuit.
10. reel tape type electric wire as claimed in claim 1 is characterized in that, described conducting wire is the earphone circuit.
