CN203105438U - Micro insect suction-type collector - Google Patents
Micro insect suction-type collector Download PDFInfo
- Publication number
- CN203105438U CN203105438U CN 201320139451 CN201320139451U CN203105438U CN 203105438 U CN203105438 U CN 203105438U CN 201320139451 CN201320139451 CN 201320139451 CN 201320139451 U CN201320139451 U CN 201320139451U CN 203105438 U CN203105438 U CN 203105438U
- Authority
- CN
- China
- Prior art keywords
- insect
- dispatch tube
- collecting pipe
- baffle plate
- insect suction
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
A micro insect suction-type collector is composed of a switch, an insect suction port, a baffle, a conveying pipe, a filtering net, a power source, a fan, a collection pipe and a collection bottle, and resolves the problems that an ordinary insect collector is interfered by the weather or damaged by animals easily, the time for catching insects is long, and other insects are mixed in easily. The conveying pipe is cylindrical, the insect suction port and the fan are respectively located at two ends of the conveying pipe, the insect suction port is funnel-shaped, the baffle and the filtering net are both located inside the conveying pipe, the power source and the collection pipe are connected with the upper surface and the lower surface of the conveying pipe respectively, the filtering net is located between the fan and the collection pipe, the baffle is located between the insect suction port and the collection pipe, the switch is located on the surface of the collection pipe, the collection bottle is connected with the tail end of the collection pipe, the upper end is movably connected with the top of an inner cavity of the conveying pipe, and the lower end of the baffle is a free end. The micro insect suction-type collector is simple in structure, convenient to use, low in cost, strong in practicability and easy to popularize.
Description
Technical field
The utility model relates to the collection of specimens field, especially can be in good time, accurately, the miniature insect of captured target insect inhales formula collector field fast.
Background technology
Present known insect collection device, employing be to induce seizure, as utilize specific sound, light, flavor or sex etc., attract targeted insect to enter catcher, reach the purpose of the sample that entomologizes.Catcher need place the open air, is subjected to weather interference or animal easily and destroys; Simultaneously, the time that catches insects is longer, and sneaks into assorted worm easily.So necessity that has a kind of energy of design miniature insect in good time, accurate, captured target insect fast to inhale the formula collector.
Summary of the invention
Common insect collection device is subjected to the weather interference easily or animal is destroyed in order to solve, and the time that catches insects is longer, and sneaks into the problem of assorted worm easily, and the utility model provides a kind of miniature insect to inhale the formula collector.The technical scheme that its technical problem that solves the utility model adopts is:
Miniature insect inhales the formula collector, is made up of switch, fluke mouth, baffle plate, dispatch tube, filter screen, power supply, blower fan, collecting pipe and receiving flask.Dispatch tube is cylindrical, and fluke mouth and blower fan lay respectively at the two ends of dispatch tube, and the fluke mouth is infundibulate.Baffle plate and filter screen all are positioned at dispatch tube inside, power supply and collecting pipe are connected to the upper and lower surface of dispatch tube, and filter screen is between blower fan and collecting pipe, and baffle plate is between fluke mouth and collecting pipe, switch is positioned at the collecting pipe surface, and receiving flask is connected the collecting pipe end.The baffle plate upper end links with dispatch tube inner chamber top movable, and the baffle plate lower end is free end.Baffle plate can freely rotate around the upper end tie point, under static state, baffle plate straight down, dispatch tube is closed condition.When using this collector, hold collecting pipe, make the fluke mouth insect that aims at the mark, pin switch, power supply is communicated with blower fan, and the blower fan running is also constantly discharged air in the dispatch tube, and baffle plate rotates under the effect of air-flow, and dispatch tube is opened.Insect sucks dispatch tube with the air-flow of passive movement, and under filter screen intercepted, insect was finally fallen into receiving flask because the gravity effect enters collecting pipe.After the trip switch, blower fan quits work, and baffle plate is got back to vertical position, and dispatch tube is closed, and has prevented that effectively insect from escaping from collector.After waiting to collect the insect quantity that needs, take off receiving flask, can carry out various researchs and make sample insect.
The beneficial effects of the utility model are to utilize the air-flow effect of blower fan, reach effect in good time, accurate, quick captured target insect.
Description of drawings
Below in conjunction with drawings and Examples the utility model is further specified.

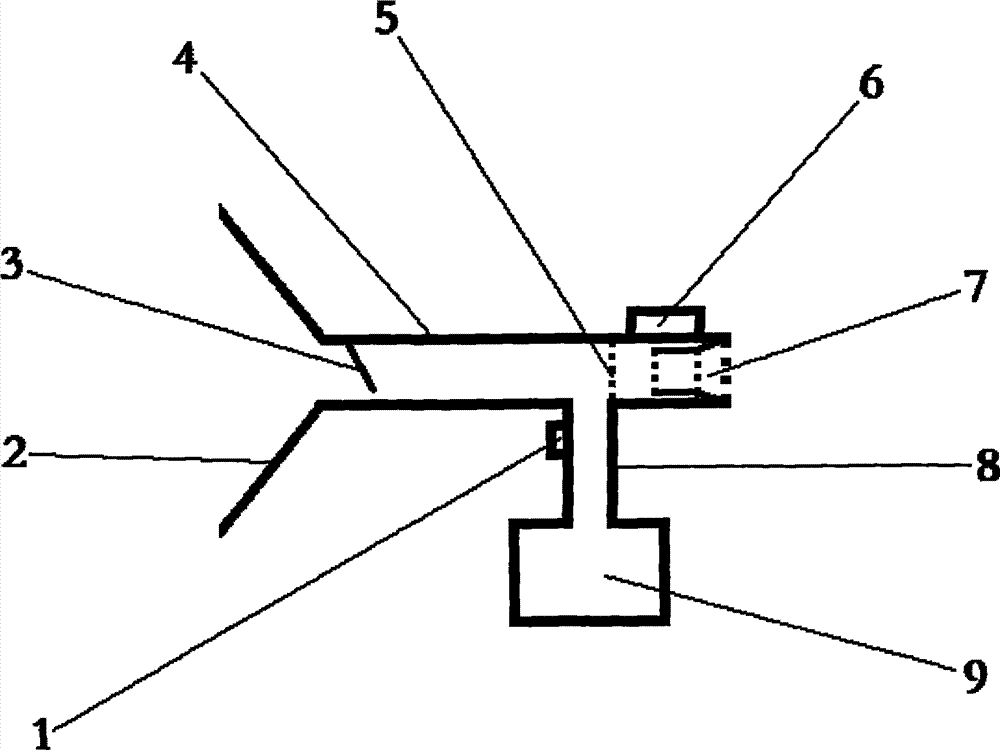

Fig. 1 is overall structure schematic diagram of the present utility model.
Among the figure: 1. switch, 2. fluke mouth, 3. baffle plate, 4. dispatch tube, 5. filter screen, 6. power supply, 7. blower fan, 8. collecting pipe, 9. receiving flask.
Embodiment
As shown in the figure, dispatch tube 4 is cylindrical, and fluke mouth 2 and blower fan 7 lay respectively at the two ends of dispatch tube 4, and fluke mouth 2 is infundibulate.Baffle plate 3 and filter screen 5 all are positioned at dispatch tube 4 inside, power supply 6 and collecting pipe 8 are connected to the upper and lower surface of dispatch tube 4, and filter screen 5 is between blower fan 7 and collecting pipe 8, and baffle plate 3 is between fluke mouth 2 and collecting pipe 8, switch 1 is positioned at collecting pipe 8 surfaces, and receiving flask 9 is connected collecting pipe 8 ends.Baffle plate 3 upper ends link with dispatch tube 4 inner chamber top movable, and baffle plate 3 lower ends are free end.Baffle plate 3 can freely rotate around the upper end tie point, under static state, baffle plate 3 straight down, dispatch tube 4 is closed condition.When using this collector, hold collecting pipe 8, make fluke mouth 2 insect that aims at the mark, pin switch 1, power supply 6 is communicated with blower fan 7, and blower fan 7 runnings are also constantly discharged air in the dispatch tube 4, and baffle plate 3 rotates under the effect of air-flow, and dispatch tube 4 is opened.Insect sucks dispatch tube 4 with the air-flow of passive movement, and under filter screen 5 intercepted, insect was finally fallen into receiving flask 9 because the gravity effect enters collecting pipe 8.After the trip switch 1, blower fan 7 quits work, and baffle plate 3 is got back to vertical position, and dispatch tube 4 is closed, and has prevented that effectively insect from escaping from collector.After waiting to collect the insect quantity that needs, take off receiving flask 9, can carry out various researchs and make sample insect.The utility model is simple in structure, and is easy to use, and cost is low, practical, is easy to promote.
Claims (1)
1. miniature insect inhales the formula collector, formed by switch, fluke mouth, baffle plate, dispatch tube, filter screen, power supply, blower fan, collecting pipe and receiving flask, it is characterized in that: dispatch tube is cylindrical, and fluke mouth and blower fan lay respectively at the two ends of dispatch tube, and the fluke mouth is infundibulate; Baffle plate and filter screen all are positioned at dispatch tube inside, power supply and collecting pipe are connected to the upper and lower surface of dispatch tube, and filter screen is between blower fan and collecting pipe, and baffle plate is between fluke mouth and collecting pipe, switch is positioned at the collecting pipe surface, and receiving flask is connected the collecting pipe end; The baffle plate upper end links with dispatch tube inner chamber top movable, and the baffle plate lower end is free end.
