Abstract
本实用新型公开了一种蓄电池专用连接线，包括两个铜鼻，两个铜鼻通过线缆连接，所述线缆上套有一绝缘波纹管，所述铜鼻的外缘包覆有绝缘套，所述绝缘套上开有与铜鼻的安装孔同轴的通孔，所述通孔的直接大于铜鼻的安装孔的直径，在通孔处配有与其螺纹连接的绝缘帽。本实用新型的绝缘套和绝缘帽可以保护蓄电池接线端子和接线螺钉不外露，从而避免外界杂质或其他导体造成蓄电池组短路的情况出现，而且线缆上套接的绝缘波纹管，可以在弯折，避免导线外露。
The utility model discloses a special connecting wire for storage battery, which comprises two copper noses, the two copper noses are connected by a cable, the cable is covered with an insulating corrugated tube, and the outer edge of the copper nose is covered with an insulating sleeve , the insulating sleeve is provided with a through hole coaxial with the installation hole of the copper nose, the diameter of the through hole is directly larger than the diameter of the installation hole of the copper nose, and the through hole is equipped with an insulating cap screwed to it. The insulating sleeve and the insulating cap of the utility model can protect the battery terminal and the connecting screw from being exposed, thereby avoiding the short circuit of the battery pack caused by external impurities or other conductors, and the insulating bellows on the cable can be bent , to avoid wire exposure.
Description
Technical field
The utility model relates to a kind of connector of storage battery, relates in particular to the special-purpose connecting line of a kind of storage battery.
Background technology
At present, after adopting connecting line to connect between the existing storage battery, binding post on the storage battery and terminal screw generally all are in naked state, causing easily that not only electric leakage gets an electric shock, and easily because introduced contaminants falls or other conductors cause the short circuit of batteries.When sometimes connecting storage battery, connecting line need be bent, but the long bending of connecting line process can cause the damage of cable external insulation, and lead is exposed, and also causing electric leakage electric shock or short circuit easily, has potential safety hazard.
The utility model content
At the problem that above-mentioned prior art exists, the utility model purpose is to provide a kind of can avoid the upper connecting terminal of storage battery and exposed, the safe in utilization storage battery special use connecting line of terminal screw.
The technical solution of the utility model is: the special-purpose connecting line of a kind of storage battery, comprise two copper noses, two copper noses connect by cable, be with an insulation bellows on the described cable, the outer rim of described copper nose is coated with insulating case, have the through hole coaxial on the described insulating case with the installing hole of copper nose, described through hole directly greater than the diameter of the installing hole of copper nose, be furnished with the insulator cap that is threaded with it in the through hole.
As preferably, described insulating case and insulator cap are made by rubber.
As preferably, the surface of described insulating case, insulator cap and insulation bellows is coated with anticorrosive coat.
The beneficial effects of the utility model are: the copper nose is installed on the binding post of storage battery with terminal screw after, insulator cap is connected on the through hole of insulating case, insulating case and insulator cap can protect battery terminal and terminal screw not to expose, thereby avoid introduced contaminants or other conductors to cause the situation of batteries short circuit to occur, and the insulation bellows of socket on the cable, can avoid lead to expose in bending; Anticorrosive coat can protect insulating case, insulator cap and insulation bellows not to be subjected to the corrosion of battery liquid.
Description of drawings
Fig. 1 is a structural representation of the present utility model;

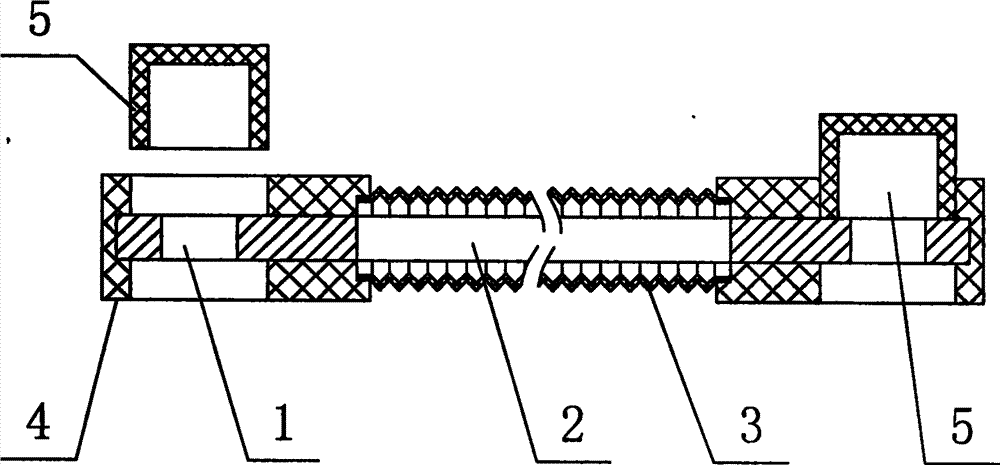

Fig. 2 is a cutaway view of the present utility model.
Among the figure: 1, copper nose; 2, cable; 3, insulation bellows; 4, insulating case; 5, insulator cap.
Embodiment
As a kind of execution mode of the present utility model, as depicted in figs. 1 and 2, the special-purpose connecting line of a kind of storage battery, comprise two copper noses 1, two copper noses 1 connect by cable 2, be with an insulation bellows 3 on the described cable 2, the outer rim of described copper nose 1 is coated with insulating case 4, have the through hole coaxial on the described insulating case 4 with the installing hole of copper nose 1, described through hole directly greater than the diameter of the installing hole of copper nose 1, be furnished with the insulator cap 5 that is threaded with it in the through hole, described through-hole wall is provided with internal thread, and the outer wall of insulator cap 5 is provided with the external screw thread with this internal thread coupling.Described insulating case 4 and insulator cap 5 are made by rubber, and the surface of insulating case 4, insulator cap 5 and insulation bellows 3 is coated with anticorrosive coat, and anticorrosive coat can protect insulating case 4, insulator cap 5 and insulation bellows 3 not to be subjected to the corrosion of battery liquid.
When the utility model uses; after copper nose 1 usefulness terminal screw being installed on the binding post of storage battery; insulator cap 5 is connected on the through hole of insulating case 4; insulating case 4 and insulator cap 5 can protect battery terminal and terminal screw not to expose, thereby avoid introduced contaminants or other conductors to cause the situation of batteries short circuit to occur.
