The utility model provides a plate shearing mechanism based on a sheave. The plate shearing mechanism based on the sheave comprises a drive arm and a notched disk, wherein the notched disk is fixedly connected in the drive arm. A cutter is movably arranged on the notched disk, used for shearing plates and driven to move and shear up and down by the notched disk. The sheave is arranged at the bottom of the notched disk. A cylindrical pin which can poke the sheave to rotate is arranged on the drive arm. The sheave is connected with a plate conveying device. The plate shearing mechanism based on the sheave is reasonable in design, simple in structure, convenient to operate, safe to use and good in shearing effect.
Description
Technical field
The utility model relates to the sheet shearing field, is specifically related in the sheet shearing sheet shearing mechanism based on sheave.
Background technology
Sheet shearing of the prior art all is to adopt punch die to process, and punch die is generally bulky, carry pretty troublesomely, also is not easy to dismantle, and cost is also very high, and the equipment input amount is too high, and processing effect is bad, and economic benefit is not high.
Summary of the invention
Technical problem to be solved in the utility model is to provide the sheet shearing mechanism based on sheave, and reasonable in design, simple in structure, easy to operate, safe in utilization, shear effect is good.
For solving above-mentioned existing technical problem, the utility model adopts following scheme: based on the sheet shearing mechanism of sheave, comprise actuating arm and the cutaway disk that is fixed on the actuating arm, be movably equipped with on the described cutaway disk and be used to shear sheet material and make the cutting knife that moves up and down cutting by the cutaway disk drive, described cutaway disk bottom is provided with sheave, described actuating arm is provided with stirs the straight pin that sheave rotates, and described sheave connects Work sheet conveying device.
As preferably, described Work sheet conveying device comprises first belt wheel fixedly connected with sheave, be arranged on first driving-belt, second belt wheel that is connected with first driving-belt on first belt wheel, be arranged on second driving-belt on second belt wheel, the 3rd belt wheel that is connected with second driving-belt.By adopting this set, can make things convenient for the conveying of sheet material.
As preferably, described cutaway disk is provided with an arc notch.By adopting this set, save material, weight reduction.
As preferably, described sheave is provided with four radial slots.By adopting this set, simple in structure, easily manufactured, have operability.
Beneficial effect:
The utility model employing technique scheme provides the sheet shearing mechanism based on sheave, has remedied the deficiencies in the prior art, has improved economic benefit, and is reasonable in design, simple in structure, easy to operate, safe in utilization, stable working, and shear effect is good.
Description of drawings

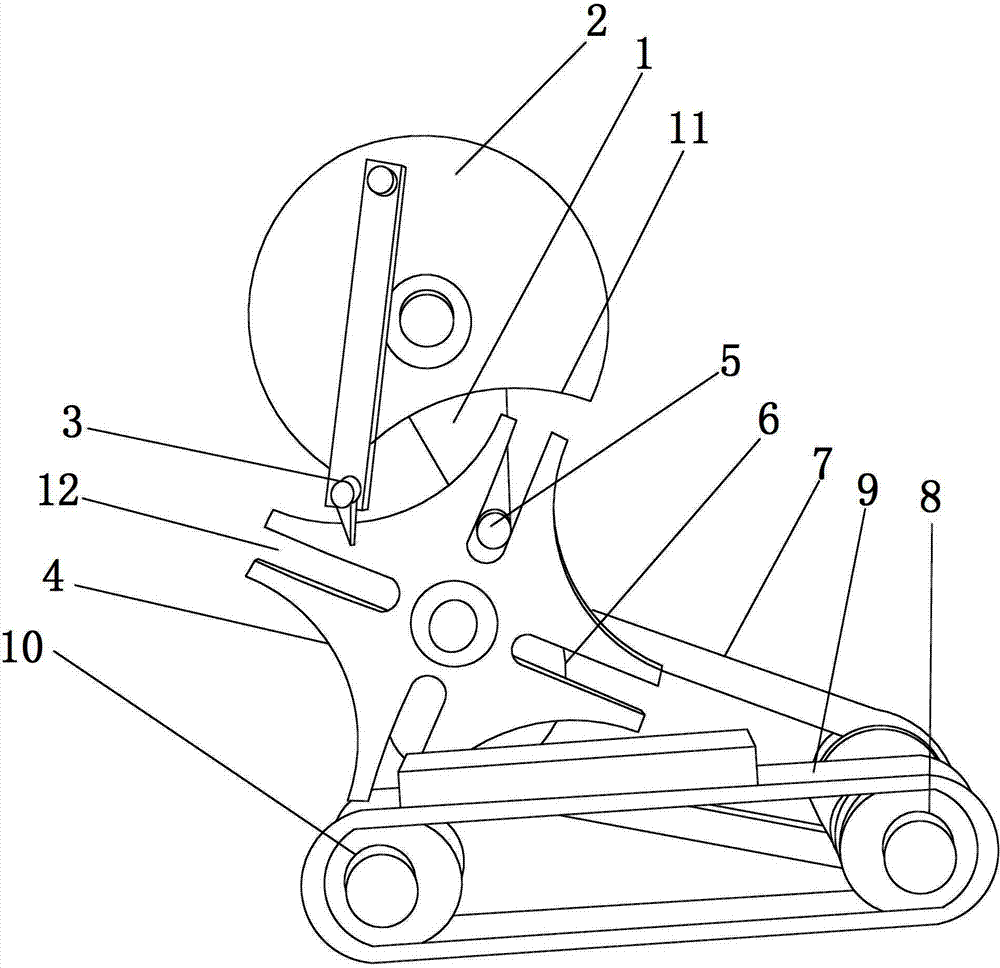

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
As shown in Figure 1, sheet shearing mechanism based on sheave, comprise actuating arm 1 and the cutaway disk 2 that is fixed on the actuating arm 1, be movably equipped with on the described cutaway disk 2 and be used to shear sheet material and make the cutting knife 3 that moves up and down cutting by the cutaway disk drive, described cutaway disk 2 bottoms are provided with sheave 4, described actuating arm 1 is provided with stirs the straight pin 5 that sheave 4 rotates, and described sheave 4 connects Work sheet conveying device.Described Work sheet conveying device comprises first belt wheel 6 fixedly connected with sheave 4, be arranged on first driving-belt 7, second belt wheel 8 that is connected with first driving-belt 7 on first belt wheel 6, be arranged on second driving-belt 9 on second belt wheel 8, the 3rd belt wheel 10 that is connected with second driving-belt 9.Described cutaway disk 2 is provided with an arc notch 11.Described sheave 4 is provided with four radial slots 12.
During real work, actuating arm 1 rotates and drives cutaway disk 2 rotations that are fixed on it, actuating arm 1 is provided with straight pin 5 and can cooperates with the radial slot 12 on the sheave 4, thereby driving sheave 4 rotates, the sheave 4 and first belt wheel 6 are fixed together, sheave 4 drives first belt wheel 6 and rotates when rotating, first belt wheel 6 drives first driving-belt disposed thereon, 7 transmissions, first driving-belt 7 drives connected second belt wheel 8 and rotates, thereby second belt wheel 8 drives the 3rd belt wheel 10 by second driving-belt 9 and rotates realization sheet material moving on second driving-belt 9, switching fluctuates in cutaway disk 2 rotating process at the cutting knife on the cutaway disk 23 and carries out the cutting of sheet material, and is reasonable in design, simple in structure, easy to operate, safe in utilization, stable working, shear effect is good.
Specific embodiment described herein only is that the utility model spirit is illustrated, the utility model person of ordinary skill in the field can make various modifications or replenishes or adopt similar mode to substitute described specific embodiment, but can't depart from spirit of the present utility model or surmount the defined scope of appended claims.
Claims (4)
1. based on the sheet shearing mechanism of sheave, it is characterized in that: comprise actuating arm (1) and be fixed in cutaway disk (2) on the actuating arm (1), be movably equipped with on the described cutaway disk (2) and be used to shear sheet material and make the cutting knife (3) that moves up and down cutting by cutaway disk (2) drive, described cutaway disk (2) bottom is provided with sheave (4), described actuating arm (1) is provided with stirs the straight pin (5) that sheave (4) rotates, and described sheave (4) connects Work sheet conveying device.
2. the sheet shearing mechanism based on sheave according to claim 1, it is characterized in that: described Work sheet conveying device comprises first belt wheel (6) fixedly connected with sheave (4), be arranged on first driving-belt (7), second belt wheel (8) that is connected with first driving-belt (7) on first belt wheel (6), be arranged on second driving-belt (9) on second belt wheel (8), the 3rd belt wheel (10) that is connected with second driving-belt (9).
3. the sheet shearing mechanism based on sheave according to claim 1 is characterized in that: described cutaway disk (2) is provided with an arc notch (11).
4. the sheet shearing mechanism based on sheave according to claim 1 is characterized in that: described sheave (4) is provided with four radial slots (12).
