Abstract

The utility model relates to a hinge assembly fixture in a sliding door, and the purpose is to provide the fixture which can effectively detect whether a hinge assembly in the sliding door is qualified. The hinge assembly fixture in the sliding door comprises a base. A fixing block which is used for fixing the hinge assembly is arranged on the base. A first detection block is arranged on the base. Detection pins are arranged on the first detection block. The number of the detection pins is equal to the number of rollers on the hinge assembly, and the positions of the detection pins are corresponding to the positions of the rollers. According to the utility model, the hinge assembly fixture in the sliding door has the advantages that the operation of the fixture is simple; the step of manual secondary part state validation is omitted; the assembly speed is accelerated; the work efficiency is improved; and the hinge assembly fixture in the sliding door is suitable for popularization and application.

Description

Hinge assembly checking tool in the slippage door
Technical field
The utility model relates to a kind of cubing, relates in particular to a kind of cubing of the middle hinge assembly for detection of the slippage door.
Background technology
The control of vehicle body hinge assemblies is the key factor that promotes the vehicle body manufacture level, the assembling of slippage door generally is to finish the vehicle body assembling after being assembled by hinge and vehicle body, do not possess the function to the quality testing of hinge parcel received before the vehicle body assembling, therefore can not well guarantee the dimensional accuracy of cover assembling.Precision for the vehicle body hinge generally detects with equipment such as three-dimensionals, and such operation is unfavorable for the detection to parcel received quality 100%, and operating process is loaded down with trivial details, and the equipment investment height is unfavorable for enhancing productivity, cause time-consuming in the production, efficient is low.
Chinese patent publication number CN201897451U, a kind of car hinge detection tool is disclosed, comprise horizontal survey face and test pin locating piece, described test pin locating piece is arranged on an end of horizontal survey face and orthogonal with horizontal survey face, described test pin locating piece is provided with mounting hole, pilot hole or the quantity that detects the hole and shape setting that the quantity of described mounting hole and shape arrange according to hinge, the detection and location pin inserts in the described mounting hole, and described detection and location pin is by trip bolt and clamp nut or threaded and nut bore a kind of hinge and fixing that is connected wherein.This car can't be for detection of the middle hinge assembly of slippage door with the hinge detection tool.
The utility model content
The purpose of this utility model is to provide whether qualified cubing of a kind of middle hinge assembly that can effectively detect the slippage door, to solve the problem that exists in the background technology.
To achieve these goals, the technical scheme of hinge assembly checking tool is in the utility model slippage door: hinge assembly checking tool in a kind of slippage door, comprise base, described base is provided with the fixed block for the fixed hinge assembly, also be provided with first on the described base and detect piece, this first detects piece and is provided with test pin, and the quantity of the roller on the quantity of test pin, position and the hinge assembly is identical, the position is corresponding.The design philosophy of this technical scheme is: fix the hinge assembly with fixed block, again with the roller on the test pin aligned hinge assembly that detects on the piece, can both accurately locate as test pin, then the hinge assembly is qualified, otherwise defective, this cubing is easy and simple to handle, has saved artificial secondary to the affirmation step of part status, accelerate assembling speed, improved work efficiency.
As preferably, described fixed block has an installed surface vertical with susceptor surface, and the reference field of described hinge assembly and the installed surface of fixed block are fitted and fixed by binding clasp.Binding clasp is the standard component of purchasing on the market, and piece and hinge assembly are fitted the installed surface of the two and reference field thereby it is used for being fixedly clamped.
As preferably, the installed surface of described fixed block is provided with the register pin for the locating hinge assembly.Register pin is used for playing when the hinge assembly is installed on the fixed block effect that find accurately the location.
As preferably, also be provided with second on the described base and detect piece, this second detects piece and has the detection faces vertical with susceptor surface, the gap of the roller mounting hole place face of this detection faces and hinge assembly can be by the gap clearance gauge of insertion preset thickness the detector gap error.After the reference field of hinge assembly is fixed on the fixed block, the movable end of hinge assembly is still rotatable, when it forwards near the extreme position of the detection faces of the second detection piece, has the gap between movable end face and the detection faces, insert the gap clearance gauge of preset thickness afterwards, note the gap and can judge its error.
As preferably, described first detects piece comprises riser perpendicular to base, and the riser top is provided with perpendicular transverse slat.
As preferably, described riser is provided with a test pin on vertical its surface.
As preferably, described transverse slat is provided with two test pins on vertical its surface.The position of test pin all is to set according to hinge assembly upper roller position on above riser and the transverse slat.
As preferably, the end face of the roller on the hinge assembly of described test pin is provided with and can holds roller and adaptive pilot hole with it.
The beneficial effect of hinge assembly checking tool is in the utility model slippage door: this cubing is easy and simple to handle, has saved artificial secondary to the affirmation step of part status, has accelerated assembling speed, has improved work efficiency.
Description of drawings

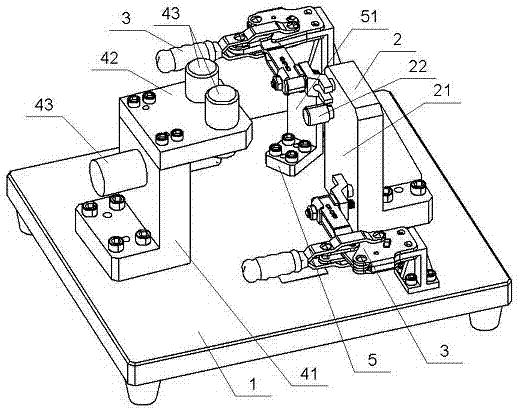

Fig. 1 is a kind of structural representation of hinge assembly checking tool in the utility model slippage door;
Fig. 2 is visual angle, the rear synoptic diagram of Fig. 1;
Fig. 3 is the vertical view of hinge assembly checking tool in the utility model slippage door;
Fig. 4 is the use view of hinge assembly checking tool in the utility model slippage door.
Number in the figure is respectively: 1. base 2. fixed blocks 21. installed surfaces 22. register pins 3. binding clasps 41. risers 42. transverse slats 43. test pins 5. second detect piece 51. detection faces 6. hinge assemblies.
Embodiment
Also by reference to the accompanying drawings the technical solution of the utility model is further described specifically below by embodiment.
Embodiment:
Hinge assembly checking tool in a kind of slippage door, as shown in Figure 1 to Figure 3, comprise base 1, described base 1 is provided with the fixed block 2 for fixed hinge assembly 6, described fixed block 2 has an installed surface 21 vertical with base 1 surface, the installed surface 21 of the reference field of described hinge assembly 6 and fixed block 2 is fitted and is fixing by binding clasp 3, the installed surface 21 of described fixed block 2 is provided with the register pin 22 for locating hinge, also be provided with first on the described base 1 and detect piece, the described first detection piece comprises the riser 41 perpendicular to base 1, riser 41 tops are provided with perpendicular transverse slat 42, described riser 41 is provided with a test pin 43 on vertical its surface, described transverse slat 42 is provided with two test pins 43 on vertical its surface, this test pin 43 is corresponding with the roller position on the hinge assembly 6, the end face of the roller on the hinge of described test pin 43 is provided with and can holds roller and adaptive pilot hole with it, also be provided with second on the described base 1 and detect piece 5, this second detects piece 5 and has the detection faces 51 vertical with base 1 surface, the gap of this detection faces 51 and the roller mounting hole place face of hinge assembly 6 can be by the gap clearance gauge that inserts preset thickness the detector gap error.
During use, as shown in Figure 4, with binding clasp 3 installed surface 21 that hinge assembly 6 is fixed to the reference field that makes hinge assembly 6 on the fixed block 2 and fixed block 2 is fitted, the movable end of turning joint assembly 6 makes the roller on it corresponding with first test pin 43 that detects on the piece, can both accurately enter in the pilot hole on the test pin as roller, then hinge assembly 6 is qualified, otherwise defective.
Above-mentioned described specific embodiment only is that the preferable examples explanation is done in design of the present utility model.All any modifications of making within spirit of the present utility model and principle or replenish or be equal to alternatively all should be included within the protection domain of the utility model claim.

Claims (8)

1. hinge assembly checking tool in the slippage door, comprise base (1), it is characterized in that: described base (1) is provided with the fixed block (2) for fixed hinge assembly (6), also be provided with first on the described base (1) and detect piece, this first detects piece and is provided with test pin (43), and the quantity of the roller on the quantity of test pin (43), position and the hinge assembly (6) is identical, the position is corresponding.
2. hinge assembly checking tool in the slippage door according to claim 1, it is characterized in that: described fixed block (2) has an installed surface (21) vertical with base (1) surface, and the installed surface (21) of the reference field of described hinge assembly (6) and fixed block (2) is fitted and be fixing by binding clasp (3).
3. hinge assembly checking tool in the slippage door according to claim 2, it is characterized in that: the installed surface (21) of described fixed block (2) is provided with the register pin (22) for locating hinge assembly (6).
4. according to hinge assembly checking tool in each described slippage door of claim 1 to 3, it is characterized in that: also be provided with second on the described base (1) and detect piece (5), this second detects piece (5) and has the detection faces (51) vertical with base (1) surface, the gap of this detection faces (51) and the roller mounting hole place face of hinge assembly (6) can be by the gap clearance gauge that inserts preset thickness the detector gap error.
5. according to hinge assembly checking tool in each described slippage door of claim 1 to 3, it is characterized in that: the described first detection piece comprises the riser (41) perpendicular to base (1), and riser (41) top is provided with perpendicular transverse slat (42).
6. hinge assembly checking tool in the slippage door according to claim 5 is characterized in that: described riser (41) is provided with a test pin (43) on vertical its surface.
7. hinge assembly checking tool in the slippage door according to claim 6 is characterized in that: described transverse slat (42) is provided with two test pins (43) on vertical its surface.
8. hinge assembly checking tool in the slippage door according to claim 7 is characterized in that: the end face of the roller on the hinge assembly (6) of described test pin (43) is provided with and can holds roller and adaptive pilot hole with it.
