CN203024396U - Intelligent water heater - Google Patents
Intelligent water heater Download PDFInfo
- Publication number
- CN203024396U CN203024396U CN 201320043462 CN201320043462U CN203024396U CN 203024396 U CN203024396 U CN 203024396U CN 201320043462 CN201320043462 CN 201320043462 CN 201320043462 U CN201320043462 U CN 201320043462U CN 203024396 U CN203024396 U CN 203024396U
- Authority
- CN
- China
- Prior art keywords
- water
- circulating
- water pipe
- heater
- temperature sensor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Heat-Pump Type And Storage Water Heaters (AREA)
- Domestic Hot-Water Supply Systems And Details Of Heating Systems (AREA)
Abstract
The utility model discloses an intelligent water heater, wherein a heater (3) and a first temperature sensor (6) are arranged in a water tank (7); a controller (4) and a display screen (5) are arranged on the outer wall of the water tank (7); both two ends of a circulating water pipe (1) are connected with the water tank (7) to form a water circulating passageway; a circulating pump (12) is connected onto the circulating water pipe (1) in series; a flow sensor (2) is arranged on an inlet of the circulating water pipe (1); a faucet (11) is communicated with the circulating water pipe (1) through a branched water pipe (10); an electric control water valve (9) is arranged on the branched water pipe (10); and a second temperature sensor (8) is arranged at the inlet of the electric control water valve (9). The intelligent water heater disclosed by the utility model can bring about great convenience to users; furthermore, the water resource is saved.
Description
Technical field
The utility model relates to a kind of intelligent water heater.
Background technology
After existing water heater, hot water are slightly good, need to first put one section cold water, then go out hot water, not only make troubles to the user, also cause the waste of water resource.Therefore, be necessary to design a kind of novel water heater.
The utility model content
Technical problem to be solved in the utility model is to provide a kind of intelligent water heater, and this intelligent water heater can bring great advantage to the user, and saving water resource.
The technical solution of utility model is as follows:
A kind of intelligent water heater is characterized in that, is provided with heater (3) and the first temperature sensor (6) in water tank (7), and the outer wall of water tank (7) is provided with controller (4) and display screen (5); The two ends of circulating water pipe (1) all are connected to form water circulation path with water tank (7), are serially connected with circulating pump (12) on circulating water pipe (1); The porch of circulating water pipe (1) is provided with flow sensor (2); Tap (11) communicates with circulating water pipe (1) by branch road water pipe (10), and branch road water pipe (10) is provided with electric control water valve (9), and electric control water valve (9) porch is provided with the second temperature sensor (8);
The first temperature sensor (6), the second temperature sensor (8) are connected 2 with flow sensor) all be connected with controller (4);
Heater (3), circulating pump (12) and electric control water valve (9) all are controlled by controller (4).
Described controller (4) is single-chip microcomputer or DSP.
Beneficial effect:
Intelligent water heater of the present utility model before tap place water temperature reaches preset temperature, allows cold-water reflux in water tank, saving water resource, and make the user open tap just directly to use hot water, easy to use.
Description of drawings

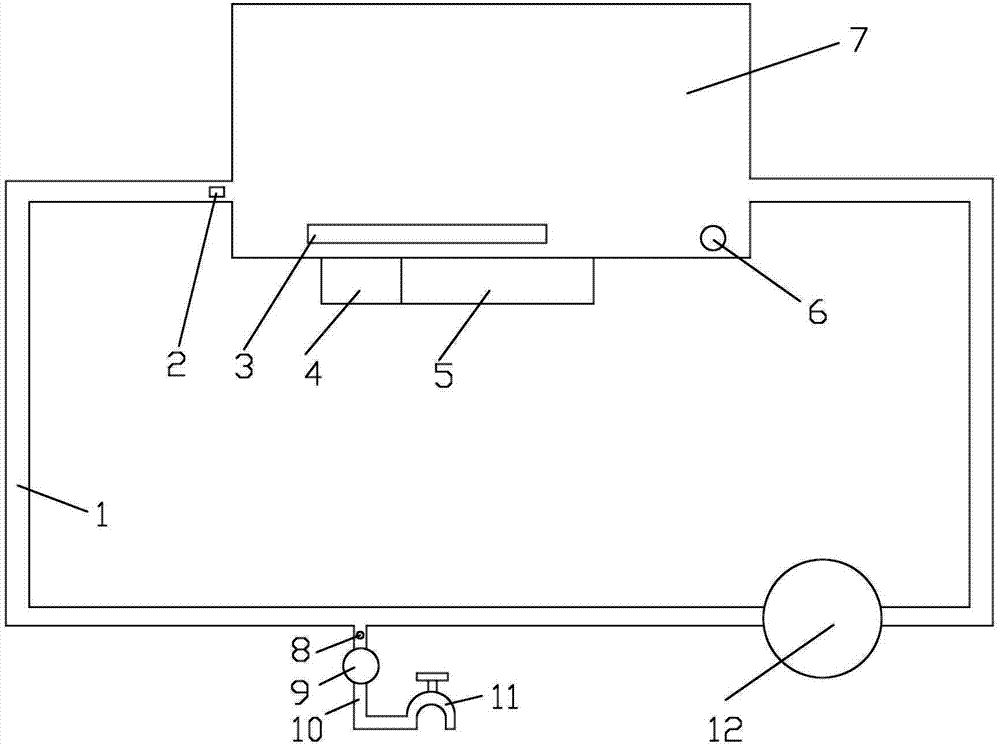

Fig. 1 is the general structure schematic diagram of intelligent water heater.
Label declaration: 1-circulating water pipe, 2-flow sensor, 3-heater, 4-controller, 5-display screen, 6-the first temperature sensor, 7-water tank, 8-the second temperature sensor, 9-electric control water valve, 10-branch road water pipe, 11-tap, 12-circulating pump.
The specific embodiment
Below with reference to the drawings and specific embodiments, the utility model is described in further details:
Embodiment 1:
As shown in Figure 1, a kind of intelligent water heater is characterized in that, is provided with heater 3 and the first temperature sensor 6 in water tank 7, and the outer wall of water tank 7 is provided with controller 4 and display screen 5; The two ends of circulating water pipe 1 all are connected to form water circulation path with water tank 7, are serially connected with circulating pump 12 on circulating water pipe 1; The porch of circulating water pipe 1 is provided with flow sensor 2; Tap 11 communicates with circulating water pipe 1 by branch road water pipe 10, and branch road water pipe 10 is provided with electric control water valve 9, and electric control water valve 9 porch are provided with the second temperature sensor 8; The first temperature sensor 6, the second temperature sensor 8 are connected with flow sensor and all are connected with controller 4; Heater 3, circulating pump 12 and electric control water valve 9 all are controlled by controller 4.Described controller 4 is single-chip microcomputer or DSP.The first temperature sensor 6 is for detection of the water tank water temperature.
Course of work explanation:
The user fetched boiling water leading 11 o'clock, and the water of existing minute quantity flows out, and this moment, flow sensor 2 can be felt changes in flow rate, and this Time Controller 4 can be closed electric control water valve 9, avoids water to continue to flow out, and the colleague starts circulating pump 12; Make hot water in water tank first flow to branch road water pipe 10 places, reach preset temperature (as 40 degree) until the second temperature sensor 8 detects the temperature at branch road water pipe 10 places, close circulating pump 12, open electric control water valve 9, the direct hot water out of tap 11 this moment.Display shows current water temperature and information.
Claims (2)
1. an intelligent water heater, is characterized in that, is provided with heater (3) and the first temperature sensor (6) in water tank (7), and the outer wall of water tank (7) is provided with controller (4) and display screen (5); The two ends of circulating water pipe (1) all are connected to form water circulation path with water tank (7), are serially connected with circulating pump (12) on circulating water pipe (1); The porch of circulating water pipe (1) is provided with flow sensor (2); Tap (11) communicates with circulating water pipe (1) by branch road water pipe (10), and branch road water pipe (10) is provided with electric control water valve (9), and electric control water valve (9) porch is provided with the second temperature sensor (8);
The first temperature sensor (6), the second temperature sensor (8) are connected 2 with flow sensor) all be connected with controller (4);
Heater (3), circulating pump (12) and electric control water valve (9) all are controlled by controller (4).
2. intelligent water heater according to claim 1, is characterized in that, described controller (4) is single-chip microcomputer or DSP.
