A kind of mixed type Multi-purpose energy-saving water heater
Technical field
The utility model belongs to field of household appliances, relates to technical field of water heaters, relates in particular to a kind of family expenses mixed type Multi-purpose energy-saving water heater.
Background technology
At present existing pot-type boiler is pressed energy-provision way, can be divided into: solar energy type, gas type and electroheating type.Solar energy type water heater has advantages of energy-conserving and environment-protective, but its result of use is subjected to weather effect larger, and the overcast and rainy use in the winter time often can not get desirable water temperature.And, the exterior space that the layout of solar water heater need to face south, this has also restricted its application.The gas-type water heater has advantages of that heating is fast, but uses combustion gas to have potential safety hazard, and in enclosed environment, the risk of gas poisoning is higher.Electroheating type water-heater does not have the restriction of region time domain, can plug and play, but it is high to consume energy.
All there are two common shortcomings in above-mentioned water heater: the one, can not distinguish daily scrubbing with warm water and bathing hot water, and cause energy waste; The 2nd, can not obtain the bath water of assigned temperature, low when high during water temperature, be difficult to regulation and control.In view of this, be necessary to provide a kind of can energy savings, plug and play, the water heater of the hot water of warm water and temperature stabilization can be provided respectively.
The utility model content
The purpose of this utility model is to provide a kind of mixed type Multi-purpose energy-saving water heater, distinguishes daily scrubbing with warm water and bathing hot water, and can effectively control the water temperature size that makes bath water.
For achieving the above object, solution of the present utility model is:
A kind of mixed type Multi-purpose energy-saving water heater, comprise storage tank, be installed on respectively the heat exchanger in the described storage tank, electrical heating element, temperature inductor and with described electrical heating element, temperature inductor links to each other and is used for the digital display temperature-control switch of the two work of control, be provided with dividing plate in the described storage tank, described dividing plate is separated into warm water chamber and hot hydroecium with described storage tank, be respectively equipped with on the described dividing plate as first perforate in the pipeline passageway of described heat exchanger and the second perforate that is communicated with described warm water chamber and described hot hydroecium, described warm water chamber is provided with at least one cold water inlet, at least one warm water delivery port and a heating agent entrance, described hot hydroecium is provided with at least one hot water outlet and heating agent outlet, described electrical heating element, temperature inductor all is arranged in the described hot hydroecium.
The second tapping of the water inlet of described warm water chamber and described dividing plate is respectively equipped with the float-ball type water valve, in order to control the water yield of warm water chamber and hot hydroecium.
Described electrical heating element and temperature inductor are installed in the hot hydroecium bottom.
Described storage tank and described diaphragm outer are stainless steels, and internal layer is the carbon fiber heat-insulation layer.
Described cold water inlet and described heating agent porch are equipped with manually-operated gate.
Described heat exchanger is made of copper pipe and aluminum alloy materials.
Preferably, described efficient heat exchanger employing veneer area is the BR005 plate-type heat exchanger of 170mm * 500mm.
Described electrical heating element is DG01 type silicon-nitride electric heating element.
Described digital display temperature-control switch is provided with control button and LCD Panel, is used for showing the current water temperature of hot hydroecium and sets required water temperature.
Preferably, described digital display temperature-control switch model is the SH-902 type.
Because adopt such scheme, the beneficial effects of the utility model are:
The utility model improves the deficiency of existing pot-type boiler, and is simple in structure, easy to operate, safety and environmental protection.The waste heat that mixed type Multi-purpose energy-saving water heater takes full advantage of heating system makes the running water temperature suitable, and the float-ball type water valve makes the water in the storage tank remain on certain altitude, has realized plug and play; Digital display temperature-control switch and electrical heating elements have guaranteed the bath water water temperature stability; Dividing plate does not interfere with each other the water of two kinds of different purposes, has namely guaranteed different water demands, has avoided again thermal waste.
Description of drawings

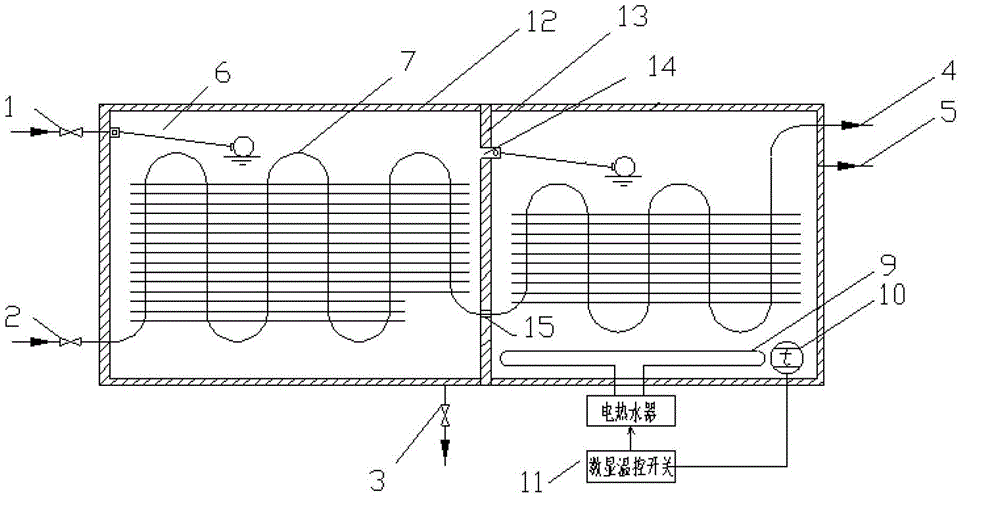

Fig. 1 is the system module figure of mixed type Multi-purpose energy-saving water heater of the present utility model;
Fig. 2 is the schematic diagram of float-ball type water valve;
Number in the figure explanation: cold water inlet 1, heating agent entrance 2, warm water delivery port 3, heating agent outlet 4, hot water outlet 5, float-ball type water valve 6, heat exchanger 7, electrical heating element 9, temperature inductor 10, digital display temperature-control switch 11, storage tank 12, dividing plate 13, the first perforate 14, the second perforate 15, water pipe 61, flap 62, connecting rod 63, ball float 64.
The specific embodiment
Below in conjunction with the accompanying drawing illustrated embodiment the utility model is further described.
As shown in Figure 1, a kind of mixed type Multi-purpose energy-saving water heater comprises storage tank 12, is installed on heat exchanger 7 in the storage tank 12, electrical heating element 9, temperature inductor 10 and link to each other with electrical heating element 9, temperature inductor 10 and to be used for the digital display temperature-control switch 11 of the two work of control respectively.
Be provided with dividing plate 13 in the storage tank, dividing plate 13 is separated into warm water chamber and hot hydroecium with storage tank, be respectively equipped with on the dividing plate 13 as first perforate 14 in the pipeline passageway of heat exchanger 7 and the second perforate 15 that is communicated with warm water chamber and hot hydroecium, warm water chamber is provided with at least one cold water inlet 1, at least one warm water delivery port 3 and a heating agent entrance 2, hot hydroecium is provided with at least one hot water outlet 5 and heating agent outlet 4, and electrical heating element 9, temperature inductor 10 all are arranged in the hot hydroecium.
Storage tank 12 is divided into two case chambers by dividing plate 13, respectively as the storage tank chamber of warm water and the storage tank chamber of hot water, has the second perforate 15 on the dividing plate 13 as the water inlet of hot hydroecium, and the water storage capacity of warm water chamber and hot hydroecium distributes to be decided by user's water habits.Cold water inlet 1 is installed on the top of warm water chamber, and the bottom is installed 2, two imports of heating system heating agent entrance and all is provided with manually-operated gate.Heating system heating agent outlet 4 is installed on the top of hot hydroecium and for bath water hot water outlet 5, hot water outlet 5 connects shower nozzle.Heat exchanger 7 is connected with caliduct by heating agent entrance 2 and heating agent outlet 4, and heating agent exports 4 the importing of the heating agent after heat exchange heating system returned Thermal Corp, and the hot water in the caliduct heats running water in the storage tank by heat exchange.Heat exchanger 7 is made of copper pipe and aluminium alloy, has that corrosion-resistant, life-span is long, heat exchange area is large and efficient characteristics.In the present embodiment, it is the BR005 plate-type heat exchanger of 170mm * 500mm that heat exchanger 7 adopts the veneer area.
Running water enters the reservoir chamber through cold water water inlet 1, the heating agent that heating system provides enters heat exchanger 7 from entrance 2, running water becomes through over-heat-exchanger 7 heating and is fit to the warm water that uses, can obtain being fit to washing clothes, wash 10~20 ℃ warm water of the daily water consumption such as dish from warm water delivery port 3.
Electrical heating element 9 cooperates the water temperature that is used for adjusting hot hydroecium with temperature inductor 10 with digital display temperature-control switch 11.The model of digital display temperature-control switch 11 is the SH-902 type, is provided with control button and LCD Panel, is used for showing the current water temperature of hot hydroecium and sets required water temperature.In working order, digital display temperature-control switch 11 can compare according to hot hydroecium's water temperature and the design temperature of temperature inductor 10 feedbacks: hot hydroecium's water temperature is lower than design temperature, and 11 instruction electrical heating elements 9 of digital display temperature-control switch are started working; Hot hydroecium's water temperature is higher than design temperature, and then instruction electrical heating element 9 quits work.So, guarantee hot hydroecium's water temperature stability, can obtain bath water when opening hot water outlet 5.In the present embodiment, electrical heating element 9 is installed in the hot hydroecium bottom with temperature inductor 10.Electrical heating element 9 is DG01 type silicon-nitride electric heating element, and the water lower according to thermodynamics knowledge temperature always is positioned at container bottom.Therefore, electrical heating element 9 and temperature inductor 10 being installed in the hot hydroecium bottom can be in time and effective monitoring adjustment hot hydroecium water temperature.
In the present embodiment, the cold water inlet 1 of warm water chamber is provided with respectively float-ball type water valve 6 with the second perforate 15 places of dividing plate, in order to control the water yield of warm water chamber and hot hydroecium.In the present embodiment, at cold water inlet 1 and the second perforate 15 places two float-ball type water valves 6 are set respectively, when the manual water valve of cold water inlet 1 is opened, float-ball type water valve 6 guarantees that the water level in the storage tank 12 is in suitable height all the time under two groups, so that warm water chamber has water to use all the time, and effectively prevent the dry combustion method of boiler chamber.
When warm water delivery port 3 is opened, along with warm water chamber descends with water level, float-ball type water valve 6 work at cold water inlet 1 place, ball float 64 can open flap 62 by drivening rod 63, running water injects automatically until water level reach a certain height, and ball float 64 drivening rods 63 make flap 62 closures.
When the needs bath hot water, digital display temperature-control switch (11) is set as 40 ℃ (or other temperature values of user preferences) with water temperature, and electrical heating element 9 is started working, under the control of digital display temperature-control switch 11 with water temp. heating to assigned temperature.Along with the use of hot water, hot hydroecium's middle water level descends, float-ball type water valve 6 Open valves at the second perforate 15 places, warm water through heat exchanger 7 preheatings enters hot hydroecium, water temperature descends in the hot hydroecium, and electrical heating element 9 plays a role, so that whole bathing process water temperature remains on assigned temperature.And owing to entering the preheating that water in the boiler chamber has passed through reservoir chamber heat exchanger 7, further saved electric energy, shortened the heat time heating time of hot water.
In the present embodiment, the skin of storage tank 12 and dividing plate 13 is that stainless steel, internal layer are the carbon fiber heat-insulation layers, can effectively keep the water temperature in the storage tank, prevents heat loss.
The above-mentioned description to embodiment is can understand and use the utility model for ease of those skilled in the art.The person skilled in the art obviously can easily make various modifications to these embodiment, and needn't pass through performing creative labour being applied in the General Principle of this explanation among other embodiment.Therefore, the utility model is not limited to above-described embodiment, and those skilled in the art are according to announcement of the present utility model, and not breaking away from the improvement that the utility model category makes and revise all should be within protection domain of the present utility model.

Claims (10)

1. mixed type Multi-purpose energy-saving water heater, comprise storage tank, be installed on respectively the heat exchanger in the described storage tank, electrical heating element, temperature inductor and with described electrical heating element, temperature inductor links to each other and is used for the digital display temperature-control switch of the two work of control, it is characterized in that: be provided with dividing plate in the described storage tank, described dividing plate is separated into warm water chamber and hot hydroecium with described storage tank, be respectively equipped with on the described dividing plate as first perforate in the pipeline passageway of described heat exchanger and the second perforate that is communicated with described warm water chamber and described hot hydroecium, described warm water chamber is provided with at least one cold water inlet, at least one warm water delivery port and a heating agent entrance, described hot hydroecium is provided with at least one hot water outlet and heating agent outlet, described electrical heating element, temperature inductor all is arranged in the described hot hydroecium.
2. mixed type Multi-purpose energy-saving water heater according to claim 1, it is characterized in that: the second tapping of the water inlet of described warm water chamber and described dividing plate is respectively equipped with the float-ball type water valve, in order to control the water yield of warm water chamber and hot hydroecium.
3. mixed type Multi-purpose energy-saving water heater according to claim 1 is characterized in that: described electrical heating element and temperature inductor are installed in the hot hydroecium bottom.
4. mixed type Multi-purpose energy-saving water heater according to claim 1, it is characterized in that: described storage tank and described diaphragm outer are that stainless steel, internal layer are the carbon fiber heat-insulation layers.
5. mixed type Multi-purpose energy-saving water heater according to claim 1, it is characterized in that: described cold water inlet and described heating agent porch are equipped with manually-operated gate.
6. according to claim 1 to 5 described each mixed type Multi-purpose energy-saving water heaters, it is characterized in that: described heat exchanger is made of copper pipe and aluminum alloy materials.
7. mixed type Multi-purpose energy-saving water heater according to claim 6 is characterized in that: it is the BR005 plate-type heat exchanger of 170mm * 500mm that described efficient heat exchanger adopts the veneer area.
8. according to claim 1 to 5 described each mixed type Multi-purpose energy-saving water heaters, it is characterized in that: described electrical heating element is DG01 type silicon-nitride electric heating element.
9. according to claim 1 to 5 described each mixed type Multi-purpose energy-saving water heaters, it is characterized in that: described digital display temperature-control switch is provided with control button and LCD Panel, is used for showing the current water temperature of hot hydroecium and sets required water temperature.
10. mixed type Multi-purpose energy-saving water heater according to claim 9, it is characterized in that: described digital display temperature-control switch model is the SH-902 type.
