CN202993754U - Industrial oven with modified structure - Google Patents
Industrial oven with modified structure Download PDFInfo
- Publication number
- CN202993754U CN202993754U CN 201220626468 CN201220626468U CN202993754U CN 202993754 U CN202993754 U CN 202993754U CN 201220626468 CN201220626468 CN 201220626468 CN 201220626468 U CN201220626468 U CN 201220626468U CN 202993754 U CN202993754 U CN 202993754U
- Authority
- CN
- China
- Prior art keywords
- casing
- controller
- heating wire
- electrical heating
- oven
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Electric Stoves And Ranges (AREA)
Abstract
The utility model relates to the technical field of industrial application ovens and relates to an industrial oven with a modified structure. The oven comprises an oven body, an oven door, a liner, a cycling air blower, an electrical heating element and a controller, wherein an air inlet hole and an air outlet hole are arranged on two sides of the oven boy, the oven door is connected to the oven body in a moving mode, the controller is arranged on one side of the oven body, the linear is arranged in the oven body, the cycling air blower is arranged at the top of the oven body, the electrical heating element and the cycling air blower are electrically connected to the controller, the electrical heating element is an electrical heating wire, and the electrical heating wire is arranged at the top of the linear and located on one side of the air outlet hole. The electrical heating element is the electrical heating wire, the electrical heating wire is located on one side of the air outlet hole, and the heating effect of the electrical heating wire is good through the cycling air blower.
Description
Technical field
The utility model relates to commercial Application baking box technical field, relates in particular to a kind of structure improved industrial baking oven.
Background technology
In energy growing tension and non-renewable resources such as the day by day exhausted today such as metal, oil, energy-conservation, green equipment becomes the emphasis of research and development.On commercial Application to the durability pay attention to day by day of baking box.The application of baking box on industrial production is very extensive, and it can durable be also that the user considers the important evidence bought, and baking box is to utilize heating to send a kind of industrial equipment that radiant heat baking needs dry various industrial materials.Traditional baking box generally adopts heat-generating pipe as the heater element of baking box, but heat-generating pipe when work electrothermal calefactive rate is slow and radiating effect is poor, adds that conventional oven causes heat-generating pipe generally to only have the service life of 2 ~ 3 years in the defective that some inner components connect and cloth is set up.Therefore, industry needs a kind of baking box that good heating effect can be provided.
The utility model content
The purpose of this utility model is to provide a kind of heating effect good baking box for the deficiencies in the prior art.
for achieving the above object, a kind of structure improved industrial baking oven of the present utility model, comprise casing, chamber door, inner bag, circulating fan, heating and controller, the both sides of described casing offer respectively air admission hole and venthole, described chamber door and casing are flexibly connected, described controller is arranged at a side of casing, described inner bag is arranged in casing, described circulating fan is arranged at the top of casing, described heating and circulating fan all are electrically connected to controller, described heating is heating wire, described heating wire is arranged at the top of inner bag and is positioned at a side of venthole.
Wherein, the front end face of described casing also is provided with timer, and described timer is electrically connected to controller.
Wherein, a side at described casing top is provided with radiator fan, and described radiator fan is electrically connected to controller.
Wherein, described chamber door and casing are flexibly connected by hinge, and described chamber door is provided with transparent window.
Wherein, the bottom even of described casing is provided with several universal wheels.
Wherein, the arranged outside having air switch of described casing, described air switch is electrically connected to described controller.
The beneficial effects of the utility model: a kind of structure improved industrial baking oven of the present utility model, adopt heating wire to replace heat-generating pipe as the heating of baking box, heating wire is because it becomes filament, compare heat-generating pipe, the efficient heat generation surface area of heating wire is larger, so not only electrothermal calefactive rate is fast for it, and good heat dissipation effect.In addition, heating wire is arranged at the top of inner bag and is positioned at a side of venthole, during work, the electrothermal wire heating, circulating fan directly blows to heating wire from the air admission hole exhausting and with wind, simultaneously the heat on heating wire is sent in the inner bag that is arranged in casing, makes whole inner bag be full of the air of uniform temperature.The utility model adopts heating wire as heating, and it is arranged at the venthole side, by the effect of circulating fan, makes the heating effect of heating wire better.
Description of drawings

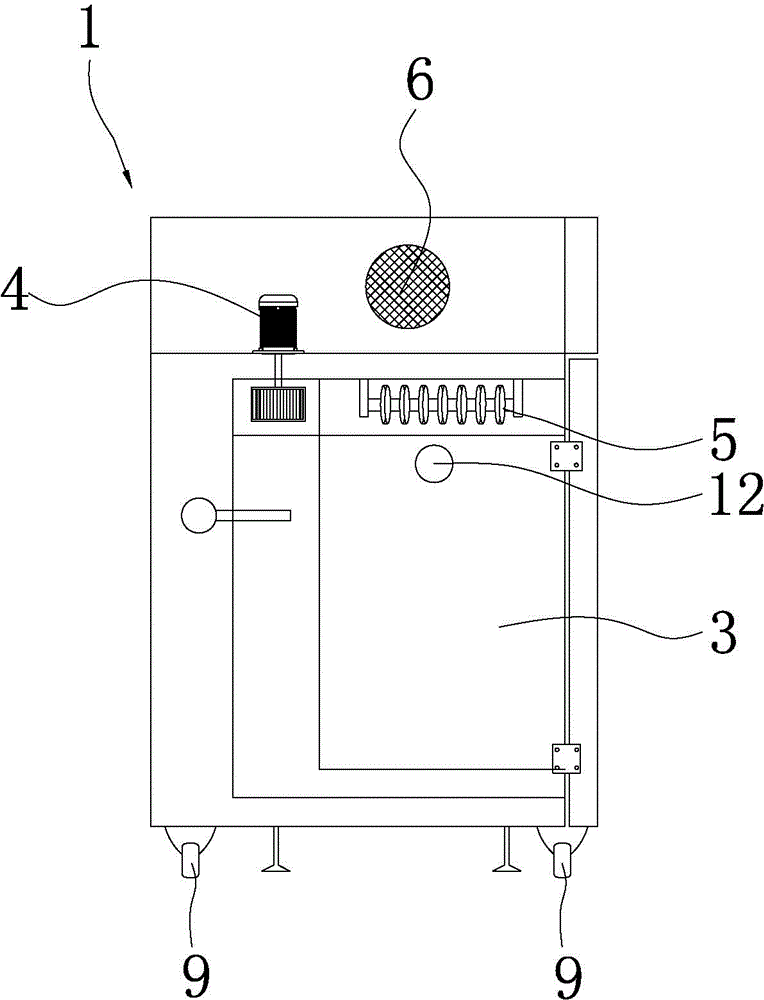

Fig. 1 is internal structure schematic diagram of the present utility model.
Fig. 2 is structural representation of the present utility model.
Reference numeral comprises:
1-casing, 2-chamber door, 3-inner bag, 4-circulating fan
5-heating wire, 6-radiator fan, 7-air switch, 8-timer
9-universal wheel, 11-air admission hole, 12-venthole, 21-transparent window.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is described in detail.
as extremely shown in Figure 2 in Fig. 1, a kind of structure improved industrial baking oven of the present utility model, comprise casing 1, chamber door 2, inner bag 3, circulating fan 4, heating and controller, the both sides of described casing 1 offer respectively air admission hole 11 and venthole 12, described chamber door 2 is flexibly connected with casing 1, described controller is arranged at a side of casing 1, described inner bag 3 is arranged in casing 1, described circulating fan 4 is arranged at the top of casing 1, described heating and circulating fan 4 all are electrically connected to described heating with controller be heating wire 5, described heating wire 5 is arranged at the top of inner bag 3 and is positioned at a side of venthole 12.
During work, first will need dry industrial material to be positioned in the inner bag 3 of baking box casing 1 setting, then start power supply, heating wire 5 heatings, circulating fan 4 work simultaneously directly blow on heating wire 5 from air admission hole 11 exhausting and with wind, simultaneously the heat on heating wire 5 are sent to the inner bag 3 that is arranged in casing 1, make the air that is full of uniform temperature in whole inner bag 3, more even to the baking of industrial material.Adopt heating wire 5 to replace heat-generating pipe as the heating of baking box, heating wire 5 is compared heat-generating pipe due to its curl structure, and the efficient heat generation surface area of heating wire 5 is larger, and during work, its electrothermal calefactive rate is faster.The utility model adopts heating wire 5 as heater element, and under the effect of circulating fan 4, the heating effect when making baking box work is better.
In the present embodiment, the front end face of described casing 1 also is provided with timer 8, and described timer 8 is electrically connected to controller.Before baking box is started working, first start timer 8 set one predetermined time value, after starting power supply, baking box can toast industrial material in the time value of setting, complete the time value of setting after baking box can automatically quit work.
In the present embodiment, a side at described casing 1 top is provided with radiator fan 6, and described radiator fan 6 is electrically connected to controller.Arranging of radiator fan 6 can be dispelled the heat to casing 1, prevents casing 1 and cause because of the high temperature of heating wire 5 aging, qualitative change etc.
In the present embodiment, described chamber door 2 is flexibly connected by hinge with casing 1, and described chamber door 2 is provided with transparent window 21.Chamber door 2 is flexibly connected by hinge with casing 1, facilitates each switch of chamber door 2; In addition, being provided with of transparent window 21 is conducive to the instant situation that the operator observes the industrial material baking of inner bag 3 interior placements, and the handled easily person makes preliminary judgement to cured effect.
In the present embodiment, the bottom even of described casing 1 is provided with several universal wheels 9.The setting of universal wheel 9 can so that baking box can move freely, need to not carried baking box by aid or more manpower.
Originally be in example, the arranged outside having air switch 7 of described casing 1, described air switch 7 is electrically connected to described controller.Air switch 7 has another name called air-break, is a kind of of breaker.During work, as long as when the electric current in the baking box circuit surpasses load current value, air switch 7 will automatic disconnection, plays the effect of holding circuit.
Above content is only preferred embodiment of the present utility model, for those of ordinary skill in the art, according to thought of the present utility model, all will change in specific embodiments and applications, this description should not be construed as restriction of the present utility model.
Claims (6)
1. structure improved industrial baking oven, comprise casing (1), chamber door (2), inner bag (3), circulating fan (4), heating and controller, the both sides of described casing (1) offer respectively air admission hole (11) and venthole (12), described chamber door (2) is flexibly connected with casing (1), described controller is arranged at a side of casing (1), described inner bag (3) is arranged in casing (1), described circulating fan (4) is arranged at the top of casing (1), described heating and circulating fan (4) all are electrically connected to controller, it is characterized in that: described heating is heating wire (5), described heating wire (5) is arranged at the top of inner bag (3) and is positioned at a side of venthole (12).
2. a kind of structure improved industrial baking oven according to claim 1, it is characterized in that: the front end face of described casing (1) also is provided with timer (8), and described timer (8) is electrically connected to controller.
3. a kind of structure improved industrial baking oven according to claim 1 is characterized in that: a side at described casing (1) top is provided with radiator fan (6), and described radiator fan (6) is electrically connected to controller.
4. a kind of structure improved industrial baking oven according to claim 1 is characterized in that: described chamber door (2) is flexibly connected by hinge with casing (1), and described chamber door (2) is provided with transparent window (21).
5. a kind of structure improved industrial baking oven according to claim 1, it is characterized in that: the bottom even of described casing (1) is provided with several universal wheels (9).
6. a kind of structure improved industrial baking oven according to claim 1, it is characterized in that: the arranged outside having air switch (7) of described casing (1), described air switch (7) is electrically connected to described controller.
