Abstract
The utility model relates to a mine temperature-adjustable ventilating device. The mine temperature-adjustable ventilating device mainly comprises a high-speed spray chamber and a pool, an atomization nozzle water supply pipe is arranged in the high-speed spray chamber, atomization nozzles are arranged on the atomization nozzle water supply pipe, a spray chamber water inlet pipe is communicated with the middle of the atomization nozzle water supply pipe and extends out of the side face of the high-speed spray chamber, a strainer mesh is arranged at an air inlet of an air supply barrel, the lower portion of the high-speed spray chamber is outwards connected with a spray chamber water return pipe, the front end of the spray chamber water return pipe is communicated with the pool, a cooler and a heater are arranged on the wall of the pool, the lower portion of the pool is communicated with a pool water outlet pipe, and a pressurizing water pump and a flow regulating valve are arranged on the pool water outlet pipe. The mine temperature-adjustable ventilating device is capable of heating or cooling supplied air flow fed into a mine so as to change integral underground environment temperature, and accordingly suitable underground temperature is maintained constantly to bring benefit to underground workers.
Description
Technical field
the utility model relates to a kind of device for ventilating in mine or tunnel, especially can regulate a kind of mine temp. controllable ventilation installation of environment temperature in mine or tunnel.
Background technology
extension along with the pit mining degree of depth, mine ventilation faces increasing difficulty, dust under mine is a lot, and temperature be affected by the external environment larger, during summer, under mine, temperature is very high, cause very easily heatstroke of mine staff, and during winter, it is very low that the temperature under mine can become, the health that not only is unfavorable for the workman, also affected workman's operating efficiency under the mine.
The utility model content
for the environment temperature solved in mine or tunnel is not easy to the problem of regulating, the utility model provides a kind of mine temp. controllable ventilation installation, this mine temp. controllable ventilation installation is by the processing of being heated or freeze of the air feed stream to passing into mine, thereby the environment temperature of integral body under the change mine, keep, under mine, suitable temperature is arranged always, to the staff under mine, brought Gospel.
the utility model solves the technical scheme that its technical problem adopts: this mine temp. controllable ventilation installation mainly comprises high-speed sprinkling chamber and pond, the indoor atomizer feed pipe that is provided with of this high-speed sprinkling, the atomizer feed pipe is provided with atomizer, the middle part of atomizer feed pipe is being communicated with the spray chamber water inlet pipe, the spray chamber water inlet pipe stretches out from side, high-speed sprinkling chamber, air intake place for air duct is provided with dirt filtrating screen, can effectively filter the dust in wind, make the distinguished and admirable high-speed sprinkling chamber that enters of cleaning, the front portion of high-speed sprinkling chamber is fixed with front watertight shutter, rear portion is fixed with the rear water plate, its objective is and guarantee distinguished and admirablely with atomized water, to realize complete caloic exchange, simultaneously carry water droplet secretly distinguished and admirable carry out moisture from, two ends, high-speed sprinkling chamber are arranged on driving face on air duct, the bottom of high-speed sprinkling chamber is outwards connecting the spray chamber return pipe, the front end of spray chamber return pipe is connected with pond, pool wall is provided with refrigerator and heater, the bottom in pond is connected with the pond outlet pipe, and the pond outlet pipe is provided with pressure pump and flow control valve.
if under mine, temperature is very high, open refrigerator, current after cooling are entered into to the atomizer feed pipe through the spray chamber water inlet pipe, be injected to air duct in distinguished and admirable through atomizer again, distinguished and admirable and atomized water carries out flowing out the high-speed sprinkling chamber after the caloic exchange, thereby realize environment temperature reduction in mine or tunnel, the water accumulated in the high-speed sprinkling chamber can be got back to pond by the spray chamber return pipe.
if under mine, temperature is very low, heater, current after heating up are entered into to the atomizer feed pipe through the spray chamber water inlet pipe, be injected to air duct in distinguished and admirable through atomizer again, distinguished and admirable and atomized water carries out flowing out the high-speed sprinkling chamber after the caloic exchange, thereby realize environment in mine or tunnel is heated, the water accumulated in the high-speed sprinkling chamber can be got back to pond by the spray chamber return pipe.
the beneficial effects of the utility model are, this mine temp. controllable ventilation installation is by the processing of being heated or freeze of the air feed stream to passing into mine, thereby the environment temperature of integral body under the change mine, keep, under mine, suitable temperature is arranged always, to the staff under mine, brought Gospel.
The accompanying drawing explanation
below in conjunction with accompanying drawing and example, the utility model is described in further detail.

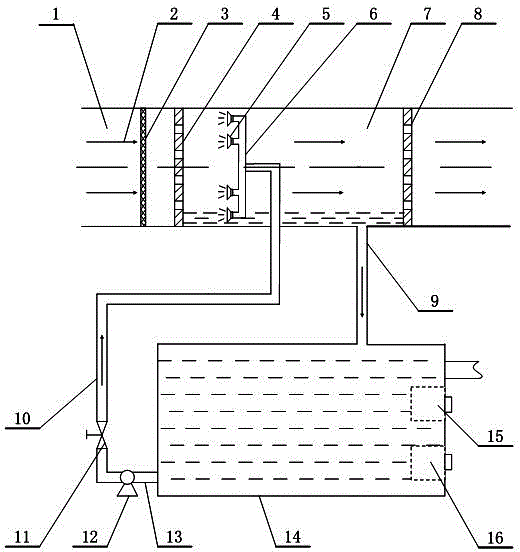

fig. 1 is structural principle schematic diagram of the present utility model.
in Fig. 1,1. for air duct, 2. air duct is for distinguished and admirable, 3. dirt filtrating screen, 4. front watertight shutter, 5. atomizer, 6. atomizer feed pipe, 7. high-speed sprinkling chamber, 8. rear water plate, 9. spray chamber return pipe, 10. spray chamber water inlet pipe, 11. flow control valves, 12. pressure pump, 13. pond outlet pipes, 14. ponds, 15. refrigerator, 16. heaters.
The specific embodiment
in Fig. 1, this mine temp. controllable ventilation installation mainly comprises high-speed sprinkling chamber 7 and pond 14, be provided with atomizer feed pipe 6 in this high-speed sprinkling chamber 7, atomizer feed pipe 6 is provided with atomizer 5, the middle part of atomizer feed pipe 6 is being communicated with spray chamber water inlet pipe 10, spray chamber water inlet pipe 10 stretches out from 7 sides, high-speed sprinkling chamber, air intake place for air duct 1 is provided with dirt filtrating screen 3, can effectively filter the dust in wind, make the distinguished and admirable high-speed sprinkling chamber 7 that enters of cleaning, the front portion of high-speed sprinkling chamber 7 is fixed with front watertight shutter 4, rear portion is fixed with rear water plate 8, its objective is and guarantee distinguished and admirablely with atomized water, to realize complete caloic exchange, simultaneously carry water droplet secretly distinguished and admirable carry out moisture from, 7 two ends, high-speed sprinkling chamber are arranged on driving face on air duct 1, the bottom of high-speed sprinkling chamber 7 is outwards connecting spray chamber return pipe 9, the front end of spray chamber return pipe 9 is connected with pond 14, pool wall is provided with refrigerator 15 and heater 16,14 bottom, pond is connected with pond outlet pipe 13, and pond outlet pipe 13 is provided with pressure pump and flow control valve.
if under mine, temperature is very high, open refrigerator 15, current after cooling are entered into to atomizer feed pipe 6 through spray chamber water inlet pipe 10, being injected to air duct through atomizer 5 again supplies in distinguished and admirable 2, distinguished and admirable and atomized water carries out flowing out high-speed sprinkling chamber 7 after the caloic exchange, thereby realize environment temperature reduction in mine or tunnel, the water accumulated in high-speed sprinkling chamber 7 can be got back to pond 14 by spray chamber return pipe 9.
if under mine, temperature is very low, heater 16, current after heating up are entered into to atomizer feed pipe 6 through spray chamber water inlet pipe 10, being injected to air duct through atomizer 5 again supplies in distinguished and admirable 2, distinguished and admirable and atomized water carries out flowing out high-speed sprinkling chamber 7 after the caloic exchange, thereby realize environment in mine or tunnel is heated, the water accumulated in high-speed sprinkling chamber 7 can be got back to pond 14 by spray chamber return pipe 9.
Claims (3)
1.
a kind of mine temp. controllable ventilation installation, this mine temp. controllable ventilation installation mainly comprises high-speed sprinkling chamber (7) and pond (14), it is characterized in that, be provided with atomizer feed pipe (6) in this high-speed sprinkling chamber (7), atomizer feed pipe (6) is provided with atomizer (5), the middle part of atomizer feed pipe (6) is being communicated with spray chamber water inlet pipe (10), spray chamber water inlet pipe (10) stretches out from side, high-speed sprinkling chamber (7), supplies the air intake place of air duct (1) to be provided with dirt filtrating screen (3); The bottom of high-speed sprinkling chamber (7) is outwards connecting spray chamber return pipe (9), the front end of spray chamber return pipe (9) is connected with pond (14), pool wall is provided with refrigerator (15) and heater (16), the bottom in pond (14) is connected with pond outlet pipe (13), and pond outlet pipe (13) is provided with pressure pump and flow control valve.
2.
a kind of mine temp. controllable ventilation installation according to claim 1 is characterized in that the front portion of described high-speed sprinkling chamber (7) is fixed with front watertight shutter (4), and rear portion is fixed with rear water plate (8).
3.
a kind of mine temp. controllable ventilation installation according to claim 2, is characterized in that, two ends, described high-speed sprinkling chamber (7) are arranged on driving face on air duct (1).
