Abstract
本实用新型涉及厨房设备领域，尤其涉及一种抽油烟机。一种外置去污抽油烟机，包括机壳、过滤网、油杯、风轮抽吸机构和净化池，所述机壳底部设有一抽吸口，所述风轮抽吸机构安装在机壳内对应抽吸口的位置，所述过滤网罩在机壳的抽吸口上，所述油杯安装在过滤网的底部中心位置，所述净化池安装在机壳外部，所述烟道一端连通风轮抽吸机构的出风口上，烟道另一端伸入净化池中，净化池内装有碱性清洁液。本实用新型外置去污抽油烟机外置一个与烟道连通的净化池，抽油烟机吸收的油烟气并不直接排放，而是送入到净化池内由碱性清洁液去除油烟颗粒后再排出，避免了环境污染。
The utility model relates to the field of kitchen equipment, and in particular to a range hood. An external decontamination range hood includes a casing, a filter, an oil cup, a fan suction mechanism and a purification tank. A suction port is provided at the bottom of the casing, the fan suction mechanism is installed in the casing at a position corresponding to the suction port, the filter covers the suction port of the casing, the oil cup is installed at the bottom center of the filter, the purification tank is installed outside the casing, one end of the flue is connected to the air outlet of the fan suction mechanism, and the other end of the flue extends into the purification tank, which is filled with alkaline cleaning liquid. The utility model has an external decontamination range hood with an external purification tank connected to the flue. The oil fume absorbed by the range hood is not discharged directly, but is sent to the purification tank to remove the oil fume particles by the alkaline cleaning liquid before being discharged, thereby avoiding environmental pollution.
Description
技术领域technical field
本实用新型涉及厨房设备领域，尤其涉及一种抽油烟机。The utility model relates to the field of kitchen equipment, in particular to a range hood.
背景技术Background technique
抽油烟机是一种净化厨房环境的厨房电器。它安装在厨房健康节能吸油烟机炉灶上方，能将炉灶燃烧的废物和烹饪过程中产生的对人体有害的油烟迅速抽走，排出室外，减少污染，净化空气，并有防毒、防爆的安全保障作用。抽油烟机进入中国普通家庭厨房的时间还不是很长。早期的家庭厨房排烟工作都是由排风扇来完成的。排风扇虽然能排除掉厨房中的大部分油烟，但是它却无力解决烹饪中产生的油烟对整个厨房的污染。烹饪中产生的油烟含有很多对人体有害的物质，如果人长期在充满油烟的房间内工作，会导致很多疾病的发生。The range hood is a kitchen appliance that purifies the kitchen environment. It is installed above the healthy and energy-saving range hood stove in the kitchen. It can quickly take away the waste burned by the stove and the oil fume harmful to the human body produced during the cooking process, and discharge it to the outside, reduce pollution, purify the air, and have anti-virus and explosion-proof safety guarantees. effect. Range hoods have not been in the kitchen of ordinary Chinese families for a long time. Early home kitchen smoke exhaust work was done by exhaust fans. Although the exhaust fan can get rid of most of the oily fumes in the kitchen, it is unable to solve the pollution of the entire kitchen by the oily fumes generated during cooking. The cooking fume contains many substances harmful to the human body. If people work in a room full of fumes for a long time, it will cause many diseases.
对于中国人来说，中国人的膳食结构与西方人不同，所以厨房中从厨具的品种、样式到布置，都与西方国家有很大的不同，在中国的食品加工中，煎、炒、烹、炸占有很大的比例，造成中式厨房中的油烟很大，容易使厨房环境变得油腻而不好清洗，所以抽油烟机就成了改变厨房环境的一个“有力武器”。它改变了厨房的环境，减少油烟对厨房环境和人体健康造成的伤害。抽油烟机可谓是油烟的“杀手”。For the Chinese, the dietary structure of the Chinese is different from that of Westerners, so the variety, style and arrangement of kitchen utensils in the kitchen are very different from those of Western countries. In Chinese food processing, frying, frying, cooking , frying occupies a large proportion, resulting in a lot of oil fume in the Chinese kitchen, and it is easy to make the kitchen environment greasy and difficult to clean. Therefore, the range hood has become a "powerful weapon" to change the kitchen environment. It changes the kitchen environment and reduces the damage caused by oil fume to the kitchen environment and human health. Range hood can be described as the "killer" of oil fume.
现有抽油烟机的油烟由风轮吸入后都是由烟道通过排烟管直接排放到大气中，这类抽油烟机无法使用在某些对环保有要求的地方。The oil fume of the existing range hood is directly discharged into the atmosphere by the flue through the exhaust pipe after being inhaled by the wind wheel, and this type of range hood cannot be used in some places where environmental protection is required.
发明内容Contents of the invention
本实用新型所要解决的技术问题是提供一种外置去污抽油烟机，该抽油烟机外置一个与烟道连通的净化池，抽油烟机吸收的油烟气送入到净化池内由碱性清洁液去除油烟颗粒后再排出，避免了环境污染。The technical problem to be solved by the utility model is to provide an external decontamination range hood, the range hood is externally equipped with a purification pool connected with the flue, and the oil fume absorbed by the range hood is sent into the purification pool by alkali The non-toxic cleaning liquid removes the fume particles and then discharges, avoiding environmental pollution.
本实用新型是这样实现的：一种外置去污抽油烟机，包括机壳、过滤网、油杯、风轮抽吸机构和净化池，所述机壳底部设有一抽吸口，所述风轮抽吸机构安装在机壳内对应抽吸口的位置，所述过滤网罩在机壳的抽吸口上，所述油杯安装在过滤网的底部中心位置，所述净化池安装在机壳外部，所述烟道一端连通风轮抽吸机构的出风口上，烟道另一端伸入净化池中，净化池内装有碱性清洁液。The utility model is achieved in the following way: an external decontamination range hood includes a casing, a filter screen, an oil cup, a wind wheel suction mechanism and a purification pool, the bottom of the casing is provided with a suction port, the The wind wheel suction mechanism is installed in the position corresponding to the suction port in the casing, the filter is covered on the suction port of the casing, the oil cup is installed at the center of the bottom of the filter, and the purification pool is installed in the machine Outside the shell, one end of the flue is connected to the air outlet of the ventilation wheel suction mechanism, and the other end of the flue extends into the purification pool, which is filled with alkaline cleaning liquid.
所述的净化池内还装有电加热装置。An electric heating device is also installed in the purification pool.
所述的机壳上设置有操作面板。An operation panel is arranged on the casing.
所述的机壳的底部设置有照明灯。The bottom of the casing is provided with an illuminating lamp.
所述的照明灯为LED灯组，照明灯外罩有透明护罩。The lighting lamp is an LED lamp group, and the lighting lamp is covered with a transparent shield.
本实用新型外置去污抽油烟机外置一个与烟道连通的净化池，抽油烟机吸收的油烟气并不直接排放，而是送入到净化池内由碱性清洁液去除油烟颗粒后再排出，避免了环境污染。The utility model has an external decontamination range hood with a purification pool connected to the flue, the oil fume absorbed by the range hood is not directly discharged, but sent into the purification pool where the soot particles are removed by the alkaline cleaning solution Discharge again, avoiding environmental pollution.
附图说明Description of drawings

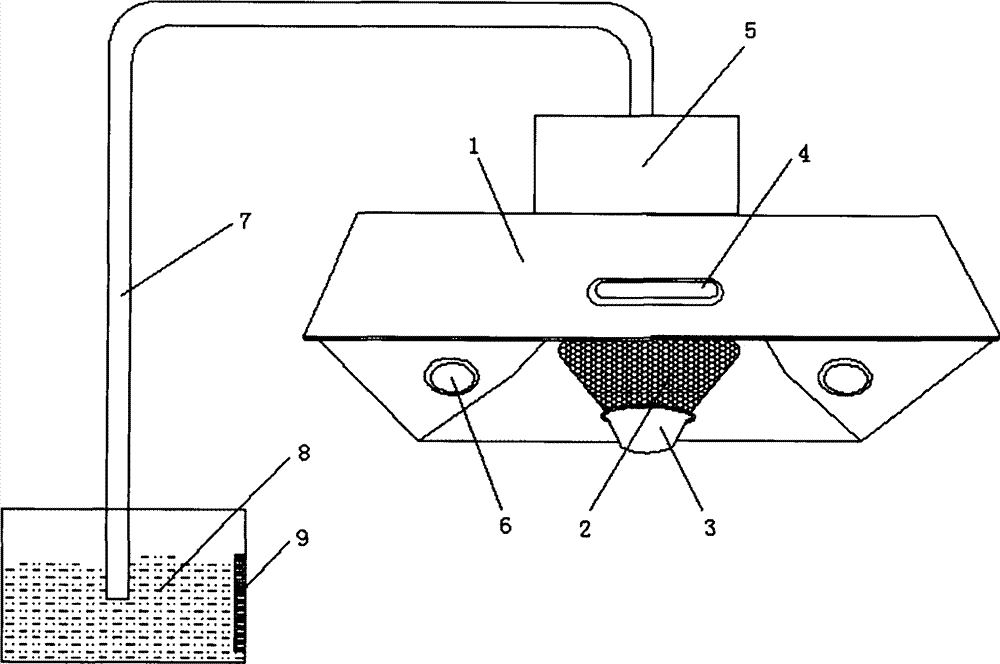

图1为本实用新型外置去污抽油烟机外部立体示意图。Fig. 1 is a three-dimensional schematic diagram of the exterior of the external decontamination range hood of the present invention.
图中：1机壳、2过滤网、3油杯、4操作面板、5风轮、6照明灯、7烟道、8净化池、9电加热装置。In the figure: 1 casing, 2 filter screen, 3 oil cup, 4 operation panel, 5 wind wheel, 6 lighting lamp, 7 flue, 8 purification pool, 9 electric heating device.
具体实施方式Detailed ways
下面结合具体实施例，进一步阐述本实用新型。应理解，这些实施例仅用于说明本实用新型而不用于限制本实用新型的范围。此外应理解，在阅读了本实用新型表述的内容之后，本领域技术人员可以对本实用新型作各种改动或修改，这些等价形式同样落于本申请所附权利要求书所限定的范围。Below in conjunction with specific embodiment, further set forth the utility model. It should be understood that these embodiments are only used to illustrate the present utility model and are not intended to limit the scope of the present utility model. In addition, it should be understood that after reading the content of the utility model, those skilled in the art can make various changes or modifications to the utility model, and these equivalent forms also fall within the scope defined by the appended claims of the application.
实施例1Example 1
如图1、2所示，一种外置去污抽油烟机，包括机壳1、过滤网2、油杯3、风轮抽吸机构5和净化池8，所述机壳1底部设有一抽吸口，所述风轮抽吸机构5安装在机壳1内对应抽吸口的位置，所述过滤网2罩在机壳1的抽吸口上，所述油杯3安装在过滤网2的底部中心位置，所述净化池8安装在机壳1外部，所述烟道7一端连通风轮抽吸机构5的出风口上，烟道7另一端伸入净化池8中，净化池8内装有碱性清洁液。As shown in Figures 1 and 2, an external decontamination range hood includes a casing 1, a
为了能提高净化池8对油污颗粒的处理能力，所述的净化池8内还装有电加热装置9，通过电加热装置9加热碱性清洁液，提高碱性清洁液的吸收油烟能力。In order to improve the treatment capacity of the
为了方便操作，所述的机壳1上设置有操作面板4。For the convenience of operation, an operation panel 4 is arranged on the casing 1 .
另外在本实用新型中，为了能避免机壳1遮住光线，所述的机壳1的底部设置有照明灯6，通过照明灯6辅助烹饪；为了避免烹饪时的油烟沾污和腐蚀照明灯6，所述的照明灯6外罩有一块可拆式的透明有机玻璃片作为护罩，将灯具封闭起来，保证电器安全，在本实施例中照明灯6为LED灯组以节约电能。In addition, in the utility model, in order to prevent the casing 1 from covering the light, the bottom of the casing 1 is provided with an
Claims (5)
