Abstract
中医用便携式保健治疗箱，包括箱体、箱盖、连接扣，在箱体内设有若干个器械放置区；器械放置区上面放置针灸针放置框架；箱盖上设有紫外线杀菌灯管。箱盖上还设有放置兜或放置袋，箱体外侧设有提手或背带等。本实用新型可将火罐、痧刀、艾灸条、镊子、诊脉枕等器械，分门别类放在器械放置区中，将各型号针灸针分别放在针灸针放置槽中，即便于完整的携带各种器械，又便于在治疗时取出或放回，避免器械之间相互碰触，不容易损坏或丢失。同时可在诊病治疗后，定时对箱内的各种器械进行消毒灭菌处理，提高保健治疗的安全性，提高工作秩序和效率。具有结构简单、容易实施、成本低、使用灵活携带方便、可定时消毒灭菌、应用范围广等优点。
The portable health care treatment box for traditional Chinese medicine includes a box body, a box cover, and a connecting buckle. There are several instrument storage areas in the box body; acupuncture needle placement frames are placed on the instrument storage area; ultraviolet germicidal lamp tubes are arranged on the box cover. The case cover is also provided with a placement pocket or a placement bag, and the outside of the case body is provided with a handle or straps, etc. The utility model can put cupping jars, sha knife, moxibustion strips, tweezers, pulse diagnosis pillows and other instruments in the instrument placement area by category, and place acupuncture needles of various models in the acupuncture needle placement grooves, so that it is convenient to carry all kinds of The device is easy to take out or put back during treatment, avoiding mutual contact between the devices, and is not easy to be damaged or lost. At the same time, after diagnosis and treatment, various instruments in the box can be regularly sterilized to improve the safety of health care and treatment, and improve work order and efficiency. The utility model has the advantages of simple structure, easy implementation, low cost, flexible use, convenient portability, timing disinfection and sterilization, wide application range and the like.
Description
Technical field
This utility model relates to device that concentrate to place the apparatus that the traditional Chinese medical science used, be specifically a kind of in medical Portable health-care treatment case, belong to the medical supplies packaging facilities.
Background technology
China has tcm diagnosis and the Therapeutic Method of long history, for example: acupuncture, moxa-moxibustion, cupping, scrape therapy etc., there are safe and reliable, nontoxic, the characteristics such as have no side effect, deeply be subject to numerous people's welcome.But, at present in departments such as hospital, clinic and infirmary, the apparatuses such as acupuncture needle, Moxibustion strip, cupping jar, sha-syndrome scraping plate and pulse-taking pad that traditional Chinese medical science personnel often use, mostly scattered placement, use very inconvenient.For example: acupuncture needle is continued to use traditional soft cloth packing mostly always, after sterilization, uses for a long time, and the acupuncture needle of various models is almost to mix to be inserted on soft cloth, during use, selects time-consumingly, easily damages or loses.Simultaneously, the various apparatuses of scattered placement, easily be subject to the various pollutions of surrounding, after use, can't disinfect in time, is easy to cause various cross infections, exists great hidden danger.In addition, the present situation of this scattered unordered placement equipment used in TCM, during the outdoor activities such as more uncomfortable required basic unit pays a home visit or gathers, tourism, for people provide the demand of Traditional Chinese health treatment.At this moment traditional Chinese medical science personnel can only use the interim part apparatus of collecting of the splendid attires such as existing bag, pocket, case, the workload that both wasted time and energy is large, carry very inconvenience, easily cause again the mutual pollution of various apparatuses, the even damage of colliding with, sometimes also may forget some apparatus, to Traditional Chinese health treatment services, cause certain influence.
Summary of the invention
The purpose of this utility model is for above-mentioned deficiency, provide a kind of simple in structure, flexible and convenient to use, can place in order various apparatuses, medical Portable health-care treatment case in the sterilizing that can carry out disinfection in time after use.
The technical scheme that realizes this utility model purpose is: medical Portable health-care treatment case in this, comprise rectangular casing, case lid, and the junction button of casing and case lid front portion, characteristics are that the bottom in casing is provided with at least one apparatus rest area; On the apparatus rest area, the movable acupuncture needle of placing is placed framework; Be provided with the ultraviolet sterilization fluorescent tube on case lid, the ultraviolet sterilization fluorescent tube is electrically connected with the timing power supply circuit, and the gauge tap of timing power supply circuit is located at the connecting portion of casing and case lid.
Described acupuncture needle is placed framework; by rectangular outside framework, be fixedly connected on acupuncture needle in outside framework along long side direction and place the bar frame and form; acupuncture needle is placed the bar frame and is provided with at least one section acupuncture needle placing trough; the acupuncture needle placing trough is provided with pressing plate, is respectively equipped with the elastic protective layer below the top and corresponding pressing plate of acupuncture needle placing trough.
In order to place the assistant products such as clinical thermometer or paper, pen, prescription list, also can be provided with soft placement pocket or the putting bag of upper shed simultaneously on case lid.
In withdrawing at any time or carry on the back away for the ease of traditional Chinese medical science personnel, medical Portable health-care treatment case, also can be provided with handle or braces etc. in the outside of casing.
This utility model is simple in structure, can select raw material and the universal machine electric parts such as existing timber, plastics, and adopts conventional processes to make, and easily implements.
This utility model is reasonable in design, use very convenient, can be by different apparatuses such as cupping jar, acute diseases such as cholera and sunstroke cutter, Moxibustion strip, tweezers, pulse-taking pads, be placed on disaggregatedly in each corresponding apparatus rest area, the acupuncture needle of various models be placed on respectively to acupuncture needle and place in acupuncture needle placing troughs different in framework, be convenient to the complete various apparatuses that carry, be convenient to again take out or put back to corresponding apparatus when treatment, avoid mutually touching between various apparatuses, be not easy to damage or lose, be conducive to preserve and use.Simultaneously again can be after the treatment of diagnosing a disease, regularly to the sterilization treatment that carries out disinfection of the various apparatuses in case, effectively avoid the chance of cross infection and communicate illness, the safety that improves health therapy, alleviate traditional Chinese medical science personnel's labor intensity, increases work efficiency.
This utility model can be widely used in the traditional Chinese medical science librarian use of each medical department, but have simple in structure, easy enforcement, cost low, use the advantages such as timing sterilization sterilizing easy to carry, applied range flexibly.
The accompanying drawing explanation

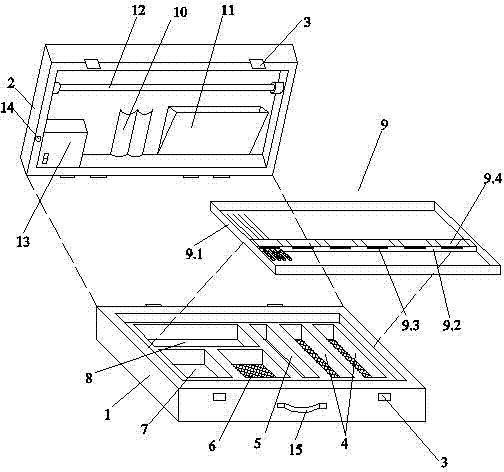

Fig. 1 is the structural representation of a kind of embodiment of this utility model.Clear for drawing, in figure, casing, acupuncture needle placement framework and case lid leave respectively drafting.
Fig. 2 is the amplification profile structural representation that in Fig. 1, acupuncture needle is placed an acupuncture needle placing trough part in the bar frame.
In figure: 1 casing, 2 case lids, 3 junction buttons; 4 cupping jar rest areas, 5 Moxibustion strip rest areas, the rest areas such as 6 acute diseases such as cholera and sunstroke cuttves; the comprehensive rest area of 7 alcohol swab pin tweezers, 8 pulse-taking pad rest areas, 9 acupuncture needles are placed framework, 9.1 outside frameworks, 9.2 acupuncture needles placement bar framves, 9.3 acupuncture needle placing troughs, 9.4 magnet hook type pressing plates, 9.5 elastic protective layers; 10 clinical thermometers, pen are placed pocket; 11 hard copys or single putting bag of writing out a prescription, 12 ultraviolet sterilization fluorescent tubes, 13 timing power supply circuit; 14 gauge taps, 15 handles.
The specific embodiment
Below in conjunction with accompanying drawing, with the embodiment provided, this utility model is further described.
With reference to accompanying drawing, medical Portable health-care treatment case in this, by rectangular casing 1, case lid 2, the junction button 3 of casing and case lid front portion, the handle 15 in the casing outside forms.Bottom in casing is provided with 6 rectangular apparatus rest areas, is respectively rest area 6, the comprehensive rest area 7 of alcohol swab pin tweezers, the pulse-taking pad rest areas 8 such as 2 cupping jar rest areas 4 and Moxibustion strip rest area 5, acute diseases such as cholera and sunstroke cutter.On the apparatus rest area, activity is placed with acupuncture needle and places framework 9; acupuncture needle place framework by rectangular outside framework 9.1, be fixedly connected on acupuncture needle in outside framework along long side direction and place bar frame 9.2 and form; acupuncture needle is placed the bar frame and is provided with some sections acupuncture needle placing troughs 9.3; the acupuncture needle placing trough is provided with magnet hook type pressing plate 9.4, is respectively equipped with elastic protective layer 9.5 below the top and corresponding pressing plate of acupuncture needle placing trough.Be provided with soft clinical thermometer, pen placement pocket 10 and hard copy or single putting bag 11 of writing out a prescription on case lid.Be provided with ultraviolet sterilization fluorescent tube 12 on case lid, the ultraviolet sterilization fluorescent tube is electrically connected with timing power supply circuit 13, and the gauge tap 14 of timing power supply circuit is located on the case lid of casing and case lid connecting portion.
This utility model applicant presses embodiment, select the universal machine electric parts such as the raw materials such as veneer, plastics, foam plastics and ultraviolet sterilization fluorescent tube, implement medical Portable health-care treatment case in this, the timing power supply circuit is comprised of conventional transformator, start-up circuit, timing circuit etc., adopts DC power supply.
During use; can be by different apparatuses such as cupping jar, acute diseases such as cholera and sunstroke cutter, Moxibustion strip, tweezers, pulse-taking pads; be placed on disaggregatedly in each corresponding apparatus rest area; the acupuncture needle of each model is placed on respectively to acupuncture needle to be placed in the bar frame in corresponding acupuncture needle placing trough; cover the magnet hook type pressing plate; due to the effect that upper and lower elastic protective layer is arranged, what acupuncture needle can be firm is placed in the acupuncture needle placing trough.Also can utilize the space in the apparatus rest area, place the article such as some Chinese patent medicines commonly used, medical proof fabric.After work, case lid is covered, the gauge tap of timeing closing power supply circuits, start the timing power supply circuit and make the work of ultraviolet germicidal lamp pipe, to the equipment used in TCM of placing in the case sterilization treatment that carries out disinfection, and when the time of setting arrives, automatically close power supply circuits and stop sterilization, effectively avoid the chance of cross infection and communicate illness.Because acupuncture needle is that horizontal Tile is placed in the acupuncture needle placing trough, there is very large space, do not affect the ultraviolet sterilization fluorescent tube sterilization of each apparatus in case is processed.
The on probation demonstration through inside, medical Portable health-care treatment case in this, facilitated the concentrated preservation of these equipments used in TCM and used in order, avoid mutually touching between various apparatuses, be not easy to damage or lose, simultaneously again can be after the treatment of diagnosing a disease, regularly to the various apparatuses sterilization treatment that carries out disinfection, avoid the chance of cross infection and communicate illness, improved the safety of health therapy, traditional Chinese medical science personnel's order of work and efficiency have been improved, simple in structure, easily implement, cost is low, flexible and convenient to use, applied range, be subject to traditional Chinese medical science personnel's popular welcome and favorable comment.
Claims (3)
