Abstract
The utility model relates to a magnetic suction quick-plug connector device, which comprises a cone-shaped plug and a socket, wherein the cone-shaped plug is provided with a wire, the socket is provided with a jack which is corresponding to the shape of the cone-shaped plug, and magnets which opposite polarity are arranged on the bottom portion of the jack and the top portion of the plug. The magnetic suction quick-plug connector device is matched by adopting small angles, the magnet on the top portion of the plug and the magnet on the bottom portion of the jack are pulled in each other, and contact pressure on a contact surface is large even though small suction. The magnetic suction quick-plug connector device is large in contact surface, large in pressure, small in contact resistance, tight to connect, rapid to plug, and convenient to use.
Description
Technical field
The utility model relates to a kind of magnetic-type fast insert-pull piecing devices.
Background technology
In current on-the-spot power test, the second trial wiring is standard-sized joint and socket, is applicable to each professional different tests project.The blank area of general second trial wiring adopts metal clips or holding screw, with the contact that guarantees to connect between secondary joint and socket, makes connection fastening reliable.
But these two kinds of connected modes exist fragile, and contact is little, and it is unreliable to connect, and during test, tie point easily disconnects, and affects the problems such as fail safe of field test.
The utility model content
The technical problem that the utility model solves is to provide the magnetic-type fast insert-pull piecing devices that a kind of contact-making surface is large, pressure is large, contact resistance is little, connection is fastening.
The technical solution of the utility model is as follows:
The utility model comprises the plug with wire that is provided with truncated cone, with the socket of the jack corresponding with the plug shape of described truncated cone, the bottom of described jack and the top of plug are provided with opposite polarity magnet.
Good effect of the present utility model is as follows: the utility model is as a kind of magnetic-type fast insert-pull piecing devices, during use, can make the plug and socket automatic pick, make firm and reliable connection between it, the utility model adopts low-angle to coordinate, according to mechanics principle, very little suction can make the contact of contact-making surface very large, the utility model contact resistance is little, and plug rapidly, and is easy to use.
Description of drawings

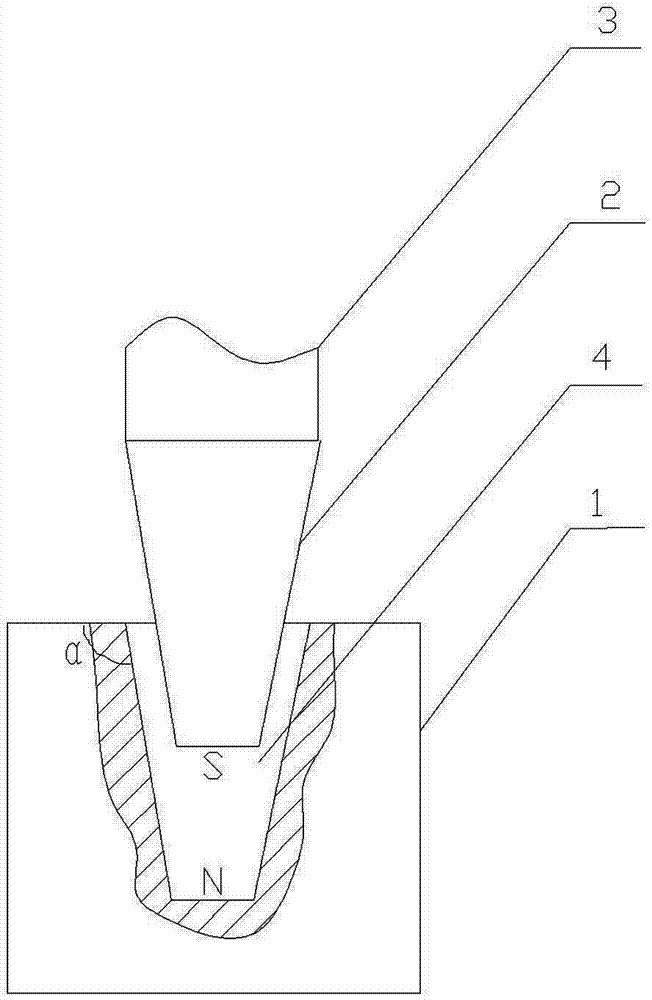

Accompanying drawing 1 is structural representation of the present utility model.
In the accompanying drawings: 1 socket, 2 plugs, 3 wires, 4 jacks.
Embodiment
As shown in Figure 1, the utility model comprises the plug 2 with wire 3 that is provided with truncated cone, with the socket 1 of the jack 4 corresponding with plug 2 shapes of described truncated cone, the top of the bottom of described jack 4 and plug 2 is provided with opposite polarity magnet.Jack 4 is oblique groove, and angle [alpha] is 100 °, can increase the contact area of plug 2 and socket 1 junction, can increase again both under magneticaction the pressure of contact-making surface after adhesive, can effectively reduce contact resistance, satisfies the needs of on-the-spot electric specialty test.During use, after the socket 1 of jack 4 bottom carry magnets and top plugged together with the magnet truncated cone plug 2 opposite with jack 4 bottom magnetics, suction was larger, was connected firmly, and was connected with second trial wire 3 at the afterbody of plug 2.Under the magneticaction of magnet, socket 1 and plug 2 automatic picks, efficient and convenient during on-the-spot the use.
In the utility model, socket 1 and plug 2 are metal material, can be used as the standard type instrument, promote in the various specialty tests of power industry.
Claims (1)
1. magnetic-type fast insert-pull piecing devices, it is characterized in that it comprise the plug with wire (3) (2) that is provided with truncated cone, with the socket (1) of the jack (4) corresponding with plug (2) shape of described truncated cone, the top of the bottom of described jack (4) and plug (2) is provided with opposite polarity magnet.
