Abstract

The utility model relates to a socket whose power line can be rapidly replaced. The socket is provided with a cuboid-shaped socket body, a line insertion end is arranged on one side of the socket body, a insertion and connection end which is inserted and connected with the line insertion end in a match manner is connected with a charging plug through power lines with different lengths, and jacks are arranged on the upper surface of the socket body. According to the socket, the power lines with different lengths can be replaced by a person conveniently, and a damaged power line can be replace by a new power line timely, so great utilization convenience is brought to the person.

Description

The socket of fast changeable power line
Technical field
the utility model relates to a kind of socket, especially makes things convenient for the socket of the fast changeable power line that in multiple occasion, uses.
Background technology
are present; The length of known its power line of socket is fixed; And can not arbitrarily change power line; Sometimes people need use the socket of being with the different length power line in different occasions, and existing socket can not satisfy people's requirement, make troubles for people's life.
The utility model content
are in order to overcome the fixing problem of its power line length of existing socket; The utility model provides a kind of socket of fast changeable power line; This socket can be convenient for people to change the power line of different length; And can in time change the new power line after the power line damage, bring great convenience for people's use.
the utility model solves the technical scheme that its technical problem adopted: this socket is provided with a rectangular-shaped jack body; The side of jack body is provided with the plug wire head; The connection-peg of coincide pegging graft with the plug wire head is being connected charging plug through the power line of different length, and the upper surface of jack body is provided with jack.During use, the power line of different length is linked to each other with jack body through connection-peg, can satisfy the demand of people at different occasions use sockets.
The beneficial effect of the utility model is that this socket can be convenient for people to change the power line of different length, and can in time change the new power line after the power line damage, brings great convenience for people's use.
Description of drawings
are described further the utility model below in conjunction with accompanying drawing and embodiment.

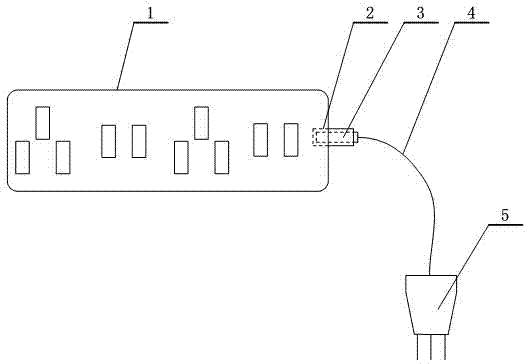

Fig. 1 is the structural principle sketch map of the utility model.
Among Fig. 1,1. jack body, 2. plug wire head, 3. connection-peg, 4. power line, 5. charging plug.
Embodiment
are in Fig. 1; This socket is provided with a rectangular-shaped jack body 1; The side of jack body 1 is provided with plug wire head 2, is being connected charging plug 5 with plug wire head 2 connection-pegs 3 of the pegging graft power line 4 through different length that coincide, and the upper surface of jack body 1 is provided with jack.During use, the power line of different length 4 is linked to each other with jack body 1 through connection-peg 3, can satisfy the demand of people at different occasions use sockets.

Claims (1)

1. the socket of fast changeable power line, this socket is provided with a rectangular-shaped jack body (1); It is characterized in that: the side of jack body (1) is provided with plug wire head (2), and the connection-peg (3) of coincide pegging graft with plug wire head (2) is being connected charging plug (5) through the power line (4) of different length, and the upper surface of jack body (1) is provided with jack.
