Abstract
本实用新型涉及一种新型雨伞，它有一个包括伞布、骨架、支撑杆和手柄的伞体；所述手柄的底端活动连接有一个顶端开口的储水盒；所述伞体的顶部铰连接有挂环，该新型雨伞结构简单，操作便捷，使用者可以方便正挂雨伞并且收集雨伞上的雨水，保证了地面整洁干爽，具有较好的实用价值。
The utility model relates to a new type of umbrella, which has an umbrella body including umbrella cloth, a skeleton, a support rod and a handle; the bottom end of the handle is movably connected with a water storage box with an open top; the top hinge of the umbrella body Connected with a hanging ring, the new umbrella has a simple structure and is easy to operate. The user can conveniently hang the umbrella upright and collect the rainwater on the umbrella, which ensures the clean and dry ground and has good practical value.
Description
技术领域 technical field
本实用新型涉及一种雨伞，尤其是一种可以储水的新型雨伞。 The utility model relates to an umbrella, in particular to a novel umbrella capable of storing water.
背景技术 Background technique
目前，人们使用的雨伞在手柄处都一条挂绳，方便人们不用雨伞时挂在固定地方，但是雨伞倒挂在墙壁或者其他地方，伞口撑开，占用空间，容易碰倒，并且雨伞上附着的雨水会顺势留下，滴落在地面，不易清理，至今还未有较好的解决方法。 At present, the umbrellas that people use all have a lanyard at the handle, which is convenient for people to hang on a fixed place when they do not use the umbrella. Rainwater will stay with the trend and drip on the ground, which is not easy to clean up. There is no better solution so far.
实用新型内容 Utility model content
为了解决上述问题，本实用新型提出了一种新型雨伞，该雨伞结构简单，方便灵活，操作简便，使用者可以方便正挂雨伞并且合理收集雨伞上的雨水，满足人们放置雨伞和处理雨水的问题，具有较好的实用价值。 In order to solve the above problems, the utility model proposes a new type of umbrella, which has a simple structure, is convenient and flexible, and is easy to operate. The user can conveniently hang the umbrella and collect the rainwater on the umbrella reasonably, so as to meet the problems of people placing umbrellas and treating rainwater. , has good practical value.
本实用新型解决其技术问题所采用的技术方案是：一种新型雨伞有一个包括伞布、骨架、支撑杆和手柄的伞体；所述手柄的底端活动连接有一个顶端开口的储水盒；所述伞体的顶部铰连接有挂环。 The technical scheme adopted by the utility model to solve the technical problem is: a new type of umbrella has an umbrella body including an umbrella cloth, a skeleton, a support rod and a handle; the bottom end of the handle is movably connected with a water storage box with an open top ; The top of the umbrella body is hinged with a hanging ring.
本实用新型的有益效果是：该新型雨伞结构简单，操作便捷，使用者可以方便正挂雨伞并且收集雨伞上的雨水，保证了地面整洁干爽，具有较好的实用价值。 The beneficial effects of the utility model are: the new umbrella has simple structure and convenient operation, and the user can conveniently hang the umbrella upright and collect the rainwater on the umbrella, which ensures the clean and dry ground and has good practical value.
附图说明 Description of drawings
下面结合附图及实施例对本实用新型作进一步说明。 Below in conjunction with accompanying drawing and embodiment the utility model is further described.

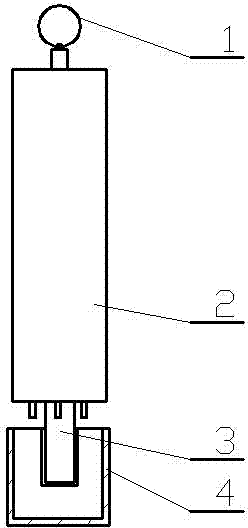

附图1为该新型雨伞的实施例结构示意图。 Accompanying drawing 1 is the embodiment structural representation of this novel umbrella.
图中，1.挂环，2.伞体，3.手柄，4.储水盒。 In the figure, 1. hanging ring, 2. umbrella body, 3. handle, 4. water storage box.
具体实施方式 Detailed ways
在附图1中，一种新型雨伞有一个包括伞布、骨架、支撑杆和手柄3的伞体2；所述手柄3的底端活动连接有一个顶端开口的储水盒4；所述伞体2的顶部铰连接有挂环1。 In accompanying drawing 1, a kind of novel umbrella has an umbrella body 2 that comprises umbrella cloth, skeleton, support bar and handle 3; The top of the body 2 is hingedly connected with a hanging ring 1 .
所述储水盒4与手柄3通过螺纹旋转连接或两者相互卡接，方便将储水盒4取下将雨水倒掉。 The water storage box 4 and the handle 3 are connected by thread rotation or the two are engaged with each other, so that the water storage box 4 can be removed conveniently and the rainwater can be poured out.
使用者可将雨伞通过挂环1悬挂起来，雨伞上的水即会流入储水盒4内，保证地面干爽整洁。 The user can hang the umbrella through the hanging ring 1, and the water on the umbrella will flow into the water storage box 4 to ensure that the ground is dry and clean.
