CN203168776U - Water collector of umbrellas - Google Patents

Water collector of umbrellas Download PDF

Info

Publication number
CN203168776U
CN203168776U CN 201320140919 CN201320140919U CN203168776U CN 203168776 U CN203168776 U CN 203168776U CN 201320140919 CN201320140919 CN 201320140919 CN 201320140919 U CN201320140919 U CN 201320140919U CN 203168776 U CN203168776 U CN 203168776U
Authority
CN
China
Prior art keywords
umbrella
umbrellas
water collector
collecting box
mesh screen
Prior art date
Application number
CN 201320140919
Other languages
Chinese (zh)
Inventor
许悦
郑庆康
郑凯凯
Original Assignee
河海大学
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by 河海大学 filed Critical 河海大学
Priority to CN 201320140919 priority Critical patent/CN203168776U/en
Application granted granted Critical
Publication of CN203168776U publication Critical patent/CN203168776U/en

Links

Abstract

The utility model discloses a water collector of umbrellas. The water collector is characterized by comprising an umbrella frame (2), the inside of the umbrella frame (2) is provided with a separation net (1), each grid can contain one umbrella, the lower portion of the umbrella frame (2) is provided with a mesh screen (3), the lower portion of the mesh screen (3) is provided with a water collection box (4), and the bottom of the water collection box (4) is provided with a valve (6). The water collector can collect rainwater left on the umbrellas, and enables the umbrellas to be placed orderly, and accordingly people can conveniently take back the umbrellas.

Description

A kind of umbrella water collector

Technical field

The utility model relates to a kind of daily necessities, especially relates to a kind of umbrella water collector.

Background technology

Umbrella is a kind of instrument common in people's daily life, when going out in the rainy day, almost is people's indispensable rain gear.But for supermarket, market, during the rainy day, when client was in the outdoor inlet chamber, the residual rainwater floor of can getting wet made the floor become very sliding on the umbrella, and this has not only had a strong impact on indoor attractive in appearance, but also can produce potential safety hazard.

Now, some businessman also can provide the device of storage of umbrella to client, but often not special device, but some common frame of plastics (box), when umbrella storing is too much, can save bit by bit a lot of water in the frame (box), so just cause following umbrella all to be immersed in the water, this can influence the service life of umbrella; And the umbrella order that puts in is chaotic, above a lamination below one deck, inconvenient client fetches.

Summary of the invention

The purpose of this utility model is to overcome deficiency of the prior art, provides a kind of and not only umbrella water can have been collected but also can make the umbrella water collector that umbrella is deposited in proper order.

In order to solve the problems of the technologies described above, the utility model is to be achieved through the following technical solutions:

A kind of umbrella water collector is characterized in that: it comprises the umbrella frame, and the indoor design of described umbrella frame has spacer web, and each grid can hold a umbrella, and the bottom of umbrella frame is provided with mesh screen, and the below of mesh screen is provided with collecting box, and the bottom of collecting box is provided with valve.

Described collecting box bottom is equipped with wheel.

Compared with prior art, the beneficial effects of the utility model are:

Below the umbrella frame, be provided with collecting box, the residual water on the umbrella is pooled in the special collecting box; Design has spacer web in the umbrella frame, makes that umbrella is sequential to be left in one by one in the grid, makes things convenient for access; Simple in structure, with low cost, be easy to produce.

Description of drawings

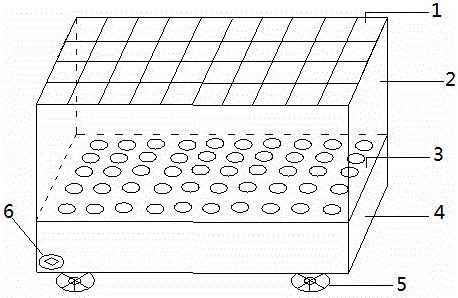

Accompanying drawing 1 is structural representation of the present utility model.

The specific embodiment

Below in conjunction with accompanying drawing the utility model is described in further detail:

As shown in Figure 1, it comprises umbrella frame 2 the utility model, and described umbrella frame 2 indoor designs have spacer web 1, each grid can hold a umbrella, and the bottom of umbrella frame 2 is provided with mesh screen 3, and mesh screen 3 leaves aperture, the below of mesh screen 3 is provided with collecting box 4, and the bottom of collecting box 4 is provided with valve 6.Described collecting box 4 bottoms are equipped with wheel 5.

When umbrella is put into umbrella frame 2, the residual rainwater on the umbrella flows in the collecting boxs 4 by mesh screen 3; Design has spacer web 1, each grid can hold a umbrella in the described umbrella frame 2, and people can avoid confusion and mutual extrusion between the umbrella with orderly uprightly the leaving in the umbrella frame 2 of umbrella, make things convenient for fetching of back.Near the water in the collecting box 4 was saved bit by bit mesh screen 3 planes, the Cleaner can arrange into sewer with the ponding in the collecting box 4 by valve 6.When the sewer distance is far away, can carry out by the wheel 5 of collecting box 4 bottom surfaces, save muscle power.

The undeclared part that relates in the utility model is same as the prior art or adopt prior art to be realized.

Claims (2)

1. umbrella water collector, it is characterized in that: it comprises umbrella frame (2), described umbrella frame (2) indoor design has spacer web (1), each grid can hold a umbrella, the bottom of umbrella frame (2) is provided with mesh screen (3), the below of mesh screen (3) is provided with collecting box (4), and the bottom of collecting box (4) is provided with valve (6).
2. a kind of umbrella water collector according to claim 1 is characterized in that: wheel (5) is installed bottom the described collecting box (4).
