Abstract

The utility model relates to a slice appliance. The slice appliance is characterized by comprising a collection box, a knife blade group and a pressing plate, wherein the knife blade group is arranged above the collection box and comprises multiple knife blades which have upward knife edges and are arranged in parallel at intervals, the spacing distance between the knife blades in the knife blade group can be adjusted by an adjustment mechanism, and the pressing plate is arranged above a knife blade system. Compared with the prior art, the slice appliance has the advantages that objects to be cut can be cut into blocks or slices with the same thickness in one time, simultaneously the objects to be cut can be cut into the slices with the needed thickness by using the adjusting mechanism for adjusting the distance between the knife blades, and therefore, the slice appliance is very practical and convenient.

Description

A kind of section utensil
Technical field
The utility model relates to a kind of section utensil that fruit, vegetables can be cut into bulk or sheet.
Background technology
Fruit, vegetables particularly fruit, the vegetables of bar shaped are often had in people's life, for example cucumber, carrot etc., and these fruit and vegetables often can need to be cut into bulk or sheet in process.When with kitchen knife fruit and vegetable being cut into slices stripping and slicing, can be because of human factor, it is inhomogeneous that thickness is cut, and waste time and energy.
The utility model content
Technical problem to be solved in the utility model is to provide a kind of section utensil that cut material can be cut into the consistent sheet of thickness or bulk and can adjust according to actual needs the thickness of section or stripping and slicing for above-mentioned prior art.
The utility model solves the problems of the technologies described above the technical scheme that adopts: this section utensil is characterized in that: comprising:
Disposable box;
Be arranged on disposable box top, the edge of a knife up, parallel interval arrange, by the set of blades that a plurality of blades form, the spacing distance between a plurality of blades in the aforementioned set of blades can pass through governor motion adjusting;
Be arranged on the pressing plate of blade system top.
As improvement, described governor motion comprises:
Be located in the frame support of disposable box oral area, be provided with penetrating orbit in opposite side two support arms of this frame support;
Be movably arranged on respectively two mobile in aforementioned penetrating orbit pillars,
Two ends are separately fixed at the joint pin of two strut ends;
Adjusting screw(rod), an end is fixed on the frame support, and the other end passes joint pin, and fixes by nut and joint pin;
Two springs are set in respectively on aforementioned two pillars, and the two ends of blade are fastened on respectively in the spring joint of two springs in the set of blades.
Improve, described governor motion also comprises again
With the blade fixed muffle of the supporting setting of a plurality of blades in the set of blades, this blade fixed muffle is set on the pillar and is fastened in the spring joint of spring, and the end of blade then is fixed on the blade fixed muffle
Compared with prior art, the utility model has the advantage of: can disposable the cut material body be cut into thickness bulk or sheet always, by the distance between the governor motion adjustment blade, cut material can also be cut out the sheet that needs thickness simultaneously, very practical and convenient.
Description of drawings
Fig. 1 is the perspective view of section utensil among the utility model embodiment;

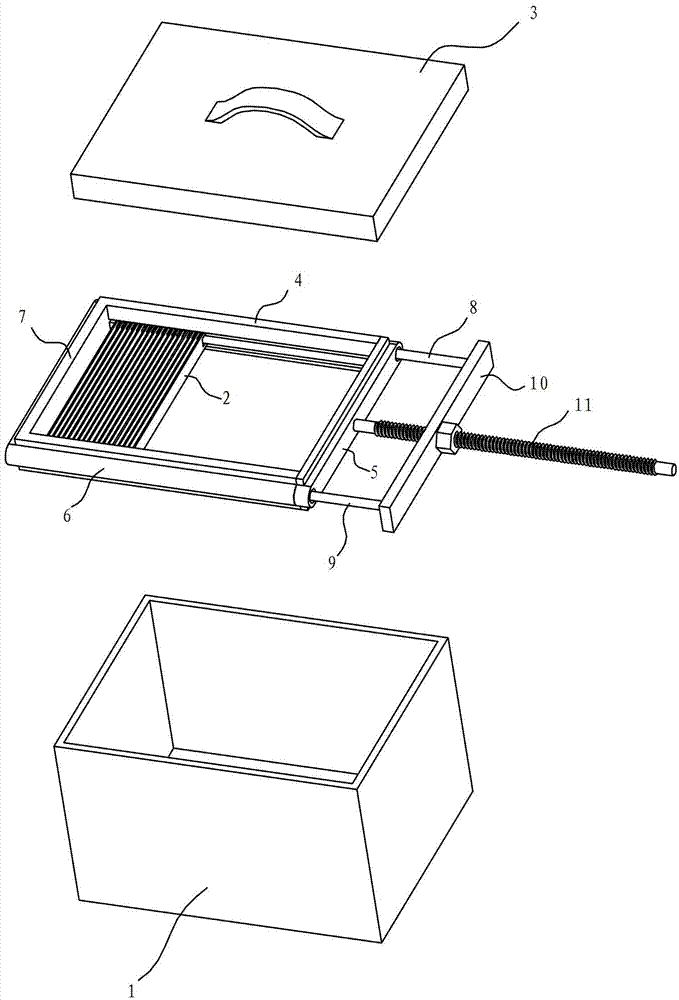

Fig. 2 is the three-dimensional exploded view one of section utensil among the utility model embodiment;
Fig. 3 is the three-dimensional exploded view two of section utensil among the utility model embodiment;
Fig. 4 is the three-dimensional exploded view of governor motion among the utility model embodiment;
Fig. 5 is I section enlarged drawing among Fig. 4.
The specific embodiment
Embodiment is described in further detail the utility model below in conjunction with accompanying drawing.
Section utensil shown in Fig. 1~5, it comprises:
Disposable box 1;
Be arranged on disposable box top, the edge of a knife up, parallel interval arrange, by the set of blades that a plurality of blades 2 form, the spacing distance between a plurality of blades in the aforementioned set of blades can pass through governor motion adjusting;
Be arranged on the pressing plate 3 of blade system top;
Described governor motion comprises:
Be located in the frame support that the disposable box oral area is comprised of the first support arm 4, the second support arm 5, the 3rd support arm 6 and the 4th support arm 7, opposite side two support arms of this frame support are to be provided with penetrating orbit 41,61 in the first support arm 4 and the 3rd support arm 6;
Be movably arranged on respectively two pillars 8,9 of aforementioned penetrating orbit 41,61 interior movements,
Two ends are separately fixed at the joint pin 10 of two pillars 8,9 ends;
Adjusting screw(rod) 11, one ends are fixed on the second support arm 5, and the other end passes joint pin 10, and fixing with joint pin 10 by nut 12;
Two springs 13,14 are set in respectively on aforementioned two pillars 8,9;
With the blade fixed muffle 14 of the supporting setting of a plurality of blades in the set of blades, this blade fixed muffle 14 is set on the pillar and is fastened in the spring joint of spring, and the end of blade 2 then is welded on the blade fixed muffle 14.
During use, vegetables to be cut or fruit are placed on the set of blades, then with pressing plate to pressing down, at this moment, the tablet that cuts fall into the below disposable box in.When needs adjustment section thickness, turn nut 12, make nut 12 mobile at adjusting screw(rod) 11, thereby adjust the distance between joint pin 10 and the frame support, in spring 13,14 compression or drawing process, band cutting blade fixed muffle moves at pillar 8,9, and then changes the distance between the blade, thereby changes the section thickness.

Claims (3)

1. section utensil is characterized in that: comprising:
Disposable box;
Be arranged on disposable box top, the edge of a knife up, parallel interval arrange, by the set of blades that a plurality of blades form, the spacing distance between a plurality of blades in the aforementioned set of blades can pass through governor motion adjusting;
Be arranged on the pressing plate of blade system top.
2. section utensil according to claim 1, it is characterized in that: described governor motion comprises:
Be located in the frame support of disposable box oral area, be provided with penetrating orbit in opposite side two support arms of this frame support;
Be movably arranged on respectively two mobile in aforementioned penetrating orbit pillars,
Two ends are separately fixed at the joint pin of two strut ends;
Adjusting screw(rod), an end is fixed on the frame support, and the other end passes joint pin, and fixes by nut and joint pin;
Two springs are set in respectively on aforementioned two pillars, and the two ends of blade are fastened on respectively in the spring joint of two springs in the set of blades.
3. section utensil according to claim 2, it is characterized in that: described governor motion also comprises
With the blade fixed muffle of the supporting setting of a plurality of blades in the set of blades, this blade fixed muffle is set on the pillar and is fastened in the spring joint of spring, and the end of blade then is fixed on the blade fixed muffle.
