Abstract

The utility model relates to the field of stepping cooling beds, in particular to a double-hydraulic-drive profile steel cooling bed. The double-hydraulic-drive profile steel cooling bed comprises an inlet roller way, a fixed beam, a movable beam, a movable beam lifting device, a movable beam horizontal moving device and an outlet roller way. The double-hydraulic-drive profile steel cooling bed is characterized in that the movable beam lifting device comprises a main lifting device and two or three subordinate lifting devices, wherein the main lifting device comprises a lifting hydraulic cylinder, a swing arm, a lifting synchronizing shaft, a double-head rocker arm and rolling wheels, and the main lifting device drives the subordinate lifting devices. The movable beam horizontal moving device comprises a horizontal moving hydraulic cylinder, a rocker arm, a horizontal moving synchronizing shaft and a push-pull rod, wherein one end of the horizontal moving hydraulic cylinder is hinged with one end of the rocker arm arranged on the horizontal moving synchronizing shaft, the other end of the rocker arm is hinged with one end of the push-pull rod, and the other end of the push-pull rod is hinged with the movable beam. Compared with the prior art, the double-hydraulic-drive profile steel cooling bed has the advantages of being suitable for a cooling bed area in a profile steel workshop, simple and concise in structure, light in weight, small in height dimension, low in investment cost and running cost, capable of guaranteeing an excellent cooling effect at the same time, and the like.

Description

A kind of Double-hydraulic drives section steel cooling bed
Technical field
The utility model relates to the step cooling bed field, and particularly a kind of Double-hydraulic drives section steel cooling bed.
Background technology
At present, the section steel cooling bed up-down mode generally adopts motorized motions lifting or hydraulic-driven lifting, and horizontally moving device generally adopts hydraulic-driven.The motorized motions lowering or hoisting gear is because of its driving member and guarantee that synchronous axle class machined components is numerous, and cold bed not only weight is large, and ton unit price cost is high, and cold bed lower sump basis is dark; The hydraulic cylinder operated by rotary motion is outside at the cold bed outlet side in the hydraulic-driven lowering or hoisting gear, drives the moving beam group elevating movement of cold bed by pull bar, and it drives lowering or hoisting gear and moving beam group physical dimension is large, Heavy Weight, overall investment is large, operating cost is high.
Summary of the invention
The utility model provides a kind of Double-hydraulic to drive section steel cooling bed, overcomes the deficiencies in the prior art, moves horizontally with vertical lift all to adopt hydraulic power to drive, and simplifies motion structure, alleviates weight of equipment and height dimension, saves investment cost, reduces operating cost.
The utility model is achieved through the following technical solutions:
A kind of Double-hydraulic drives section steel cooling bed, comprise inlet roller way, decide beam, moving beam, moving lifting device of girder, moving Liangping moving device and outlet roller-way, it is characterized in that, described moving lifting device of girder comprises and main rises device and from rising device, the main liter comprises lifting hydraulic cylinder in the device, swing arm, the lifting synchronizing shaft, double end rocking arm and roller, lifting hydraulic cylinder one end and fixture are hinged, the lifting hydraulic cylinder other end and swing arm one end are hinged, the swing arm other end links to each other with the lifting synchronizing shaft, the lifting synchronizing shaft is provided with the double end rocking arm, one end of double end rocking arm links to each other with Synchronous pull rod, and the other end of double end rocking arm is provided with roller, and the bottom surface of roller and moving beam is slidingly connected; Comprise from the double end rocking arm with from roller from rising device, link to each other with Synchronous pull rod from an end of double end rocking arm, be located at from the other end of double end rocking arm from roller, main liter device drives 2~3 and overlaps from rising device.
Described moving Liangping moving device comprises translation hydraulic cylinder, rocking arm, translation synchronizing shaft and pull bar, one end of translation hydraulic cylinder is hinged with an end of being located at the rocking arm on the translation synchronizing shaft; an end of the other end of rocking arm and pull bar is hinged, and the other end of pull bar and moving beam are hinged.
Compared with prior art, the beneficial effects of the utility model are: be applicable to steel section shop cold bed district, this cold bed has that structure is simple and direct, lightweight, height dimension is little, cost of investment is few when guaranteeing excellent cooling effect, the advantages such as operating cost is low, market potential is huge.
Description of drawings

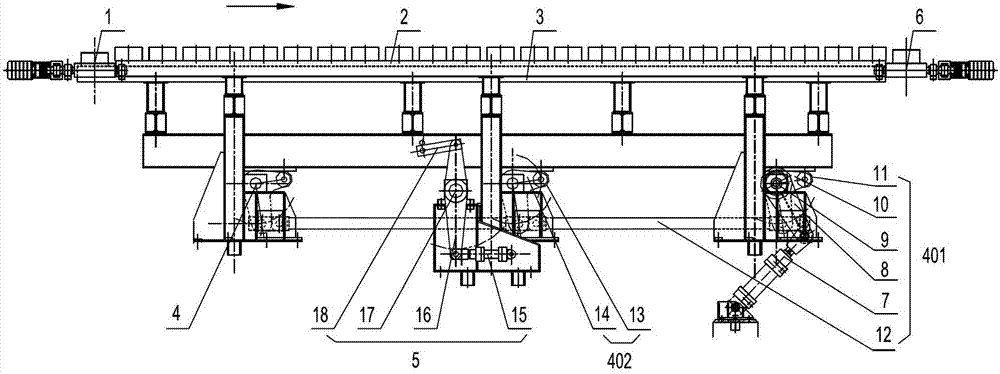

Fig. 1 is the utility model example structure schematic diagram.
Among the figure: 1-inlet roller way 2-decides the moving beam horizontally moving device 6-outlet of the moving lifting device of girder 5-of the moving beam 4-of beam 3-roller-way 7-lifting hydraulic cylinder 8-swing arm 9-lifting synchronizing shaft 10-double end rocking arm 11-roller 12-Synchronous pull rod 13-from double end rocking arm 14-from roller 15-translation hydraulic cylinder 16-rocking arm 17-translation synchronizing shaft 18-pull bar
The specific embodiment
Below in conjunction with accompanying drawing the specific embodiment of the present utility model is described further:
See Fig. 1, it is the structural representation that a kind of Double-hydraulic of the utility model drives section steel cooling bed embodiment, comprise inlet roller way 1, decide beam 2, moving beam 3, moving lifting device of girder 4, moving beam horizontally moving device 5 and outlet roller-way 6, described moving lifting device of girder 4 comprises and main rises device 401 and from rising device 402, main rise in the device 401 and comprise lifting hydraulic cylinder 7, swing arm 8, lifting synchronizing shaft 9, double end rocking arm 10 and roller 11, lifting hydraulic cylinder 7 one ends and fixture are hinged, lifting hydraulic cylinder 7 other ends and swing arm 8 one ends are hinged, swing arm 8 other ends link to each other with lifting synchronizing shaft 9, lifting synchronizing shaft 9 is provided with double end rocking arm 10, one end of double end rocking arm 10 links to each other with Synchronous pull rod 12, the other end of double end rocking arm 10 is provided with roller 11, and roller 11 is slidingly connected with the bottom surface of moving beam 3; Comprise from double end rocking arm 13 with from roller 14 from rising device 402, link to each other with Synchronous pull rod 12 from an end of double end rocking arm 13, be located at from the other end of double end rocking arm 13 from roller 14, the main device 401 that rises drives 2~3 covers from rising device 402, keeps synchronously with the main device 401 that rises from rising device 402.
Moving beam horizontally moving device 5 comprises translation hydraulic cylinder 15, rocking arm 16, translation synchronizing shaft 17 and pull bar 18, one end of translation hydraulic cylinder 15 is hinged with an end of being located at the rocking arm 16 on the translation synchronizing shaft 17; end of the other end of rocking arm 16 and pull bar 18 is hinged; the other end of pull bar 18 and moving beam 3 are hinged, and translation synchronizing shaft 17 drives other translating devices and keeps synchronously.
In cold bed when work,, moving beam group 3 is finished the operation cycle of rising, reach, decline, rollback under the effect of moving lifting device of girder 4 and moving beam horizontally moving device 5, and at this moment, moving beam 3 and decide beam 2 and cooperatively interact is finished the stepwise operation of shaped steel.

Claims (2)

1. a Double-hydraulic drives section steel cooling bed, comprise inlet roller way, decide beam, moving beam, moving lifting device of girder, moving Liangping moving device and outlet roller-way, it is characterized in that, described moving lifting device of girder comprises and main rises device and from rising device, the main liter comprises lifting hydraulic cylinder in the device, swing arm, the lifting synchronizing shaft, double end rocking arm and roller, lifting hydraulic cylinder one end and fixture are hinged, the lifting hydraulic cylinder other end and swing arm one end are hinged, the swing arm other end links to each other with the lifting synchronizing shaft, the lifting synchronizing shaft is provided with the double end rocking arm, one end of double end rocking arm links to each other with Synchronous pull rod, and the other end of double end rocking arm is provided with roller, and the bottom surface of roller and moving beam is slidingly connected; Comprise from the double end rocking arm with from roller from rising device, link to each other with Synchronous pull rod from an end of double end rocking arm, be located at from the other end of double end rocking arm from roller, main liter device drives 2~3 and overlaps from rising device.
2. a kind of Double-hydraulic according to claim 1 drives section steel cooling bed, it is characterized in that, described moving Liangping moving device comprises translation hydraulic cylinder, rocking arm, translation synchronizing shaft and pull bar, one end of translation hydraulic cylinder is hinged with an end of being located at the rocking arm on the translation synchronizing shaft; an end of the other end of rocking arm and pull bar is hinged, and the other end of pull bar and moving beam are hinged.
