Abstract
The utility model relates to a damping device especially relates to a high-rise building's isolation bearing. The utility model discloses a high-rise building shock insulation support, including protector (4), protector (4) top and building (1) fixed connection are equipped with friction pendulum shock isolation device (3) in protector (4), and protector (4) are whole to be pressed on friction pendulum shock isolation device (3), the bottom and ground (5) fixed connection of friction pendulum shock isolation device (3). The building shock insulation support has the advantages of large vertical bearing capacity, large tensile resistance, strong restoring capacity, capability of sliding towards any direction and the like. Really achieves the functions of no damage caused by small shocks, no damage caused by medium shocks or slight damage caused by medium shocks and no loss caused by large shocks. In addition, in the construction, the device can be repeatedly used in a floor with a certain height through the field condition, so that the fortification intensity can be properly reduced, and larger safety reserve is provided.
Description
Technical field
The utility model relates to a kind of damping device, relates in particular to a kind of shock isolating pedestal of highrise building.
Background technology
Earthquake brings too many disaster with painful to the mankind.But earthquake itself there is no great injury to the mankind, and earthquake disaster is mainly manifested in the secondary that collapsing of disaster area building etc. cause and destroys, and brings heavy losses for people's life and property.Along with the maturation of construction theory, prevented and reduced natural disasters into an eternal topic.
For highrise building, base isolation is absolutely necessary, and it not only makes building reduce destructiveness as much as possible in earthquake, and has ensured inhabitation people's life and property safety.
In recent years, it is comparatively extensive that the frictional slip shock insulation was used, and also relatively early, the friction material of application mostly is the cheap materials such as grit, graphite, French chalk, and is economical and simple and practical in exploitation.The sliding and shock isolation system is comprised of friction sliding mechanism and the spacing damping member that resets of isolation geological process usually.General System can not automatically reset, the excessive destruction that may cause Seismic Isolation of Isolation Layer of slippage, even structural instability.
The utility model content
Technique effect of the present utility model can overcome defects, and a kind of highrise building shock isolating pedestal is provided, and it is isolated or the dissipation seismic energy to greatest extent.
For achieving the above object, the utility model adopts following technical scheme: it comprises protector, the protector top is fixedly connected with building, be provided with the friction-pendulum shock-insulation device in the protector, the protector integrated pressure is on the friction-pendulum shock-insulation device, and the bottom of friction-pendulum shock-insulation device is fixedly connected with ground.
For existing friction-pendulum shock-insulation support, for its advantage and defect, simultaneously friction-pendulum shock-insulation support is improved and innovated, remedied the deficiency of original friction-pendulum shock-insulation support, make shock isolating pedestal can further bring into play due effect.This paper has carried out research system, deep by friction-pendulum shock-insulation support being carried out the reference of theory analysis and numerical simulation to shock isolating pedestal.
The friction-pendulum shock-insulation device comprises upper bracket plate, lower support plate, the upper surface of lower support plate is provided with the slip sphere, the slip sphere is provided with the link slide block, be fixedly installed spheroid on the link slide block, link slide block and spheroid swing with respect to the slip sphere, the upper bracket integrated circuit board swings on spheroid and with respect to spheroid, and the upper bracket plate is fixedly connected with protector.
The friction-pendulum shock-insulation device also comprises the memorial alloy drag-line, and memorial alloy drag-line one end and upper bracket plate are affixed, and the other end is with to link slide block affixed.
The periphery of slip sphere arranges positive stop lug boss, and the link slide block is arranged between the boss.
The slip sphere is identical with the curvature of spheroid.
The slip spherical face is provided with frictional layer.
Friction-pendulum shock-insulation support is the sphere sliding and shock isolation device, can rely on self gravitation to automatically reply.Hinged slide block is consistent with the basal sliding curvature of face in the friction-pendulum shock-insulation support, can fit fully with slide plane.The slip sphere scribbles low-friction material, can consume energy in the sliding process.The positive stop lug boss of the left and right sides can guarantee that slide block can not depart from bearing and damages in sliding process, and because the slip sphere is identical with spheroid curvature, can arrive original position at self-recovery under the self gravitation after slide block moves.
The center of rigidity of this bearing has the trend that automatically overlaps with the barycenter of isolation structure, can eliminate to the full extent the twist motion of structure, the indexs such as the cycle of shock isolating pedestal, vertical bearing capacity, damping ratio can be controlled separately, are convenient to design the optimization with shock isolation system.
In addition, for further improving the properties of friction-pendulum shock-insulation support, consider that the fireproof performance of bearing is bad, therefore designed protector.Protector comprises upper junction plate, lower connecting plate, and upper junction plate is fixedly connected with building by upper embedded board, and upper embedded board, upper junction plate, upper bracket plate are bolted to connection; Lower connecting plate is fixedly connected with ground by lower embedded board, and lower embedded board, lower connecting plate, lower support plate are bolted to connection.
The periphery of lower connecting plate arranges damped ring, and damped ring is arranged on the upper junction plate inside wall.
This shock isolation system is to be referred from the bridge pad shock absorption principle; this protective device has vertical tension and the anti-side direction performance of toppling; and after friction-pendulum shock-insulation support bears most of swing power consumption; protector plays the Quadratic Damping cushioning effect; if energy increases; stopping means also can play for the third time rigidity antihunt action, effect when consuming energy by three dampings, to greatest extent isolation or dissipation seismic energy.
This architectural vibration-insulation bearing has that vertical bearing capacity is large, stretching resistance is large, recovery capacity is strong, can be to advantages such as any direction slippages.Really accomplish no damage in small earthquake, middle shake is not bad or slightly impaired, large not loss of function of shake.In addition, in construction, by field condition can be in the certain altitude floor this device of Reusability, not only can suitably reduce fortification intensity, and larger safety stock is arranged.
Description of drawings

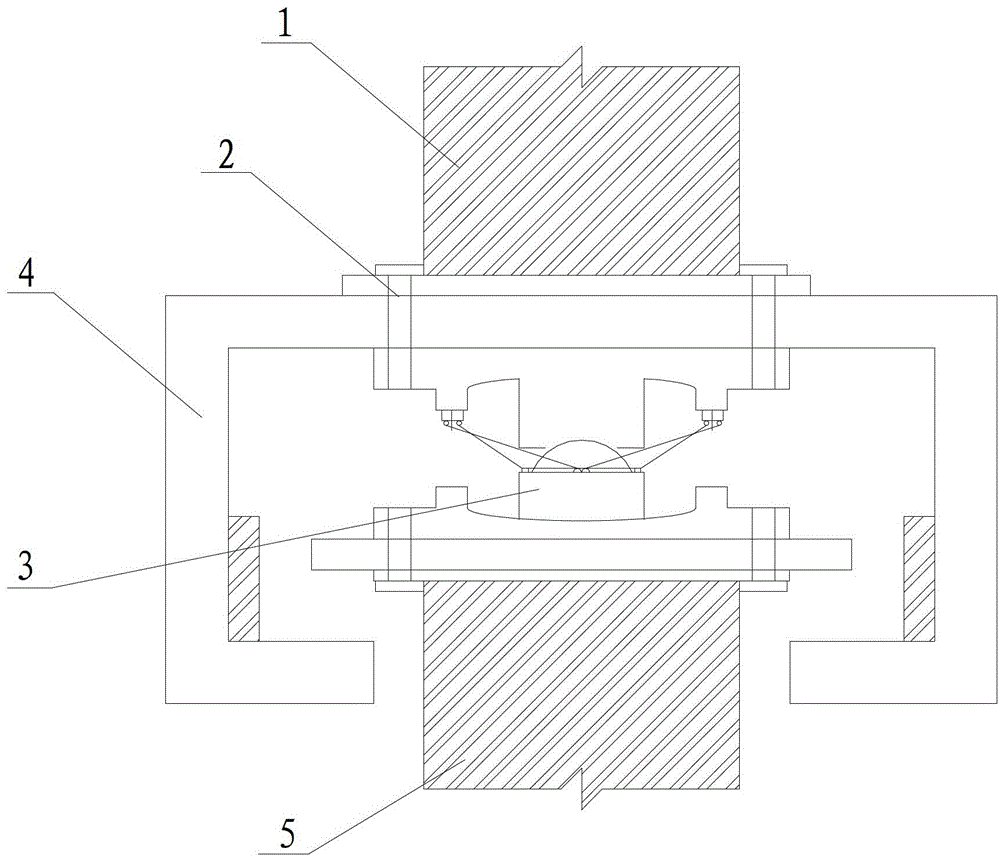

Fig. 1 is overall structure schematic diagram of the present utility model;
Fig. 2 is friction-pendulum shock-insulation apparatus structure schematic diagram of the present utility model;
Fig. 3 is protective device structure schematic diagram of the present utility model;
Fig. 4 is friction-pendulum shock-insulation device theoretical analysis model;
Fig. 5 is that the simulation process horizontal movement loads schematic diagram;
Fig. 6 is hysteretic energy ability hysteresis loop schematic diagram.
Among the figure: 1. building; 2. bolt; 3. friction-pendulum shock-insulation device; 4. protector; 5. ground;
31. upper bracket plate; 32. lower support plate; 33. slip sphere; 34. link slide block; 35. spheroid; 36. memorial alloy drag-line; 37. frictional layer; 38. positive stop lug boss;
41. upper embedded board; 42. upper junction plate; 43. damped ring; 44. lower embedded board; 45. lower connecting plate.
Among Fig. 4: D is the slide block horizontal movement, and θ is corner, and f is frictional force, and R is radius, and N is the slide block normal pressure, and W is vertical pressure, and F is horizontal shear;
The specific embodiment
Highrise building earthquake isolating equipment of the present utility model comprises protector 4, protector 4 tops are fixedly connected with building 1, be provided with friction-pendulum shock-insulation device 3 in the protector 4, protector 4 integrated pressures are on friction-pendulum shock-insulation device 3, and the bottom of friction-pendulum shock-insulation device 3 is fixedly connected with ground 5.
Friction-pendulum shock-insulation device 3 comprises upper bracket plate 31, lower support plate 32, the upper end of lower support plate 32 is provided with slip sphere 33, slip sphere 33 is provided with link slide block 34, be fixedly installed spheroid 35 on the link slide block 34, link slide block 34 and spheroid 35 swing with respect to slip sphere 33, upper bracket plate 31 is stuck on the spheroid 35 and with respect to spheroid and swings, and upper bracket plate 31 is fixedly connected with protector 4.
Friction-pendulum shock-insulation device 3 also comprises memorial alloy drag-line 36, and memorial alloy drag-line 36 1 ends and upper bracket plate 31 are affixed, and the other end is with to link slide block 34 affixed.
The periphery of slip sphere 33 arranges positive stop lug boss 38, and link slide block 34 is arranged between the boss 38.
Slip sphere 33 is identical with the curvature of spheroid 35.
Slip sphere 33 surfaces are provided with frictional layer 37.
The periphery of lower connecting plate 45 arranges damped ring 43, and damped ring 43 is arranged on upper junction plate 42 inside walls.
1. the theory analysis of friction-pendulum shock-insulation support
1.1 rigidity, viscous damping ratio and hysteretic behavior
Friction pendulum system can be similar to regards an arc orbit as, and radius is that R slide block quality is m, and θ is slide block with respect to the corner of the vertical axis of symmetry motion of slideway (with counterclockwise for just).
Model such as Fig. 4: D is the slide block horizontal movement, and θ is corner, and f is frictional force, and R is radius, and N is the slide block normal pressure, and W is vertical pressure, and F is horizontal shear
Among the figure, D=Rsin θ, D are the bearing horizontal movement; N=Wcos θ is the normal pressure of slide block to slide plane; W is the vertical load that bearing bears; F=μ s gn (θ) is frictional force, and μ is the slide block coefficient of kinetic friction.
Sgn (θ)=1(θ〉0) or-1 (θ＜0)
By the slide block stress balance, the O point is got square, ∑ M
0=0, namely
FRcos?θ-WD-fR=0
Friction isolation bearing horizontal force F can be expressed as
F=WD/Rcos?θ+f/cos?θ
When θ was very little, following formula was reduced to
F=WD/R+μW?sgn(θ)
By following formula as can be known, friction pendulum support rigidity
K
fps=W/R
Derived by theory analysis and following formula, can construct the hysteretic behavior of friction-pendulum shock-insulation support, can be obtained equivalent stiffness and the equivalent viscous damping ratio of bearing by hysteretic behavior:
K
eff=F/D
d=W/R+Μw/D
d
ζ
eff=E/2πK
fpsD
d 2=4μWD
dR/2πWD
d 2=2μR/πD
d
D
dDesign displacement for friction isolation pendulum bearing
1.2 from recovery characteristic
When friction pendulum is replied under self gravitation, have:
WD/Rcosθ≥f/cosθ=>WD≥fR=μN?sgn(θ)R=μRW?cosθsgn(θ)
When θ was very little, the following formula abbreviation was
WD≥μRW=>D≥μR
Only when D=μ R, bearing could be returned to the origin-location under self gravitation, and in fact friction pendulum can not automatically reply fully, and reset case is determined by the spherical radius of friction factor and slide plane.
In order to allow friction pendulum can be returned to original position, reduce simultaneously the replacing of shock isolating pedestal, set up the recovery device that is formed by parts such as memorial alloy, drag-line, slide blocks on the friction pendulum basis, the memorial alloy drag-line can be according to the fortification intensity of building, the significance level of building, and the actual conditions in place etc., carry out definite design.
For guaranteeing that the alloy drag-line always is in small tension state (being convenient to combination performance ceiling effect), the alloy drag-line is wanted prestretching 2%～3% when design, when work, guarantees to shorten rope and elongation rope all in range of stretch.
2. the numerical simulation of friction-pendulum shock-insulation support
2.1 the foundation of model
In order to investigate friction-pendulum shock-insulation support at the hysteretic characteristic under the cyclic reverse loading with in the automatically reply ability of design during displacement, and the correctness analyzed of proof theory, be necessary friction-pendulum shock-insulation support is carried out numerical simulation.
The friction-pendulum shock-insulation support model adopts spherical radius 1.5m, design displacement 150mm.The elastic modulus E of steel=2.1 * 10
5MPa, poisson's ratio υ=0.3; Elastic modulus E=the 280MPa of poly-tetrem alkene, poisson's ratio υ, 0.42, design strength is 30/mm
2
It was 3 steps that whole simulation process is divided into: 1. apply vertical load contact surface is come in contact; 2. apply the Horizontal Simple Harmonic displacement; 3. when level reaches the design displacement, keep vertical load, observe the ability that automatically replies of bearing.Vertical load is constant to be W=500kN, P=10MPa; Level letter bits displacement S=Asin(2 π ft), amplitude A get 50,100,150mm; F=0.5Hz; Vertical load is loaded as 500kN/s, and horizontal movement loads such as Fig. 5.
2.2 simulation result analysis
Draw the theory analysis hysteresis loop of friction-pendulum shock-insulation support and the hysteresis loop that numerical simulation obtains according to hysteretic behavior, such as Fig. 6, both coincide better, have verified theory analysis.This shows, hysteresis loop is stable, full in loading procedure, shows preferably hysteretic energy ability, hysteresis loop such as Fig. 6.
When by analysis as can be known, maximum stress appears at bearing and is in maximum displacement.Wherein, maximum stress is about 133.1MPa, and in elastic range, maximum displacement is about 156.3mm.
For the checking bearing from recovery characteristics, with model A(R=1.5m, μ=0.1); Model B (R=1.5m, μ=0.01) is carried out Numerical Simulation to friction-pendulum shock-insulation support, and the maximum residual displacement that calculates friction-pendulum shock-insulation support is respectively 150mm and 2mm.
Curve only represents the size of final residual displacement, does not represent the shift value size on this time point.Show for the return curve that installs the friction-pendulum shock-insulation support behind the memory metal drag-line additional, maximum residual displacement value is respectively 149mm and 2mm, and is close with theory analysis.
When μ=0.1, the design displacement is 150mm, has produced the approximately residual displacement of 150mm during experiment, and explanation can not be thought completely runback of friction pendulum, and it can weaken from recovery capacity when friction factor and spherical radius are larger, will consider when engineering is used.If friction factor is less, such as μ=0.01 o'clock, maximum remnants are 2mm only, and recovery capacity is stronger, has a reference index to weigh from recovery capacity: Z
e=D
More than/ D
If=μ R/D, wherein D
More thanBe maximum residual displacement, D
IfFor the design residual displacement, satisfy Z
e≤ 0.05, then bearing can automatically reply.
By theory analysis and the numerical simulation that friction-pendulum shock-insulation support is carried out.Draw to draw a conclusion:
Theory analysis and numerical simulation result coincide better, have verified rigidity that theory analysis is derived and the hysteretic behavior of structure, and on the full degree of curve, this shock isolating pedestal has good hysteretic energy.
In design, shock isolating pedestal T natural vibration period much larger than
Irrelevant with the quality of superstructure, can change natural vibration period by changing spherical radius, be convenient to engineering design.
After having increased the memorial alloy drag-line, earthquake isolating equipment can be in stable state under normal circumstances; After meeting with earthquake, whole shock isolating pedestal can be finished according to the needs of engineering design and automatically reply, and does not need often to change or repair.Simultaneously, the alloy drag-line can play certain cushioning effect in earthquake, also can consume part energy.
Claims (8)
1. highrise building shock isolating pedestal, it is characterized in that, comprise protector (4), protector (4) top is fixedly connected with building (1), be provided with friction-pendulum shock-insulation device (3) in the protector (4), protector (4) integrated pressure is on friction-pendulum shock-insulation device (3), and the bottom of friction-pendulum shock-insulation device (3) is fixedly connected with ground (5).
2. highrise building shock isolating pedestal according to claim 1, it is characterized in that, friction-pendulum shock-insulation device (3) comprises upper bracket plate (31), lower support plate (32), the upper surface of lower support plate (32) is provided with slip sphere (33), slip sphere (33) is provided with link slide block (34), be fixedly installed spheroid (35) on the link slide block (34), link slide block (34) and spheroid (35) swing with respect to slip sphere (33), upper bracket plate (31) is stuck in spheroid (35) and upward and with respect to spheroid swings, and upper bracket plate (31) is fixedly connected with protector (4).
3. highrise building shock isolating pedestal according to claim 2, it is characterized in that, friction-pendulum shock-insulation device (3) also comprises memorial alloy drag-line (36), and memorial alloy drag-line (36) one ends and upper bracket plate (31) are affixed, and the other end is with to link slide block (34) affixed.
4. according to claim 2 or 3 described highrise building shock isolating pedestals, it is characterized in that, the periphery of slip sphere (33) arranges positive stop lug boss (38), and link slide block (34) is arranged between the boss (38).
5. according to claim 2 or 3 described highrise building shock isolating pedestals, it is characterized in that, slip sphere (33) is identical with the curvature of spheroid (35).
6. highrise building shock isolating pedestal according to claim 5 is characterized in that, slip sphere (33) surface is provided with frictional layer (37).
7. highrise building shock isolating pedestal according to claim 2, it is characterized in that, protector (4) comprises upper junction plate (42), lower connecting plate (45), upper junction plate (42) is fixedly connected with building (1) by upper embedded board (41), and upper embedded board (41), upper junction plate (42), upper bracket plate (31) are fixedly connected with by bolt (2); Lower connecting plate (45) is fixedly connected with ground (5) by lower embedded board (44), and lower embedded board (44), lower connecting plate (45), lower support plate (32) are fixedly connected with by bolt (2).
8. highrise building shock isolating pedestal according to claim 7 is characterized in that, the periphery of lower connecting plate (45) arranges damped ring (43), and damped ring (43) is arranged on upper junction plate (42) inside wall.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220358463 CN202899302U (en) | 2012-11-27 | 2012-11-27 | Shock insulation support for high-rise building |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220358463 CN202899302U (en) | 2012-11-27 | 2012-11-27 | Shock insulation support for high-rise building |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN202899302U true CN202899302U (en) | 2013-04-24 |
Family
ID=48119989
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN 201220358463 Expired - Fee Related CN202899302U (en) | 2012-11-27 | 2012-11-27 | Shock insulation support for high-rise building |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN202899302U (en) |
Cited By (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104929266A (en) * | 2015-06-25 | 2015-09-23 | 哈尔滨工业大学 | Spherical surface and cylindrical surface friction type support |
| CN109235659A (en) * | 2018-10-23 | 2019-01-18 | 北京市建筑设计研究院有限公司 | A kind of band can lift-off device friction-pendulum shock-insulation support and its construction method |
| CN109881784A (en) * | 2019-01-22 | 2019-06-14 | 上海大学 | A kind of cambered surface slide type three-dimensional shock isolation support |
| CN111502028A (en) * | 2020-03-23 | 2020-08-07 | 中建五局第三建设有限公司 | Wall-following multipoint sliding support structure, concrete annular platform and support method |
| CN113107250A (en) * | 2021-03-26 | 2021-07-13 | 北京工业大学 | Energy-consuming and vibration-damping high-rise building structure system with multiple multidirectional swinging cylinders |
-
2012
- 2012-11-27 CN CN 201220358463 patent/CN202899302U/en not_active Expired - Fee Related
Cited By (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104929266A (en) * | 2015-06-25 | 2015-09-23 | 哈尔滨工业大学 | Spherical surface and cylindrical surface friction type support |
| CN104929266B (en) * | 2015-06-25 | 2018-12-14 | 哈尔滨工业大学 | A kind of spherical surface-cylinder friction-type support |
| CN109235659A (en) * | 2018-10-23 | 2019-01-18 | 北京市建筑设计研究院有限公司 | A kind of band can lift-off device friction-pendulum shock-insulation support and its construction method |
| CN109235659B (en) * | 2018-10-23 | 2023-06-13 | 北京市建筑设计研究院有限公司 | Friction pendulum vibration isolation support with lifting device and construction method thereof |
| CN109881784A (en) * | 2019-01-22 | 2019-06-14 | 上海大学 | A kind of cambered surface slide type three-dimensional shock isolation support |
| CN111502028A (en) * | 2020-03-23 | 2020-08-07 | 中建五局第三建设有限公司 | Wall-following multipoint sliding support structure, concrete annular platform and support method |
| CN111502028B (en) * | 2020-03-23 | 2022-04-12 | 中建五局第三建设有限公司 | Wall-following multipoint sliding support structure, concrete annular platform and support method |
| CN113107250A (en) * | 2021-03-26 | 2021-07-13 | 北京工业大学 | Energy-consuming and vibration-damping high-rise building structure system with multiple multidirectional swinging cylinders |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN202899302U (en) | Shock insulation support for high-rise building | |
| CN107604810A (en) | A kind of Self-resetting friction pendulum three-dimensional shock damping and insulation bearing | |
| CN203741993U (en) | Friction pendulum type seismic isolation support provided with anti-drawing devices | |
| EA002391B1 (en) | Earthquake protection consisting of vibration-isolated mounting of buildings and objects using vertical pendulums with long cycles | |
| CN104358822B (en) | Two-way guide rails disc spring three-dimensional shock isolation pedestal | |
| CN105350678B (en) | A kind of novel tri-dimensional shock-insulating device with larger vertical Static stiffness | |
| CN103850358A (en) | Three-dimensional seism isolation system | |
| CN205475808U (en) | Shock insulation that slides pendulum | |
| CN104763056A (en) | Annular frictional rotating shockproof supporting base | |
| CN104595416A (en) | Separation type damping energy consumption three-dimensional seismic isolation support | |
| CN109898681A (en) | A kind of high-bearing capacity tension energy consumption earthquake isolating equipment | |
| CN105507447B (en) | A kind of passive type variable damping tuned mass damper device | |
| CN105019566A (en) | Novel three-dimensional shock isolation device with tensile function | |
| CN203855889U (en) | Friction swinging support with beam falling prevention function | |
| CN103114650A (en) | Roll shaft type metal shock-insulating supporting seat | |
| CN204570931U (en) | A kind of Self-resetting shock-absorption spherical bearing | |
| CN102322100A (en) | A kind of vibration damping shock isolating pedestal | |
| CN102912724B (en) | Shock insulation support | |
| CN203393605U (en) | Variable-curvature self-adaptive friction pendulum seismic mitigation and absorption support | |
| CN202298454U (en) | Auto-resetting seism reduction and insulation pot type rubber support seat | |
| CN104074921A (en) | Ball type shock isolation device | |
| CN212925747U (en) | Damping spherical bearing | |
| CN105545057A (en) | Frictional-sliding-pendulum seismic isolation support with anti-lift-off function | |
| CN202530572U (en) | High-damping and shock-insulation rubber base provided with limit devices | |
| CN202611006U (en) | Composite laminated rubber and annular steel rod seismic isolation device |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| C17 | Cessation of patent right | ||
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20130424 Termination date: 20131127 |
