The utility model relates to a solar energy combined heat and power generation and building integrated mounting bracket, which belongs to the technical field of a mounting apparatus for solar modules. The mounting bracket comprises support keels, a base and a solar cell frame, wherein the support keels are composed of longitudinal keels and transversal keels. Both the longitudinal keels and the transversal keels are of a U-shaped groove structure, and the base is inserted onto the longitudinal keels. The longitudinal keels and the transversal keels are in staggered arrangement to form a rectangular mounting frame. The solar cell frame is hooked to be connected with the mounting frame. The mounting bracket has the advantages of simple design and convenient installation, wherein the combination of multiple modes, including embedding, splicing and hooking, is adopted to save the consumption of steel, bolts and other fixing parts. The keel structure of the mounting bracket is suitable for not only the installation of the bracket itself, but also the installation of various forms of common photovoltaic panels and flat-plate water heaters sold on the market, thereby serving multiple purposes. Meanwhile, the secondary water-proof function for buildings is also realized by means of the mounting bracket, so that the common problems of buildings, such as water leakage and the like due to the cracking phenomenon are solved.
Description
Technical field
The utility model relate to a kind of solar heat be electrically connected for and the architecture-integral mounting bracket, belong to solar components erecting device technical field.
Background technology
In the photovoltaic solar electricity generation system, generally include and be installed in the solar components that roof, ground etc. are located, have the box structure to in-flanges bottom solar components is generally, a plurality of solar components connect by connector, form large-area covered structure.The installation of traditional solar module does not have special-purpose connection bracket, and the workload of site operation inconvenience, connection is large, has affected the raising of efficiency of construction.
The utility model content
Technical problem to be solved in the utility model is, overcome the shortcoming of prior art, provide a kind of solar heat be electrically connected for and the architecture-integral mounting bracket, have simple in structurely, easily manufactured, and can greatly improve the efficient of solar components joint connection in site construction and later period maintenance replacing.
In order to solve above technical problem, the utility model provides solar heat to be electrically connected and supplies and the architecture-integral mounting bracket, comprise support keel, base and solar cell frame, described support keel comprises vertical keel and lateral keel, described vertical keel and lateral keel are the U-lag structure, the both sides of described vertical keel have symmetrical lug boss, and be interval with the shape opening draw-in groove identical with described lateral keel cross section at described vertical keel, described lateral keel length equates with the spacing of adjacent two vertical keel, described lateral keel two ends are equipped with flange, by described lateral keel two ends turn over all over described vertical keel on the clamping of opening draw-in groove, thereby consist of the rectangle frame of a plurality of installation solar modules; Described base top is provided with shape and the identical open slot in described vertical keel cross section, is provided with the depressed part that mates with described lug boss in the open slot of described base, and described vertical keel are plugged on the described base along the depressed part of described open slot; Four limits of described solar cell frame all have hook structure, by described hook structure solar cell are articulated in the rectangle frame of described support keel.
The technical scheme that the utility model further limits is: aforesaid solar heat is electrically connected and supplies and the architecture-integral mounting bracket, the U-lag A/F of described support keel is at least the twice wall thickness of described hook structure, the frame of the solar module of support keel both sides can be articulated in the U-lag of support keel, and by the discharge of the slit between two frames rainwater, by the U-lag water conservancy diversion of lower support keel, reached the purpose of draining leakproof again.
Aforesaid solar heat is electrically connected and supplies and the architecture-integral mounting bracket, the height of described vertical keel is the twice of lateral keel height at least, the cross-brace keel are connected to and just have enough height in the longitudinal bracing keel like this, guaranteed that lateral keel snaps fit onto the surfacing of mounting bracket behind vertical keel, and make vertical keel possess enough support strengths, use in the long time after solar module is installed not deform.
Aforesaid solar heat is electrically connected and supplies and the architecture-integral mounting bracket, and described base bilateral symmetry is provided with the support diagonal bar, strengthens the stability of base by diagonal bar.
Aforesaid solar heat be electrically connected for and the architecture-integral mounting bracket, the interval arranges the open card separation and equates on described vertical keel.
Further, aforesaid solar heat is electrically connected and supplies and the architecture-integral mounting bracket, and described support keel, base and solar cell frame all are integrated extrusion modling, usually adopt the aluminum material extrusion modling, to alleviate the weight of general frame, alleviate the load to installed surface.
The beneficial effects of the utility model are: the utility model simplicity of design, easy for installation, the fixtures such as steel and bolt have been saved in, grafting, clamping embedded by adopting and gang up with combination.Support keel structure of the present utility model is suitable for the installation of various forms of normal optical electroplaxs and flat water heater on the installation of this product and the market, achieve many things at one stroke, and this mounting bracket has played again a secondary water-proof function concerning building, the common fault such as leak in order to solved the architectural cracking that brings.
Description of drawings

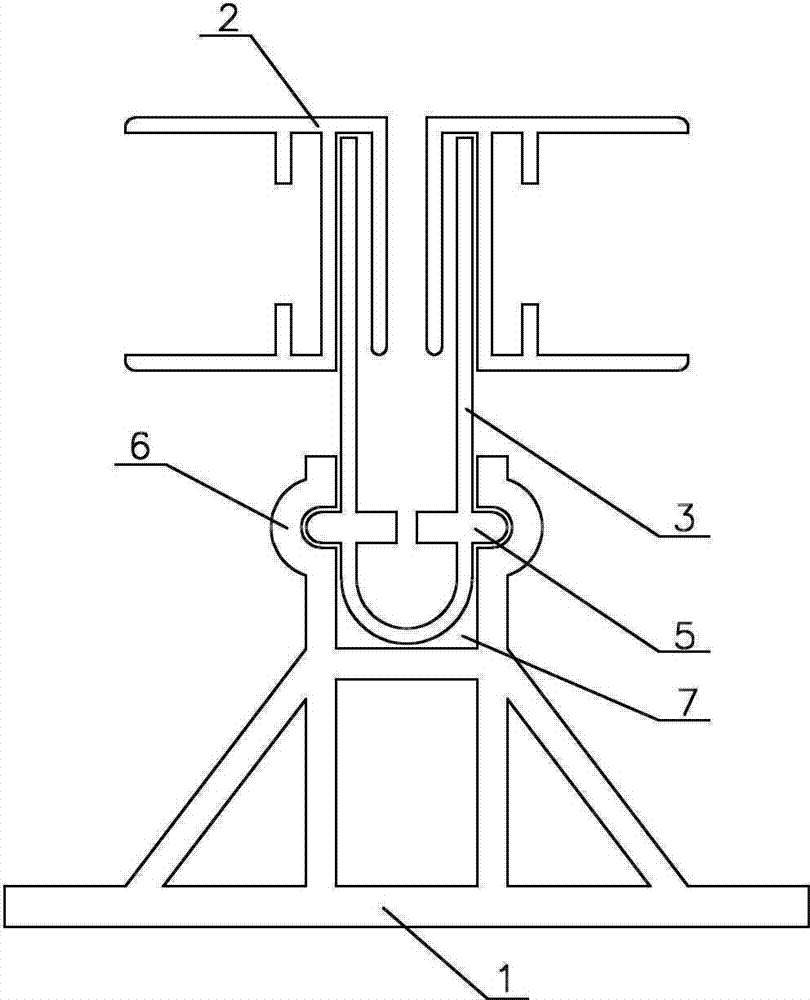

Fig. 1 is the vertical keel connecting structure schematic diagram of the utility model.
Fig. 2 is the utility model lateral keel syndeton schematic diagram.
Embodiment
Embodiment 1
A kind of solar heat that the present embodiment provides is electrically connected and supplies and the architecture-integral mounting bracket, structure such as Fig. 1 are to shown in Figure 2, comprise support keel, base 1 and solar cell frame 2, support keel comprises vertical keel 3 and lateral keel 4, vertically keel and lateral keel are the U-lag structure, vertically the both sides of keel have symmetrical lug boss 5, and be interval with the shape opening draw-in groove identical with the lateral keel cross section at vertical keel 3, lateral keel 4 length equate with the spacing of adjacent two vertical keel, the lateral keel two ends are equipped with flange, by the lateral keel two ends turn over all over vertical keel on the clamping of opening draw-in groove, thereby consist of the rectangle frame of a plurality of installation solar modules; Base 1 top is provided with the identical open slot 7 of shape and vertical keel cross section, is provided with the depressed part 6 that mates with lug boss in open slot 7, and vertically keel 3 are plugged on the base along the depressed part of open slot; Four limits of solar cell frame 2 all have hook structure, by hook structure solar cell are articulated in the rectangle frame of support keel.
The present embodiment when mounted, base is plugged on vertical keel first, then determine the width of vertical keel according to the actual size of the solar panel of installing, after determining the width of installation, by expansion bolt base is fixedly mounted on the installed surface, then offer the opening draw-in groove at vertical keel, the spacing of opening draw-in groove and solar cell panel assembly size to be installed coupling, after the opening draw-in groove is all established, lateral keel is snapped fit onto on the opening draw-in groove, consist of the installation frame of solar cell panel assembly, the clasp joint with the solar module that assembles gets final product to installation frame at last, and is easy for installation, and firmly be difficult for rocking, after battery panel components breaks down, directly just cell panel can be taken out by sucker, do not need other instruments to get final product complete operation.
In addition to the implementation, the utility model can also have other execution modes.All employings are equal to the technical scheme of replacement or equivalent transformation formation, all drop on the protection range of the utility model requirement.
Claims (6)
1. solar heat is electrically connected and supplies and the architecture-integral mounting bracket, comprise support keel, base and solar cell frame, it is characterized in that: described support keel comprises vertical keel and lateral keel, described vertical keel and lateral keel are the U-lag structure, the both sides of described vertical keel have symmetrical lug boss, and be interval with the shape opening draw-in groove identical with described lateral keel cross section at described vertical keel, described lateral keel length equates with the spacing of adjacent two vertical keel, described lateral keel two ends are equipped with flange, by described lateral keel two ends turn over all over described vertical keel on the clamping of opening draw-in groove, thereby consist of the rectangle frame of a plurality of installation solar modules; Described base top is provided with shape and the identical open slot in described vertical keel cross section, is provided with the depressed part that mates with described lug boss in the open slot of described base, and described vertical keel are plugged on the described base along the depressed part of described open slot; Four limits of described solar cell frame all have hook structure, by described hook structure solar cell are articulated in the rectangle frame of described support keel.
2. solar heat according to claim 1 is electrically connected and supplies and the architecture-integral mounting bracket, and it is characterized in that: the U-lag A/F of described support keel is at least the twice wall thickness of described hook structure.
3. solar heat according to claim 1 is electrically connected and supplies and the architecture-integral mounting bracket, and it is characterized in that: the height of described vertical keel is the twice of lateral keel height at least.
4. solar heat according to claim 1 is electrically connected and supplies and the architecture-integral mounting bracket, and it is characterized in that: described base bilateral symmetry is provided with the support diagonal bar.
Solar heat according to claim 1 be electrically connected for and the architecture-integral mounting bracket, it is characterized in that: the interval arranges the open card separation and equates on described vertical keel.
6. being electrically connected to the described solar heat of 5 arbitrary claims according to claim 1 supplies and the architecture-integral mounting bracket, and it is characterized in that: described support keel, base and solar cell frame all are integrated extrusion modling.
