CN202845090U - Special device for crushing construction waste - Google Patents
Special device for crushing construction waste Download PDFInfo
- Publication number
- CN202845090U CN202845090U CN201220350744.2U CN201220350744U CN202845090U CN 202845090 U CN202845090 U CN 202845090U CN 201220350744 U CN201220350744 U CN 201220350744U CN 202845090 U CN202845090 U CN 202845090U
- Authority
- CN
- China
- Prior art keywords
- rotor
- construction waste
- plate
- crushing
- shell
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/50—Reuse, recycling or recovery technologies
- Y02W30/58—Construction or demolition [C&D] waste
Landscapes
- Crushing And Pulverization Processes (AREA)
Abstract
一种建筑垃圾破碎专用设备，包括带有进料口和出料口的壳体、设置在壳体中间的中间托架、设置在壳体内下部的转子、通过皮带轮与转子相连接的电机、设置在转子外围的反击板、设置在反击板下方的均整板，所述中间托架上设置有网孔，所述的均整板上开设有退钢筋的凹槽。本产品反击板采用一体结构，将传统的三级破碎变为一级破碎，锤式和反击式破碎机合理结合，吸收了两种机型的优势，使建筑垃圾破碎效果更完美，效率更高。增加安装均整板，使破碎后的物料粒型更好，均整板可以调节，有效控制出料粒度大小。
A special equipment for crushing construction waste, including a shell with a material inlet and a material outlet, an intermediate bracket set in the middle of the shell, a rotor set in the lower part of the shell, a motor connected to the rotor through a pulley, a set The counterattack plate on the periphery of the rotor and the leveling plate arranged under the counterattack plate, the middle bracket is provided with mesh holes, and the leveling plate is provided with grooves for withdrawing steel bars. The impact plate of this product adopts an integrated structure, which changes the traditional three-stage crushing into one-stage crushing. The reasonable combination of hammer and impact crushers absorbs the advantages of the two models, making the crushing effect of construction waste more perfect and more efficient. . Add the installation of equalizing plate to make the particle shape of the crushed material better. The equalizing plate can be adjusted to effectively control the size of the output particle size.
Description
Technical field
The utility model relates to the breaker field, particularly a kind of construction waste crushing special equipment.
Background technology
The building waste integrated treatment is at the early-stage in China, and the equipment development that is used for construction waste crushing is relatively backward.The equipment that is used at present construction waste crushing is that the disintegrating apparatus with traditional sandstone, mine replaces mostly.There is certain drawback in these legacy equipments being used for construction waste crushing, such as: flow process is complicated, power consumption is excessive, scale of investment is large, effective impurities removing etc.The existence of these drawbacks, integrated treatment has produced adverse influence to building waste to a certain extent, even further developing of whole industry and market formed obstacle.
Summary of the invention
For the deficiencies in the prior art, the utility model provides a kind of efficient high, and little construction waste crushing special equipment consumes energy.
The technical scheme that the utility model adopts is: a kind of construction waste crushing special equipment, motor, the counterpunch board that is arranged on rotor periphery that comprise housing with charging aperture and discharging opening, be arranged on intermediate bracket in the middle of the housing, be arranged on the rotor of bottom in the housing, is connected by belt with rotor, be arranged on the grain size regulating plate below the counterpunch board, be provided with mesh on the described intermediate bracket, offer the groove that moves back reinforcing bar on the described the grain size regulating plate.
Described the grain size regulating plate rear portion is equipped with spring adjusting device.
On the described rotor tup is installed.
The beneficial effects of the utility model are: this product counterpunch board adopts integrative-structure, three grades of traditional fragmentations are become the one-level fragmentation, and hammer and impact breaker reasonable combination have absorbed the advantage of two kinds of types, make the construction waste crushing effect more perfect, efficient is higher.The grain size regulating plate increase to be installed, to be made the material grain type after the fragmentation better, the grain size regulating plate can be regulated, and effectively controls the discharging-material size size.Discharging is thin, cross to pulverize less, grain forming is good, and match power is little, and power consumption is low, energy-conserving and environment-protective, this product has simple in structure, keep in repair easy, reliable, the advantage that running cost is low.
Description of drawings

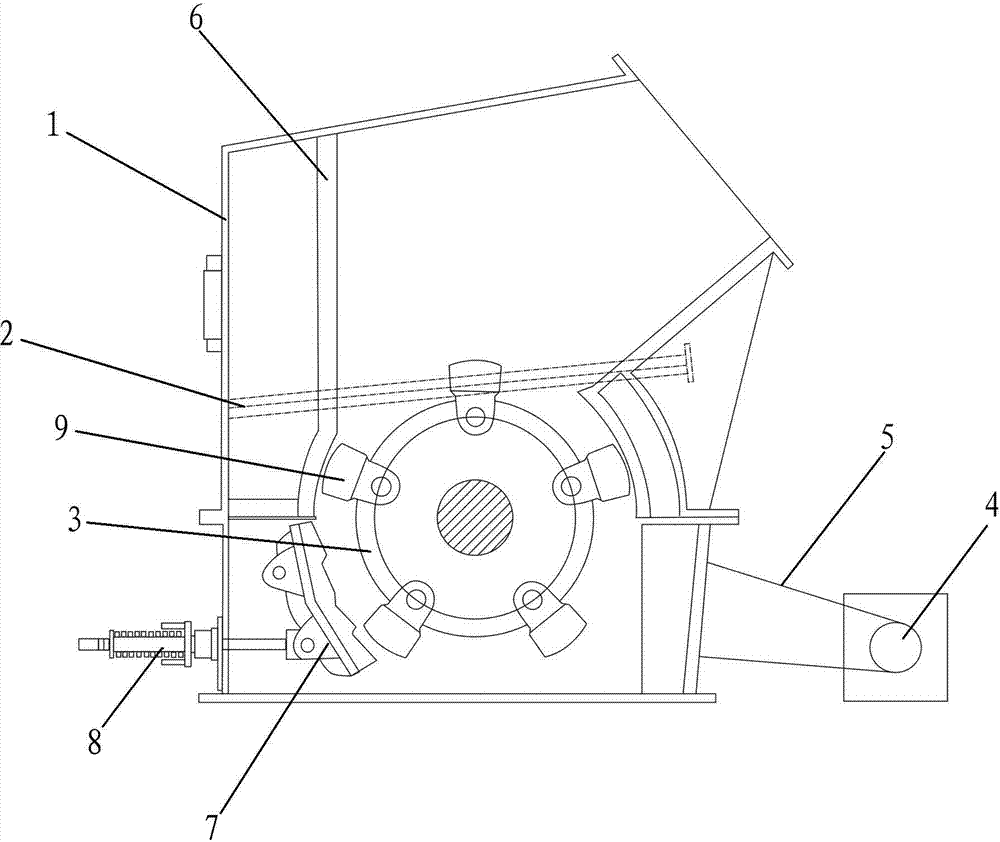

Fig. 1 is structure chart of the present utility model.
Fig. 2 is the utility model the grain size regulating plate profile front view.
Fig. 3 is the grain size regulating plate profile cutaway view of the present utility model.
The specific embodiment
As shown in Figure 1, 2, 3, a kind of construction waste crushing special equipment, comprise housing 1 with charging aperture and discharging opening, be arranged on intermediate bracket 2 in the middle of the housing 1, be arranged on the rotor 3 of housing 1 interior bottom, motor 4, the counterpunch board 6 that is arranged on rotor 3 peripheries that is connected with rotor by belt 5, the grain size regulating plate 7 that is arranged on counterpunch board 6 belows, be provided with mesh on the described intermediate bracket 2, offer the groove 71 that moves back reinforcing bar on the described the grain size regulating plate 7.Described the grain size regulating plate 7 rear portions are equipped with spring adjusting device 8.
On the described rotor 3 tup 9 is installed.
Embodiment: motor 4 is done counterclockwise High Rotation Speed by belt 5 rotor drivens 3, the tup 9 of rotor 3 moves in the gap of intermediate bracket 2, after entering, receives material the high-speed impact of tup 9, material breaks and hits counterpunch board 6 and occurs in small, broken bits, by continuous bump, the material particles diameter drops to equal main plot by mesh during less than the mesh diameter on the intermediate bracket 2, with material after further in small, broken bitsization, discharge by material in equal main plots for tup 9.
Simultaneously, the grain size regulating plate 7 in equal main plot is designed with the groove 71 that moves back reinforcing bar, and the reinforcing bar that is mixed with in the material is being smoothed out with the fingers out through quilt behind these grooves 71.
Claims (3)
1. construction waste crushing special equipment, it is characterized in that: motor (4), the counterpunch board (6) that is arranged on rotor (3) periphery that it comprises housing (1) with charging aperture and discharging opening, be arranged on intermediate bracket (2) in the middle of the housing (1), be arranged on the rotor (3) of interior the bottom of housing (1), be connected with rotor by belt (5), be arranged on the grain size regulating plate (7) below the counterpunch board (6), described intermediate bracket is provided with mesh on (2), offers the groove (71) that moves back reinforcing bar on the described the grain size regulating plate (7).
2. a kind of construction waste crushing special equipment according to claim 1, it is characterized in that: described the grain size regulating plate (7) rear portion is equipped with spring adjusting device (8).
3. a kind of construction waste crushing special equipment according to claim 1 is characterized in that: tup (9) is installed on the described rotor (3).
