Abstract
本实用新型公开一种医用便捷翻身毯，翻身毯本体为筒状结构，翻身毯本体的内侧为光滑表面，翻身毯本体的外侧为粗糙表面；翻身毯本体的两侧设有拉手。使用时，患者躺在翻身毯本体外表面上，通过拉手抽动翻身毯本体向一侧滚动，利用翻身毯本体内外表面摩擦力不同的特点，患者与翻身毯本体外表面摩擦力大于翻身毯本体内表面之间的摩擦力，一个人即可完成对患者的翻身护理。本实用新型巧妙的利用翻身毯本体内外层不同摩擦力的表面结构，护理患者翻身调整其卧床姿势，省时省力，安全可靠，大大减少了患者的痛苦，降低了护理人员的工作强度。
The utility model discloses a medical convenient turn over blanket. The turn over blanket body has a cylindrical structure, the inside of the turn over blanket body is a smooth surface, the outside of the turn over blanket body is a rough surface, and handles are provided on both sides of the turn over blanket body. When in use, the patient lies on the outer surface of the turning blanket body, and rolls the turning blanket body to one side by pulling the handle. Using the characteristics of different friction forces between the inner and outer surfaces of the turning blanket body, the friction force between the patient and the outer surface of the turning blanket body is greater than that of the turning blanket body Due to the friction between the surfaces, one person can complete the turning care of the patient. The utility model skillfully utilizes the surface structure of the different friction force of the inner and outer layers of the turning blanket body to turn over and adjust the bed posture of the nursing patient, saves time and effort, is safe and reliable, greatly reduces the pain of the patient, and reduces the work intensity of the nursing staff.
Description
技术领域 technical field
本实用新型公开一种医用便捷翻身毯，用于卧床患者的翻身，属于医疗器械技术领域。 The utility model discloses a medical convenient turn over blanket, which is used for turning over a bedridden patient and belongs to the technical field of medical devices. the
背景技术 Background technique
对于长期卧床的患者经常左右翻身可避免褥疮的发生。对已有褥疮的患者，经常使其左右侧翻，用温水擦洗,可减轻褥疮的恶化并有治疗作用。长期卧床病经常翻身也可促进患者的疾病康复，防止长期卧床患者功能退化。但是，对于卧床患者多数由人力翻身实现护理的，一般为一个患者翻身时至少需要三个人一同合作，需要人力较多，增加了护理人员，费时费力，还经常给患者带来不必要的痛苦。 For long-term bedridden patients, turning left and right frequently can avoid the occurrence of bedsores. For patients with bedsores, often turn them sideways and scrub with warm water, which can reduce the deterioration of bedsores and have a therapeutic effect. Frequent turning over of long-term bedridden patients can also promote the recovery of the patient's disease and prevent functional degradation of long-term bedridden patients. However, most bedridden patients are turned over by manpower to realize nursing. Generally, at least three people are required to cooperate together when turning over for a patient, which requires more manpower, increases nursing staff, takes time and effort, and often brings unnecessary pain to the patient. the
发明内容 Contents of the invention
本实用新型公开一种医用便捷翻身毯，一人即可为卧床患者随时翻身，方便了护理人员操作，减少患者痛苦，更好地为患者服务。 The utility model discloses a convenient turning over blanket for medical use. One person can turn over a bedridden patient at any time, which facilitates the operation of nursing staff, reduces the pain of the patient, and better serves the patient. the
本实用新型提供的医用便捷翻身毯，其技术技术解决方案如下：The medical convenient turn over blanket provided by the utility model has the technical solution as follows:
翻身毯本体为筒状结构，翻身毯本体的内侧为光滑表面，翻身毯本体的外侧为粗糙表面；翻身毯本体的两侧设有拉手。 The turning blanket body has a cylindrical structure, the inside of the turning blanket body is a smooth surface, and the outside of the turning blanket body is a rough surface; handles are provided on both sides of the turning blanket body.
本实用新型使用时，患者躺在翻身毯本体外表面上，通过拉手抽动翻身毯本体向一侧滚动，利用翻身毯本体内外表面摩擦力不同的特点，患者与翻身毯本体外表面摩擦力大于翻身毯本体内表面之间的摩擦力，一个人即可完成对患者的翻身护理。 When the utility model is used, the patient lies on the outer surface of the body of the turning blanket, and the body of the turning blanket is twitched by the handle to roll to one side, and the friction force between the patient and the outer surface of the body of the turning blanket is greater than that of turning over due to the different characteristics of the inner and outer surfaces of the body of the turning blanket. Due to the friction between the inner surfaces of the blanket body, one person can complete the turning care of the patient. the
本实用新型的积极效果在于：巧妙的利用翻身毯本体内外层不同摩擦力的表面结构，护理患者翻身调整其卧床姿势，省时省力，安全可靠，大大减少了患者的痛苦，降低了护理人员的工作强度。 The positive effect of the utility model lies in: clever use of the surface structure of different frictional forces of the inner and outer layers of the turning blanket body, the nursing patient turns over and adjusts his bed posture, saves time and effort, is safe and reliable, greatly reduces the pain of the patient, and reduces the pain of the nursing staff. Intensity of work.
附图说明 Description of drawings

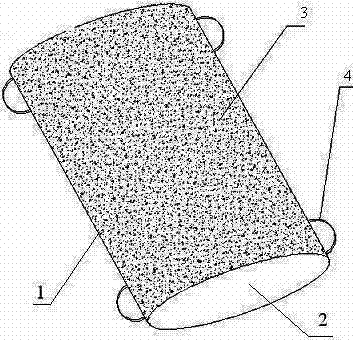

图1为本实用新型结构示意图； Fig. 1 is a structural representation of the utility model;
图中，1、翻身毯本体；2、内表面；3、外表面；4、拉手。 In the figure, 1. the body of the turning blanket; 2. the inner surface; 3. the outer surface; 4. the handle.
具体实施方式 Detailed ways
根据图1所示，本实用新型中，翻身毯本体1为筒状结构，翻身毯本体1的内表面2为光滑表面，翻身毯本体1的外表面3为粗糙表面；翻身毯本体1的两侧设有拉手4。
According to shown in Fig. 1, in the utility model, turn over
在实施过程中，翻身毯本体1的内表面2也可以为光滑的防雨绸制成，外表面3为粗糙的麻布制成。
During implementation, the inner surface 2 of the
