Abstract
The utility model provides a sument of gastroenterology comprises a bottom plate, a vertical rod, a supporting arm, a hopper and a storage bottle. The bottom plate is arranged at the bottom of the vertical rod. Idler wheels are arr the suction lower segment. The small part of the suction lower segment, the size gradual change part and the big part of the suction lower segment are connected. The small part of the suction lower segment is placed above the size gradual change part which is arranged above the big part of the suction lower segment. According to the suction pipe, an opening of a beverage container is propped open through the big part of the suction lower segment, and therefore the occurrence that the liquid in a sealed container sprays out under pressure along the suction pipe is avoided.
Description
Technical field
The utility model relates to suction pipe.
Background technology
Suction pipe is common soft drink necessary article in our daily life.The development in China soft drink market has only used the time of two more than ten years with regard to almost walking to be over the American-European countries's soft drink in 80 years development overall process since 20th century the eighties, even to this day, has grown into huge, a ripe market.In recent years, along with the rapid growth of economy and the lasting raising of town and country consumer's income level and consuming capacity, impel the beverage consumption demand to be in all the time the stage of very fast growth, domestic beverage industry has had huge market value basis and support, and growing space is very big.China's soft drink annual production increases progressively with the average growth rate per annum above 20%.
The market space that this shows suction pipe future is very large, but present suction pipe has problems in use.After the user injects the soft drink mouth with suction pipe, fully contact even driving fit between suction pipe wall and the soft drink hole, adding has a certain amount of air to exist in the soft drink box, the most important thing is that the soft drink external packing itself is soft, will crimp after user's hand is firmly pinched, the air of the inside can not be got rid of from the hole, can only down exert pressure to internal liquid, causing liquid from the ejection of suction pipe mouth, cause with it the user, all is beverage on hand.Such problem exists allows the user not only feel bad, and more can cause the carry-on articles such as clothing to be made dirty, and inconvenience is cleaned, and affects health.
Summary of the invention
Technical problem to be solved in the utility model provides and a kind ofly prevents the suction pipe that liquid sprays from suction pipe when using suction pipe to have a drink, for this reason, the utility model by the following technical solutions:
Described suction pipe hypomere is provided with suction pipe hypomere smaller portions, size gradual change part and suction pipe hypomere major part, described suction pipe smaller portions, big or small gradual change part link to each other with suction pipe hypomere major part, described suction pipe smaller portions are positioned at big or small gradual change part top, and described big or small gradual change partly is positioned at suction pipe hypomere major part top.
By above technical scheme, the utility model can be large with the hole support of container for drink by suction pipe hypomere major part, and liquid sprays under pressure along suction pipe in the airtight container to avoid.
Description of drawings

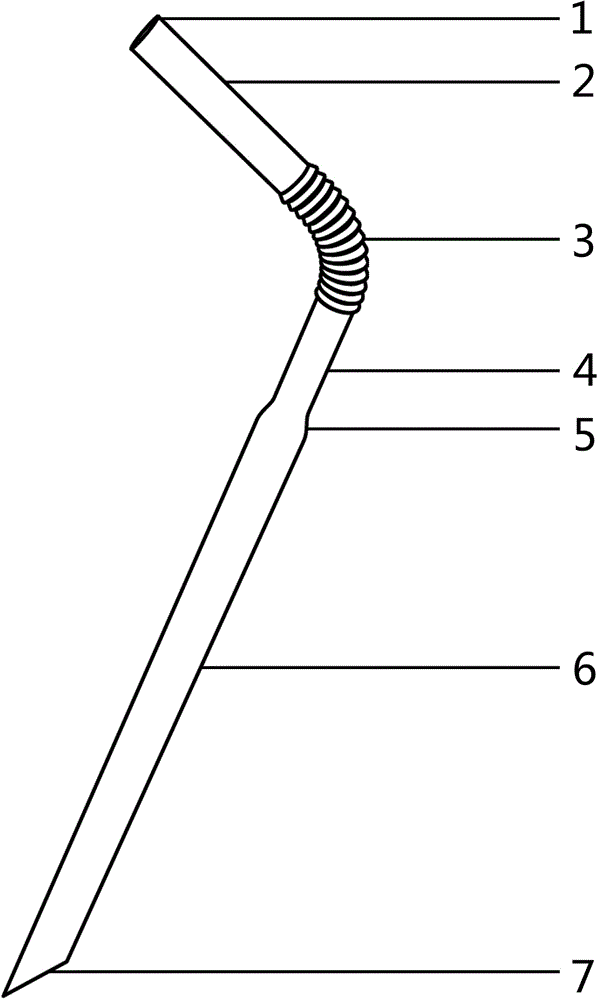

Fig. 1 is structural representation of the present utility model.
The specific embodiment
In the utility model, be divided into up and down two parts on the overall volume size of suction pipe, the size diameter of the first half suction pipe is relatively less than normal, and the size diameter of the latter half suction pipe is relatively bigger than normal.
With reference to accompanying drawing.The utility model comprises that suction pipe is suitable for reading 1, suction pipe epimere smaller portions 2, suction pipe bending part 3, suction pipe hypomere smaller portions 4, suction pipe size gradual change part 5, suction pipe hypomere major part 6, suction pipe sharp-crested 7.
The utility model comprises suction pipe, described suction pipe hypomere is provided with suction pipe hypomere smaller portions 4, size gradual change part 5 and suction pipe hypomere major part 6, described suction pipe smaller portions 4, big or small gradual change part 5 link to each other with suction pipe hypomere major part 6, described suction pipe smaller portions 4 are positioned at big or small gradual change part 5 tops, and described big or small gradual change part 5 is positioned at suction pipe hypomere major part 6 tops.
Described suction pipe hypomere major part 6 belows are provided with suction pipe sharp-crested 7.
Described suction pipe hypomere smaller portions 4 tops are provided with suction pipe bending part 3, and described suction pipe bending part 3 tops are provided with suction pipe epimere smaller portions 2.
The height of described suction pipe hypomere smaller portions 4 and the height of container for drink match.
When the utility model uses, pierce through first the tinfoil of soft drink with suction pipe sharp-crested 7, then suction pipe hypomere major part 6 enters the hole of tinfoil sealing, support large hole, suction pipe size gradual change part 5, suction pipe hypomere smaller portions 4 enter in the beverage bottle successively, the height of suction pipe hypomere smaller portions 4 and the height of container for drink match, when suction pipe sharp-crested 7 arrives bottle during the end, the position of suction pipe hypomere smaller portions 4 just stops the hole, this section sidewall of suction pipe and edge, hole produce certain distance, make things convenient for the eliminating of Sofe drink bottle Air, prevent that beverage from spilling from suction pipe, the clothing of making dirty, impact is used.
The utility model can not arranged air because of sidewall of suction pipe and the complete driving fit in edge, soft drink hole, causes beverage because hand causes drink liquid to spill the clothing of making dirty from suction pipe suitable for reading 1 to the extruding of container for drink.
Claims (4)
1. suction pipe, it is characterized in that described suction pipe hypomere is provided with suction pipe hypomere smaller portions, size gradual change part and suction pipe hypomere major part, described suction pipe smaller portions, big or small gradual change part link to each other with suction pipe hypomere major part, described suction pipe smaller portions are positioned at big or small gradual change part top, and described big or small gradual change partly is positioned at suction pipe hypomere major part top.
2. a kind of suction pipe as claimed in claim 1 is characterized in that described suction pipe hypomere major part below is provided with the suction pipe sharp-crested.
3. a kind of suction pipe as claimed in claim 1 is characterized in that described suction pipe hypomere smaller portions top is provided with the suction pipe bending part, and described suction pipe bending part top is provided with suction pipe epimere smaller portions.
4. a kind of suction pipe as claimed in claim 1 is characterized in that the height of described suction pipe hypomere smaller portions and the height of container for drink match.
