The utility model provides an aluminum sheath breaking wire-stripping machine for an aluminum sheath wire and belongs to the technical field of wire-stripping machines. The aluminum sheath breaking wire-stripping machine resolves the problem that the existing manual peeling of the aluminum sheath wire is long in time, and machine peeling still requires manual separation and the like. The aluminum sheath breaking wire-stripping machine comprises a base. A vertical motor and a machine body are arranged on the base, a lower feeding roller driven by the vertical motor and an upper feeding roller are arranged in the machine body. The lower feeding roller rotates in the reverse direction with the upper feeding roller by transmission of a gear mechanism. An aluminum sheath wire press wheel is respectively and oppositely fixed on the upper feeding roller and the lower feeding roller, and a transverse knife is arranged between the upper feeding roller and the lower feeding roller. The aluminum sheath breaking wire-stripping machine is simple in structure and convenient and quick to operate, improves production efficiency and promotes recycle development of regenerable resources.
Description
Technical field
The utility model belongs to the wire stripper technical field, refers in particular to a kind of broken wire stripper of aluminium sheath of aluminium sheath line.
Background technology
Common wire stripper is of a great variety on the market, and general wire stripper is the cable of stripping rubber covering system, and very poor for aluminium cover line result of use.
The structure of aluminium cover line is generally, copper core is by the rubber covering setting, rubber covering is enclosed with the aluminum sheath outward again, the aluminum sheath adopts just the rewinding mode of braiding of two aluminium strips to be wrapped in the cable outside, for this kind cable, traditional mode of peeling off all is to adopt the connector of manually cutting off aluminium strip, the separation of manually rewinding, therefore the operating time is very long, operating efficiency is low, and wire stripper on the market adopts the mode that the line both sides are cut and is not suitable for the aluminum sheath, and the aluminium sheath surface is regular concavo-convex, therefore cutting effect is poor, if separate fast the aluminium cover, realizes that recovery to aluminium utilizes again the wire stripper industry is had higher requirement.
Summary of the invention
The purpose of this utility model provides by the aluminium sheath with the aluminium sheath line to be carried out fragmentation, disassembles fireballing wire stripper.
The purpose of this utility model is achieved in that
The broken wire stripper of a kind of aluminium sheath of aluminium sheath line, comprise base, it is characterized in that: described base is provided with vertical machine and body, be provided with in the described body lower feed roller that vertical machine drives and by lower feed roller by gear mechanism transmission with it counter-rotational enterprising material roller, be positioned at all to be fixed with on enterprising material roller, the lower feed roller and be the aluminium sheath line pressure wheel that is oppositely arranged, be provided with between described enterprising material roller, the lower feed roller and laterally cut open cutter.
The two ends of above-mentioned feed roller are respectively equipped with the slide rail that is formed by two root posts, and the two ends of feed roller all are equipped with the axle box that can slide in slide rail, and the upper axle box at described enterprising material roller two ends is connected with enterprising material roller elevating mechanism.
The concrete structure of above-mentioned enterprising material roller elevating mechanism is: be fixed with double-screw bolt on the upper axle box, be bolted with the inner screw sheath that the outside is fixed with worm gear on the double-screw bolt, hand turning handle can drive the worm-drive worm gear and realize enterprising material roller lifting.
Above-mentioned aluminium sheath line pressure wheel is the gear that is fixed by socket on feed roller.
The above-mentioned cutter that laterally cuts open is fixed between two running rollers by governor motion, and the blade that laterally cuts open cutter forms certain thickness cutter ridge by protruding formula polishing.
The concrete mechanism of above-mentioned governor motion is: an end that laterally cuts open cutter is fixed on the fagging of body feed end, the other end offers chute, be interspersed with in the chute can by two nuts up and down with laterally cut open the adjusting double-screw bolt that cutter is connected, the lateral displacement bar of regulating double-screw bolt and the drive of hand turning handle fixes.
The utility model compared to existing technology outstanding and useful technique effect is:
The utility model has utilized the not strong characteristic of aluminium rigidity, aluminium sheath is located up and down, by blade incision aluminium sheath, produce the power strut so that aluminium sheath is cracked by the cutter ridge again, wherein, the up and down location of aluminium sheath also applies moderate pressure to it, has adopted simultaneously gear to increase frictional force and has been convenient to being dragged into of wire rod, aluminium sheath surface is flattened, and the utility model complete machine structure is simple, swift and convenient to operate, improved the development that production efficiency has also promoted utilization of the recycling of renewable resources.
Description of drawings

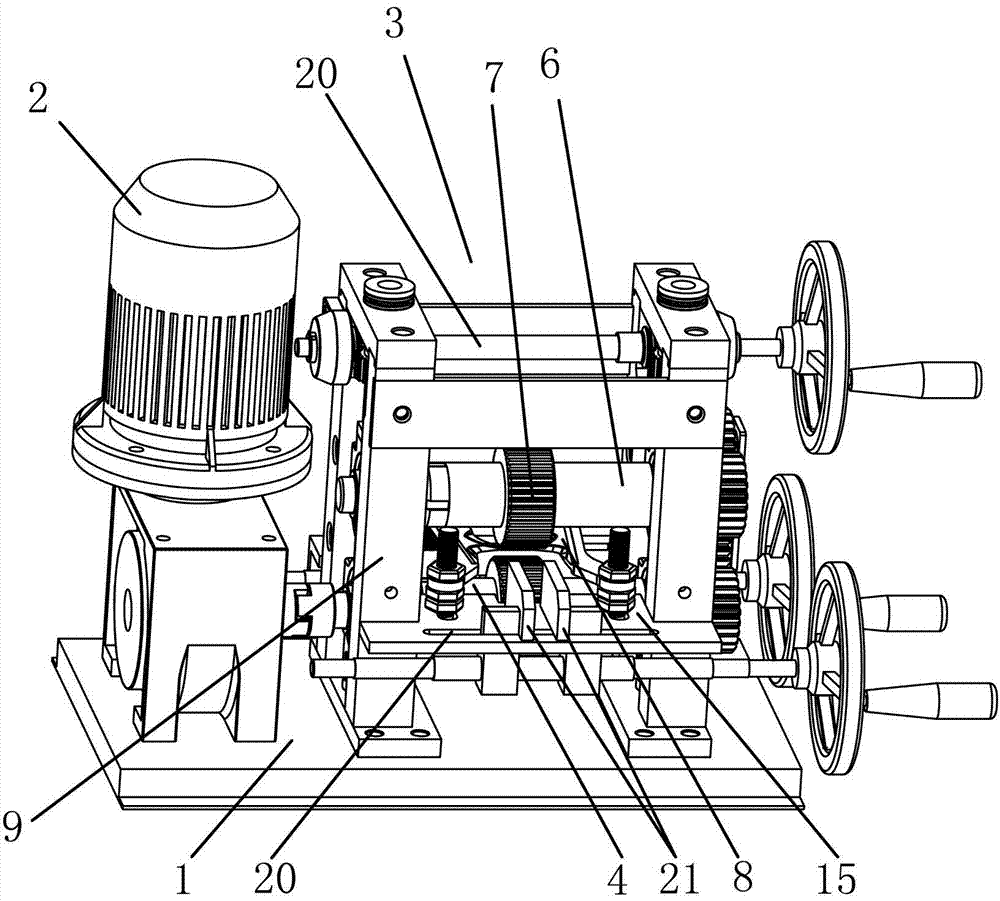

Fig. 1 is Facad structure schematic diagram of the present utility model.
Fig. 2 is function sketch of the present utility model.
Fig. 3 is the vertical view that laterally cuts open cutter of the present utility model.
Fig. 4 is structure schematic diagram of the present utility model.
Fig. 5 is the left view of partial structurtes among Fig. 1.
Embodiment
The utility model is further described with specific embodiment below in conjunction with accompanying drawing, referring to Fig. 1-5:
The broken wire stripper of a kind of aluminium sheath of aluminium sheath line, comprise base 1, described base 1 is provided with vertical machine 2 and body 3, be provided with in the described body lower feed roller 4 that vertical machine drives and by lower feed roller by gear mechanism 5 transmissions with it counter-rotational enterprising material roller 6, be positioned at all to be fixed with on enterprising material roller, the lower feed roller and be the aluminium sheath line pressure wheel 7 that is oppositely arranged, be provided with between described enterprising material roller, the lower feed roller and laterally cut open cutter 8.
As preferred version of the present utility model, as shown in Figure 4: above-mentioned gear drive is: lower feed roller one end is equipped with output gear 50 by motor-driven, the other end, this output gear engagement center tooth 1, center tooth one engagement center tooth 2 52, the enterprising material roller of center tooth two engaged transmission is held in the same way is subjected to moving gear 53, realize the relative direction rotation by the upper and lower feed roller of this mechanism, drag the aluminium sheath line and enter.
The two ends of above-mentioned feed roller are respectively equipped with the slide rail that is formed by two root posts 9, and the two ends of feed roller all are equipped with the axle box that can slide in slide rail, and the upper axle box 10 at described enterprising material roller 6 two ends is connected with enterprising material roller elevating mechanism.
The lifting of described enterprising material roller has determined the size with lower feed roller gap, therefore control the radial dimension of enterable aluminium sheath line, can regulate simultaneously the up and down clamping force that the aluminium sheath to the aluminium sheath line applies, be convenient to when follow-up dissecing, utilize the fragility of aluminium to make it cracked.
The concrete structure of above-mentioned enterprising material roller elevating mechanism is: be fixed with double-screw bolt 11 on the upper axle box, be bolted with the inner screw sheath that the outside is fixed with worm gear 12 on the double-screw bolt, hand turning handle can drive the worm-drive worm gear and realize enterprising material roller lifting.
Two upper axle boxes at enterprising material roller two ends are for regulating simultaneously, and above-mentioned enterprising material roller elevating mechanism is two, is provided with two worm screws corresponding with worm gear on the dwang 20 that hand turning handle drives.
According to above-mentioned gear drive, it must engaged transmission guarantee the machine be worked by moving gear 53 and center tooth 2 52, and be subjected to moving gear 53 and the difference in height of center tooth 2 52 that therefore produce after the enterprising material roller lifting satisfy the engagement that is subjected to moving gear and center tooth two.
Above-mentioned aluminium sheath line pressure wheel 7 is the gears that are fixed by socket on feed roller.This gear is mill teeth.
Two aluminium sheath line pressure wheels apply relative pressure to aluminium sheath up and down, common aluminium sheath surface is for there being the concavo-convex of specification, in actual use, two aluminium sheath line pressure wheels flatten the aluminium sheath surface up and down, it should be noted that, pressing noted here is just for the jog on surface, is convenient to that aluminium overlapped that line dragged and cracked, and is no more than the load capacity of motor.
The above-mentioned cutter that laterally cuts open is fixed between two running rollers by governor motion, and the blade 14 that laterally cuts open cutter forms certain thickness cutter ridge 13 by protruding formula polishing.
By upper and lower two the orientation application of forces of upper and lower feed roller to aluminium sheath, blade is cuing open behind aluminium sheath, applies the power that struts by cutter ridge 13, so that aluminium sheath is cracked.
The concrete mechanism of above-mentioned governor motion is: an end that laterally cuts open cutter is fixed on the fagging 15 of body feed end, the other end offers chute 16, be interspersed with in the chute can by two nuts 17 up and down with laterally cut open the adjusting double-screw bolt 18 that cutter is connected, the lateral displacement bar 19 of regulating double-screw bolt and the drive of hand turning handle fixes.
According to aluminium sheath thickness, vary in size, need to and dissect the position and regulate the depth of cut of laterally cuing open cutter, wherein, hand turning handle can drive the lateral displacement bar and drive and regulate double-screw bolt and then interlock and laterally cut open cutter and change and dissect the degree of depth; The centre-height adjusting of dissecing of laterally cuing open cutter simply is: unscrew upper cap nut, lower nut is upwards twisted realize that dissecing the center heightens setting, setting is turned down at the center of in like manner can dissecing.
Be provided with at this wire stripper incoming line and prevent that the aluminium sheath line is being dragged into the position-limit mechanism of sideslip in the process, this position-limit mechanism is: be provided with chute 20 on the fagging 15, hand turning handle drives and is positioned at fagging below transverse bar, is fixed with the limiting plate 21 that is positioned at the fagging top on the transverse bar.
Above-described embodiment is preferred embodiment of the present utility model only, is not to limit according to this protection range of the present utility model, so: all equivalences of doing according to structure of the present utility model, shape, principle change, and all should be covered by within the protection range of the present utility model.
