Abstract
The utility model relates to a car lamp and a light guide strip structure thereof, which solves the defects of poor light guide performance and increased manufacturing cost caused by the need of more LEDs for irradiation, and comprises a car lamp body, at least one groove is arranged on the car lamp body, a clapboard is arranged above the car lamp body, and two through holes are arranged to communicate with the two ends of the groove; a plurality of LEDs correspondingly arranged above the through holes; at least one light conductor embedded in the groove and passing through the through hole of the partition board, the section of the light conductor is a trapezoidal solid cylinder and is provided with a bottom surface, a first side surface and a second side surface are adjacently arranged, the first side surface and the second side surface are connected with a front cylinder surface, the included angle between the bottom surface and the first side surface and the included angle between the bottom surface and the second side surface are both between 60 degrees and 89 degrees, and the effects of enabling the light guide strip to uniformly emit light and enabling the light guide property to be better by using fewer LEDs are achieved.
Description
Technical field
The utility model relates to lighting field, espespecially a kind of car light and light-guiding strip structure thereof.
Background technology
Known car light and light-guiding strip structure thereof such as TaiWan, China patent gazette M415839 number " Vehicular U-shaped light guide structure and car lamp device ", it is a kind of Vehicular U-shaped light guide structure and car lamp device, in order to portable lighter design in daytime to be provided and to save needed device space, reach portable lighter moulding in daytime and designing requirement that daytime, the portable lighter function was had concurrently, it comprises U-shaped atomizing light conductor, and is formed at U-shaped accommodation space in this U-shaped atomizing light conductor and corresponding and be communicated in the U-shaped light inlet of this U-shaped accommodation space.Car lamp device with this Vehicular U-shaped light guide structure can be arranged at the light-emittingdiode group in this Vehicular U-shaped light guide structure to reach the function of portable lighter in daytime, be different from conventional circular portable lighter in daytime, can significantly reduce portable lighter in daytime shared accommodation space in car lamp device, make the moulding of car lamp device have the higher utility model free degree, have concurrently daytime the portable lighter function with the purpose that promotes the design sense.
Though above-mentioned front case can significantly reduce portable lighter in daytime shared accommodation space in car lamp device, make the moulding of car lamp device have the higher utility model free degree, but this U-shaped atomizing light conductor to lead optical activity not good, need to use more LED irradiation just can make this U-shaped atomizing light conductor uniformly light-emitting to reach the effect of portable lighter in daytime, cause manufacturing cost increase and this U-shaped atomizing light conductor to lead the not good shortcoming of optical activity.
The utility model content
The purpose of this utility model is to provide a kind of car light and light-guiding strip structure thereof, reaches to use less LED can make the light-strip uniformly light-emitting and lead the better effect of optical activity.
For reaching above-mentioned purpose, solution of the present utility model is:
A kind of light-guiding strip structure comprises:
One light conductor, it is a solid cylinder, arbitrary cross section of this light conductor has included a bottom surface, each adjacent one first side and one second side of being provided with, described bottom surface, described the first side and described the second side also connect a front cylinder.
Described light conductor cross section is trapezoidal.
Described light conductor is the U font with crooked kenel.
The angle of described bottom surface and the first side, and the angle of bottom surface and the second side are all between 60 ° to 89 °.
Described front cylinder is an arc-shaped curved surface.
Described bottom surface is provided with a reflecting layer.
Described bottom surface is provided with a plurality of keepers, and described keeper respectively is provided with a locating hole.
A kind of car light of using above-mentioned light-guiding strip structure comprises:
One vehicle light body is provided with at least one groove, and this vehicle light body top is provided with a dividing plate, and this dividing plate comprises two open-works, and is communicated with the two ends of described groove with described open-work;
A plurality of LED, correspondence is arranged at the top of the open-work of described dividing plate;
At least one described light conductor is embedded at described groove, and the two ends of described light conductor also are arranged in the open-work of described dividing plate.
Described groove is provided with a plurality of embeddings hole of the keeper of corresponding described light-strip.
Described groove is provided with a reflecting layer.
Effect of the present utility model is:
1, the utility model is that the cross section presents trapezoidal solid cylinder, light source can be concentrated, increase its brightness, and only need respectively to install a LED in the top, two ends of this light conductor, it is whole led light source evenly can be conducted to this light conductor, LED with lesser amt reaches identical illumination effect, reaches to save manufacturing cost and lead the better effect of optical activity.
2, the utility model can make vehicle reach alarming effect when travelling daytime, causes the pedestrian that passes through or the attention of vehicle easilier, can reduce the probability that traffic accident occurs.
Description of drawings

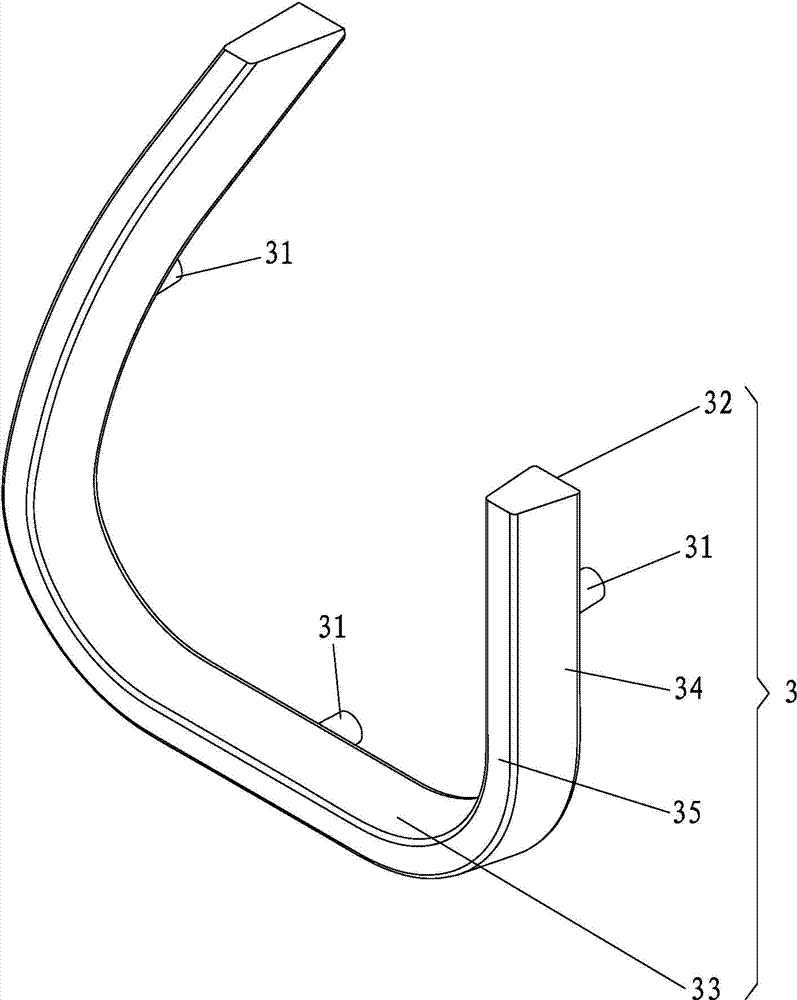

Fig. 1 is the schematic perspective view of light-strip of the present utility model;
Fig. 2 is the top view of light-strip of the present utility model;
Fig. 3 is the rearview of light-strip of the present utility model;
Fig. 4 is the profile that light-strip of the present utility model is embedded at the groove of car light;
Fig. 5 is that light-strip of the present utility model is the top view of arc-shaped curved surface.
[primary clustering symbol description]
1 vehicle light body, 11 grooves
112 reflecting layer, 111 embedding holes
12 dividing plates, 121 open-works
2 LED 3,3A light conductor
31,31A keeper 311 locating holes
32, 32A bottom surface 33,33A the first side
34,34A the second side 35 front cylinders
Cylinder arc-shaped curved surface A screw before the 35A.
The specific embodiment
In order further to explain the technical solution of the utility model, the utility model is elaborated below by specific embodiment.
The first preferred embodiment of car light of the present utility model and light-guiding strip structure thereof, see also shown in Fig. 1 to 5 figure, comprise a vehicle light body 1, be provided with a groove 11, this groove 11 is provided with a plurality of embeddings hole 111 and a reflecting layer 112, in the present embodiment, this reflecting layer 112 is white paint, this vehicle light body 1 top is provided with a dividing plate 12, and this dividing plate 12 comprises two open-works 121, and is communicated with the two ends of this groove 11 with aforementioned open-work 121; A plurality of LED2, correspondence is arranged at the top of the open-work 121 of this dividing plate 12; One light conductor 3, be embedded at this groove 11, see also Figure 1 and Figure 2, in the present embodiment, this light conductor 3 is the trapezoidal solid cylinder with bending shape for U font and cross section, aforementioned light conductor 3 is provided with a plurality of keepers 31 corresponding to the embedding hole 111 of aforementioned grooves 11, see also shown in Figure 3, aforementioned keeper 31 is provided with a locating hole 311, the two ends of aforementioned light conductor 3 also are arranged in the open-work 121 of aforementioned separator plate 12, arbitrary cross section of this light conductor 3 includes a bottom surface 32, these 32 adjacent one first side 33 and one second sides 34 of being provided with, bottom surface, aforementioned the first side 33 and the second side 34 also connect a front cylinder 35, and the angle of this bottom surface 32 and this first side 33, and the angle of this bottom surface 32 and this second side 34, all between 60 ° to 89 °.
During use, the two ends of aforementioned light conductor 3 are arranged in the open-work 121 of aforementioned separator plate 12, see also shown in Figure 4, and the embedding hole of the groove 11 of this vehicle light body 1 that keeper 31 embeddings of aforementioned light conductor 3 are corresponding, and lock with a screw A in the locating hole 311 of aforementioned keeper 31, aforementioned light conductor 3 is fixedly arranged on this groove 11, in the time of vehicle startup, light aforementioned LED2, make aforementioned LED2 export a light source, the two ends of aforementioned light conductor 3 receive the light source of aforementioned LED2 output, again the light source that receives is evenly conducted to aforementioned light conductor 1 integral body, make it present uniform brightness, and the angle of this bottom surface 32 and this first side 33, and the angle of this bottom surface 32 and this second side 34, all between 60 ° to 89 °, light can be concentrated and increase its brightness, be used as a reflecting layer 112 in these groove 11 spray-coated white paint again, also white paint can be sprayed at the bottom surface 32 of this light conductor 3, make aforementioned light conductor 3 outputs one better brightness, the pedestrian who can easier attraction passes through and the notice of vehicle reach the effect that reduces the traffic accident Probability.
See also shown in Figure 5, the second preferred embodiment of car light of the present utility model and light-guiding strip structure thereof and the difference of the first preferred embodiment are that the front cylinder 35A of aforementioned light conductor is an arc-shaped curved surface, light aforementioned LED2 in the time of vehicle startup, make aforementioned LED2 export a light source, the two ends of aforementioned light conductor 3A receive the light source of aforementioned LED2 output, it is whole the light source that receives evenly to be conducted to aforementioned light conductor 3A again, make it present uniform brightness, and the angle of this bottom surface 32A and this first side 33A, and the angle of this bottom surface 32A and this second side 34A, all between 60 ° to 89 °, light can be concentrated and increase its brightness, enlarge the light range of exposures by the arc-shaped curved surface of this front cylinder 35A again, more can attract the pedestrian that passes through and the notice of vehicle, reduce the traffic accident Probability.
Above-described embodiment and graphic and non-limiting product form of the present utility model and style, any person of an ordinary skill in the technical field all should be considered as not breaking away from patent category of the present utility model to its suitable variation or modification of doing.
Claims (10)
1. a light-guiding strip structure is characterized in that, comprises:
One light conductor, it is a solid cylinder, arbitrary cross section of this light conductor has included a bottom surface, each adjacent one first side and one second side of being provided with, described bottom surface, described the first side and described the second side also connect a front cylinder.
2. light-guiding strip structure as claimed in claim 1, it is characterized in that: this light conductor cross section is trapezoidal.
3. light-guiding strip structure as claimed in claim 1, it is characterized in that: this light conductor is the U font with crooked kenel.
4. light-guiding strip structure as claimed in claim 1 is characterized in that: the angle of described bottom surface and the first side, and the angle of bottom surface and the second side, and all between 60 ° to 89 °.
5. light-guiding strip structure as claimed in claim 1, it is characterized in that: described front cylinder is an arc-shaped curved surface.
6. light-guiding strip structure as claimed in claim 1, it is characterized in that: described bottom surface is provided with a reflecting layer.
7. light-guiding strip structure as claimed in claim 1, it is characterized in that: described bottom surface is provided with a plurality of keepers, and described keeper respectively is provided with a locating hole.
8. an application rights requires the car light of 1 to 7 each described light-guiding strip structure, it is characterized in that: comprise:
One vehicle light body is provided with at least one groove, and this vehicle light body top is provided with a dividing plate, and this dividing plate comprises two open-works, and is communicated with the two ends of described groove with described open-work;
A plurality of LED, correspondence is arranged at the top of the open-work of described dividing plate;
At least one described light conductor is embedded at described groove, and the two ends of described light conductor also are arranged in the open-work of described dividing plate.
9. car light as claimed in claim 8, it is characterized in that: described groove is provided with a plurality of embeddings hole of the keeper of corresponding described light-strip.
10. car light as claimed in claim 8, it is characterized in that: described groove is provided with a reflecting layer.
