Abstract
The utility model relates to a novel air processor. The novel air processor is a case body from the angle of the appearance; an auxiliary exhaust system is mounted on one side inside the case; and an active fiber filter layer is arranged on the other opposite side inside the case. A high-energy high-ozone UV (ultraviolet) tube is mounted at the top inside the case; a miniature electric controller is mounted at the upper part of the case; the active fiber filter layer is formed by activated carbon which is made of coconut shells; the auxiliary exhaust system is controlled by a microcontroller to automatically adjust the air volume according to the humidity and the odor index; and the high-energy high-ozone UV tube generates light beams to irradiate odor gases, in order to crack the ozone gases and perform oxidation through ozone, thereby thoroughly deodorizing and disinfecting. The novel air processor is simple in structure, convenient to mount and use, fast in the flow rate, high in the precision and large in the filtering area. The novel air processor is easy to wash and regenerate, long in the service life, and wide in the application range. The novel air processor only consumes 0.2 Kw/h when processing 1,000 cubic meter per hour; and the device price and the running cost are low.
Description
Technical field
The utility model relates to air processor, is specifically related to a kind of air processor that carries out deodorizing, taste removal, sterilization, purification for airborne waste gas, foul gas.Belong to International Classification of Patents B01D technical field.
Background technology
Food processing factory, meat-packing plant, slaughterhouse, poultry feed field, paper mill, sewage treatment plant, refuse transfer station, ight soil processing, oil plant, rubber plant, Leather Factory, printing house, chemical plant, Westen and Chinese Tranditional Medicine Pharamacentic Factory, metal foundry, plastic reclaimed factory etc. are the sources that organic and inorganic matter foul gas occur.Bad breath usually makes staff and the surrounding resident stayed wherein feel that body and mind is uncomfortable, also has influence on healthy.Existing air processor, function are relatively single, are difficult to satisfy the requirement that the air filtration of above-mentioned occasion purifies.
Summary of the invention
The purpose of this utility model is to remedy the deficiencies in the prior art, and a kind of novel air processor that the functions such as deodorizing, taste removal, sterilization, purification are combined together is provided.
The technical solution of the utility model is as follows.
A kind of novel air processor, a side is equipped with the power-assisted exhaust system in its casing, with another side device in its relative casing activated fibre filter course is arranged, the casing inner top is equipped with high energy high ozone UV ultraviolet lamp tube, and the miniature electrical equipment controller is equipped with on casing top.
Described activated fibre filter course is that the active carbon that cocoanut shell is made consists of.
The utility model has solved comparatively up hill and dale dirty gas cleaning and has processed problem, can remove simultaneously pellet, microorganism and TVOC, remove all kinds of peculiar smell and stink as: fish is stench, ammonia is smelly, slough is smelly, smelly, the rotten wild cabbage of rotten egg is smelly, excrement is smelly and other off-odor etc., give joyful comfortable environment of people.Simultaneously, the utility model is convenient to fitting operation, and the equipment noiselessness need not personal management and regular maintenance, only needs to make regular check on.Equipment energy consumption is low, and (1000 cubes m/hs of every processing, the only about 0.2 degree electric energy of power consumption), the equipment windage is extremely low＜50pa, can save the power consumption of a large amount of air drafts.
Description of drawings

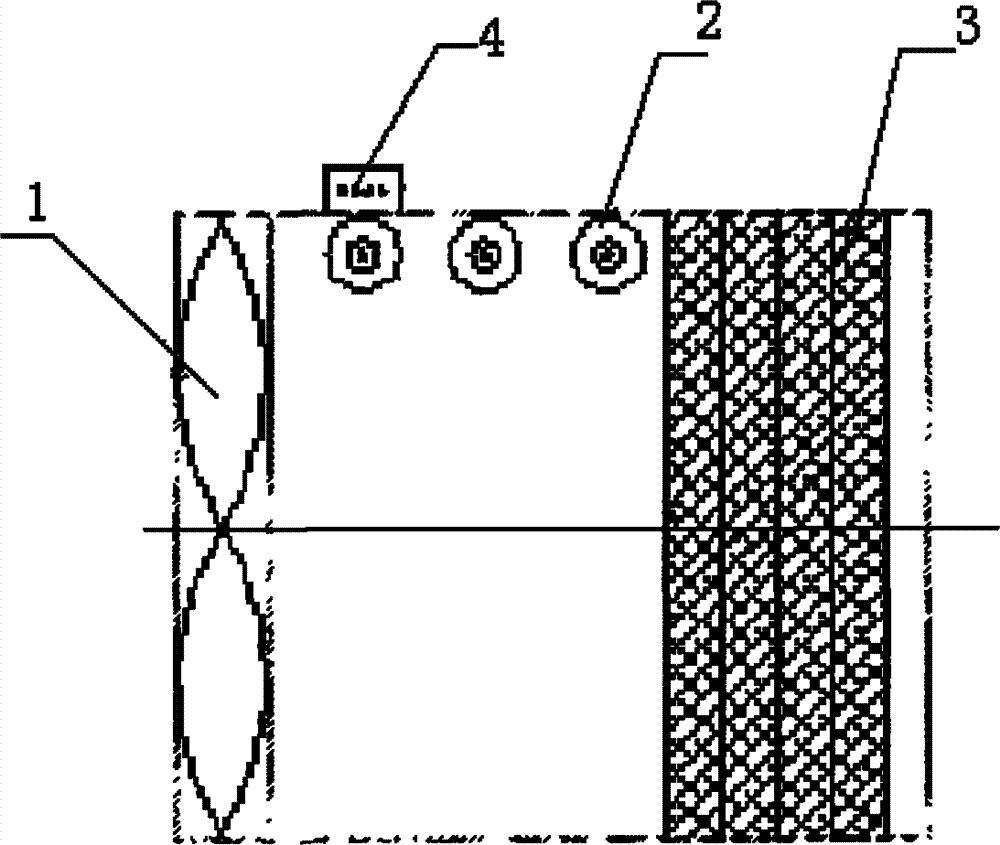

Fig. 1 is structural scheme of mechanism of the present utility model.
Among the figure: 1. power-assisted exhaust system, 2. high energy high ozone UV ultraviolet lamp tube, 3. activated fibre filter course,
4. miniature electrical equipment controller.
The specific embodiment
Referring to Fig. 1, the novel air processor, profile is an engine housing, a side is equipped with power-assisted exhaust system 1 in casing, another side device has activated fibre filter course 3 in the casing relative with it, the casing inner top is equipped with high energy high ozone UV ultraviolet lamp tube 2, and miniature electrical equipment controller 4 is equipped with on casing top.The active carbon that activated fibre filter course 3 is made for cocoanut shell is made.
Power-assisted exhaust system 1 is regulated air quantity by the control of microcontroller 4 automatically according to humidity and stench index.High energy high ozone UV ultraviolet lamp tube 2 can send high energy high ozone UV ultraviolet beam, the irradiation foul gas, the cleavable foul gas is such as ammonia, trimethylamine, hydrogen sulfide, first sulphur hydrogen, methyl mercaptan, methyl sulfide, methyl disulfide, carbon disulfide and styrene, sulfide H2S, VOC class, the molecular link of benzene,toluene,xylene, make the contaminant molecule that is free state and ozone oxidation be combined into the compound of micromolecular harmless or low evil, such as CO2, H2O etc.Utilize the molecular link of bacterium in the high energy UV light beam cracking foul gas, destroy the nucleic acid (DNA) of bacterium, carry out oxidation reaction by ozone again, thoroughly reach the purpose of deodorization and kill bacteria.Activated fibre filter course 3 is made active carbon with cocoanut shell, and the activity of its tetrachloro charcoal is greater than 60%; Filter screen uses the polysorb active carbon filter screen, has 100% adsorption ability.The housing of activated fibre filter course can be selected waterproof board, zinc-plated chase or aluminium frame and stainless steel.Can select the absorbent charcoal material of different materials according to environmental requirement, as: activated carbon granule, active carbon nonwoven fabric, active carbon foam and board-like active carbon filter.Layering is installed, and is convenient to disassembly, cleaning.
The course of work: microcontroller 4 is regulated control power-assisted exhaust system 1, after foul gas is input to this cleaning equipment, high energy UV ultraviolet beam and ozone that cleaning equipment uses high energy high ozone UV ultraviolet lamp tube 2 to produce, foul gas is worked in coordination with the decomposing oxidation reaction, make the foul gas mass degradation change into low molecular compound such as water and carbon dioxide, after filtering by activated fibre filter course 3 again, discharge outdoor.
Claims (2)
1. novel air processor, it is characterized in that: a side is equipped with power-assisted exhaust system (1) in casing, another side device has activated fibre filter course (3) in the casing relative with it, the casing inner top is equipped with high energy high ozone UV ultraviolet lamp tube (2), and miniature electrical equipment controller (4) is equipped with on casing top.
2. novel air processor according to claim 1 is characterized in that: the active carbon formation that described activated fibre filter course (3) is made for cocoanut shell.
