Abstract
The utility model discloses a book stand. The book stand is characterized in that the book stand comprises a flat plate and at least two storage boxes; each storage box has an opened side; the storage boxes are piled up; one end of the flat plate is arranged on the storage box on the bottom layer in a rotating way; and the flat plate is positioned on the side, which is opposite to an opening, of each storage box. The book stand has the advantages that because the book stand consists of the storage boxes and the flat plate, and one end of the flat plate is arranged on the storage box on the bottom layer in a rotating way, the flat plate can be turned up to reduce space for storage and transportation when the book stand is not used; and the storage boxes can be used to hold stationery such as rubbers, pencil sharpeners and pens so as to prevent loss of the stationery caused by messy placement; and the book stand has a plurality of functions and is convenient and practical.
Description
Technical field
The utility model relates to a kind of book end.
Background technology
Concerning the student, because the usage space of desk is limited, a lot of books need to erect to place, the convenient utilization that also is conducive to desk-top space of taking like this.At present the student generally adopts book end to put in order books, but present its function ratio of book end is more single, and time spent not, and the storage of book end also relatively takes up room.
Summary of the invention
Technical problem to be solved in the utility model provides a kind of storage area and multi-functional book end of reducing.
The utility model solves the problems of the technologies described above the technical scheme that adopts: a kind of book end, the parcel tray that comprises dull and stereotyped and at least two side openings, described parcel tray stacks up and down, one end of described flat board rotates and is arranged on the parcel tray that is positioned at bottom, described flat board be positioned at described parcel tray with the opposing side of opening.
Be hinged by connecting axle between described flat board and the described parcel tray.
Described parcel tray fixedly stacks up and down.
Compared with prior art, the utility model has the advantages that because book end is comprised of parcel tray and flat board, and a dull and stereotyped end rotates and be arranged on the parcel tray that is positioned at bottom, book end is the time spent not, flat board upwards can be dug, and has reduced to store and the space of transportation; And parcel tray can be used to place the stationery such as rubber, pencil-knife, pen, prevents the placement at random of these stationery and loses, and function is more, and is convenient and practical.
Description of drawings

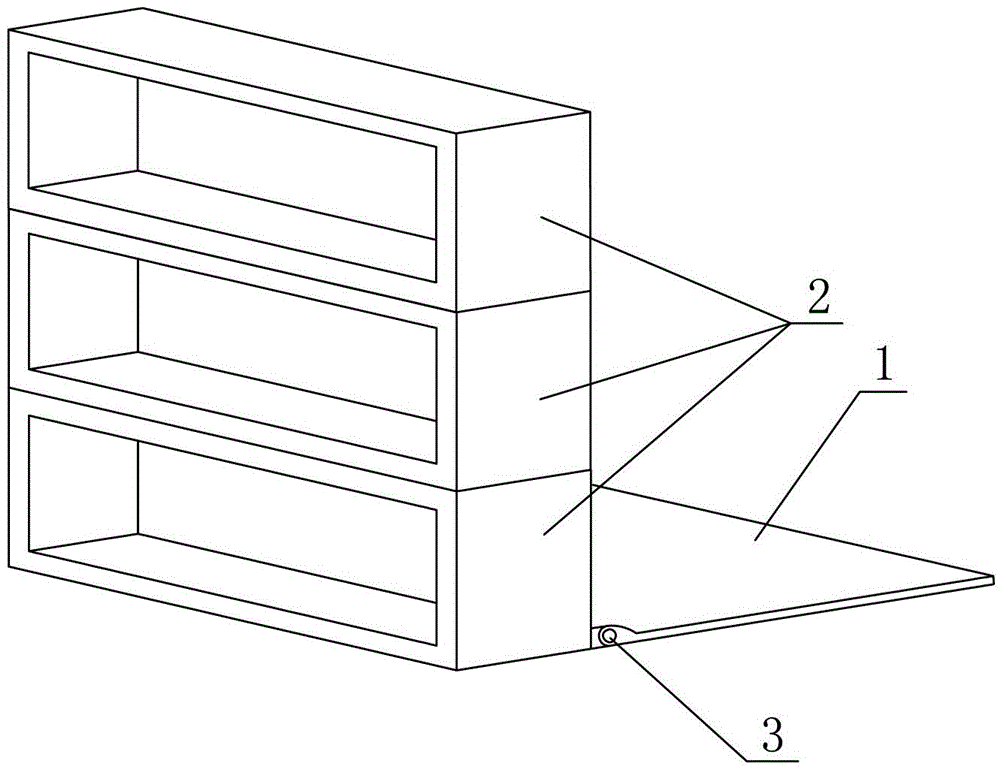

Fig. 1 is perspective view of the present utility model;
Fig. 2 is use view of the present utility model.
The specific embodiment
Embodiment is described in further detail the utility model below in conjunction with accompanying drawing.
As shown in the figure, a kind of book end comprises that 2, three parcel trays 2 of parcel tray of dull and stereotyped 1 and three side opening fixedly stack up and down, and an end of dull and stereotyped 1 is hinged by connecting axle 3 and the parcel tray 2 that is positioned at bottom, flat board 1 be positioned at parcel tray 2 with the opposing side of opening.
Claims (3)
1. book end, it is characterized in that comprising the parcel tray of dull and stereotyped and at least two side openings, described parcel tray stacks up and down, and an end of described flat board rotates and is arranged on the parcel tray that is positioned at bottom, described flat board be positioned at described parcel tray with the opposing side of opening.
2. a kind of book end as claimed in claim 1 is characterized in that being hinged by connecting axle between described flat board and the described parcel tray.
3. a kind of book end as claimed in claim 1 is characterized in that described parcel tray fixedly stacks up and down.
