CN202686095U - Device for automatically turning off automobile headlight - Google Patents
Device for automatically turning off automobile headlight Download PDFInfo
- Publication number
- CN202686095U CN202686095U CN 201220284470 CN201220284470U CN202686095U CN 202686095 U CN202686095 U CN 202686095U CN 201220284470 CN201220284470 CN 201220284470 CN 201220284470 U CN201220284470 U CN 201220284470U CN 202686095 U CN202686095 U CN 202686095U
- Authority
- CN
- China
- Prior art keywords
- automobile
- headlight
- detecting device
- relay
- human body
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Lighting Device Outwards From Vehicle And Optical Signal (AREA)
Abstract
The utility model discloses a device for automatically turning off an automobile headlight. The device comprises a BCM (Body Control Module), the automobile headlight as well as a headlight switch and a relay, wherein the headlight switch and the relay are connected between a power supply and the automobile headlight; the device for automatically turning off the automobile headlight further comprises an automobile door locking detecting device, a human body detection sensor, an ignition switch detecting device and a headlight switch signal detecting device. The utility model aims at providing the device capable of automatically turning off the headlight of the automobile in days and at nights when drivers leave the automobile without turning off the automobile headlight, so as to avoid a situation that the automobile cannot be started because the power of an automobile storage battery is exhausted by the headlight.
Description
Technical field
The utility model relates to the device of controlling Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, relates in particular to a kind of device of energy automatically shutting down automobile big lamp.
Background technology
Along with the development of economic society and the raising of people's living standard, automobile has been come into people's life, and now increasing people buys automobile, and later automobile also will be popularized in China.Automobile has brought facility to people's trip, but also can make troubles to us for various reasons, after we drive to arrive the destination, extinguish car and left car, but owing to the closing automobile headlight is forgotten in carelessness, so that automotive battery is being the headlight power supply always, can cause the storage battery negative electricity for a long time, supply regular power in the time of can't starting automobile for next time, even can damage storage battery.
Chinese patent Granted publication number: CN201863761U, Granted publication day: on 06 15th, 2011, a kind of device of automatically shutting down automobile big lamp is disclosed, this device comprises combined switch, photosensor, vehicle-mounted computer and relay, combined switch is connected input end and is connected with the mouth of automobile power source with ignition lock, combined switch, the input end of the output termination vehicle-mounted computer of ignition lock and photosensor, the input end of the output relay termination of vehicle-mounted computer, the output termination Der Scheinwerfer mit FernlichtAbblendlichtStandlicht of relay, when daytime driving person does not close headlight when just leaving automobile, automobile can cut out headlight automatically.But this device is the Shortcomings part also, the photosensor of this device is only when detecting that bright intensity is lower than preset value on every side, Der Scheinwerfer mit FernlichtAbblendlichtStandlicht just can be closed, and in some time period, when chaufeur leaves automobile and forgets and close headlight, and bright intensity at this moment is greater than preset value and do not change for a long time, and at this moment the storage battery of automobile will be powered for Der Scheinwerfer mit FernlichtAbblendlichtStandlicht always, cause the storage battery power consumption serious, even the negative electricity situation occurs so that can't provide power supply for next automobile starting.
The utility model content
The utility model is in order to overcome the deficiencies in the prior art, a kind of automatically shutting down automobile big lamp device is provided, no matter by day or evening, when chaufeur does not have the closing automobile headlight just to leave automobile, automobile can cut out headlight automatically, avoid head light that the power consumption of automotive battery is complete, cause automobile to start.
To achieve these goals, the utility model is by the following technical solutions:
A kind of automatically shutting down automobile big lamp device, comprise BCM, Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, and be connected to Der StandlichtScheinwerfer und Parkleuchtenschalter and relay between power supply and the Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, described automatically shutting down automobile big lamp device also comprises car door locking detecting device, human body detection sensor, the ignition lock detecting device, the Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument, described car door locking detecting device, human body detection sensor, the ignition lock detecting device, the mouth of Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument is connected with the input end of BCM respectively, the mouth of described BCM is connected with relay, human body detection sensor and BCM interconnection.Whether car door locking detecting device closes for detection of car door, whether the ignition lock detecting device is extracted for detection of key, the Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument is enough to close for detection of Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, human body detection sensor is for detection of whether the people is arranged in the car, while car door locking detecting device, the ignition lock detecting device, the Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument, the result that human body detection sensor will detect sends to BCM with signal form, if unmanned in the car, closing of the door, key is extracted and headlight does not cut out, then BCM can send instruction to relay, the relay cut off, Der Scheinwerfer mit FernlichtAbblendlichtStandlicht is closed.
As preferably, diode of the two ends reverse parallel connection of relay.Relay two ends and the diode that connects shield; when relay disconnects; can produce a counter potential; this counter potential even a power line voltage exceed several times to tens times; this counter potential can cause the damage of other electrical equipment original papers; diode of reverse parallel connection then can absorb this counter potential, the protective circuit normal operation.
As preferably, human body detection sensor is weight sensor, be located at automotive seat below.Whether weight sensor for detection of there being the people in the car, and the information that detects is sent to BCM.
As preferably, human body detection sensor is infradred sensor, is located at the top in the auto body.Whether infradred sensor for detection of there being the people in the car, and the information that detects is sent to BCM.
Compared with prior art, the utlity model has following beneficial effect: easy to use, simple to operate, good reliability, in car unmanned and closing of the door, when key is extracted, if Der Scheinwerfer mit FernlichtAbblendlichtStandlicht is being opened, automobile energy autoshutdown headlight avoids storage battery negative electricity so that automobile to start.
Description of drawings

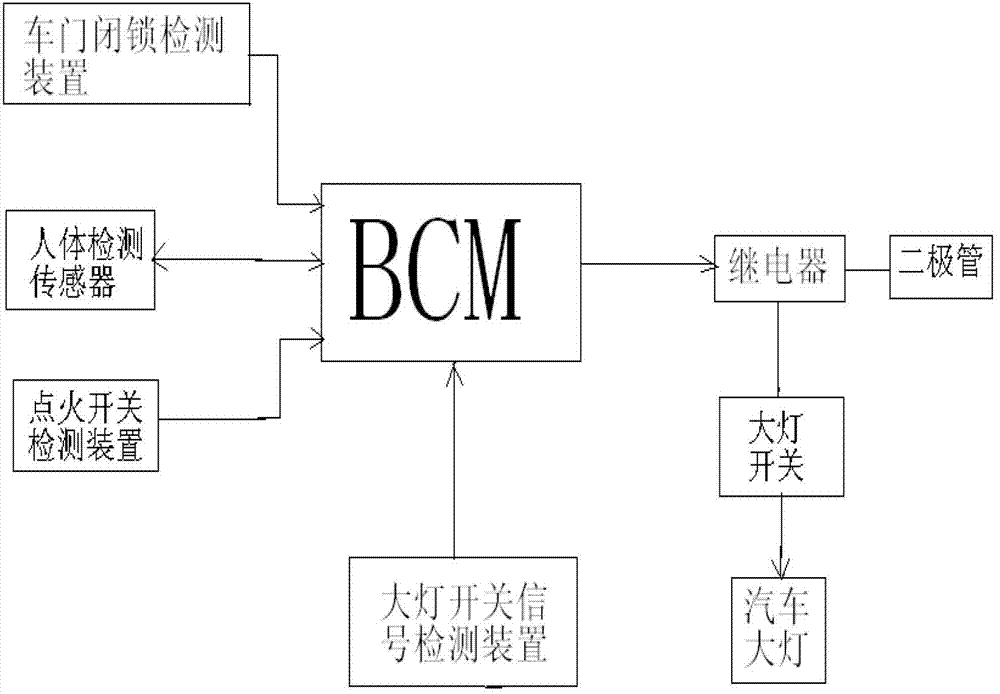

Figure 1 shows that functional-block diagram of the present utility model.
Among the figure, 1-car door locking detecting device, 2-ignition lock detecting device, 3-human body detection sensor, 4-BCM, 5-relay, 6-Der StandlichtScheinwerfer und Parkleuchtenschalter, 7-Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument, 8-Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, 9-diode.
The specific embodiment
The utility model will be further described below in conjunction with the drawings and specific embodiments.
A kind of automatically shutting down automobile big lamp device as shown in Figure 1, comprise BCM4, Der Scheinwerfer mit FernlichtAbblendlichtStandlicht 8, and be connected to Der StandlichtScheinwerfer und Parkleuchtenschalter 6 and relay 5 between power supply and the Der Scheinwerfer mit FernlichtAbblendlichtStandlicht 8, described automatically shutting down automobile big lamp device also comprises car door locking detecting device 1, human body detection sensor 3, ignition lock detecting device 2, Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument 7, described car door locking detecting device 1, human body detection sensor 3, ignition lock detecting device 2, the mouth of Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument 7 is connected with the input end of BCM4 respectively, the mouth of described BCM4 is connected with relay 5, human body detection sensor 3 and BCM4 interconnection; Diode 9 of the two ends reverse parallel connection of described relay 5; Described human body detection sensor 3 is weight sensor, be located at automotive seat below.
More preferably, described human detection 3 sensors are infradred sensor, are located in the vehicle body of automobile.
Relay in the utility model adopts the direct current light relay of 12V.
Principle of work of the present utility model is: behind automobile flameout, whether the ignition lock detecting device detects key and extracts, whether the Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument detects headlight and is opening, whether car door locking detecting device detects car door and closes, and signal sent to BCM, if BCM detects key and extracts, headlight is opened and closing of the door, at this moment BCM starts on seat sensor or the infradred sensor inspection vehicle whether the people is arranged, if unmanned on the car, seat sensor or infradred sensor send to BCM with information, at this moment BCM sends instruction to relay, the relay cut off, and Der Scheinwerfer mit FernlichtAbblendlichtStandlicht is closed.
Claims (4)
1. automatically shutting down automobile big lamp device, comprise BCM, Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, and be connected to Der StandlichtScheinwerfer und Parkleuchtenschalter and relay between power supply and the Der Scheinwerfer mit FernlichtAbblendlichtStandlicht, it is characterized in that: described automatically shutting down automobile big lamp device also comprises car door locking detecting device, human body detection sensor, the ignition lock detecting device, the Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument, described car door locking detecting device, human body detection sensor, the ignition lock detecting device, the mouth of Der StandlichtScheinwerfer und Parkleuchtenschalter signal supervisory instrument is connected with the input end of BCM respectively, the mouth of described BCM is connected with relay, human body detection sensor and BCM interconnection.
2. automatically shutting down automobile big lamp device according to claim 1 is characterized in that: diode of the two ends reverse parallel connection of described relay.
3. automatically shutting down automobile big lamp device according to claim 1, it is characterized in that: described human body detection sensor is weight sensor, be located at automotive seat below.
4. automatically shutting down automobile big lamp device according to claim 1, it is characterized in that: described human body detection sensor is infradred sensor, is located at the top in the auto body.
