Abstract
The utility model discloses a clamping type locating pin and aims at providing a locating pin capable of firmly locating and clamping a workpiece with a narrow welding channel or a closed cavity structure. Clamping and locating can be achieved on the same device, a fixture is simplified, and space is saved. The locating pin comprises a support base and a platen guide base fixed at the top of the support base, wherein a locating pin body is fixed at the top of the platen guide base which is provided with a chute open on one side, a platen can slide up and down on the chute, a side-open groove communicated with the chute is arranged inside the locating pin body, the top of the platen bends to form a pressure head capable of stretching out from the side-open groove, a locating table is arranged at the bottom of the locating pin body, and the lower end of the platen is connected with a transmission mechanism capable of controlling the platen to move up and down.
Description
Technical field
The utility model belongs to the automobile body welding field of automobile, especially relates to the positioner on a kind of automobile body welding production line.
Background technology
In the weld car automatic production line, need special-purpose soldering cramping apparatus that body in white etc. is positioned and clamps, be used for the alignment pin of soldering cramping apparatus and clamp mechanism and normally adopt separate design, the structure of this separate type can take more space, in the situation of space less, be difficult to be suitable for, the surface of the workpiece that particularly will compress is in the structure of sealing, when perhaps workpiece is cavity body structure, such as the cabin longeron, owing to formed cavity body structure between rear floor skirt beam and the rear floor, the briquetting of anchor clamps can't compress corresponding locating piece, therefore anchor clamps are difficult to workpiece is clamped, and the location causes larger error built on the sand easily in follow-up process.
Chinese patent Granted publication number: CN 2908891Y, June 6 2007 Granted publication day, a kind of alignment pin is disclosed, this alignment pin comprises plunger and pin, plunger and pin are fixed together or are an integral body, wherein, this alignment pin has one of following structure or their combination: the damaged surface at pin has at least one air discharge duct or plane; At plunger and the same central axis of pin or any axis of paralleling with central axis at least one exhaust hole is arranged.The alignment pin of this utility model when being applied in the vehicle body soldering anchor clamps, need to be set up clamping device, and it is larger to take up room, and owing to the restriction of design of part, the briquetting in the anchor clamps can't compress locating piece, has caused difficulty to the location simultaneously.
The utility model content
The utility model is the deficiency that can't firmly clamp vehicle body when welding in order to overcome prior art, provides a kind of and has been convenient to the location and clamps the clamped-in style alignment pin that takes up room simultaneously less.
To achieve these goals, the utility model is by the following technical solutions:
A kind of clamped-in style alignment pin of the present utility model, the pressing plate guide holder that it comprises supporting seat and is fixed on the supporting seat top, described pressing plate guide holder top is fixed with alignment pin, but described pressing plate guide holder is provided with the chute that an opening supply plate slides up and down, the inside of described alignment pin is provided with the side open groove that communicates with chute, described pressing plate top is bent to form the pressure head that can stretch out from side open groove, described alignment pin bottom is provided with positioning table, and described pressing plate lower end links to each other with the transmission mechanism that controlled superzapping plate moves up and down.The chute of pressing plate guide holder and the side open groove of alignment pin are interconnected, and pressing plate can move up and down in chute and side open groove under the drive of transmission mechanism, and the pressure head at pressing plate top can be pressed in workpiece on the positioning table, plays the effect of workpiece pressing.Therefore, alignment pin positions workpiece after passing the locating hole of workpiece by positioning table, utilizes transmission mechanism pulling pressing plate to move downward, and pressure head and positioning table can clamp workpiece.
As preferably, described pressing plate is provided with skewed slot, is provided with the spacer pin that is fixedly connected with the pressing plate guide holder in the described skewed slot.Offer skewed slot at pressing plate, in skewed slot, penetrate spacer pin in order to limit scope of activities and the position of pressing plate when moving up and down, when presser motion moves upward, make pressure head can be withdrawn into alignment pin inside, when pressing plate moves downward, make pressure head stretch out side open groove and cooperate with positioning table workpiece is compressed.
As preferably, described transmission mechanism comprises an end and the handle that supporting seat is flexibly connected, the other end can spin upside down, and the pull bar that is flexibly connected with the pressing plate lower end, the connecting rod that is provided with between the middle part of described handle and the pull bar lower end.Handle can drive the pull bar motion by connecting rod around rotating up and down with the junction of supporting seat, thus so that the motion that pressing plate can compress and get loose.
As preferably, described supporting seat is provided with the guide plate that pull bar is play the guiding role.Pull bar is by the effect of guide plate, and pull bar is in vertical direction motion all the time, avoids pull bar horizontal jitter to occur.
As preferably, described alignment pin is connected with pressing plate guide holder bolt.Alignment pin can be removed from the pressing plate guide holder, after using a period of time the alignment pin wearing and tearing more, the operation of changing alignment pin is comparatively convenient, can adopt different alignment pins for the location of different workpieces in addition, has improved versatility.
As preferably, be provided with cover plate outside the chute of described pressing plate guide holder, described cover plate medial surface is provided with the holddown groove that matches with spacer pin, and described cover plate is connected with pressing plate guide holder bolt.Cover plate covers at the chute opening simultaneously to be located, and makes outside pressing plate can not be exposed to, to playing a protective role by pressing plate.
As preferably, be provided with the adjusting pad between described alignment pin and the pressing plate guide holder.For the different workpiece of thickness, can adopt the adjusting pad of different-thickness, regulate the distance between pressure head and the positioning table, therefore can adapt to the workpiece of different wall, improved versatility.
Therefore, the utlity model has following beneficial effect: workpiece narrow to the weld pass or the closed cavity structure can carry out firm location and clamping, clamps simultaneously and locates and can realize at same device, has simplified anchor clamps, has saved the space.
Description of drawings

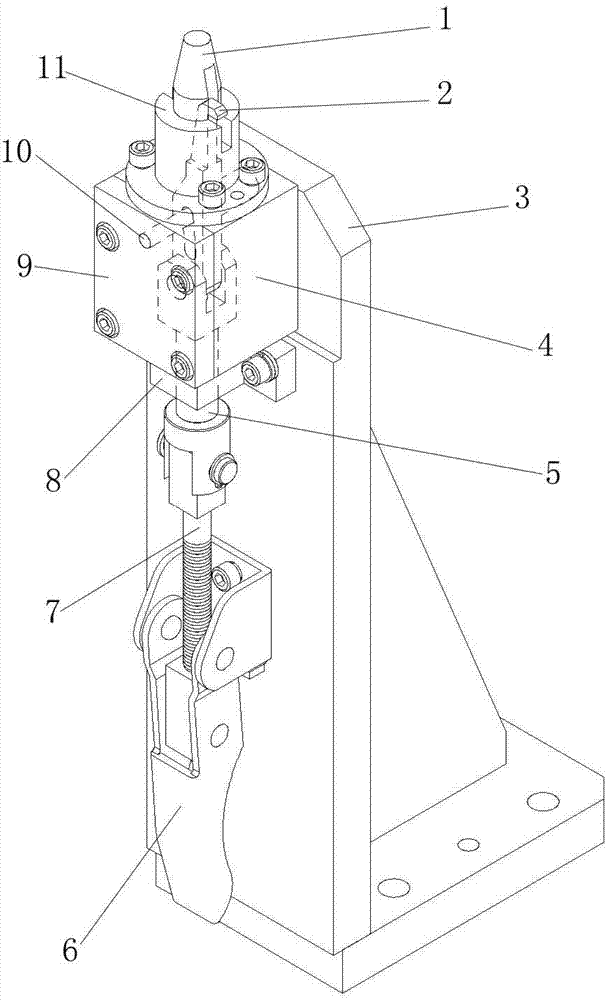

Fig. 1 is a kind of structural representation of the present utility model.
Fig. 2 is a kind of profile of the present utility model.
Among the figure, alignment pin 1, pressing plate 2, supporting seat 3, pressing plate guide holder 4, pull bar 5, handle 6, connecting rod 7, guide plate 8, cover plate 9, spacer pin 10, positioning table 11.
The specific embodiment
Below in conjunction with the drawings and specific embodiments the utility model is further described.
Among the embodiment as shown in Figure 1 and Figure 2, a kind of clamped-in style alignment pin is provided with a pressing plate guide holder 4 at supporting seat 3 tops, and pressing plate guide holder 4 positions its bottom surface by the step on the supporting seat 3, is fixed with supporting seat 3 by bolt to be connected.The chute that pressing plate guide holder 4 lateral surfaces are provided with, the chute outside of pressing plate guide holder 4 is provided with cover plate 9, and pressing plate guide holder 4 tops have been bolted alignment pin 1.The inside of alignment pin 1 is provided with the side open groove that communicates with chute, pressing plate 2 can slide up and down in chute and side open groove, pressing plate 2 top bendings form pressure head, pressure head can stretch out from the side open groove of alignment pin 1, alignment pin 1 bottom is provided with positioning table 11, and the cooperation by pressure head 2 and positioning table 11 comes clamping work pieces, and pressing plate 2 is provided with skewed slot, be provided with spacer pin 10 in the skewed slot, be respectively equipped with in the relevant position of pressing plate guide holder 4 and cover plate 9 for the fixing holddown groove of spacer pin 10.The lower end of pressing plate 2 is provided with guide plate 8 by bearing pin cylinder lever connecting rod 5 between pull bar 5 and the supporting seat 3, and pull bar 5 directions of motion are limited, and prevents that pull bar 5 from swinging.Pull bar 5 lower ends and connecting rod 7 are connected by bearing pin, the other end of connecting rod 7 is connected the middle part and is utilized bearing pin to connect with handle, handle 6 one ends and supporting seat 3 are hinged, by pulling the rotation of handle 6, can control pull bar 5 moves up and down, thereby pressing plate 2 is slided up and down, to reach the compression of workpiece and to get loose.
When reality is used, usually come workpiece is positioned with a plurality of these alignment pins.Pressing plate 2 is in the state that gets loose when initial, and handle 6 is positioned at upside, and the pressure head on the pressing plate 2 is positioned at the side open groove inside of alignment pin 1, does not stretch out side open groove.Be installed to workpiece on the alignment pin 1 by locating hole this moment, workpiece carries out Primary Location by positioning table 11, then pulling handle 6 is rotated down, effect by connecting rod 7 and pull bar 5 moves downward pressing plate 2, skewed slot on the pressing plate 2 is subject to the restriction of spacer pin 10, therefore can only slide along spacer pin 10, the pressure head at pressing plate 2 tops stretches out in side open groove, on the workpiece positioning table 11 that is pressed in alignment pin 1 below tightly.After welding is complete, pull handle 6 and rotate up, thereby band dynamic pressure plate 2 moves upward, the pressure head of pressing plate 2 returns in the alignment pin 1 gradually, just can successfully workpiece be taken out from alignment pin 1 afterwards and take out.
Claims (7)
1. clamped-in style alignment pin, it is characterized in that, the pressing plate guide holder (4) that it comprises supporting seat (3) and is fixed on supporting seat (3) top, described pressing plate guide holder (4) top is fixed with alignment pin (1), described pressing plate guide holder (4) is provided with an opening, but the chute that supply plate (2) slides up and down, the inside of described alignment pin (1) is provided with the side open groove that communicates with chute, described pressing plate (2) top is bent to form the pressure head that can stretch out from side open groove, described alignment pin (1) bottom is provided with positioning table (11), and described pressing plate (2) lower end links to each other with the transmission mechanism that controlled superzapping plate (2) moves up and down.
2. clamped-in style alignment pin according to claim 1 is characterized in that, described pressing plate (2) is provided with skewed slot, is provided with the spacer pin (10) that is fixedly connected with pressing plate guide holder (4) in the described skewed slot.
3. clamped-in style alignment pin according to claim 1 and 2, it is characterized in that, described transmission mechanism comprises an end and the handle (6) that supporting seat (3) is flexibly connected, the other end can spin upside down, and the pull bar (5) that is flexibly connected with pressing plate (2) lower end, the connecting rod (7) that is provided with between the middle part of described handle (6) and pull bar (5) lower end.
4. clamped-in style alignment pin according to claim 3 is characterized in that, described supporting seat (3) is provided with the guide plate (8) that pull bar (5) is play the guiding role.
5. clamped-in style alignment pin according to claim 1 is characterized in that, described alignment pin (1) is connected with pressing plate guide holder (4) bolt.
6. clamped-in style alignment pin according to claim 1, it is characterized in that, the chute outside of described pressing plate guide holder (4) is provided with cover plate (9), described cover plate (9) medial surface is provided with the holddown groove that matches with spacer pin (10), and described cover plate (9) is connected with pressing plate guide holder (4) bolt.
7. according to claim 1 and 2 or 5 or 6 described clamped-in style alignment pins, it is characterized in that, be provided with the adjusting pad between described alignment pin (1) and the pressing plate guide holder (4).
