CN202672274U - Ball float type deodorant floor drain - Google Patents
Ball float type deodorant floor drain Download PDFInfo
- Publication number
- CN202672274U CN202672274U CN 201220344407 CN201220344407U CN202672274U CN 202672274 U CN202672274 U CN 202672274U CN 201220344407 CN201220344407 CN 201220344407 CN 201220344407 U CN201220344407 U CN 201220344407U CN 202672274 U CN202672274 U CN 202672274U
- Authority
- CN
- China
- Prior art keywords
- ball
- floor drain
- floating ball
- float
- ball float
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Sewage (AREA)
Abstract
The utility model relates to a floor drain device mounted on a sewage pipeline, in particular to a ball float type deodorant floor drain. The ball float type deodorant floor drain is characterized by comprising a base seat, a floating ball, a guide groove and an upper cover, a water discharge opening is arranged in the bottom portion of the base seat, the floating ball is arranged above the water discharge opening, the upper cover is arranged above the base seat, the guide groove is arranged on the bottom portion of the upper cover, and the floating ball can float up and down in the guide groove. The bottom portion of the floating ball is in the shape of a half ball, and the upper portion of the floating ball is a cylindrical body; or the bottom portion of the floating ball is in the shape of a cone, and the upper portion of the floating ball is a cylindrical body; or the floating ball is in the shape of a round ball body. The ball float type deodorant floor drain has the advantages of being reasonable in design, simple in structure, economical and practical, sealing of an entry of the floor drain can be effectively achieved, stink of the sewage pipeline can be prevented from leaking out, and indoor air quality can be improved.
Description
Technical field
The utility model relates to a kind of floor drain facility that is installed on the sewer pipe, particularly a kind of float ball type anti-foul drain.
Background technology
At present, the sewer pipe floor drain that domestic in the prior art tradition is used is to be made of floor drain base and loam cake, and the outfall of floor drain base is the U-lag mouth, and loam cake is inserted in the U-lag mouth, seals the gas of sewer pipeline system by water seal.The floor drain of this structure is in use owing to existing: the negative pressure that 1, produces because of water flow in the pipeline can break water seal leaks foul smell; 2, when for a long time not during water, the water evaporation in the floor drain U-lag mouth also can destroy water seal leaks foul smell, and the unfailing performance of therefore sealing the excessive gas of sewer pipe is relatively poor.
Summary of the invention
The utility model has overcome the defective of above-mentioned existence, and purpose is for improving the sealing effectiveness of floor drain, solve the excessive problem of gas in the sewer pipe, a kind of float ball type anti-foul drain being provided.
The utility model float ball type anti-foul drain content Description:
The utility model float ball type anti-foul drain, it is characterized in that: formed by base, ball float, gathering sill and loam cake, bottom at base is provided with outfall, ball float be arranged on outfall above, loam cake be arranged on base above, the bottom of loam cake is provided with gathering sill, and ball float fluctuates in gathering sill.
Ball float be shaped as the bottom be that hemisphere top is cylinder; Or the bottom is that epiconus is cylinder; Or spherosome.
The utility model float ball type anti-foul drain has reasonable in design, simple in structure, economical and practical characteristics, can effectively solve the floor drain inlet seal, stops the gas in the sewer pipe excessive, improves indoor air quality.
Description of drawings

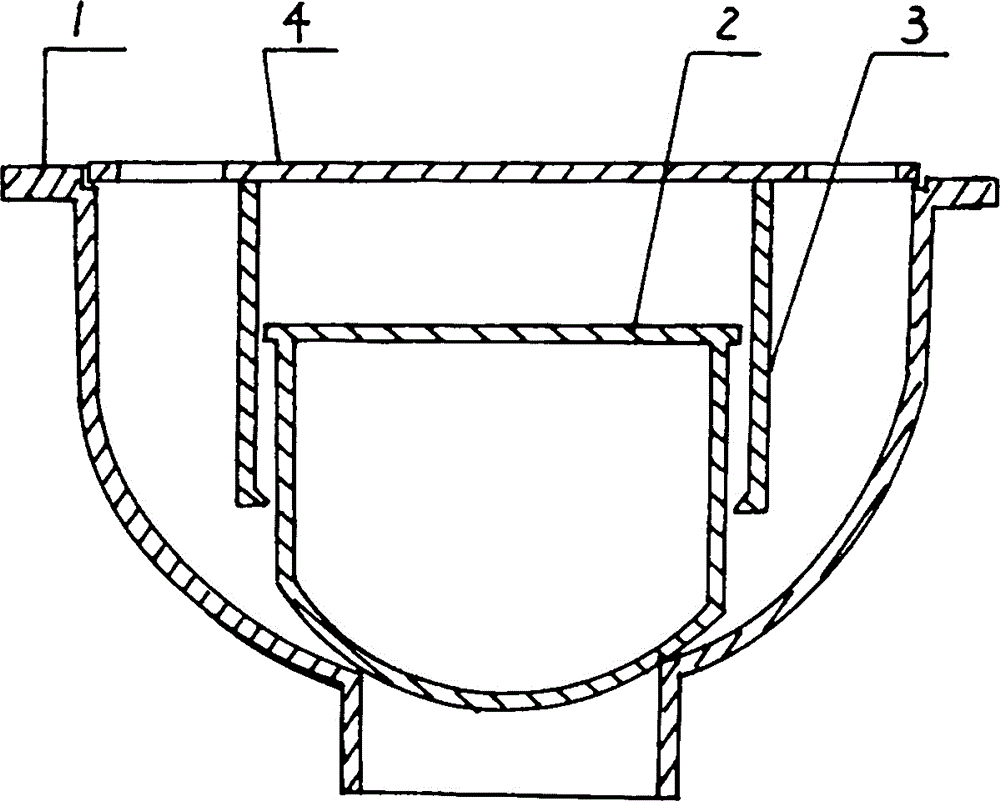

Fig. 1 is the float ball type anti-foul drain structural representation;
Fig. 2 is the float ball type anti-foul drain top view;
Among the figure: the 1st, base, the 2nd, ball float, the 3rd, gathering sill, the 4th, loam cake.
The specific embodiment
The utility model float ball type anti-foul drain is achieved in that to do below in conjunction with accompanying drawing and specifies.See Fig. 1, Fig. 2, float ball type anti-foul drain, by: base 1, ball float 2, gathering sill 3 and loam cake 4 form, bottom at base 1 is provided with outfall, ball float 2 be arranged on outfall above, loam cake 4 be arranged on base 1 above, the bottom of loam cake 4 is provided with gathering sill 3, ball float 2 fluctuates in gathering sill 3.
The utility model float ball type anti-foul drain, the bottom of base 1 is outfall, is the sealing combination between ball float 2 and the base 1 bottom discharge mouth, after sewage flows into floor drains by loam cake 4, discharges because the buoyancy of water effect separates sewage with ball float 2 picking-ups with outfall; The buoyancy of water effect disappeared after sewage was discharged, and ball float 2 falls automatically, and under the effect of gathering sill 3 guiding, ball float 2 drops on the outfall of base 1 and with its sealing is combined the excessive foul smell of sealing sewer pipe.
The utility model float ball type anti-foul drain has reasonable in design, simple in structure, economical and practical characteristics, can effectively solve the floor drain inlet seal, stops sewer pipe gas excessive, improves indoor air quality.
Claims (2)
1. float ball type anti-foul drain, it is characterized in that: formed by base (1), ball float (2), gathering sill (3) and loam cake (4), bottom at base (1) is provided with outfall, ball float (2) be arranged on outfall above, loam cake (4) be arranged on base (1) above, the bottom of loam cake (4) is provided with gathering sill (3), and ball float (2) fluctuates in gathering sill (3).
2. float ball type anti-foul drain according to claim 1 is characterized in that: described ball float (2) to be shaped as the bottom be that hemisphere top is cylinder; Or the bottom is that epiconus is cylinder; Or spherosome.
