Abstract
The utility model provides a fixing structure for an automobile decorative strip, belongs to the technical field of machinery, and solves the problem that the existing fixing structures for automobile decorative strips are unreliable in assembling and fall easily. The fixing structure for the automobile decorative strip comprises a base, the decorative strip and an assembling part detachably connected to the base. The decorative strip and the assembling part are located on the same side of the base. The fixing structure for the automobile decorative strip further comprises a connector integrated with the decorative strip. The connector is connected between the base and the assembling part through a detachable structure. The fixing structure for the automobile decorative strip is firm in assembling, falls less easily and is high in universality, attractiveness of an automobile body is improved, and attractive decoration is achieved.
Description
Technical field
The utility model belongs to field of mechanical technique, relates to a kind of fixed sturcture of automotive trim strip.
Background technology
Along with the development of society and the raising of people's living standard, automobile has also become the daily walking-replacing tool commonly used of going out of present people from original luxury.In today that automobile is popularized, people not only pay close attention to its inherent quality and performance, and personalization is also more and more paid attention to and pursue to the beauty decoration of automobile appearance.Existing automobile is all by increasing or replacing some attached article, to improve aesthetic property, practicality, the traveling comfort of car surface and inner room.One of major part that automotive trim strip is decorated as automobile external and inner room, its aesthetic property, durable wear-resistant and the convenience of installing and using make it become the indispensable decorative element of automobile.
Existing automotive trim strip all is to adopt Acrylic Foam Tape directly to stick on the automobile or with buckle to be fastened on the automobile.Such as Chinese patent application (notification number: CN 202124001U) disclose a kind of Anti-scrape decoration strip for automobile, it comprises the upholstery border body of strip, described upholstery border body upper surface is coated with aluminium foil, described aluminium foil upper surface load has the PVC top layer, described upholstery border body lower surface is stained with adhesive tape, during installation, as long as adhesive tape is sticked on the car body.Although the assembling of this automotive trim strip is comparatively convenient and swift, more not firm, can because the vibration that produces in the process of moving of automobile or by wind and weather and so that the adhesive tape on the upholstery border be worn, adhesive force weakens, thereby cause coming off, lose decorative effect, affect the aesthetic property of automobile.
Summary of the invention
The purpose of this utility model is to have the problems referred to above for existing technology, and it is firm to have proposed a kind of assembling, the fixed sturcture of the automotive trim strip of difficult drop-off.
The purpose of this utility model can realize by following technical proposal: a kind of fixed sturcture of automotive trim strip, automobile comprises substrate, upholstery border and is detachably connected on assembly parts on the described substrate, described assembly parts and upholstery border all are positioned at the same side of described substrate, it is characterized in that, this fixed sturcture comprises the attaching parts that is connected as a single entity with described upholstery border, and described attaching parts is connected between described substrate and the assembly parts by described demountable structure.
The fixed sturcture of this automotive trim strip has changed the assembling mode of traditional decoration bar, the design of employing rhythmo structure, upholstery border by and its attaching parts that is connected as a single entity be assemblied between substrate and the assembly parts, assembling pressure by substrate and assembly parts is fixedly clamped it, it is comparatively firm to assemble, the vibration that can not produce in the process of moving because of automobile or come off by wind and weather, the aesthetic property of automobile is also better after the assembling simultaneously, satisfies modern people to the individual requirement of automobile appearance beauty decoration.
In the fixed sturcture of above-mentioned automotive trim strip, described demountable structure is buckle and draw-in groove, and described buckle is connected on the described assembly parts, and described draw-in groove is arranged on the described substrate, the corresponding setting with draw-in groove of described buckle.Assembly parts are installed on the substrate by the mating reaction of buckle and draw-in groove, and the assembling pressure by between the two is fixedly clamped upholstery border.
In the fixed sturcture of above-mentioned automotive trim strip, have respectively connecting portion one and the connecting portion two that is connected with described attaching parts on described substrate and the assembly parts.Can upholstery border is well fixing with the effect that is positioned at the connecting portion two on the assembly parts by the connecting portion one that is positioned on the substrate, install also comparatively easy.
In the fixed sturcture of above-mentioned automotive trim strip, described connecting portion one or connecting portion two are provided with several knock holees, and described attaching parts is positioned on described connecting portion one or the connecting portion two by locating dowel pin.Attaching parts is positioned on the connecting portion two of the connecting portion one of substrate or assembly parts by locating dowel pin, thereby upholstery border is played dual fixation, make its assembling more firmly, difficult drop-off.
In the fixed sturcture of above-mentioned automotive trim strip, between described attaching parts and the substrate, all be tightly connected by sealing member between attaching parts and the assembly parts.Be between upholstery border body and substrate and the assembly parts and be tightly connected, when playing the beautiful decoration effect, well solved again the sealing problem of assembly clearance between assembly parts and the substrate.
Compared with prior art, the fixed sturcture of this automotive trim strip has the following advantages:
1, adopt the rhythmo structure design, upholstery border is connected between substrate and the assembly parts and by fastener and links to each other with substrate, and the compression that is connected with assembly parts by substrate and the double action of fastener are fixed, assemble comparatively firm, difficult drop-off.
2, upholstery border has hidden the assembly clearance between substrate and the assembly parts, from only seeing in appearance an elongated upholstery border is arranged between the two, has increased the aesthetic feeling of vehicle body, and the beautiful decoration that plays is better.
3, be applicable to apply to each place that has piecemeal spare to cooperate on the automobile, commonality is higher.
Description of drawings
Fig. 1 is the assembling scheme drawing of the fixed sturcture of this automotive trim strip.

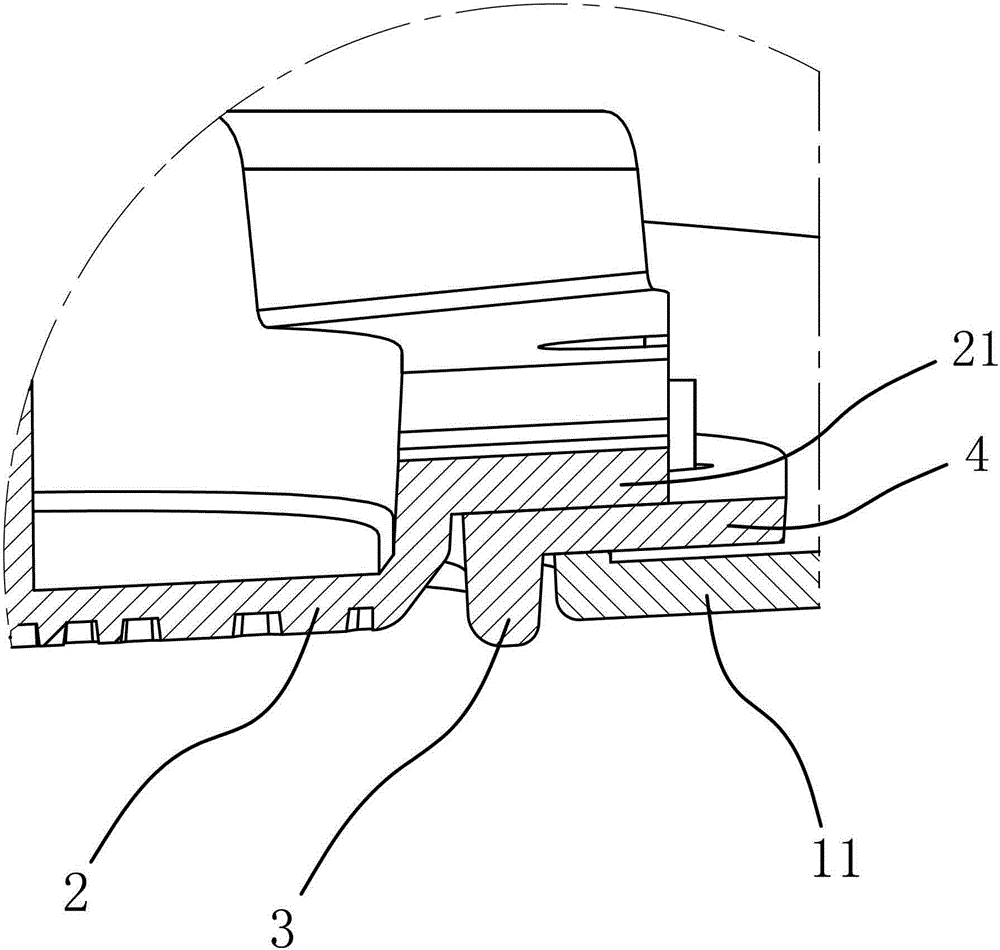

Fig. 2 is the part sectional view of the fixed sturcture of this automotive trim strip.
Among the figure, 1, substrate; 11, connecting portion one; 2, assembly parts; 21, connecting portion two; 3, upholstery border; 4, attaching parts.
The specific embodiment
Below be specific embodiment of the utility model and by reference to the accompanying drawings, the technical solution of the utility model is further described, but the utility model be not limited to these embodiment.
Shown in Fig. 1-2, the fixed sturcture of this automotive trim strip, automobile comprises substrate 1, upholstery border 3 and is detachably connected on assembly parts on the described substrate 1, assembly parts and upholstery border 3 all are positioned at the same side of described substrate 1, this fixed sturcture comprises the attaching parts 4 that is connected as a single entity with described upholstery border 3, and attaching parts 4 is connected between substrate 1 and the assembly parts by demountable structure.
More particularly, demountable structure is buckle and draw-in groove, and buckle is connected on the assembly parts, and draw-in groove is arranged on the substrate 1, the corresponding setting with draw-in groove of buckle.Have respectively connecting portion 1 and the connecting portion 2 21 that is connected with described attaching parts 4 on substrate 1 and the assembly parts.Connecting portion 1 or connecting portion 2 21 are provided with several knock holees, and attaching parts 4 is positioned on described connecting portion 1 or the connecting portion 2 21 by locating dowel pin.Between attaching parts 4 and the substrate 1, all be tightly connected by sealing member between attaching parts 4 and the assembly parts.
The fixed sturcture of this automotive trim strip adopts the rhythmo structure design, upholstery border 3 is connected between substrate 1 and the assembly parts 2 and is positioned on the connecting portion 2 21 with the connecting portion 1 of substrate 1 or assembly parts 2 by locating dowel pin, be fixed by the double action of substrate 1 with assembly parts 2 assembling pressurees and locating dowel pin, assemble comparatively firm, the vibration that can not produce in the process of moving because of automobile or come off by wind and weather.Upholstery border 3 has hidden the assembly clearance between substrate 1 and the assembly parts 2, from only seeing in appearance an elongated upholstery border is arranged between the two, the aesthetic feeling of the vehicle body that increases, the beautiful decoration that plays is better, satisfy modern people to the individual requirement of automobile appearance beauty decoration, and be applicable to apply to that each has the place that two parts match and install on the automobile, commonality is higher.
Specific embodiment described herein only is to the explanation for example of the utility model spirit.The utility model person of ordinary skill in the field can make various modifications or replenishes or adopt similar mode to substitute described specific embodiment, but can't depart from spirit of the present utility model or surmount the defined scope of appended claims.
Although this paper has more used the terms such as substrate 1, connecting portion 1, assembly parts 2, connecting portion 2 21, upholstery border 3, attaching parts 4, do not get rid of the possibility of using other term.Using these terms only is in order to describe more easily and explain essence of the present utility model; They are construed to any additional restriction all is contrary with the utility model spirit.
Claims (5)
1. the fixed sturcture of an automotive trim strip, automobile comprises substrate (1), upholstery border (3) and is detachably connected on assembly parts (2) on the described substrate (1), described assembly parts (2) and upholstery border (3) all are positioned at the same side of described substrate (1), it is characterized in that, this fixed sturcture comprises the attaching parts (4) that is connected as a single entity with described upholstery border (3), and described attaching parts (4) is connected between described substrate (1) and the assembly parts (2) by described demountable structure.
2. the fixed sturcture of automotive trim strip according to claim 1, it is characterized in that described demountable structure is buckle and draw-in groove, described buckle is connected on the described assembly parts (2), described draw-in groove is arranged on the described substrate (1), the corresponding setting with draw-in groove of described buckle.
3. the fixed sturcture of automotive trim strip according to claim 1 and 2 is characterized in that, has respectively connecting portion one (11) and the connecting portion two (21) that is connected with described attaching parts (4) on described substrate (1) and the assembly parts (2).
4. the fixed sturcture of automotive trim strip according to claim 3, it is characterized in that, described connecting portion one (11) or connecting portion two (21) are provided with several knock holees, and described attaching parts (4) is positioned on described connecting portion one (11) or the connecting portion two (21) by locating dowel pin.
5. the fixed sturcture of automotive trim strip according to claim 1 and 2 is characterized in that, between described attaching parts (4) and the substrate (1), all be tightly connected by sealing member between attaching parts (4) and the assembly parts (2).
