Abstract
本实用新型要解决的技术问题是提供了一种伞形太阳能电池板，包括，太阳能板、凹槽、伞架结构、支架、支撑架构成。所述伞架结构与支撑架连接。本实用新型的有益效果：本产品，结构简单，维护方便，吸收太阳能量大，本实用新型使用范围广，节能省电，经济效益显著。
The technical problem to be solved by the utility model is to provide an umbrella-shaped solar cell panel, which is composed of a solar panel, a groove, an umbrella frame structure, a bracket, and a support frame. The umbrella stand structure is connected with the supporting frame. Beneficial effects of the utility model: the product has simple structure, convenient maintenance, large solar energy absorption, wide application range, energy saving and power saving, and remarkable economic benefits.
Description
技术领域 technical field
本实用新型是属于太阳能技术应用领域，特别涉及一种伞形太阳能电池板。 The utility model belongs to the application field of solar energy technology, in particular to an umbrella-shaped solar battery panel. the
背景技术 Background technique
太阳能，被誉为21世纪，最洁净的能源之一。现在，大多采用太阳能电池板来吸取太阳能，但现有电池板，占用空间大，当没有太阳或者需要收回时很难收回，造成了不必要的浪费。在造价上来讲，用材多，结构复杂，吸收太阳能的回收率很低，为此，需要进行技术改进。 Solar energy is known as one of the cleanest energy sources in the 21st century. Now, most solar panels are used to absorb solar energy, but the existing panels take up a lot of space and are difficult to recover when there is no sun or when they need to be recovered, resulting in unnecessary waste. In terms of cost, there are many materials used, the structure is complex, and the recovery rate of absorbing solar energy is very low. For this reason, technical improvement is needed. the
实用新型内容 Utility model content
本实用新型要解决的技术问题是提供了一种伞形太阳能电池板。 The technical problem to be solved by the utility model is to provide an umbrella-shaped solar panel. the
本实用新型是通过以下措施来实现的： The utility model is achieved through the following measures:
一种伞形太阳能电池板，包括，太阳能板、凹槽、伞架结构、支架、支撑架构成。 An umbrella-shaped solar cell panel, comprising a solar panel, a groove, an umbrella frame structure, a bracket, and a support frame.
所述伞架结构与支撑架连接。 The umbrella stand structure is connected with the supporting frame. the
本实用新型的有益效果：本产品，结构简单，维护方便，吸收太阳能量大，本实用新型使用范围广，节能省电，经济效益显著。 Beneficial effects of the utility model: the product has simple structure, convenient maintenance, large solar energy absorption, wide application range, energy saving and remarkable economic benefit. the
附图说明 Description of drawings
下面结合附图和具体实施例对本实用新型作进一步详细说明。 Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail. the

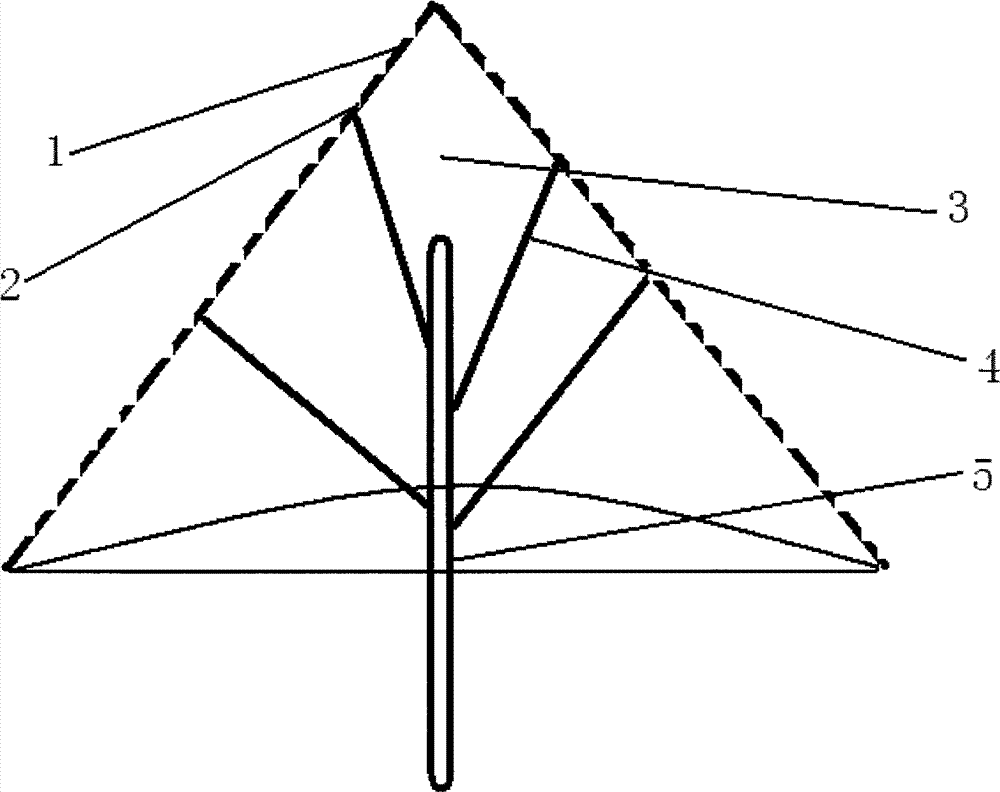

图1为本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model. the
具体实施方式 Detailed ways
如图1所示的一种伞形太阳能电池板，包括：1、太阳能板，2、凹槽，3、伞架结构，4、支架，5、支撑架。 An umbrella-shaped solar cell panel as shown in FIG. 1 includes: 1. a solar panel, 2. a groove, 3. an umbrella stand structure, 4. a bracket, and 5. a support frame. the
所述伞架结构3与支架4连接。 The umbrella stand structure 3 is connected with the bracket 4 . the
所述凹槽2与太阳能板1连接。 The groove 2 is connected with the solar panel 1 . the
本实用新型伞形太阳能电池板是这样实施的：使用本太阳能电池板，可以大大提高吸收太阳能的量，位于太阳能板1上的凹槽2增加了朝阳面积，可以更多地吸收太阳能。当使用时，先把支撑架5架起，接着撑起伞架结构3、支架4，这时位于伞面上的带凹槽2的太阳能板1就可以进行发电、吸收太阳能了。 The umbrella-shaped solar cell panel of the utility model is implemented in the following way: the amount of solar energy absorbed can be greatly improved by using the solar cell panel, and the groove 2 on the solar panel 1 increases the sun-facing area, which can absorb more solar energy. When in use, the support frame 5 is set up earlier, and then the umbrella frame structure 3 and the support 4 are propped up. At this moment, the solar panel 1 with the groove 2 positioned on the umbrella surface can generate electricity and absorb solar energy. the
由以上技术方案所述，可见本实用新型的结构简单，操作安全，方便、实用，它集合了，造型优美。 From the above technical solutions, it can be seen that the utility model is simple in structure, safe in operation, convenient and practical, and it is assembled and beautiful in shape. the
