The utility model discloses an energy-saving induction lamp which comprises a lamp shell and a primary light source arranged inside the lamp shell. A secondary light source and an infrared induction device which is used to induce whether a person moves in a certain range around the lamp are arranged inside the lamp shell, and the secondary light source is a normally-opened light source. The induction lamp further comprises a control circuit module used to control the primary light source to work, wherein the control circuit module comprises a signal receiving and processing circuit and a primary light source drive circuit, wherein the signal receiving and processing circuit is connected with the infrared induction device and used to receive and process induction signals emitted by the infrared induction device and to send out control signals; and the primary light source drive circuit is connected with the signal receiving and processing circuit and control the primary light source to work. The energy-saving induction lamp has the advantages of being good in energy-saving effect.
Description
Technical field
The utility model relates to a kind of energy-conservation sense light.
Background technology
In the floor corridor of the buildings such as office building or hospital ward, the illumination of need always turning on light evening.At present, mostly adopt fluorescent lighting fixture as lighting installation, no matter in the floor corridor nobody is arranged, lamp is light yellow always always, can cause unnecessary energy waste.If during the no one lamp is turned off, although the energy energy savings when the someone comes again, then can be brought more inconvenience.Therefore be necessary to design a kind of light fixture, adopt major and minor two kinds of light sources, main light source brightness is high, secondary light-source brightness is low, and secondary light source is in normal bright state always, when have the people near the time main light source start working, main light source quits work when the people leaves away, to reach the purpose of energy savings.
The utility model content
The technical problems to be solved in the utility model provides a kind of energy-conservation sense light, adopts major and minor two kinds of light sources to realize key lighting and floor light, to reach the purpose of energy savings.
In order to solve the problems of the technologies described above, the utility model provides a kind of energy-conservation sense light of following structure, comprise lamp housing and be installed on the interior main light source of lamp housing, it is characterized in that: secondary light source is installed in the lamp housing and is used for whether having in the certain limit around the induction light fixture infrared induction device of people's activity, described secondary light source is normal bright light source; Described sense light also comprises the control circuit module of control main light source work, and described control circuit module comprises and is connected to receive the induced signal that the infrared induction device sends with described infrared induction device and processes the signal receiving processing circuit that sends control signal, be connected and control the main light source drive circuit of main light source work with described signal receiving processing circuit.
Described control circuit module also comprises the delay circuit that is connected to control the main light source drive circuit works time with described main light source drive circuit.
Described main light source is fluorescent tube.
Described secondary light source is LED, and described control circuit module also comprises the secondary light source driving circuit that is connected with secondary light source.
The utility model has the advantages of and be: energy-conservation sense light provided by the utility model adopts major and minor two kinds of light sources to realize key lighting and floor light, secondary light source is the weak light source of Chang Liang, long-term illumination is provided, when the people enters induction zone, main light source work provides brightness higher light, making things convenient for the movable or work of people, after the people leaves away, main light source quits work, and can realize the purpose of energy savings by the setting of major-minor light source.
Description of drawings
Below in conjunction with accompanying drawing the specific embodiment of the present utility model is described in further detail:

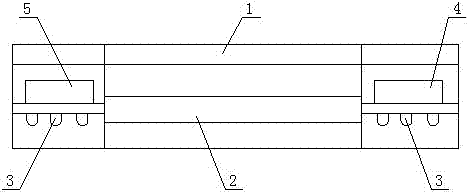

Fig. 1 is structural representation of the present utility model;
Fig. 2 is the utility model control principle schematic diagram.
The specific embodiment
As shown in Figure 1, energy-conservation sense light comprises lamp housing 1 and is installed on main light source 2 in the lamp housing 1, secondary light source 3 is installed in the lamp housing 1 and is used for whether having in the certain limit around the induction light fixture infrared induction device 4 of people's activity, and described secondary light source 3 is normal bright light source; Main light source 2 adopts fluorescent tube, and secondary light source 3 adopts LED.Described sense light also comprises the control circuit module 5 of control fluorescent tube and LED work.
As shown in Figure 2, described control circuit module comprises the secondary light source driving circuit that is connected with LED, is connected to receive the induced signal that the infrared induction device sends with described infrared induction device and processes the main light source drive circuit that sends the signal receiving processing circuit of control signal, be connected with described signal receiving processing circuit and control main light source work and is connected to control the delay circuit of main light source drive circuit works time with described main light source drive circuit.
Secondary light source is always in running order after the energy-conservation sense light energising, when around if the infrared induction device is sensed the people being arranged, then send induced signal, the signal receiving processing circuit receive send behind the induced signal control signal to the main light source drive circuit to light main light source, if the sensing device induction is closed behind the main light source delay working certain hour less than there being the people to exist.
Claims (4)
1. energy-conservation sense light comprises lamp housing and is installed on main light source in the lamp housing, it is characterized in that: secondary light source is installed in the lamp housing and is used for whether having in the certain limit around the induction light fixture infrared induction device of people's activity, described secondary light source is normal bright light source; Described sense light also comprises the control circuit module of control main light source work, and described control circuit module comprises and is connected to receive the induced signal that the infrared induction device sends with described infrared induction device and processes the signal receiving processing circuit that sends control signal, be connected and control the main light source drive circuit of main light source work with described signal receiving processing circuit.
2. energy-conservation sense light as claimed in claim 1, it is characterized in that: described control circuit module also comprises the delay circuit that is connected to control the main light source drive circuit works time with described main light source drive circuit.
3. energy-conservation sense light as claimed in claim 1, it is characterized in that: described main light source is fluorescent tube.
4. energy-conservation sense light as claimed in claim 1, it is characterized in that: described secondary light source is LED, described control circuit module also comprises the secondary light source driving circuit that is connected with secondary light source.
